WEB Catalog

Product Information ?  WEB Catalog  ? Modular F.R.L./Pressure Control Equipment  ? Modular F.R.L.

Modular F.R.L.

OSHA Standard Compliant
Pressure Relief 3-Port Valve with Locking Holes VHS□-D/VHS□W-D

    ?Panel mount specification VHS30EW-D Series [New]
    ?Improved flow rate characteristics: Max. 88% increase (VHS40-04-D)
    ?Energy saving: Zero blow-by of the air during switching of the handle
    ?OSHA (Occupational Safety and Health Administration) standard
    　compliant
    ?Safety measure: Can prevent accidents caused by inadvertent air supply
    　problems
    　With the indicator window, Double action
    ?Lower pressure drop contributing to energy saving
    　Pressure drop: reduced by up to 73%

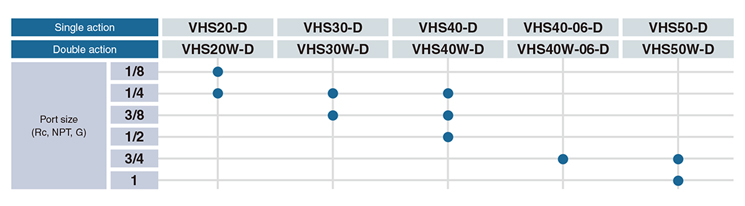

SeriesDescriptionKnob operationPort size
VHS20-DPressure relief
3-port valve with
locking holes		Single action1/8，1/4
VHS30-DPressure relief
3-port valve with
locking holes		Single action1/4，3/8
VHS40-DPressure relief
3-port valve with
locking holes		Single action1/4，3/8，1/2
VHS40-06-DPressure relief
3-port valve with
locking holes		Single action3/4
VHS50-DPressure relief
3-port valve with
locking holes		Single action3/4，1
VHS20W-DPressure relief
3-port valve with
locking holes		Double action1/8，1/4
VHS30W-DPressure relief
3-port valve with
locking holes		Double action1/4，3/8
VHS40W-DPressure relief
3-port valve with
locking holes		Double action1/4，3/8，1/2
VHS40W-06-DPressure relief
3-port valve with
locking holes		Double action3/4
VHS50W-DPressure relief
3-port valve with
locking holes		Double action3/4，1

Features

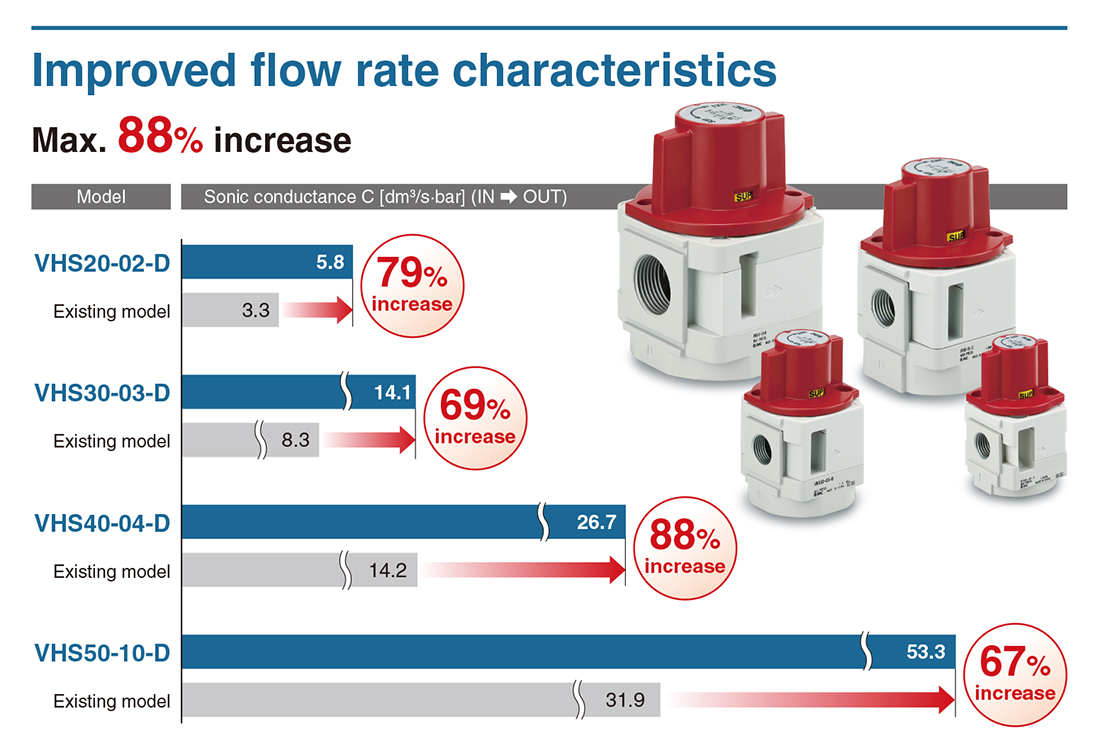

Improved flow rate characteristics: Max. 88% increase＊

* VHS40-04-D

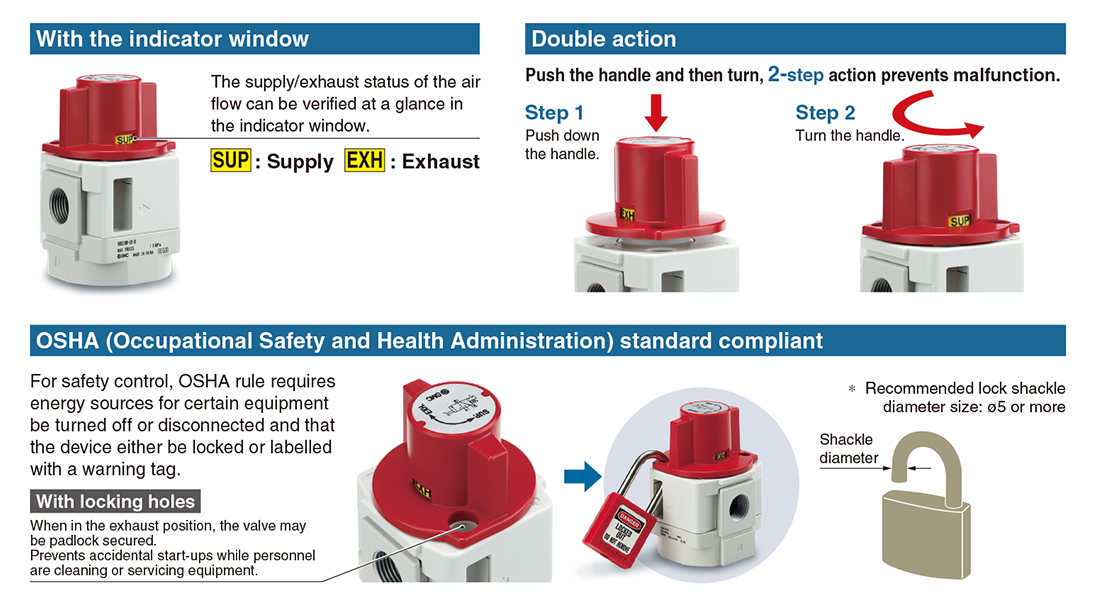

Safety measure: Can prevent accidents caused by inadvertent air supply problems

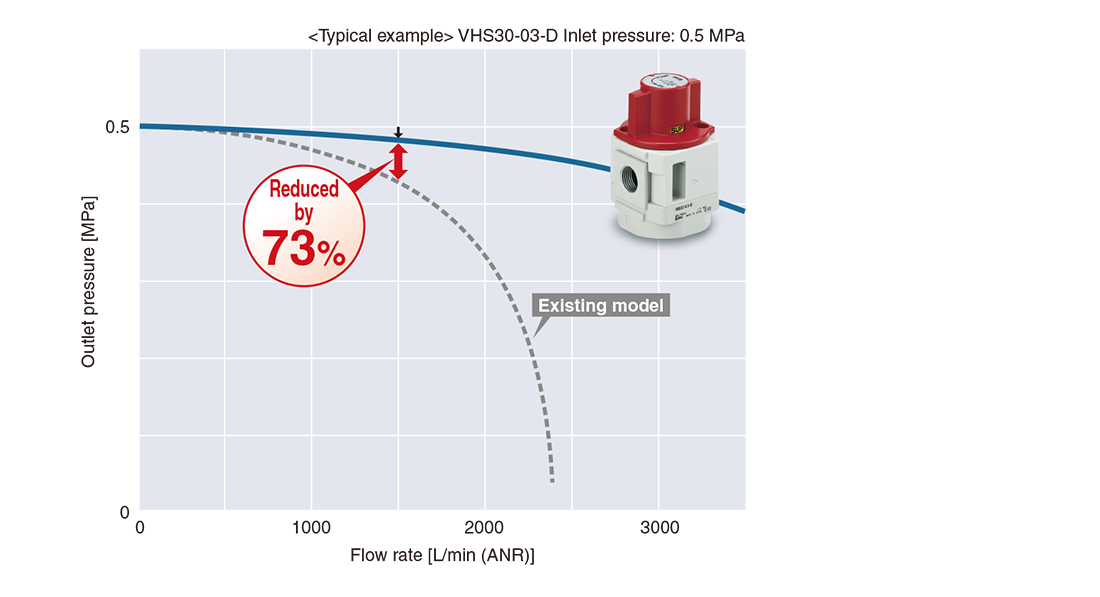

Lower pressure drop contributing to energy saving Pressure drop: reduced by up to 73%

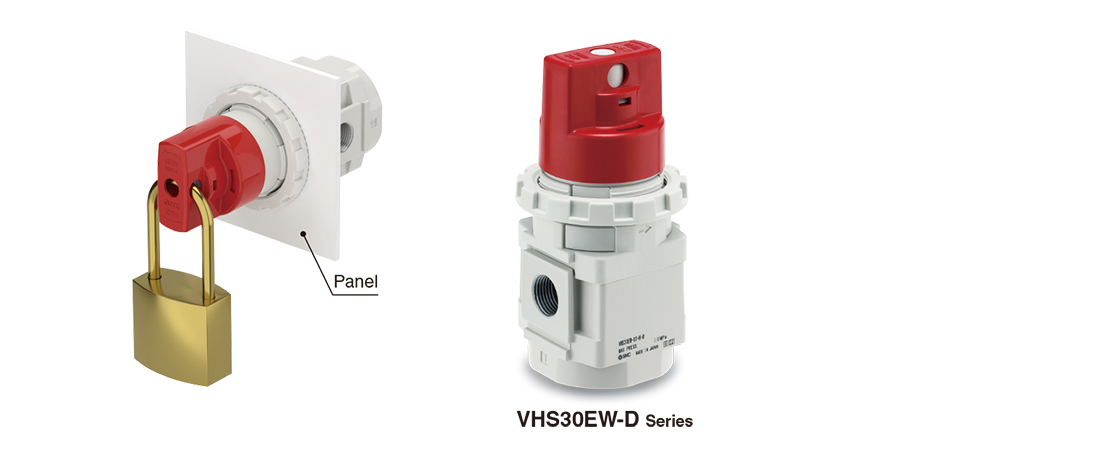

Double action Panel mount specification New

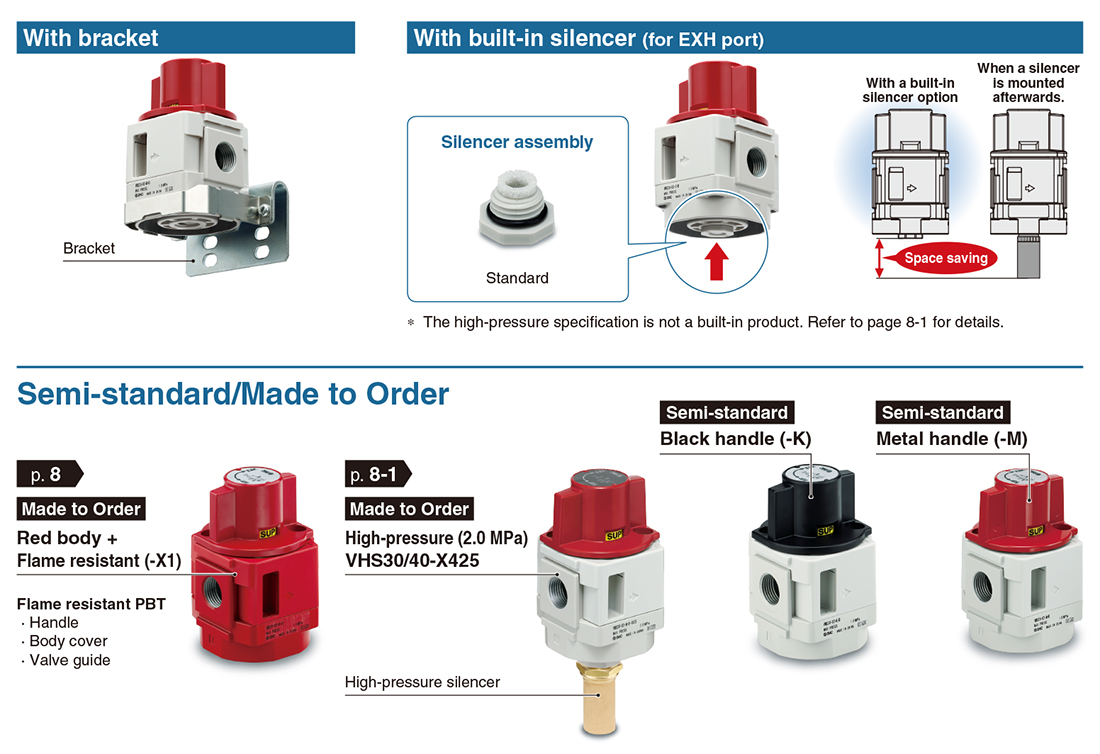

Options

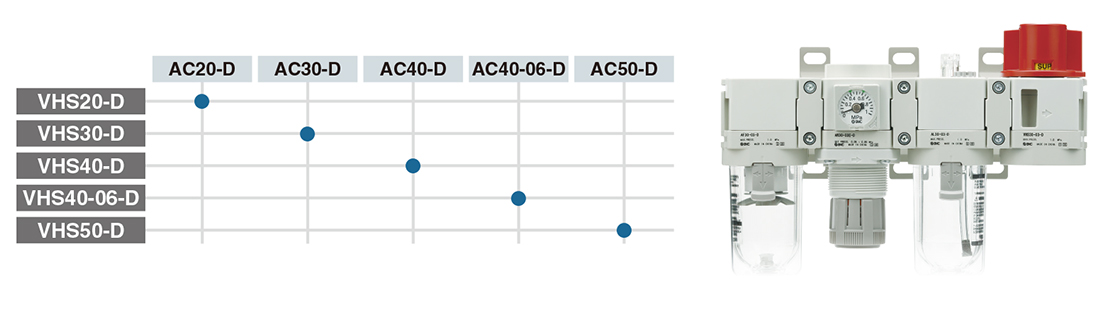

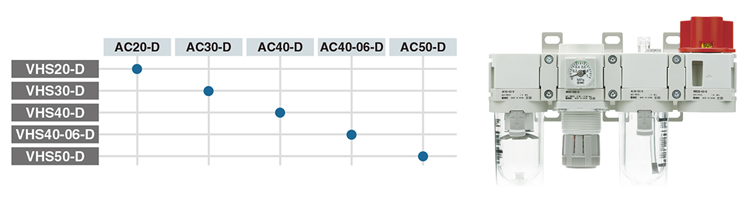

Modular design with uniform body style to F.R.L units

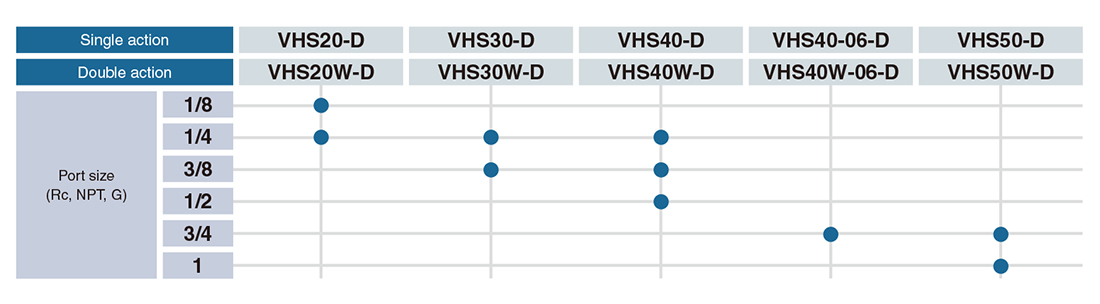

Variations
