WEB Catalog

Product Information ?  WEB Catalog  ? Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other)  ? Air Suction Filters

Air Suction Filters

In-line Air Filter ZFC

    ?Operating pressure range: ?100 kPa to 1.0 MPa
    　Both positive pressure and vacuum pressure can be used with one unit.

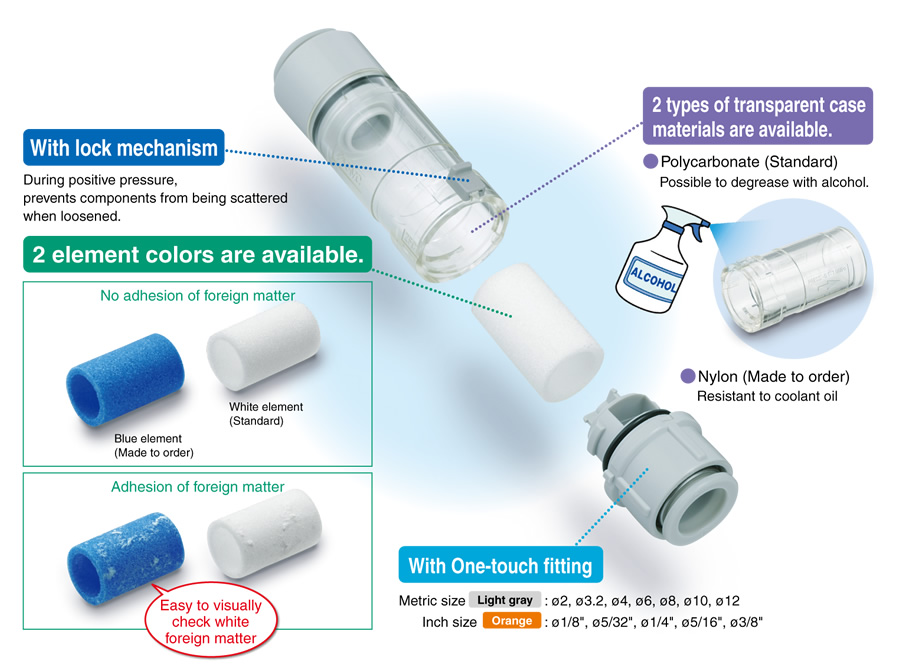

    ?With lock mechanism
    　During positive pressure, it prevents components from being scattered when they are loosened.
    ?2 types of transparent case materials are available:
    　Polycarbonate (Standard), Nylon (Made to order)

    Note 1) Supply pressure: 0.7 MPa, Differential pressure: 30 kPa
    Note 2) Made to order

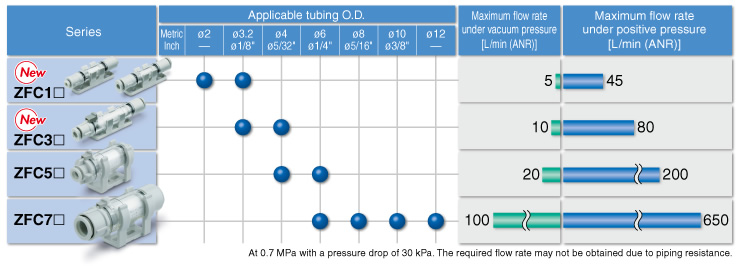

SeriesApplicable tubing O.D.
Metric		Applicable tubing O.D.
Inch		Flow rate
L/min (ANR)Note 1)
Positive pressure		Flow rate
L/min (ANR)
Vacuum pressure		Filtration (μm)
ZFC1□φ2, φ3.2φ1/8''15 / 452 / 55，10Note 2）
ZFC3□φ3.2, φ4φ1/8'', φ5/32''50 / 807 / 105，10Note 2）
ZFC5□φ4, φ6φ5/32'', φ1/4''100 / 20010 / 205，10Note 2）
ZFC7□φ6, φ8 , φ10, φ12φ1/4'', φ5/16'', φ3/8''250 / 450 / 550 / 65030 / 70 /80 / 1005，10Note 2）

Features

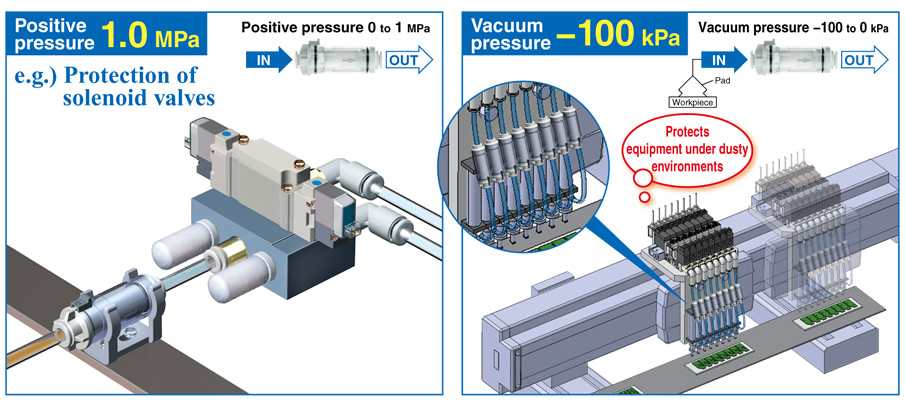

■Both positive pressure and vacuum pressure can be used with one unit!

Operating pressure range: -100 kPa to 1.0 MPa (20°C)
Filtration 5 μm

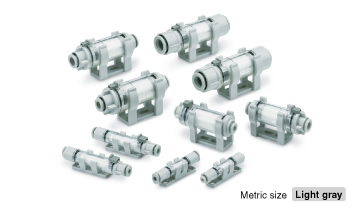

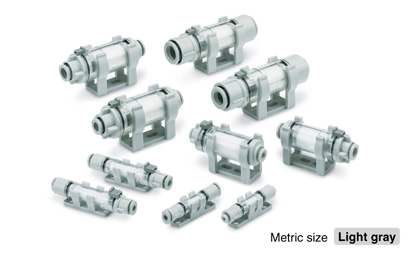

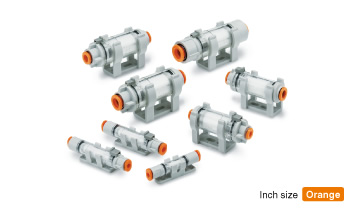

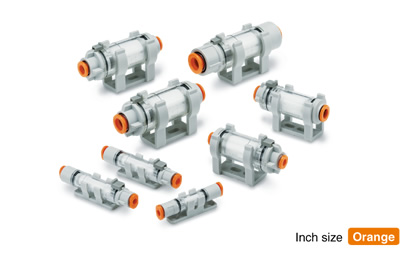

■Series Variations 4 sizes 18 models

Metric size: 10 models

Inch size: 8 models

■Other Features

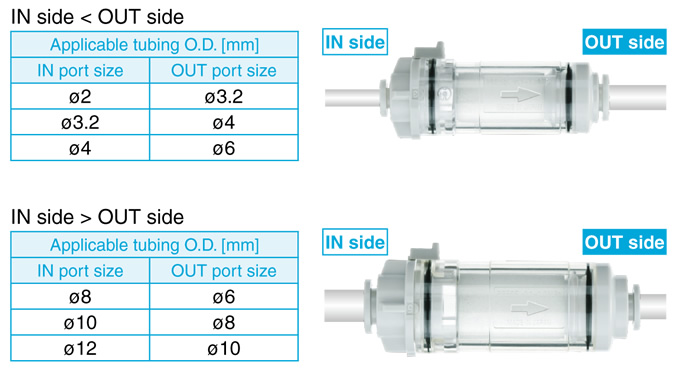

Available with different bores on IN and OUT sides!（Made to Order）


2 levels of filtration rating are available.

  • 5 μm
  • 10 μm (Made to order)

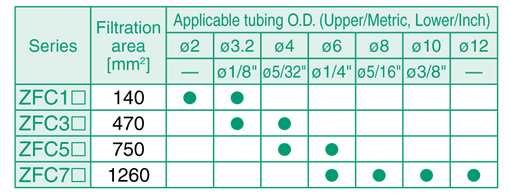

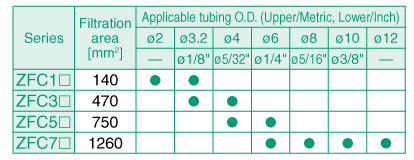

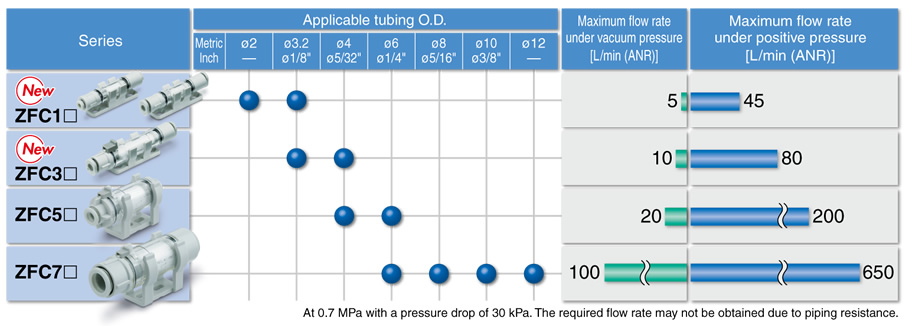

Selectable piping port sizes

Up to four types of piping port sizes can be selected with the same filtration area.

Application examples

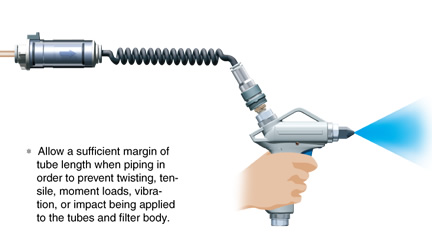

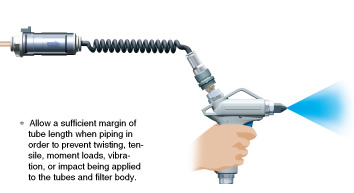

Improvement in air quality of air blow

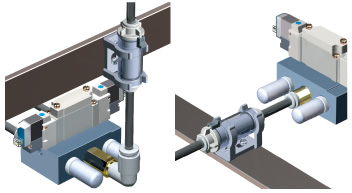

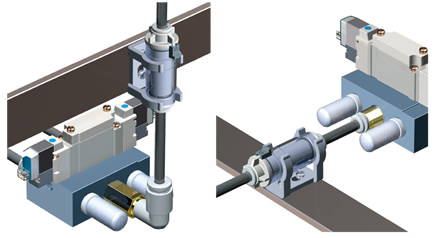

Flexible mounting orientation

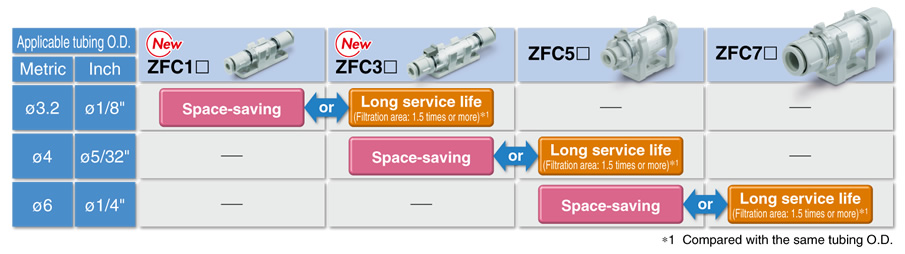

■Two types of bodies can be selected with the same piping size.

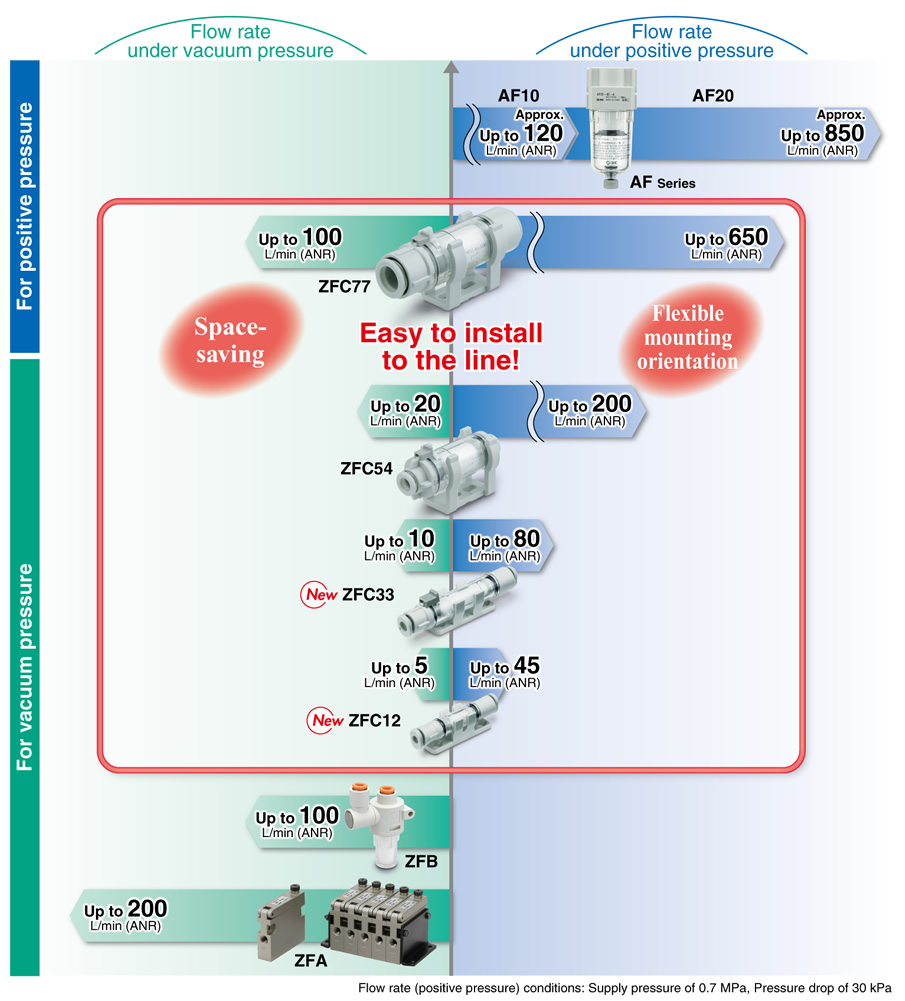

■Filter Variations
