Industrial Device Communication Equipment: IO-Link Compatible Products

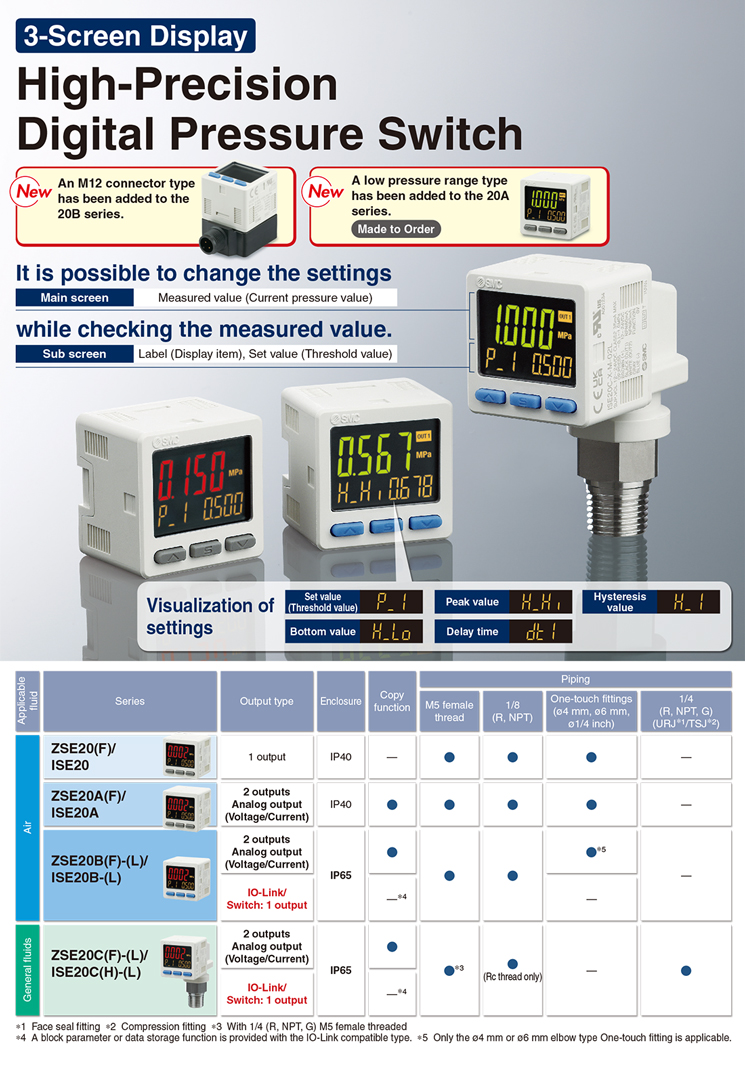

3-Screen Display High-Precision Digital Pressure Switch
ZSE20□(F)/ISE20□

    ?Visualization of settings
    ?Simple 3-step setting
    ?Easy screen switching
    　It is possible to change the settings while checking the measured value.
    ?Delay time:1.5 ms or less
    ?Current consumption: 25 mA or less
    ?IO-Link compatible
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 3-Screen Display High-Precision Digital Pressure Switch
    ZSE20□(F)/ISE20□
    Manual
    Series Type View search result
    ZSE20（F）
    ISE20    		Compound pressure
    Vacuum pressure
    Positive pressure    		View search result
    ZSE20A（F）
    ISE20A    		Compound pressure
    Vacuum pressure
    Positive pressure    		View search result
    ZSE20AF-X576 to 580
    (Made to Order)    		Compound pressureView search result
    ZSE20B（F）-(L)
    ISE20B-(L)    		Compound pressure
    Vacuum pressure
    Positive pressure    		View search result
    ZSE20C（F）-(L)
    ISE20C（H）-(L)    		Compound pressure
    Vacuum pressure
    Positive pressure    		View search result
  • 3-Screen Display High-Precision Digital Pressure Switch
    ZSE20□(F)/ISE20□
    DoC
    Series Type View search result
    ZSE20（F）
    ISE20    		Compound pressure
    Vacuum pressure
    Positive pressure    		View search result
    ZSE20A（F）
    ISE20A    		Compound pressure
    Vacuum pressure
    Positive pressure    		View search result
    ZSE20AF-X576 to 580
    (Made to Order)    		Compound pressureView search result
    ZSE20B（F）-(L)
    ISE20B-(L)    		Compound pressure
    Vacuum pressure
    Positive pressure    		View search result
    ZSE20C（F）-(L)
    ISE20C（H）-(L)    		Compound pressure
    Vacuum pressure
    Positive pressure    		View search result
SeriesOutput typeTypeRated pressure rangeEnclosureApplicable fluid
ZSE20（F）
ISE20		1 outputCompound pressure
Vacuum pressure
Positive pressure		?100.0 to 100.0 kPa
0.0 to ?101.0 kPa
?0.100 to 1.000 MPa		IP40Air
ZSE20A（F）
ISE20A		2 outputs
Analog output
(Voltage/Current)		Compound pressure
Vacuum pressure
Positive pressure		?100.0 to 100.0 kPa
0.0 to ?101.0 kPa
?0.100 to 1.000 MPa		IP40Air
ZSE20AF-X576 to 580
(Made to Order)		2 outputs
Analog output
(Voltage/Current)		Compound pressure?500 to 500Pa
?1.000 to 1.000kPa
?2.00 to 2.00kPa
?5.00 to 5.00kPa
?10.00 to 10.00kPa		IP40Air
ZSE20B（F）-(L)
ISE20B-(L)		2 outputs
Analog output
(Voltage/Current)
IO-Link/Switch: 1 output		Compound pressure
Vacuum pressure
Positive pressure		?100.0 to 100.0 kPa
0.0 to ?101.0 kPa
?0.100 to 1.000 MPa		IP65Air
ZSE20C（F）-(L)
ISE20C（H）-(L)		2 outputs
Analog output
(Voltage/Current)
IO-Link/Switch: 1 output		Compound pressure
Vacuum pressure
Positive pressure		?100.0 to 100.0 kPa
0.0 to ?101.0 kPa
?0.100 to 1.000 MPa
?0.100 to 2.000 MPa		IP65General fluids

Features

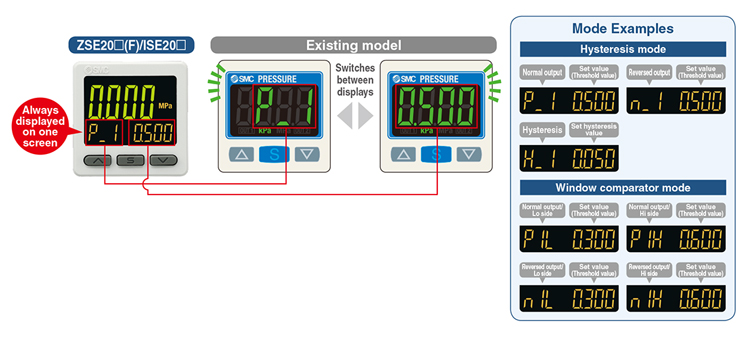

Visualization of Settings

The sub screen (label) shows the item to be set.

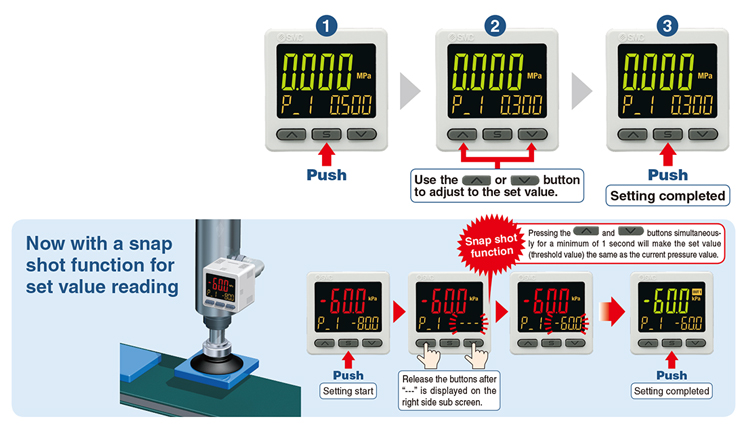

Simple 3-Step Setting

When the S button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the S button is pressed and the hysteresis (H_1) is being displayed, the hysteresis value can be set.

Easy Screen Switching

It is possible to change the settings while checking the measured value.

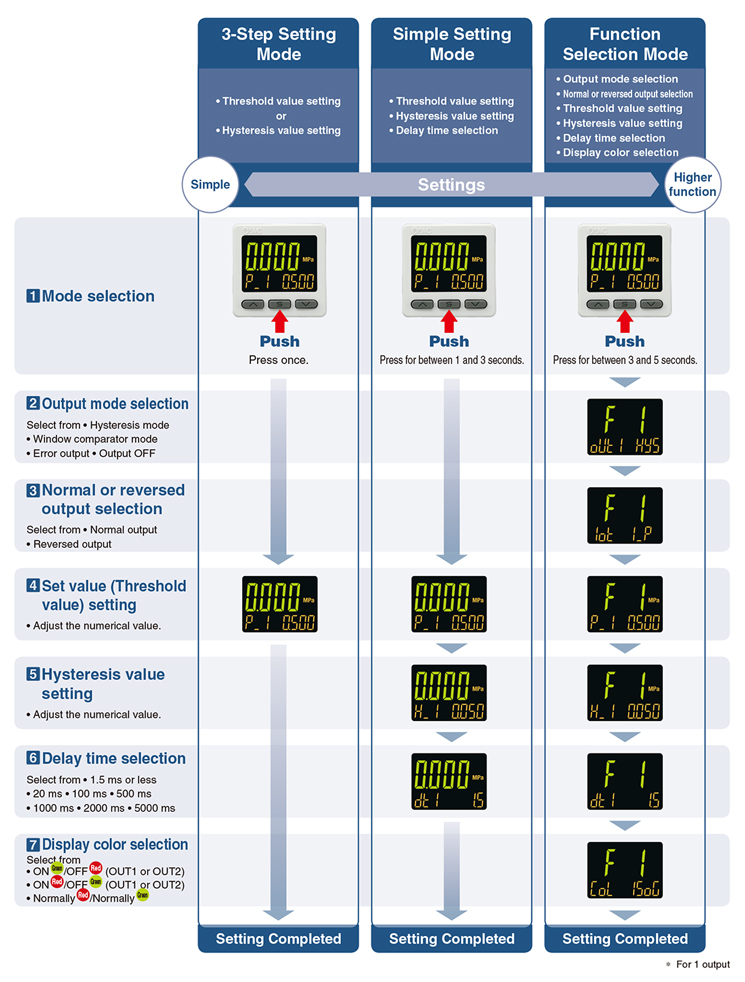

3 Setting Modes

Select the setting mode that best meets your needs.

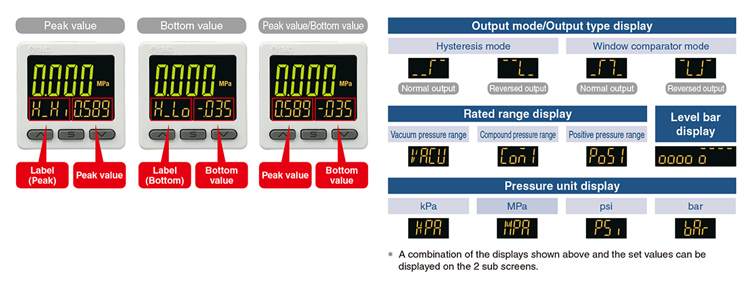

Other Sub Screen Display

The peak value or bottom value, or both values can be displayed on one screen!

* Peak and bottom values are maintained even if the power supply is cut.

Delay Time: 1.5 ms*1 or less

?1 Select from 1.5 ms or less, 20 ms, 100 ms, 500 ms, 1000 ms, 2000 ms, or 5000 ms.

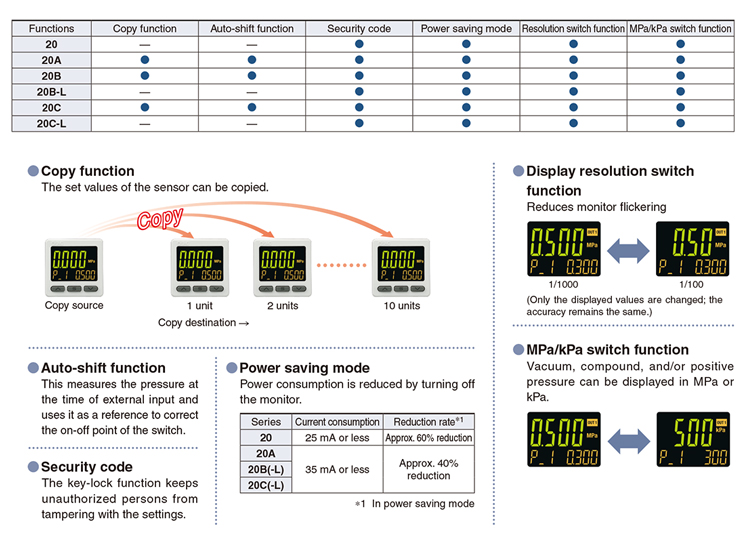

Convenient Functions

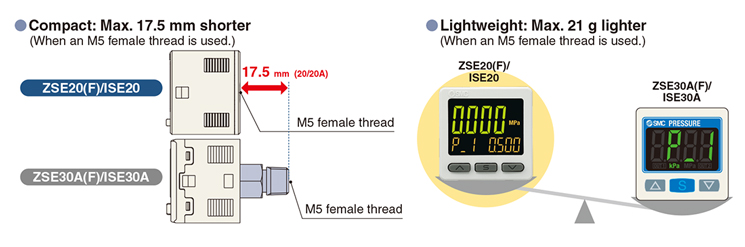

Compact & Lightweight

Improved Installability

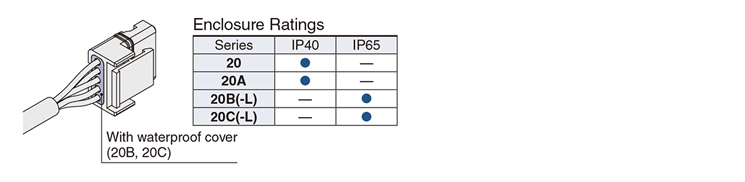

Enclosure

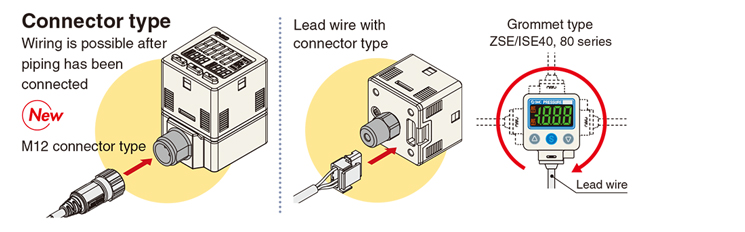

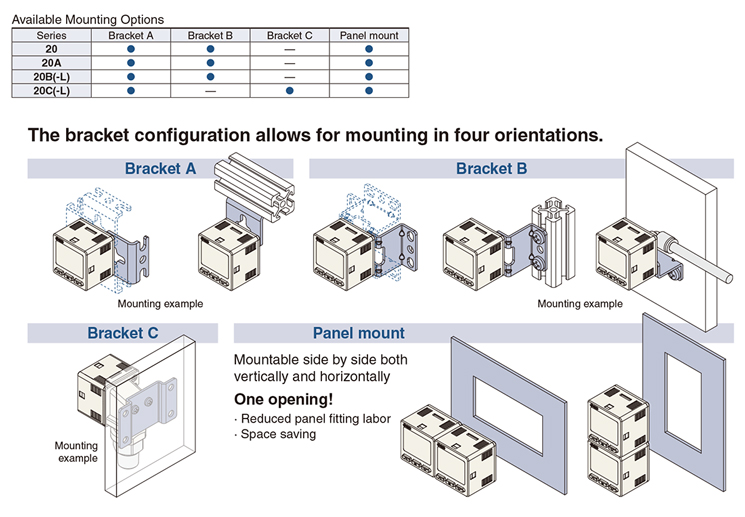

Mounting

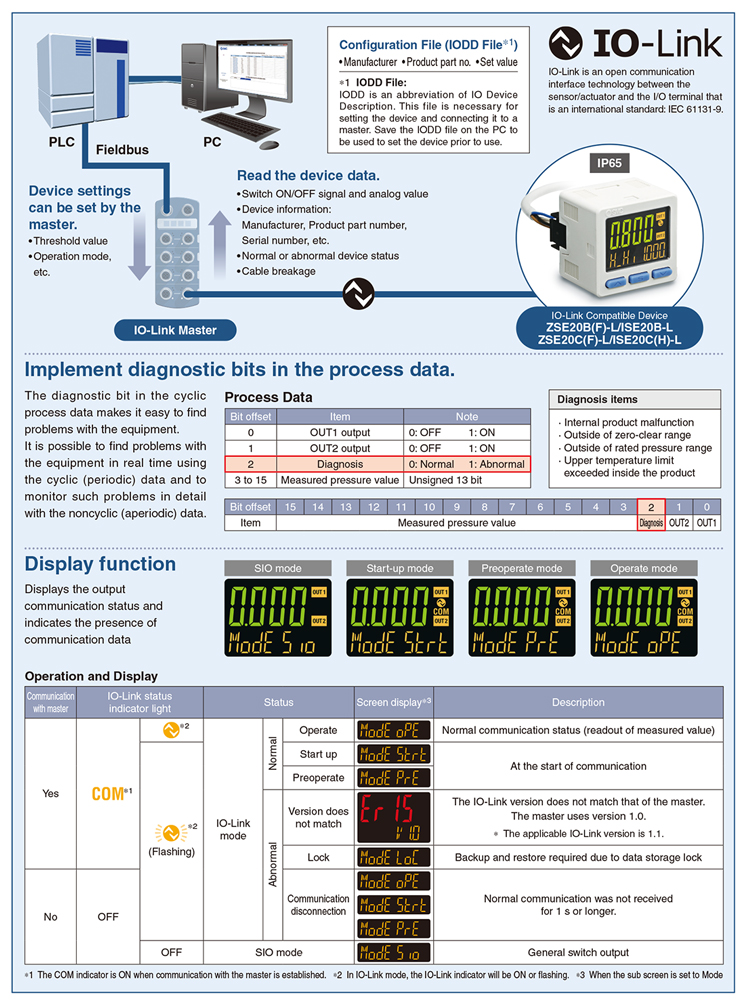

IO-Link Compatible ZSE20B(F)-L/ISE20B-L, ZSE20C(F)-L/ISE20C(H)-L

Visualization of operation/equipment status/Remote monitoring and control by communication

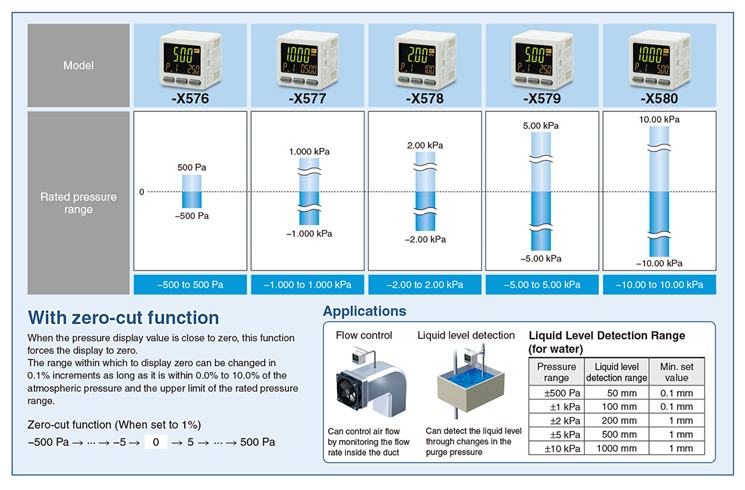

Pressure Switch (for Low Pressure) ZSE20AF-X576 to 580 [Made to Order]

Able to detect and display pressures of 10 kPa or less

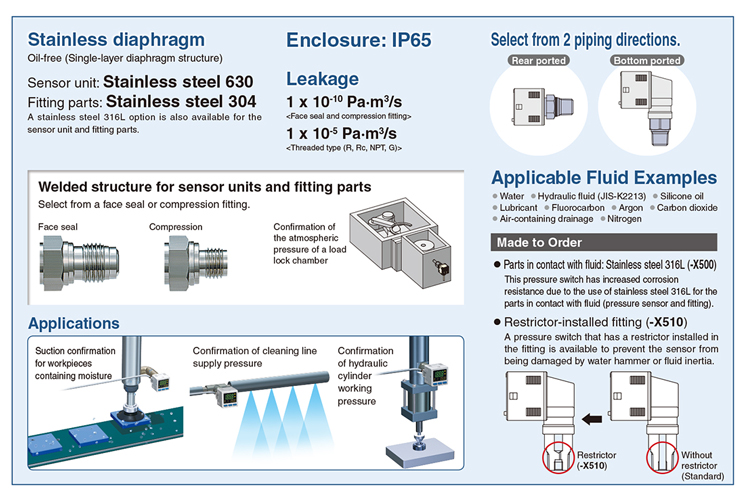

For General Fluids: ZSE20C(F)/ISE20C(H)
