WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Table Cylinders

Table Cylinders

Compact Slide MXH

    ?Allowable moment improved by up to 240%
    ?With new high rigidity linear guide
    　Allowable moment improved
    ?The weight has been reduced by incorporating a new high rigidity linear guide and piston.
    　Weight: 19% reduction (?20-10 stroke)
    ?Piping is possible in 3 directions.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Compact Slide MXH
    Symbol Specifications Download
    -XC79 Simple Specials Tapped hole drilled hole pinned hole machined additionally PDF
  • Compact Slide MXH
    Symbol Specifications Download
    -XB13 Made to Order Common Specifications Low speed cylinder (5 to 50 mm/s) PDF
    -XC3 Made to Order Common Specifications Special port location PDF
    -XC19 Made to Order Common Specifications Intermediate stroke (Spacer type) PDF
    -XC22 Made to Order Common Specifications Fluororubber seals PDF
TypeSeriesActionBore size (mm)
StandardMXHDouble acting6，10，16，20

Features

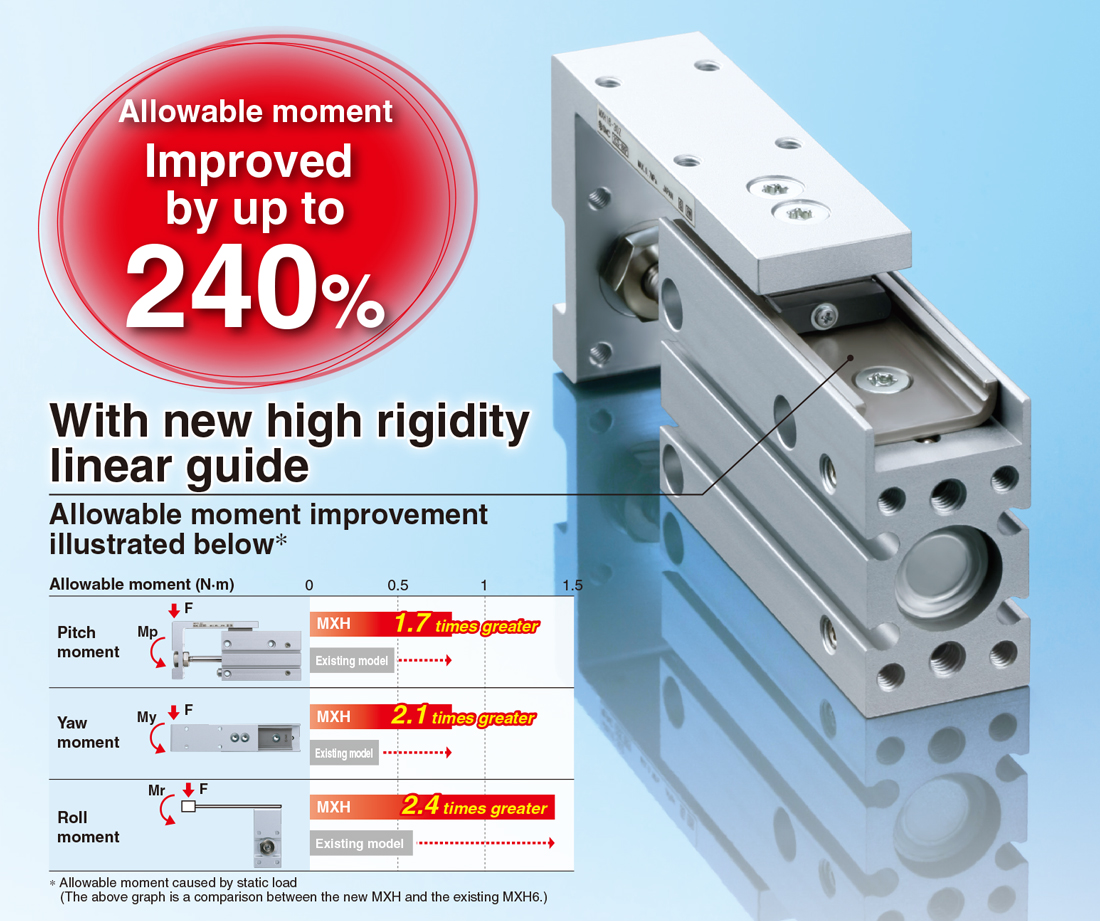

With new high rigidity linear guide

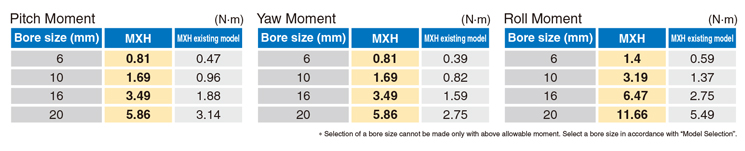

Allowable moment improved by up to 240%

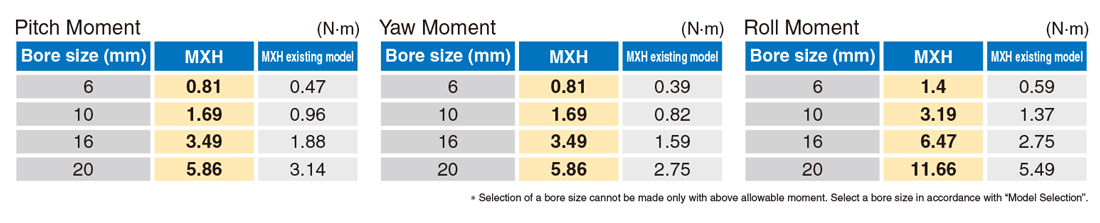

High allowable moment

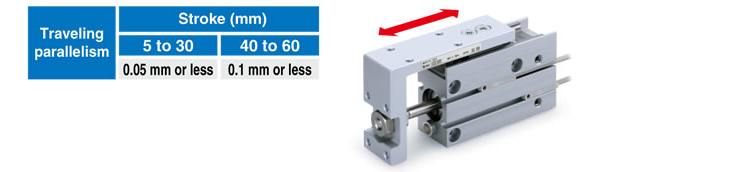

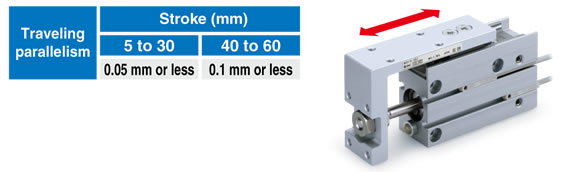

Traveling parallelism is the same as the existing model.

Deflection at the extended position of the table is the same as the existing model.



Small auto switches capable

(D-M9□, D-A9□)

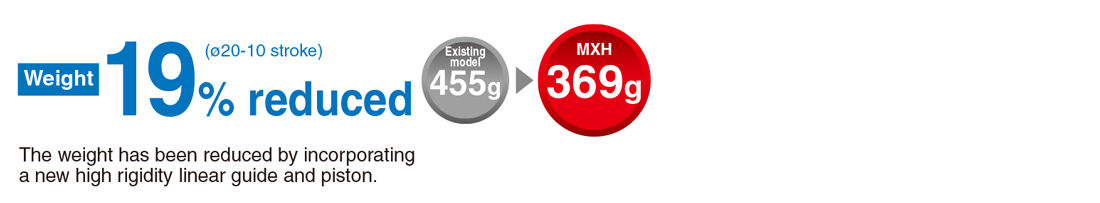

The weight has been reduced by incorporating a new high rigidity linear guide and piston.

Weight 19% reduced (?20-10 stroke)

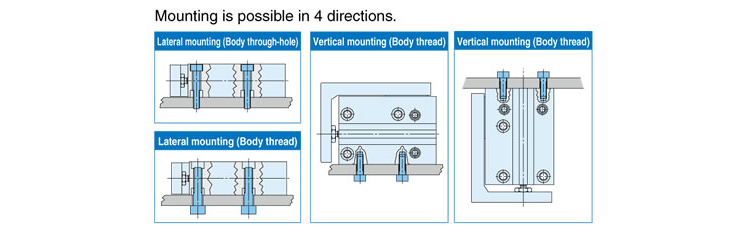

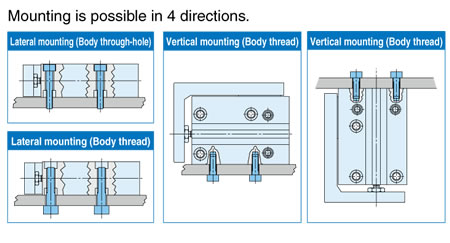

Mounting is completely interchangeable with existing model.

Dimensions including workpiece mounting dimensions and cylinder mounting dimensions are the same as the existing model.

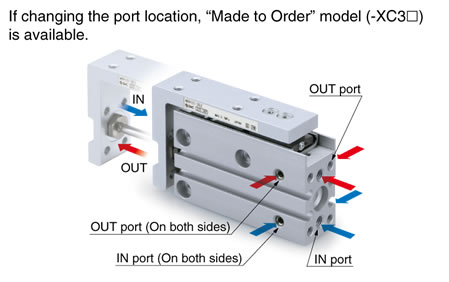

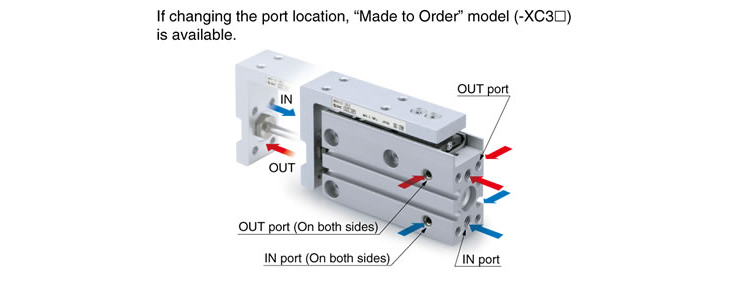

Piping is possible in 3 directions.

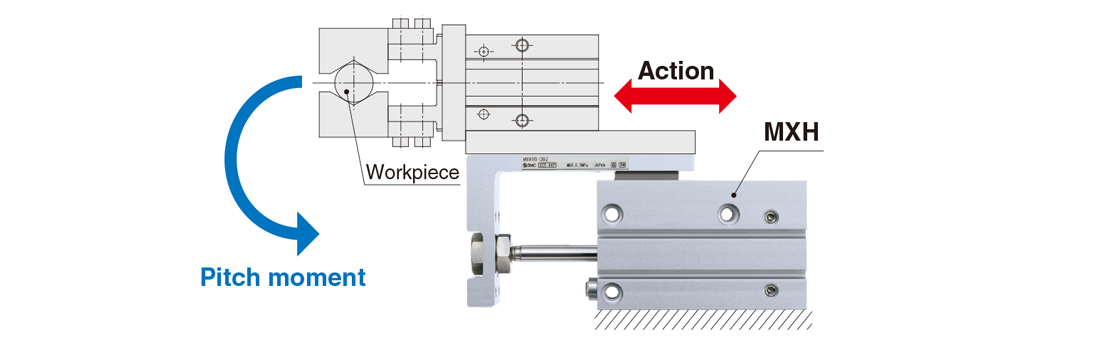

Application Example

Useful when long stroke/travel is required

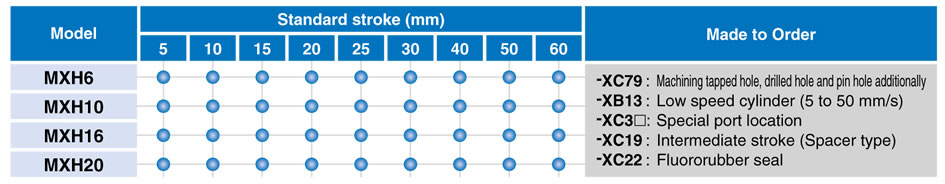

Series Variations
