Thermo-Chillers (Circulating Fluid Temperature Controllers) Standard Type/Basic Type

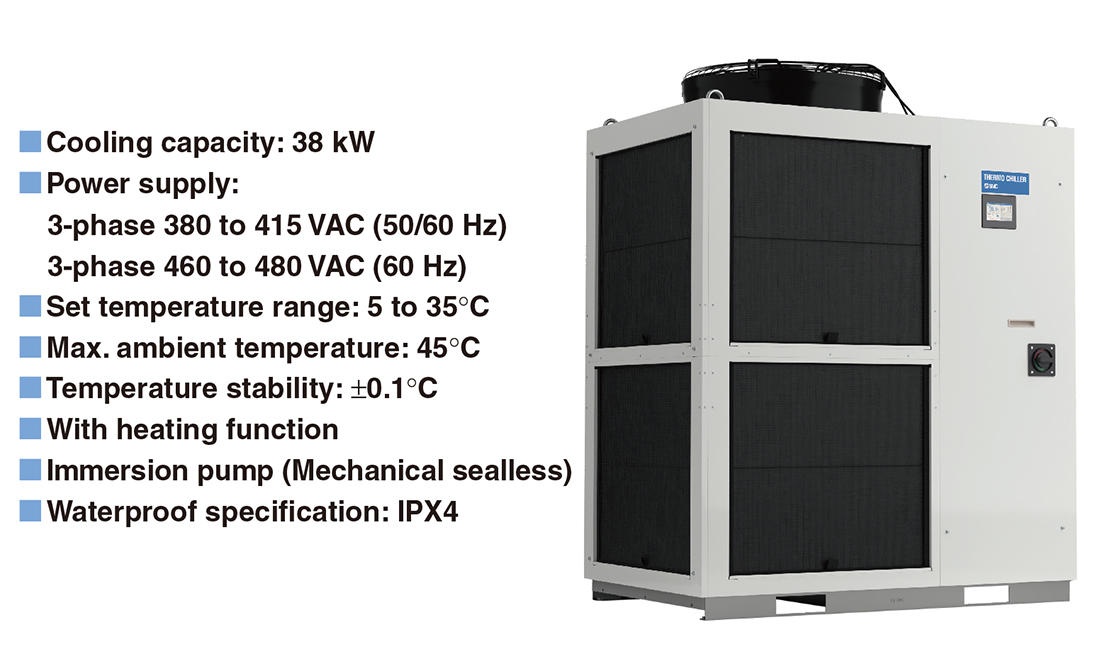

Thermo-chiller/Standard Type HRS400
-
?Cooling capacity: 38 kW
?Power supply: 3-phase 380 to 415 VAC (50/60 Hz)
3-phase 460 to 480 VAC (60 Hz)
?Set temperature range: 5 to 35°C
?Max. ambient temperature: 45°C
?Temperature stability: ±0.1°C
?With heating function
?Immersion pump (Mechanical sealless)
?Waterproof specification: IPX4
?Touch panel, Improved usability and visibility
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD
Safety Instructions Temperature Control Equipment/Precautions Features/Series Variations
Technical Data Temperature Control Equipment Warranty Green Procurement (RoHS)
Technical Data Temperature Control Equipment Warranty Green Procurement (RoHS)
| Series | Set temperature range | Cooling capacity | Temperature stability | Cooling method | Circulating fluid |
|---|---|---|---|---|---|
| HRS400 | 5 to 35℃ | 38kW | ±0.1℃ | Air-cooled refrigeration | Tap water Deionized water Ethylene glycol aqueous solution (15%) |
Features
Cooling capacity: 38 kW

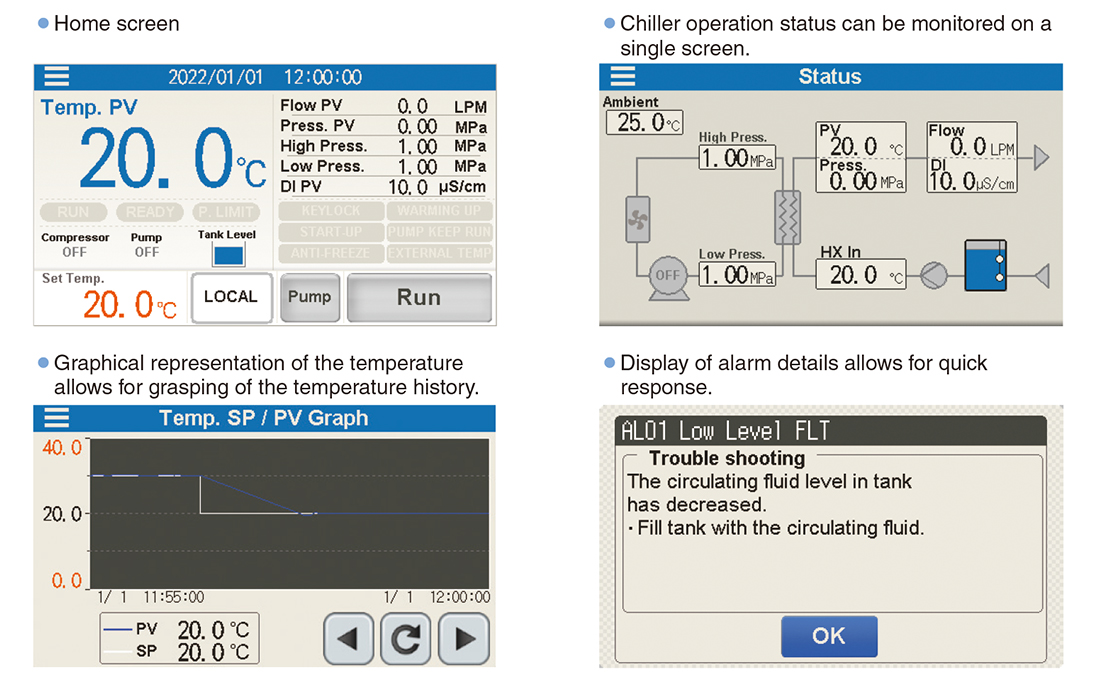

Touch panel, Improved usability and visibility
