WEB Catalog

Product Information ?  WEB Catalog  ? Switches/Sensors/Controller  ? Electronic Flow Switches/Sensors

Electronic Flow Switches/Sensors

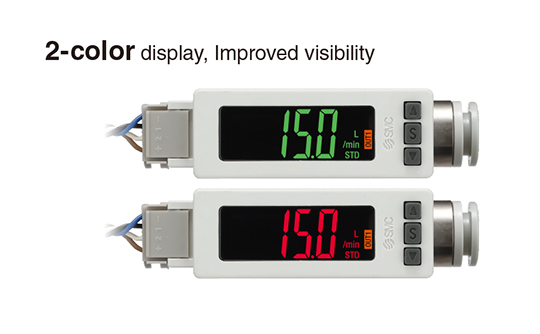

2-Color Display Digital Flow Switch PF2M7(-L)

    ?3-Screen Display Digital Flow Monitor (Dedicated for the PF2M7) [New]
    　Allows for the monitoring of remote lines PFGM302 Series
    ?Dry air, N2, Ar, CO2
    ?A wide range of flow measurement is possible with 1 product.
    　Flow ratio: 100:1, Smallest settable increment: 0.01 L/min
    ?Improved resistance to moisture and foreign matter
    ?Compact, Lightweight
    　Weight: 27.3% lighter (55 g → 40 g)
    ?Low current consumption: 35 mA or less
    ?Grease-free
    ?IO-Link compatible

    　?IO-Link Master
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 2-Color Display Digital Flow Switch PF2M7(-L)
    Manual
    Series View search result
    PF2M7View search result
  • 2-Color Display Digital Flow Switch PF2M7(-L)
    DoC
    Series View search result
    PF2M7View search result
SeriesRated flow range (L/min)
PF2M70.01 to 1 (0.01 to 0.5)
0.02 to 2 (0.02 to 1)
0.05 to 5 (0.05 to 2.5)
0.1 to 10 (0.1 to 5)
0.3 to 25 (0.3 to 12.5)
0.5 to 50 (0.5 to 25)
1 to 100 (1 to 50)
2 to 200 （2 to 100）
(　): For CO2

Features

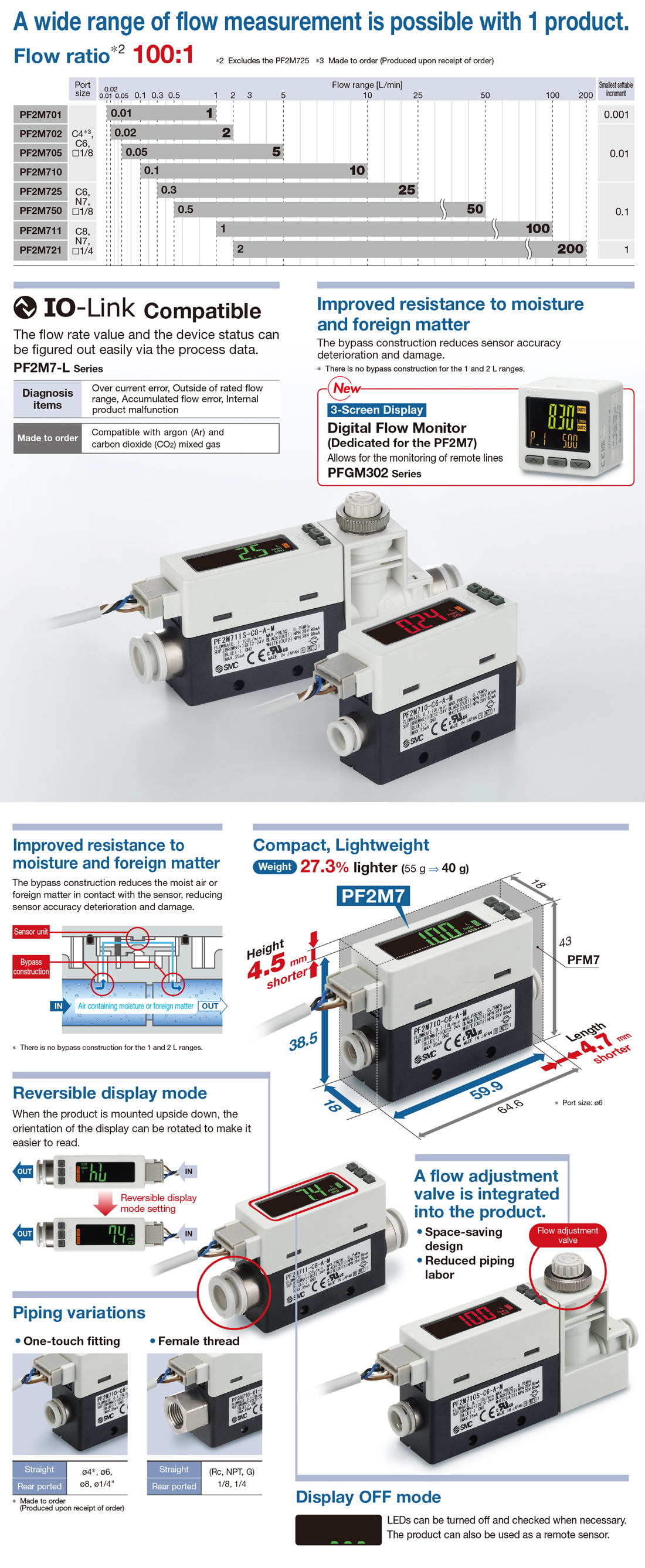

A wide range of flow measurement is possible with 1 product.

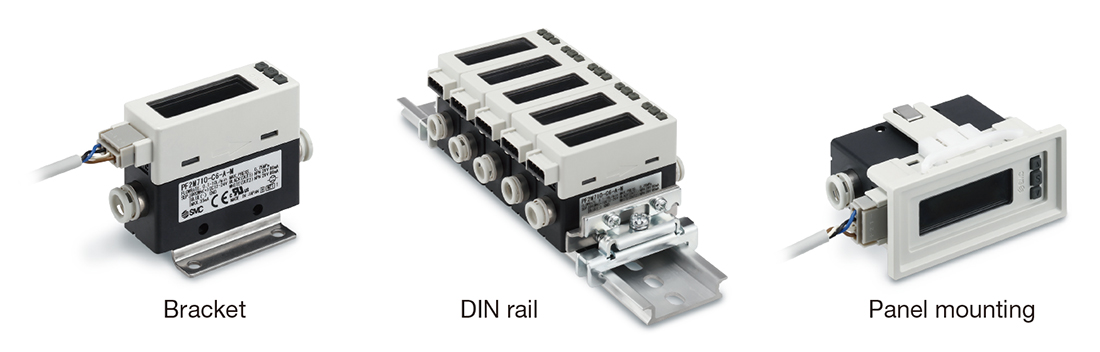

Mounting variations

  • The digital display allows for the visualization of the flow rate.

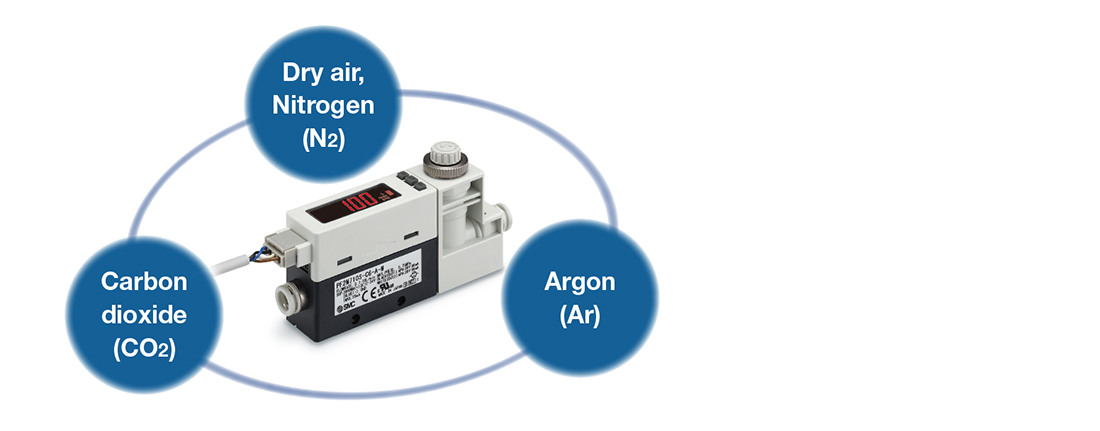

  • Select a model according to the fluid to be used.

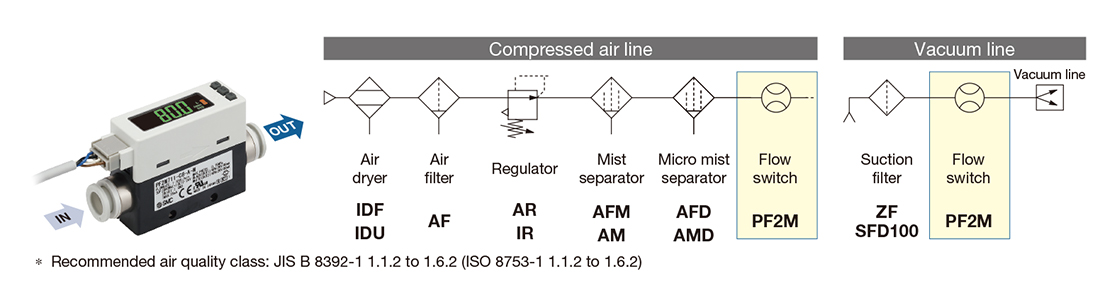

Recommended pneumatic circuit examples

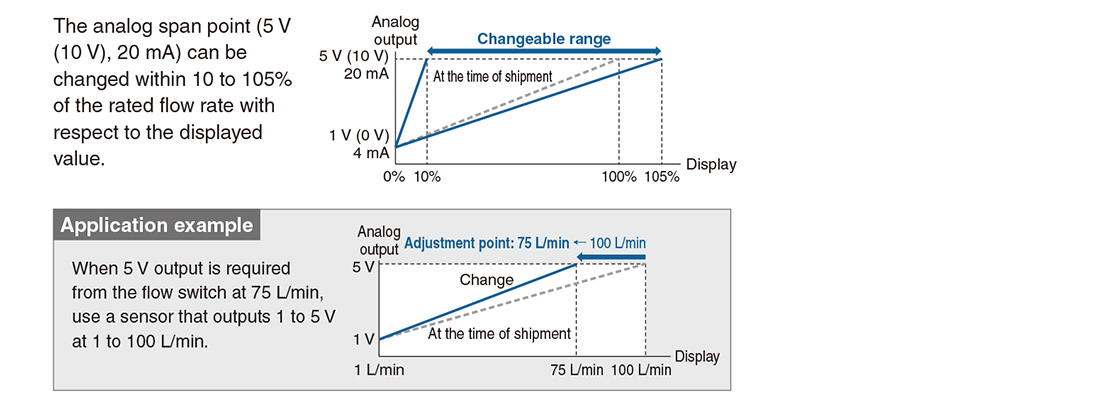

Analog free span function

  • Delay time setting

    Can be set between 0 and 60 s

    The delay time can be set according to the application.


    Grease-free


    Selectable analog output function

    1 to 5 V or 0 to 10 V can be selected.


    Low current consumption: 35 mA＊ or less

    ＊ PFM7: 55 mA or less


    Power supply voltage: 12 to 24 V

    ＊ For the IO-Link device: 18 to 30 V

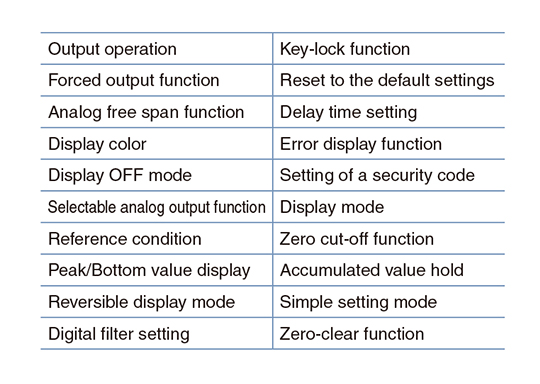

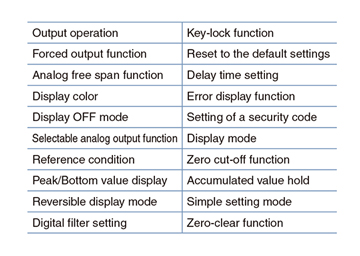

  • Functions

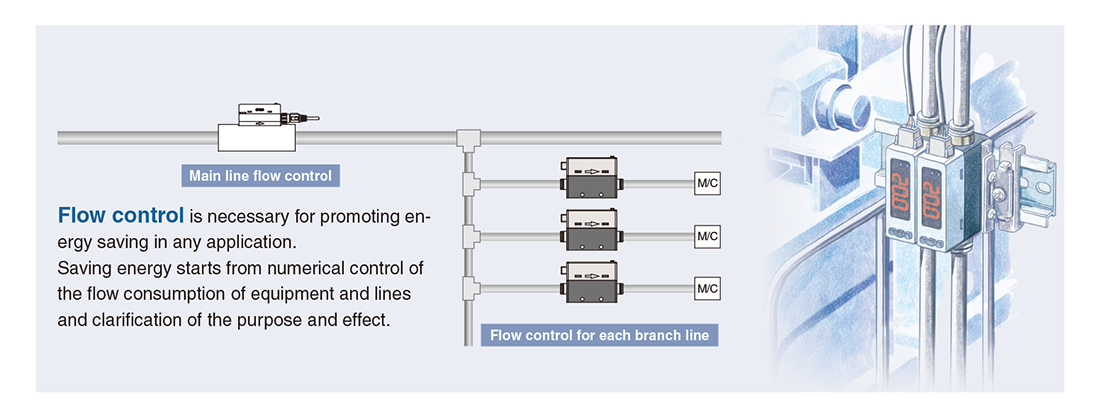

Select a digital flow switch to increase energy savings!

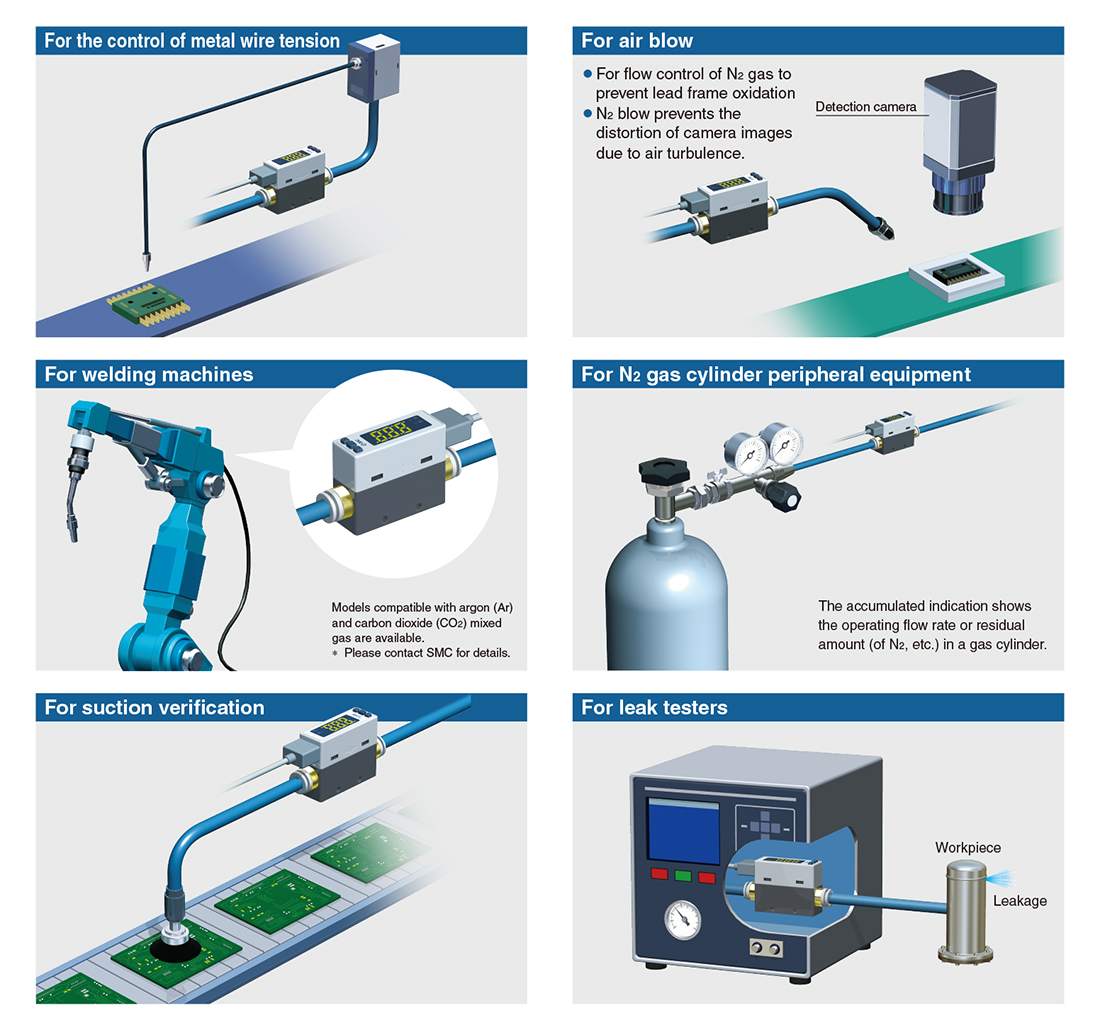

Applications

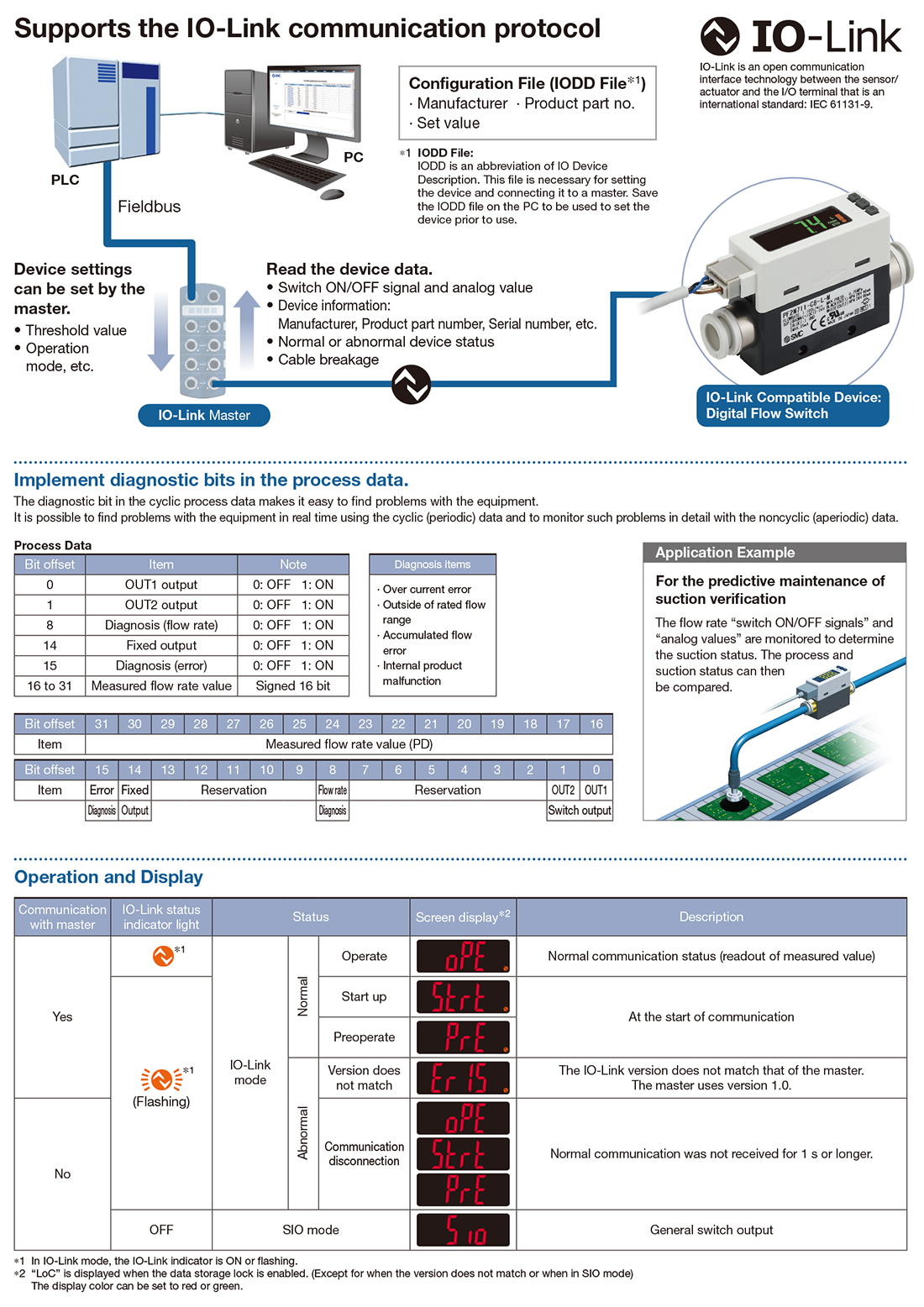

IO-Link Compatible PF2M7□□-□-L□-□□□
