Speed Controllers for General Purposes
Speed Controller with One-touch Fitting Compact Type JAS
-

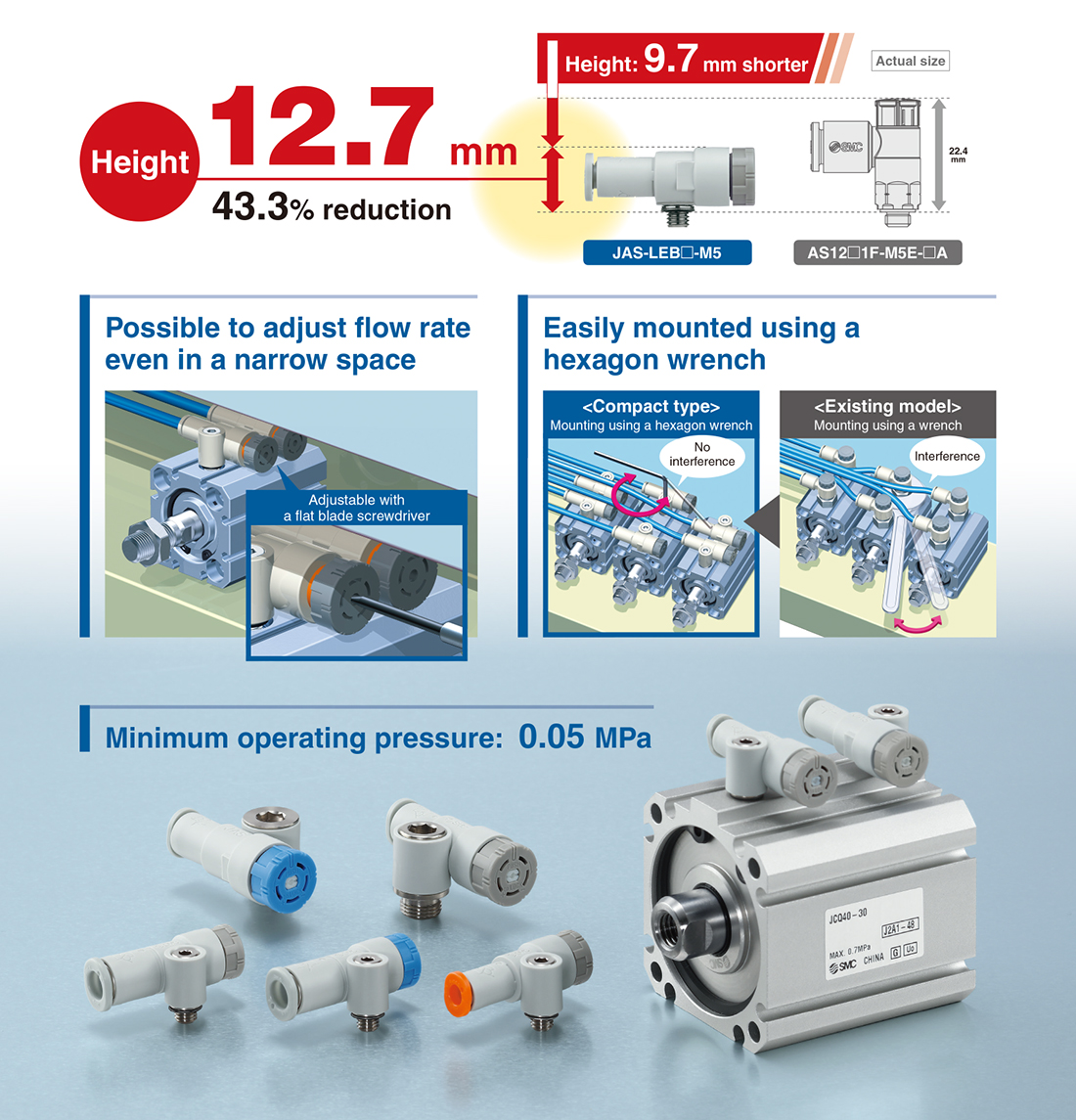

?Height 12.7 mm, Height: 9.7 mm shorter (43.3% reduction)
Possible to adjust flow rate even in a narrow space
Easily mounted using a hexagon wrench
?Minimum operating pressure: 0.05 MPa
?Easy to use push-lock type
?Easier and consistent flow setting
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Speed Controller with One-touch Fitting Compact Type JAS
Manual
Type Series View search result Elbow type JAS View search result
Safety Instructions Flow Control Equipment/Precautions
Series Variation Quick Selection Table Green Procurement (RoHS)
Series Variation Quick Selection Table Green Procurement (RoHS)

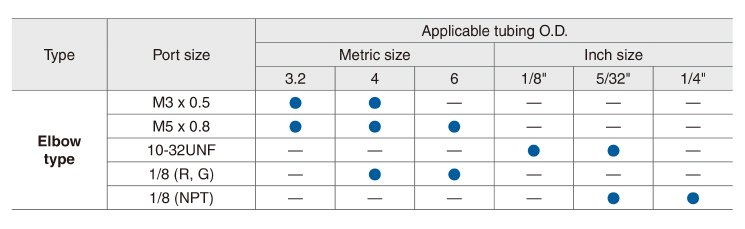

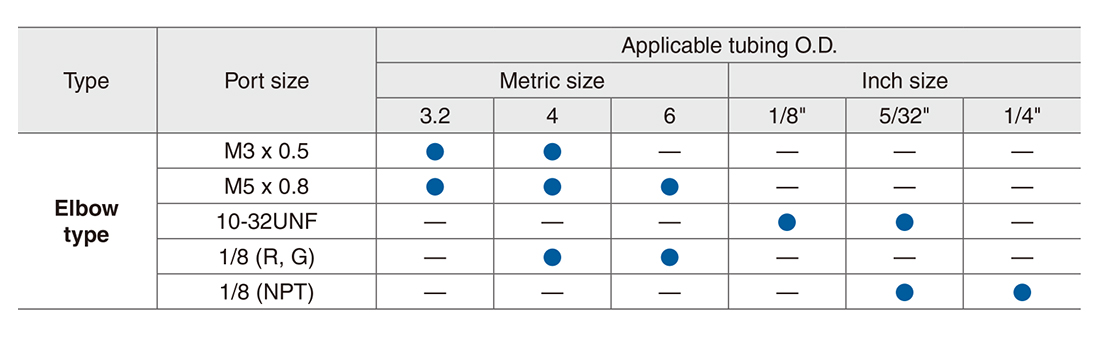

| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type | JAS | M3 x 0.5 M5 x 0.8 10-32UNF | φ3.2 to φ4 to φ6 | φ1/8'' to φ5/32'' to φ1/4'' |
Features
Height 12.7mm, Height: 9.7mm shorter (43.3% reduction)
-

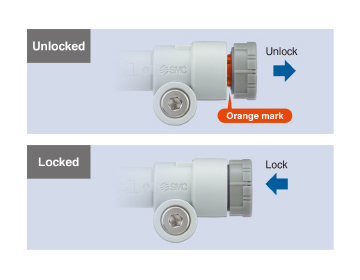

Easy to use Push-lock type
Locked and unlocked condition is visible with orange mark.
-

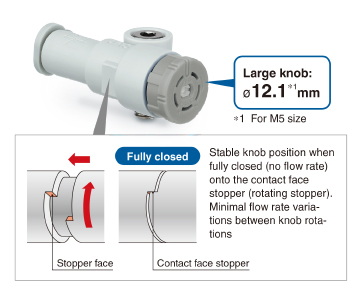

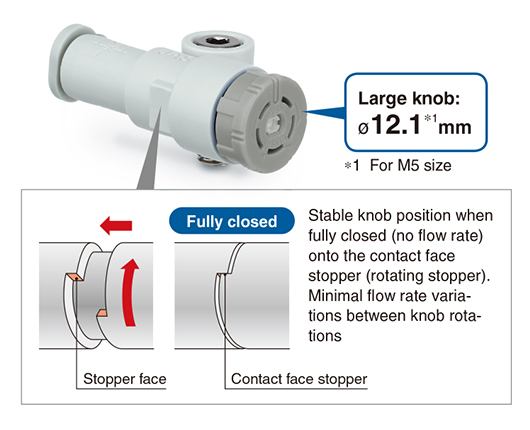

Easier and consistent flow setting

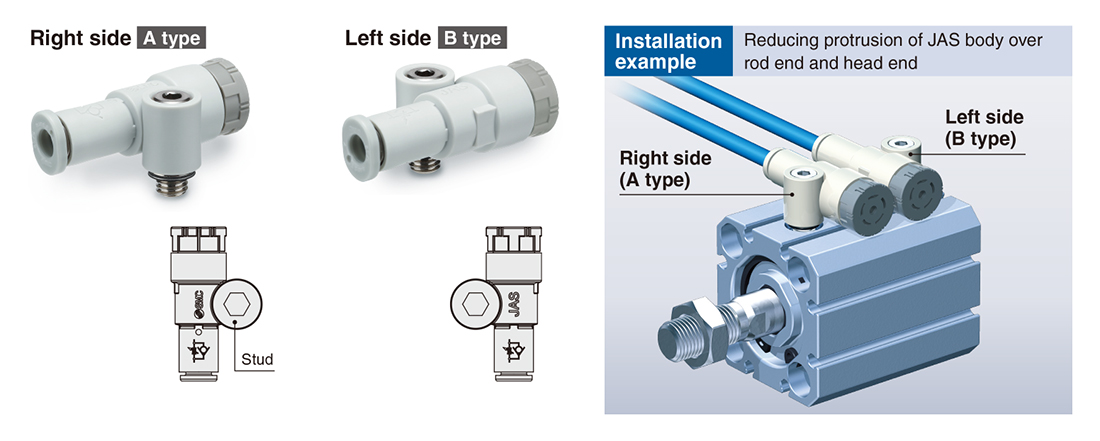

Mounting stud is available on the left side or the right side.Right side A type L

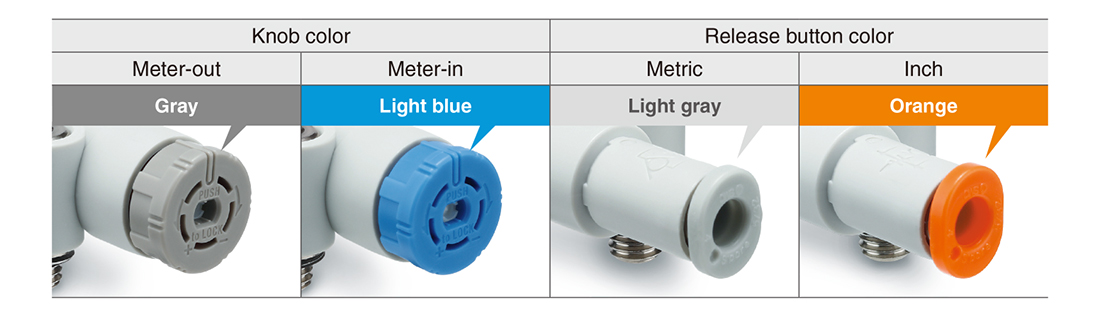

Easy identification of product type
Variations
