Dual Rod Cylinders
Dual Rod Cylinder JMGP
-
?Compact: Overall length shortened by 30.5 mm, Height shortened by 16 mm
?Weight: Max. 69% lighter (0.32 kg → 0.1 kg)
?3 mounting options:
Top mounting, Bottom mounting, Rear mounting
?Piping is possible in 4 directions.
?The solid state auto switch D-M9□ is mountable.
?Suitable for pushing, lifting, or clamping in a transport line.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD
| Type | Bearing | Series | Action | Bore size (mm) |
|---|---|---|---|---|
| Basic type | Slide bearing | JMGPM | Double acting | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
Features

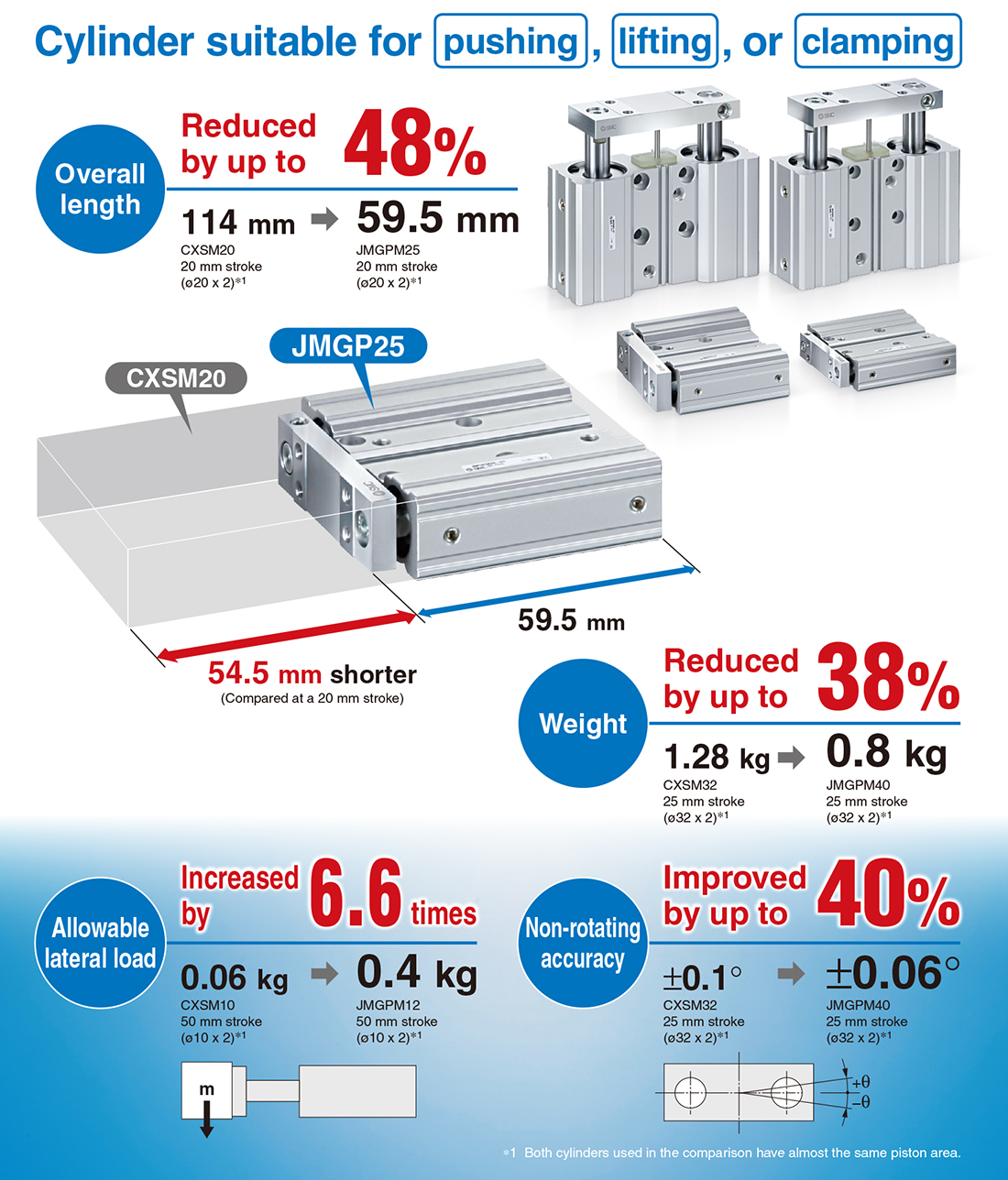

Cylinder suitable for pushing, lifting, or clamping
Overall length: Reduced by up to 48%, Weight: Reduced by up to 38%, Allowable lateral load: Increased by 6.6 times, Non-rotating accuracy: Improved by up to 40%

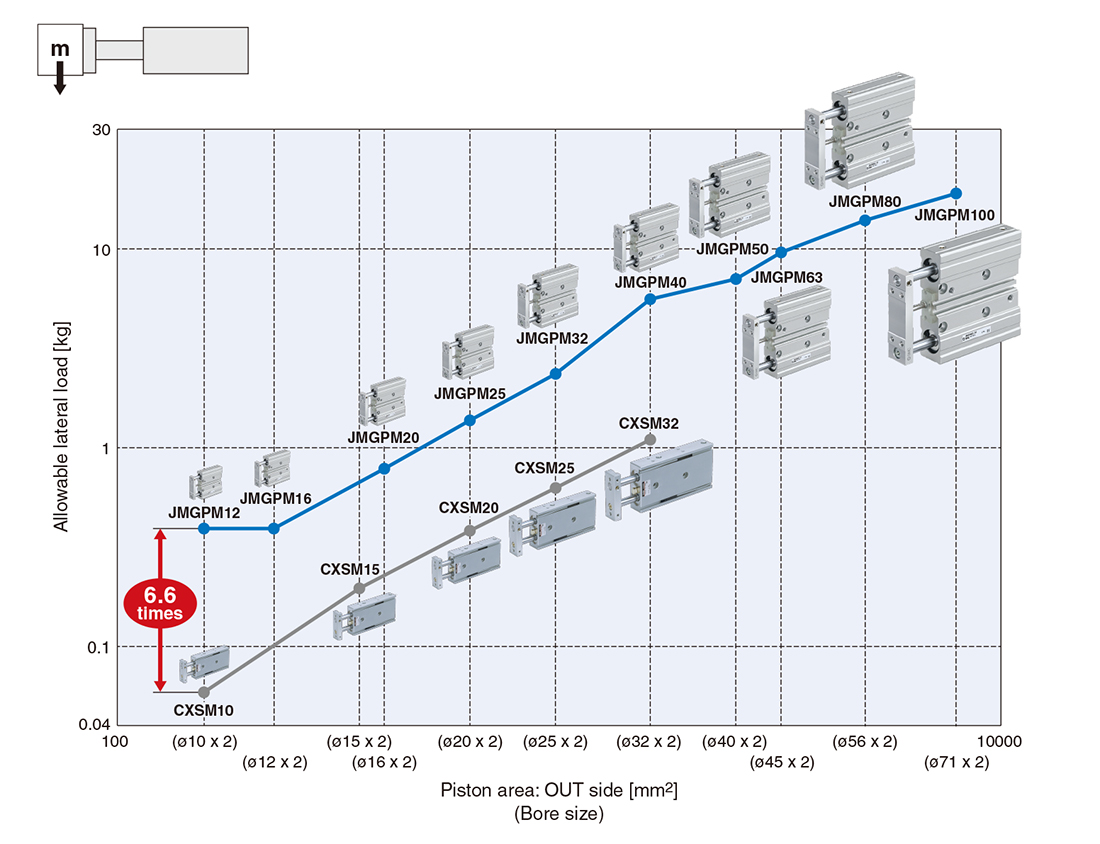

Allowable lateral load increased by 6.6 times
? Compared with the CXSM series, 50 mm stroke

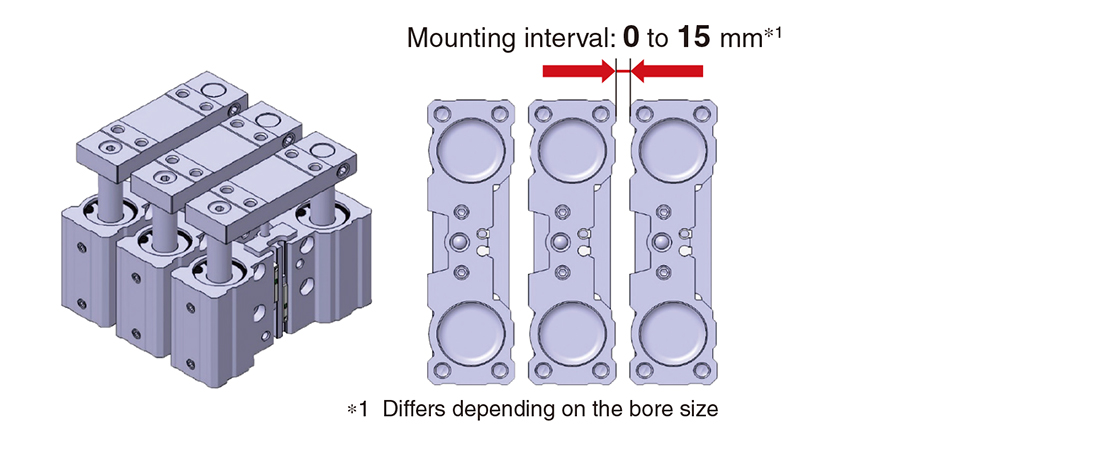

Short pitch mounting is possible.
Cylinders can be installed adjacent to each other.

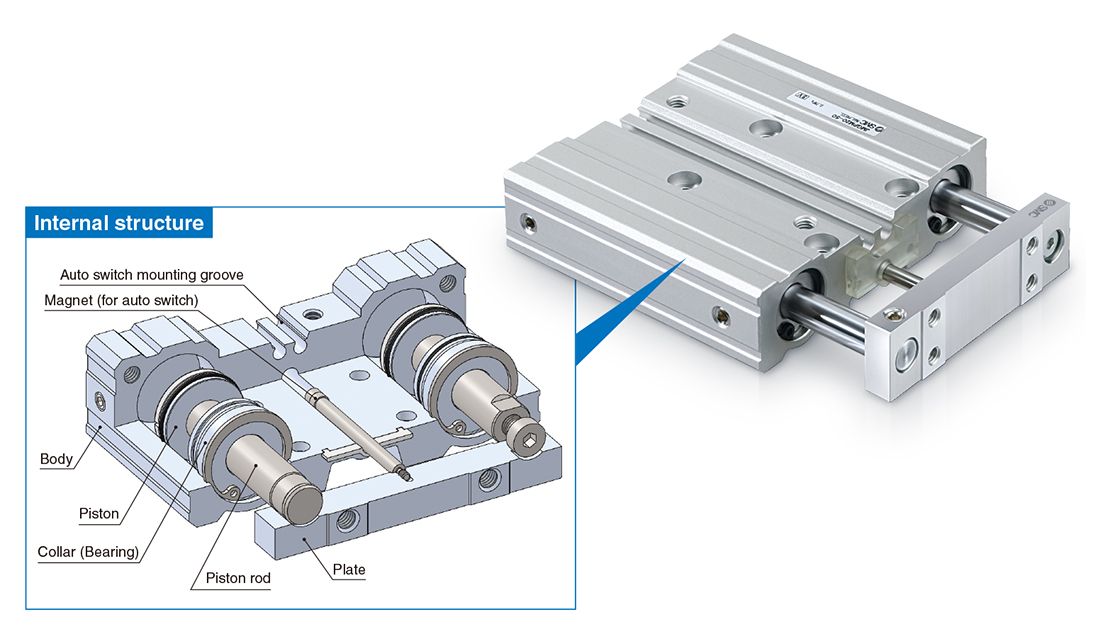

Internal structure

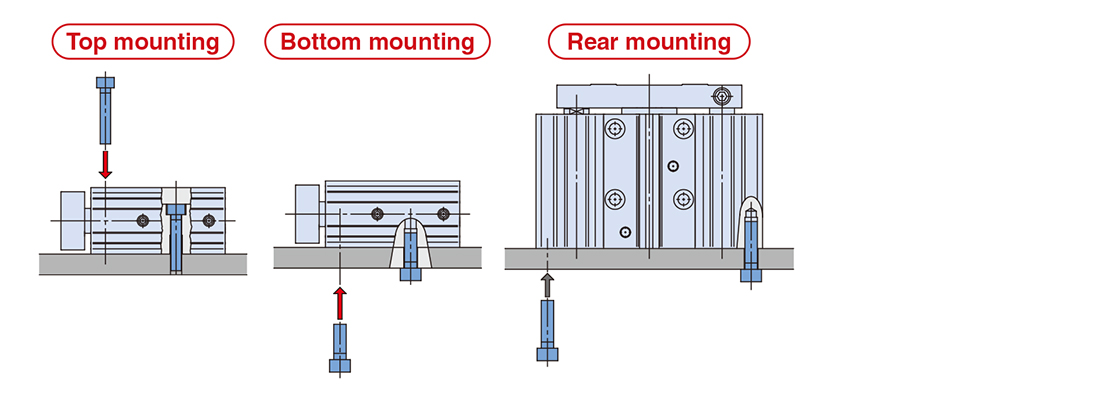

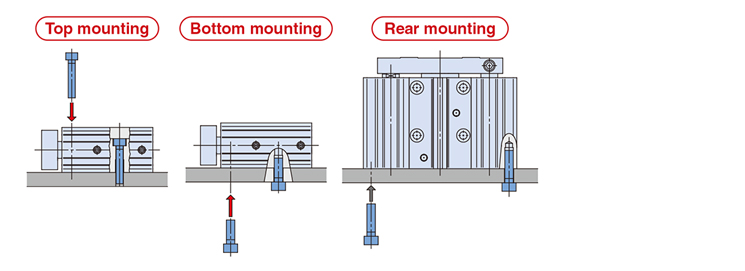

3 mounting options

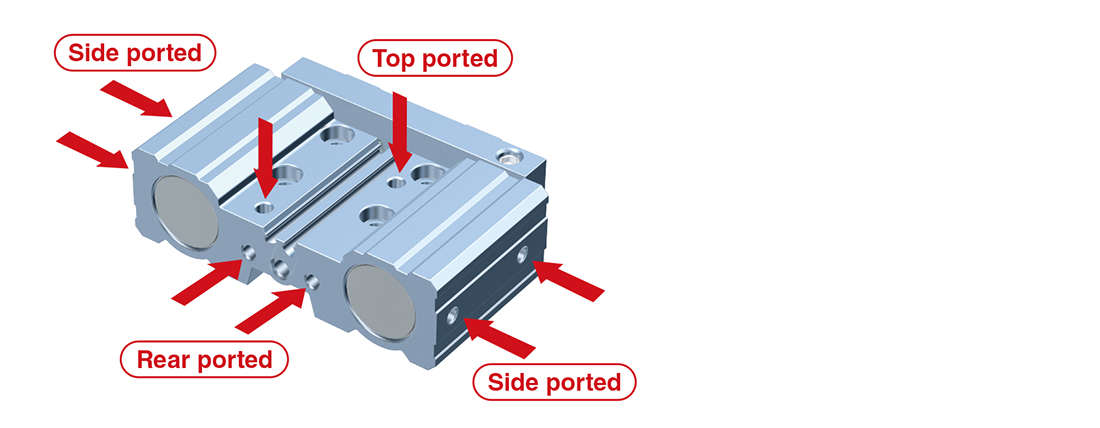

Piping is possible in 4 directions.

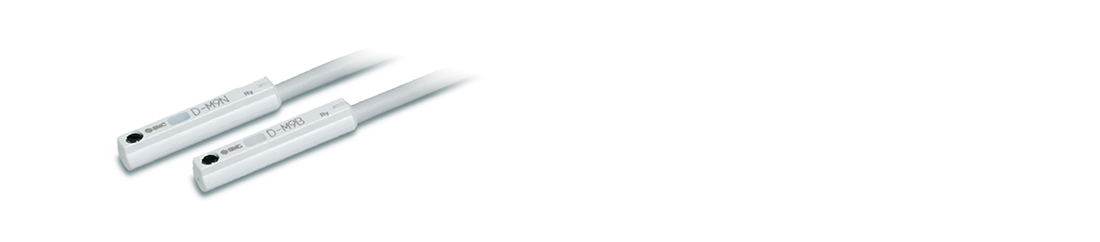

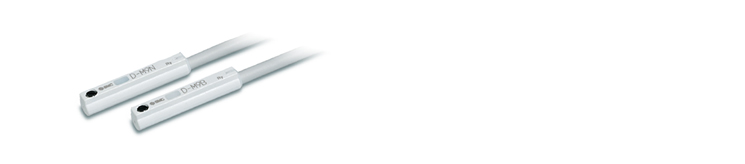

D-M9□ solid state auto switches are mountable.

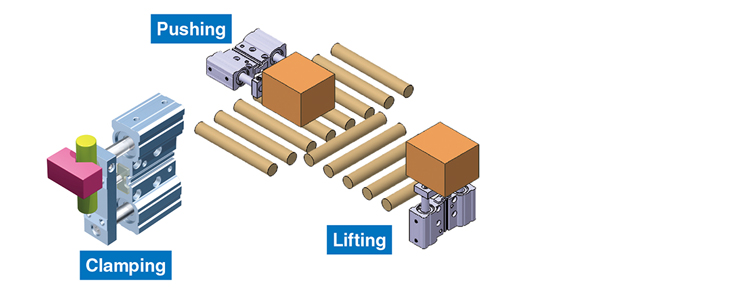

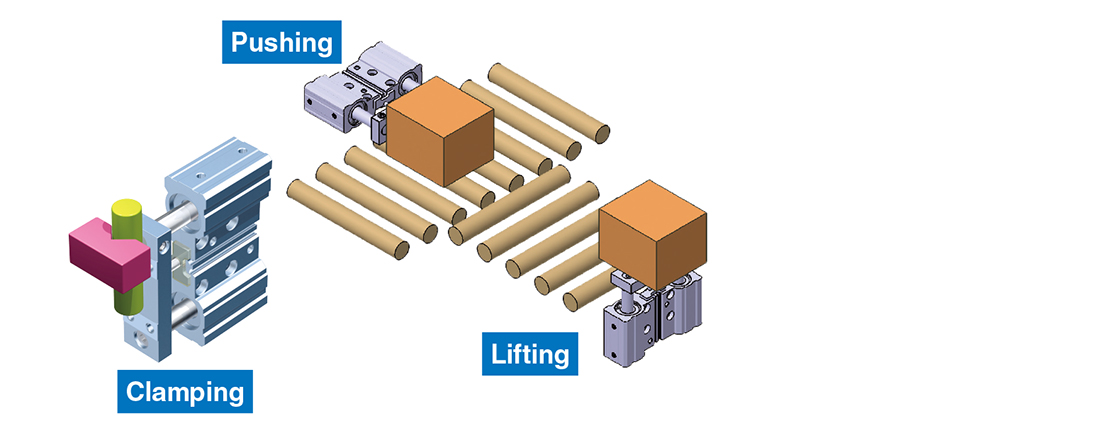

Application Examples

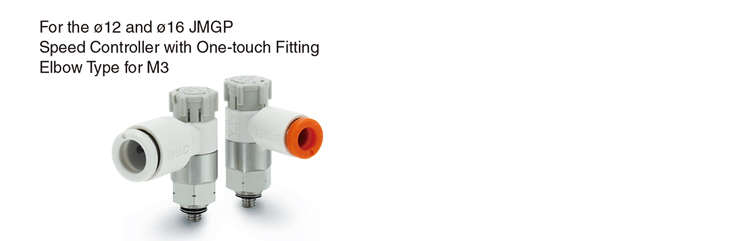

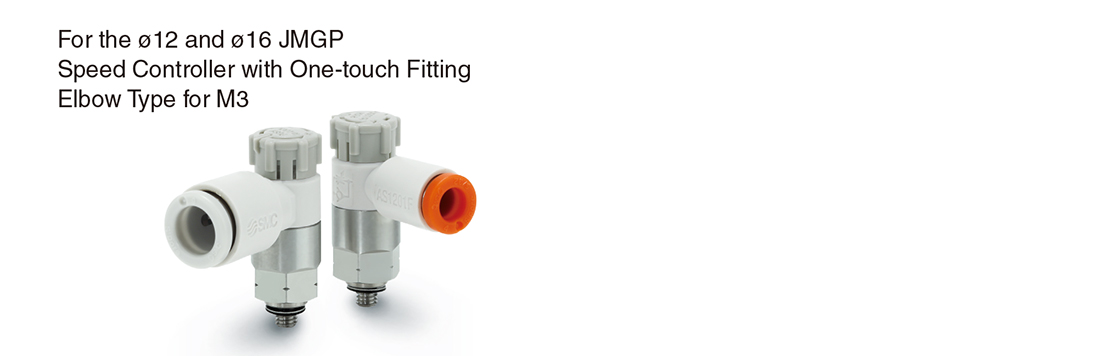

Related Product
