WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Dual Rod Cylinders

Dual Rod Cylinders

Dual Rod Cylinder CXS2

    ?Double piston construction provides twice the output force.
    ?Non-rotating accuracy of ±0.1° because of the dual rod construction

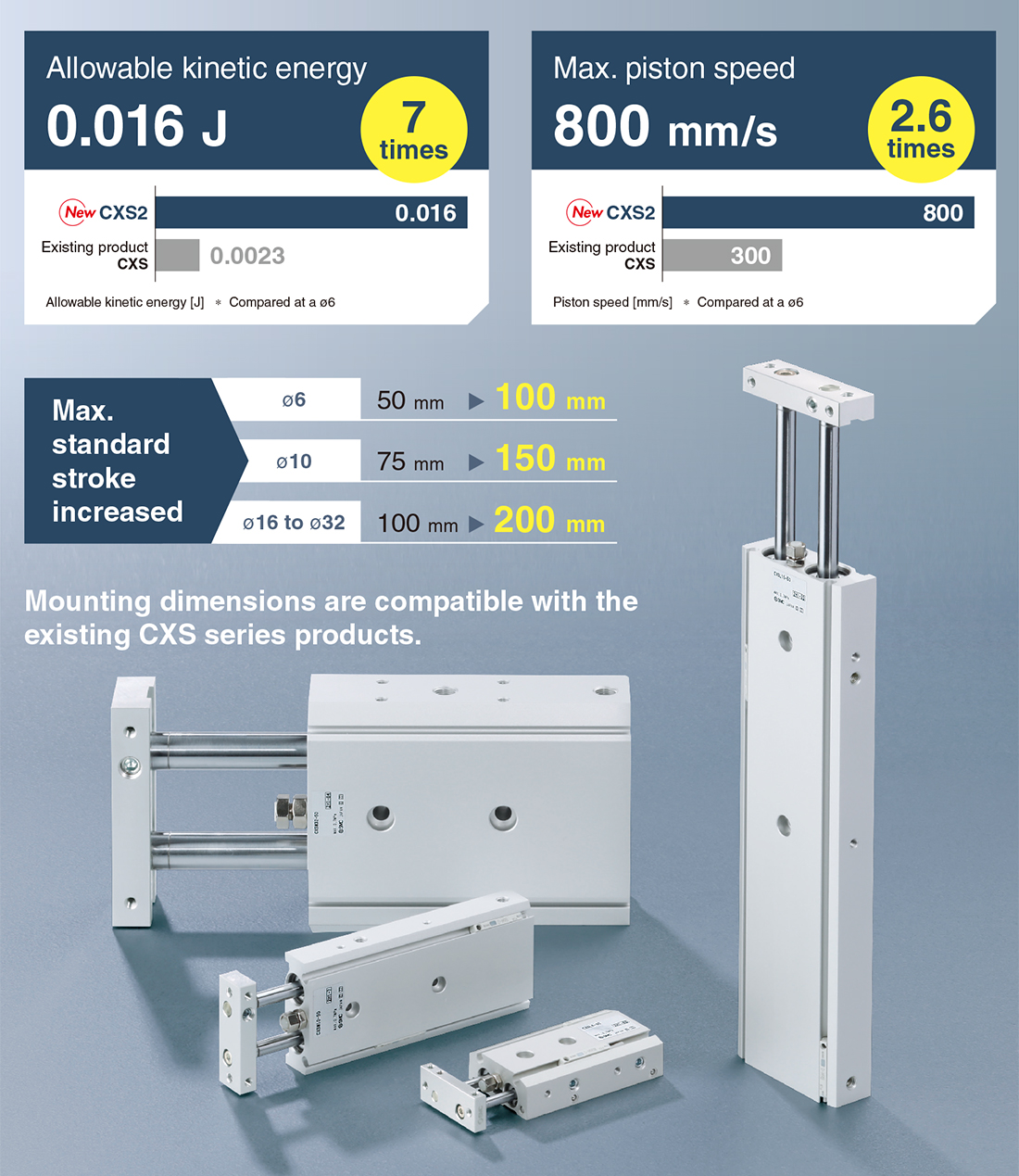

    ?Allowable kinetic energy: 0.016 J (7 times that of the existing model)
    ?Max. piston speed: 800 mm/s (2.6 times that of the existing model)
    ?Max. standard stroke increased
    ?Mounting dimensions are compatible with the existing CXS series
    　products.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeBearingSeriesActionBore size (mm)
BasicSlide bearing, Ball bushing bearingCXS2Double acting6，10，16，20，25，32

Features

Features

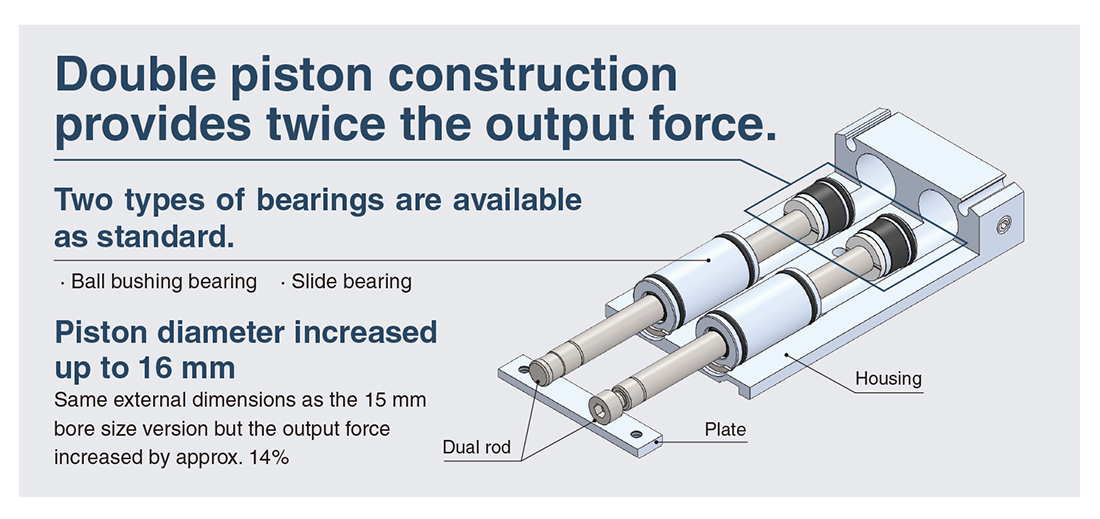

Double piston construction provides twice the output force.

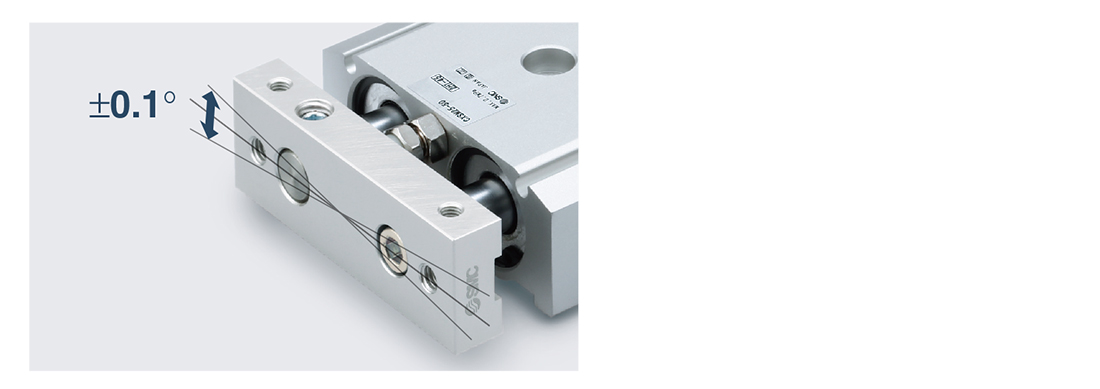

Non-rotating accuracy of ±0.1° because of the dual rod construction

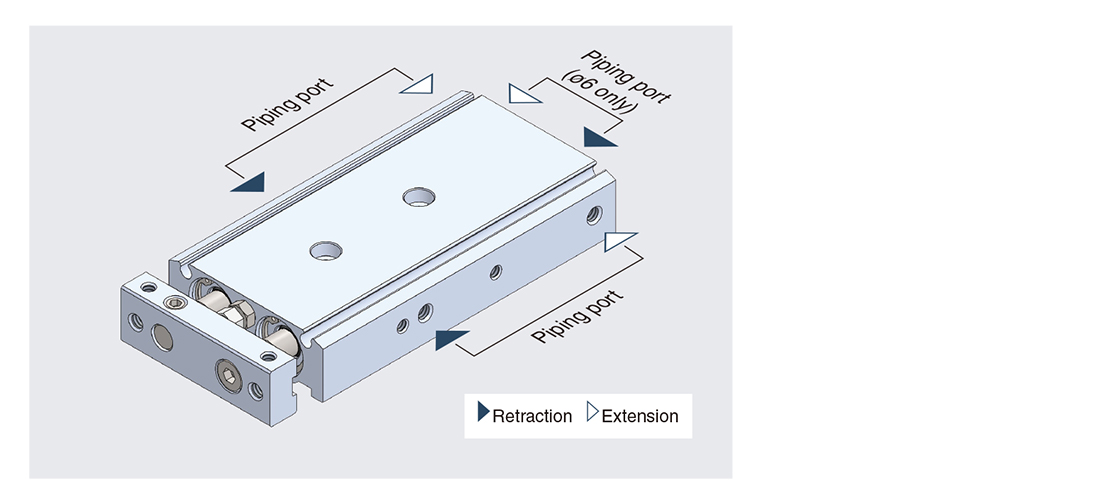

Piping is possible in 2 directions. (Possible in 3 directions for ?6)

Weight reduced by 7%: 0.15 kg → 0.14 kg (Compared with the CXS□ series, ?10, 10 mm stroke)

Stroke is adjustable up to ?5 mm.

Compact auto switches are mountable. (D-M9□, D-A9□)

Workpiece can be mounted from 3 directions.

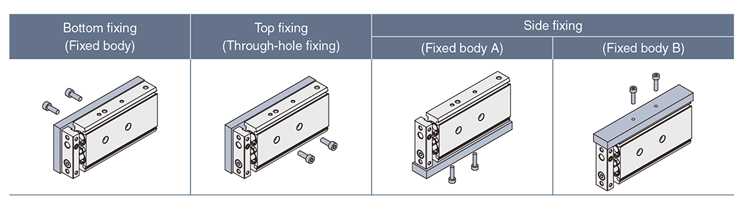

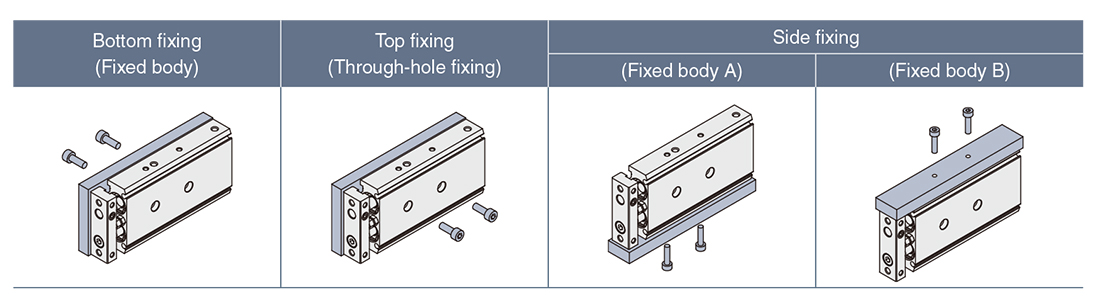

Body can be mounted from 4 directions.
