WEB Catalog

Product Information ?  WEB Catalog  ? Directional Control Valves  ? Mechanical Valves/Transmitters

Mechanical Valves/Transmitters

2/3-Port Mechanical Valve with One-touch Fitting VM100F

    ?Built-in One-touch fitting reduced installation space and less piping work
    ?Space saving

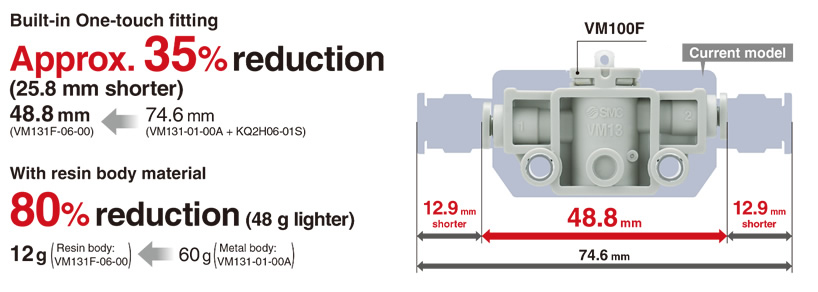

    　Approx. 35% reduction (25.8 mm shorter) due to the built-in One-touch fitting
    ?Lightweight
    　80% reduction (48 g lighter) due to the resin body material

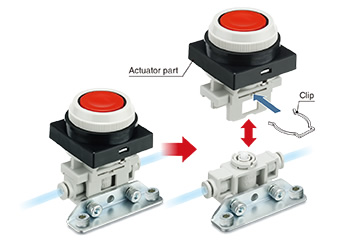

    ?Less man-hours replacing the actuator
    　Mounting using a clip makes replacement easier.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
DescriptionSeriesNumber of ports
Mechanical valveVM100F2/3-ports

Features

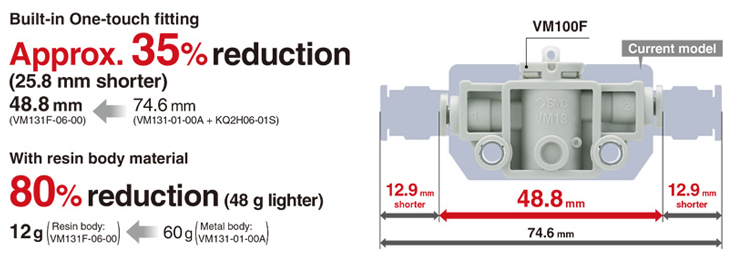

Built-in One-touch fitting reduced installation space and less piping work

Space saving?Lightweight

Built-in One-touch fitting Approx. 35% reduction (25.8 mm shorter)

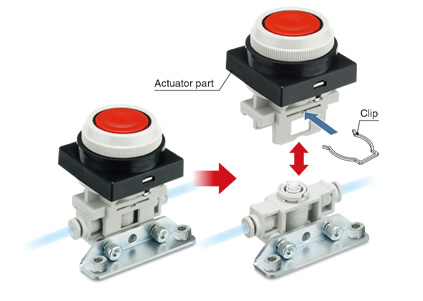

Less man-hours replacing the actuator

Mounting using a clip makes replacement easier.



Variations



Actuator type

Mechanical operation: 5 types
Manual operation: 7 types

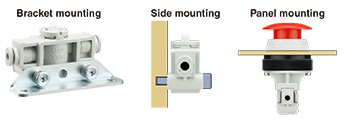

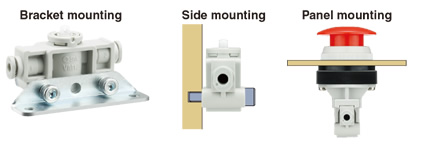

Mounting

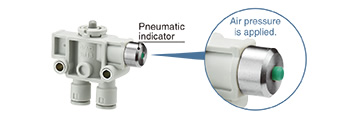

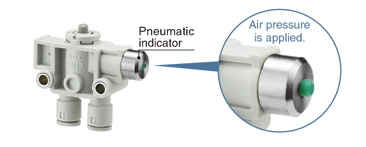

With miniature indicator (Bottom ported only)

Possible to check if air pressure is applied

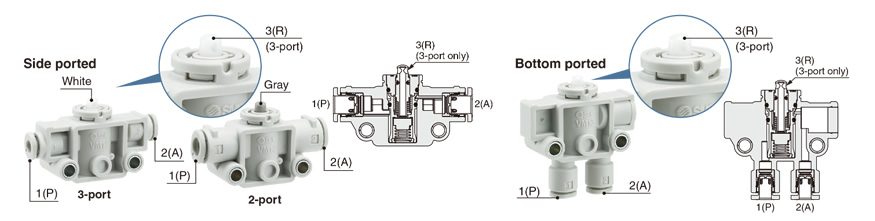

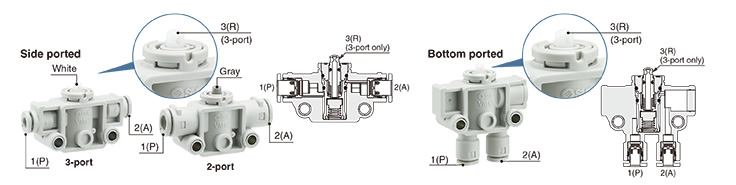

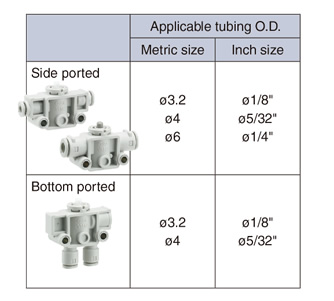

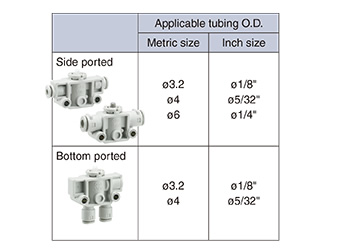

Piping direction



Mounting interchangeable with the conventional model

Mounting pitch and height are the same as the current model



Available in vacuum applications

?100 kPa to 0.7 Mpa

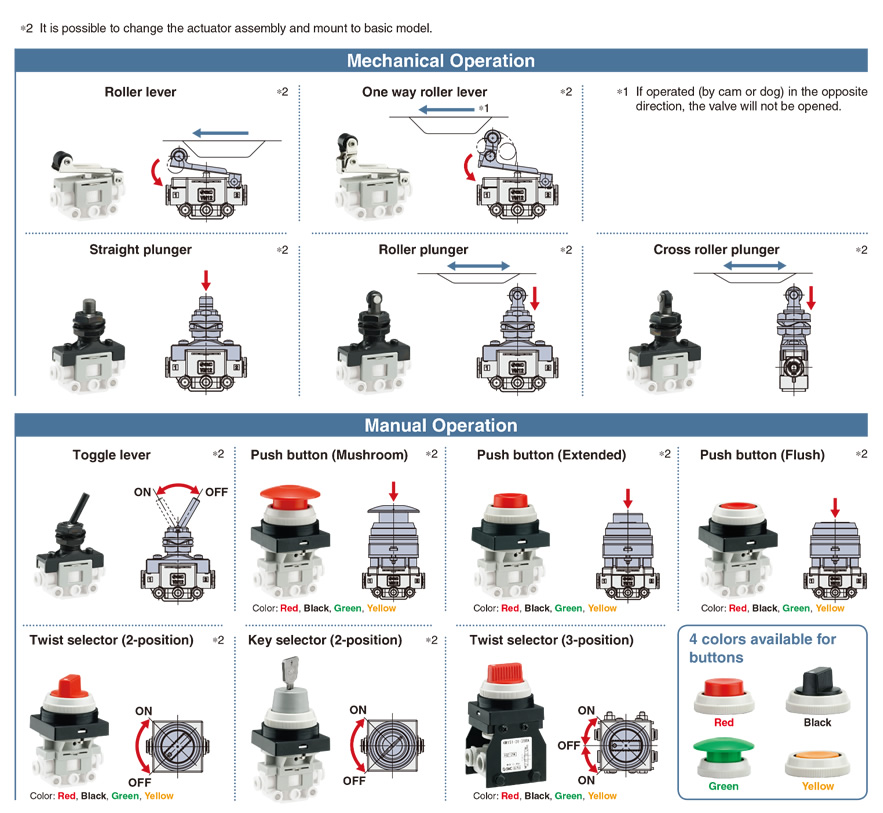

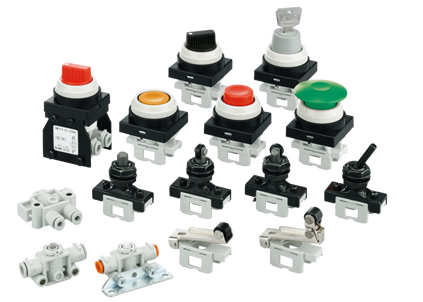

Actuator Variations

Go Top
