Product Information ?  WEB Catalog  ? Air Cylinders  ? Standard Air Cylinders (Round Type）

Standard Air Cylinders (Round Type）

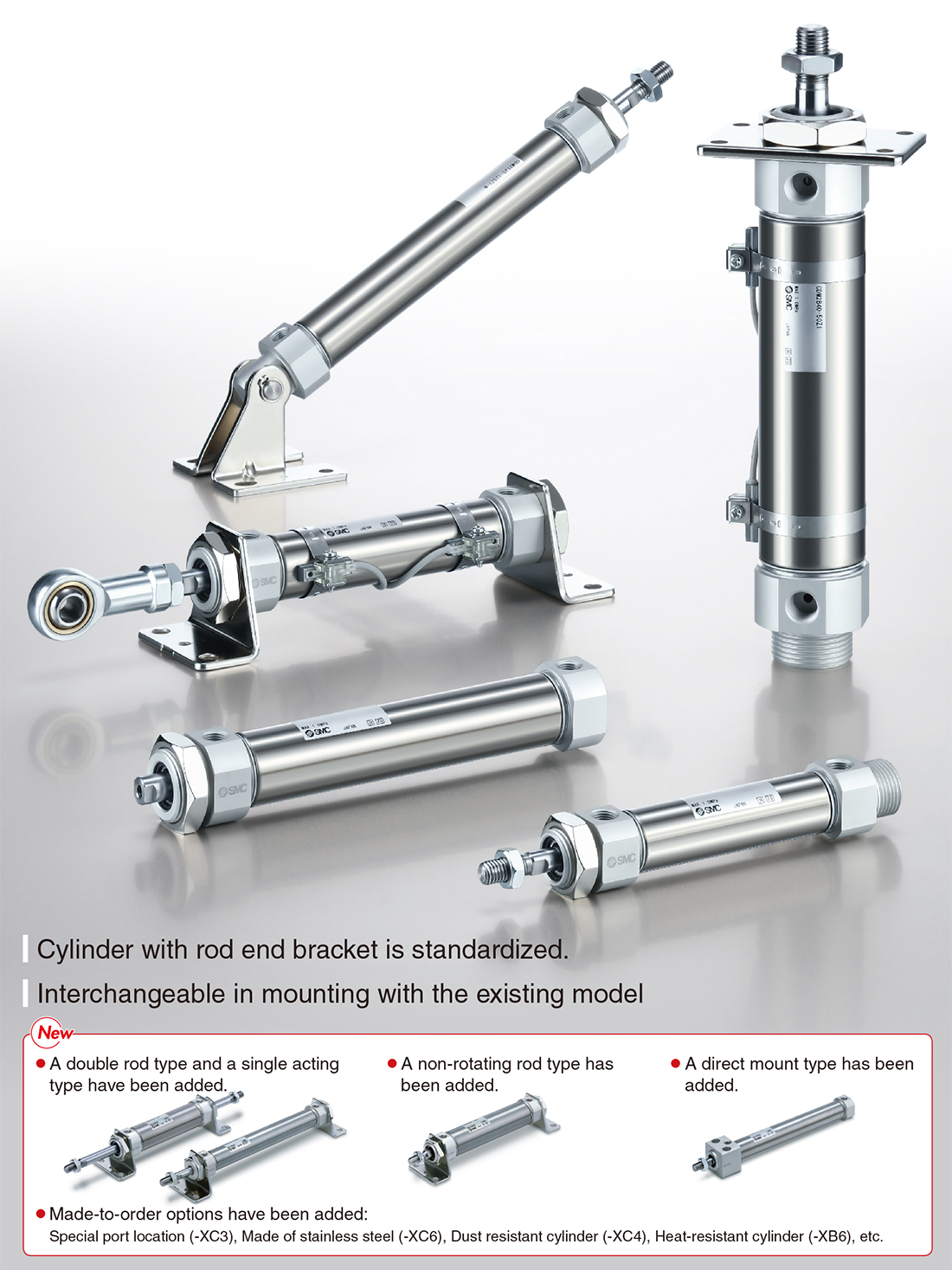

Air Cylinder CM2

    ?A double rod type, a single acting type, a non-rotating rod type, and
    　a direct mount type have been added. [New]
    ?Made-to-order options have been added. [New]
    　Special port location (-XC3), Made of stainless steel (-XC6), Dust resistant
    　cylinder (-XC4), Heat-resistant cylinder (-XB6), etc.
    ?Cylinder with rod end bracket is standardized.
    ?Interchangeable in mounting with the existing model
    ?Various mounting bracket options
    　Mounting brackets suitable for various installation conditions
    　Improved mounting flexibility
    ?Part numbers for products with a rod end bracket and/or a pivot bracket
    　available
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Air Cylinder CM2
    Manual
    Type Series Action Bore size (mm) View search result
    StandardCM2-Z1Double acting, Single rod20，25，32，40View search result
    StandardCM2-Z1Single acting (Spring return/extend)20，25，32，40View search result
    StandardCM2W-Z1Double acting, Double rod20，25，32，40
    Non-rotating rodCM2K-Z1Double acting, Single rod20，25，32，40
    Non-rotating rodCM2KW-Z1Double acting, Double rod20，25，32，40
    Direct mountCM2R-Z1Double acting, Single rod20，25，32，40
TypeSeriesActionBore size (mm)
StandardCM2-Z1Double acting, Single rod20，25，32，40
StandardCM2-Z1Single acting (Spring return/extend)20，25，32，40
StandardCM2W-Z1Double acting, Double rod20，25，32，40
Non-rotating rodCM2K-Z1Double acting, Single rod20，25，32，40
Non-rotating rodCM2KW-Z1Double acting, Double rod20，25，32，40
Direct mountCM2R-Z1Double acting, Single rod20，25，32，40

Features

Air Cylinder CM2 Series

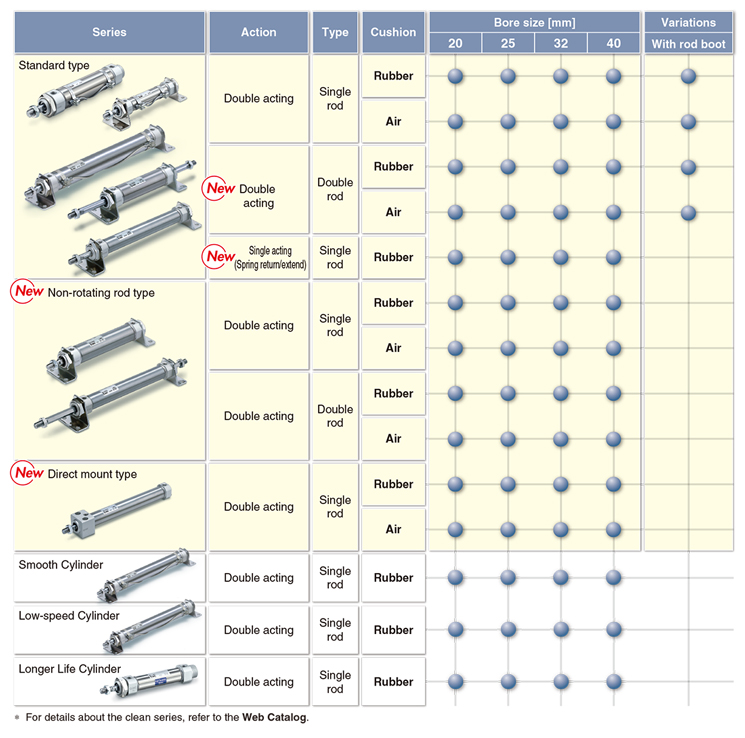

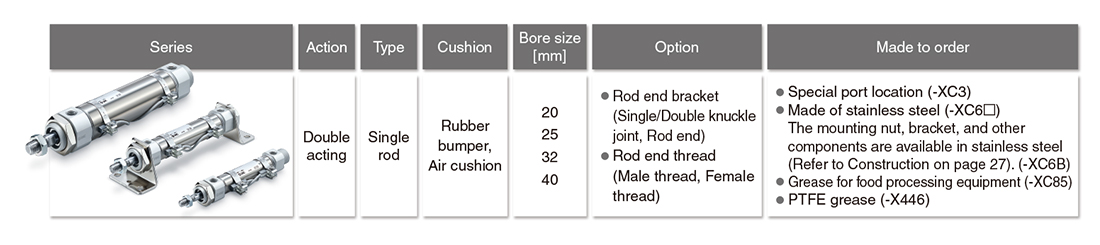

Series Variations

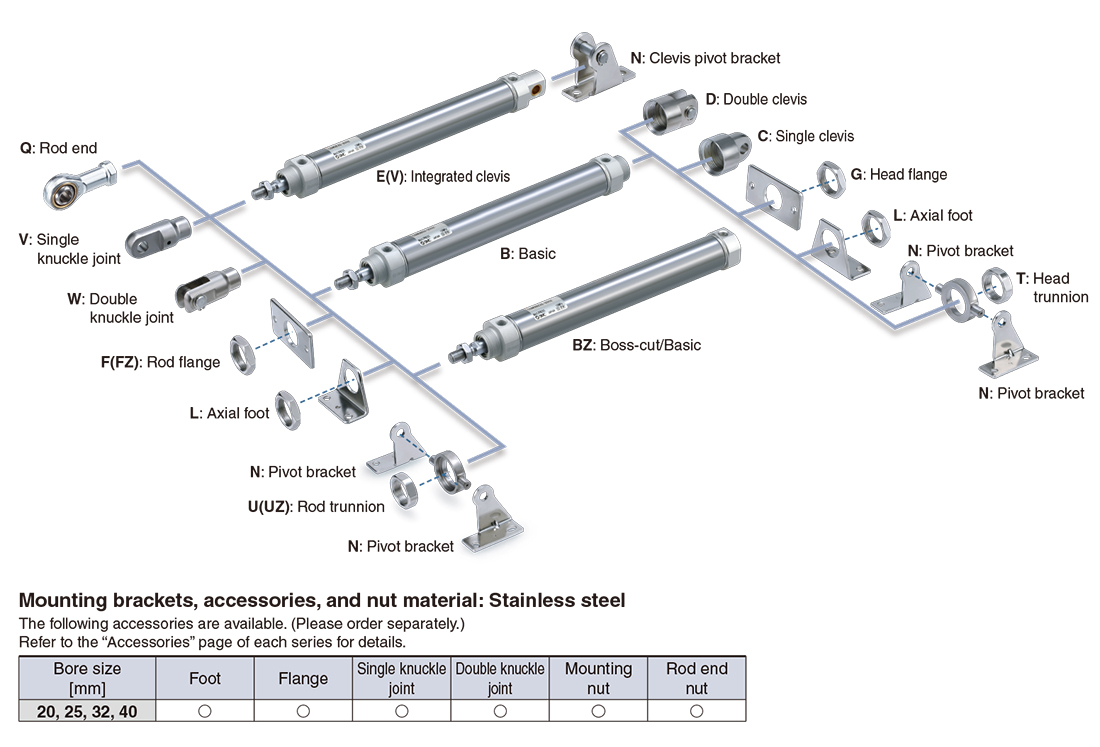

Various mounting bracket options

· Mounting brackets suitable for various installation conditions
· Improved mounting flexibility

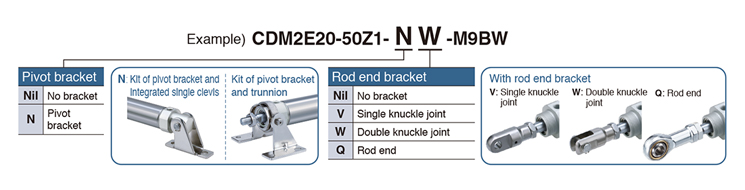

Part numbers for products with a rod end bracket and/or a pivot bracket available

It is not necessary to order a bracket for the applicable cylinder separately.
* Mounting brackets are shipped together with the product but do not come assembled.

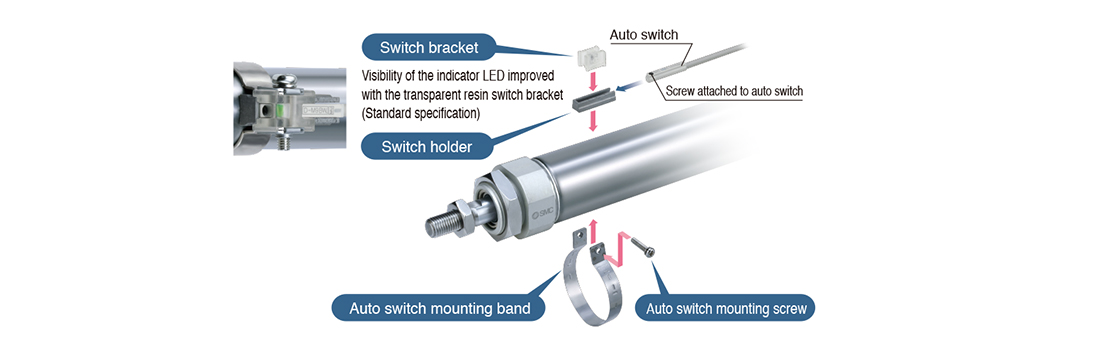

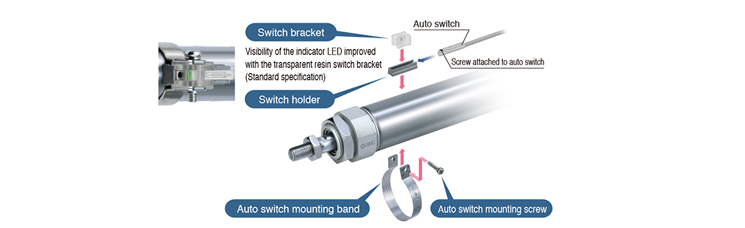

Easy fine adjustment of auto switch position

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw without loosening the auto switch mounting band. Operability improved compared with the existing auto switch set position adjustment, where the complete switch mounting band requires loosening

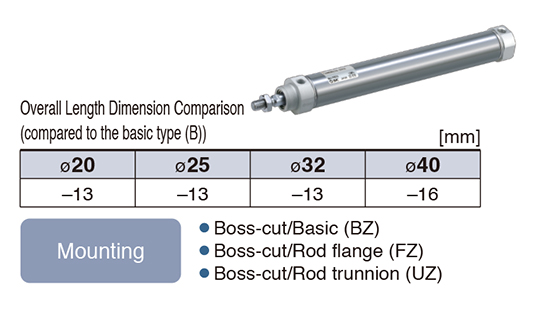

  • Overall length is shortened with boss-cut type.

    Boss for the head cover bracket is eliminated and the overall length of cylinder is shortened.

  • No environmental hazardous substances used

    Compliant with EU RoHS 10 directive



    Specifications, performance, and mounting method are the same as those of the existing model.

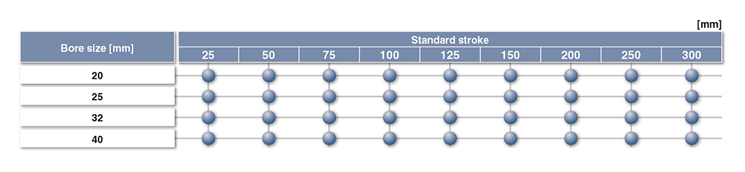

Stroke Variations

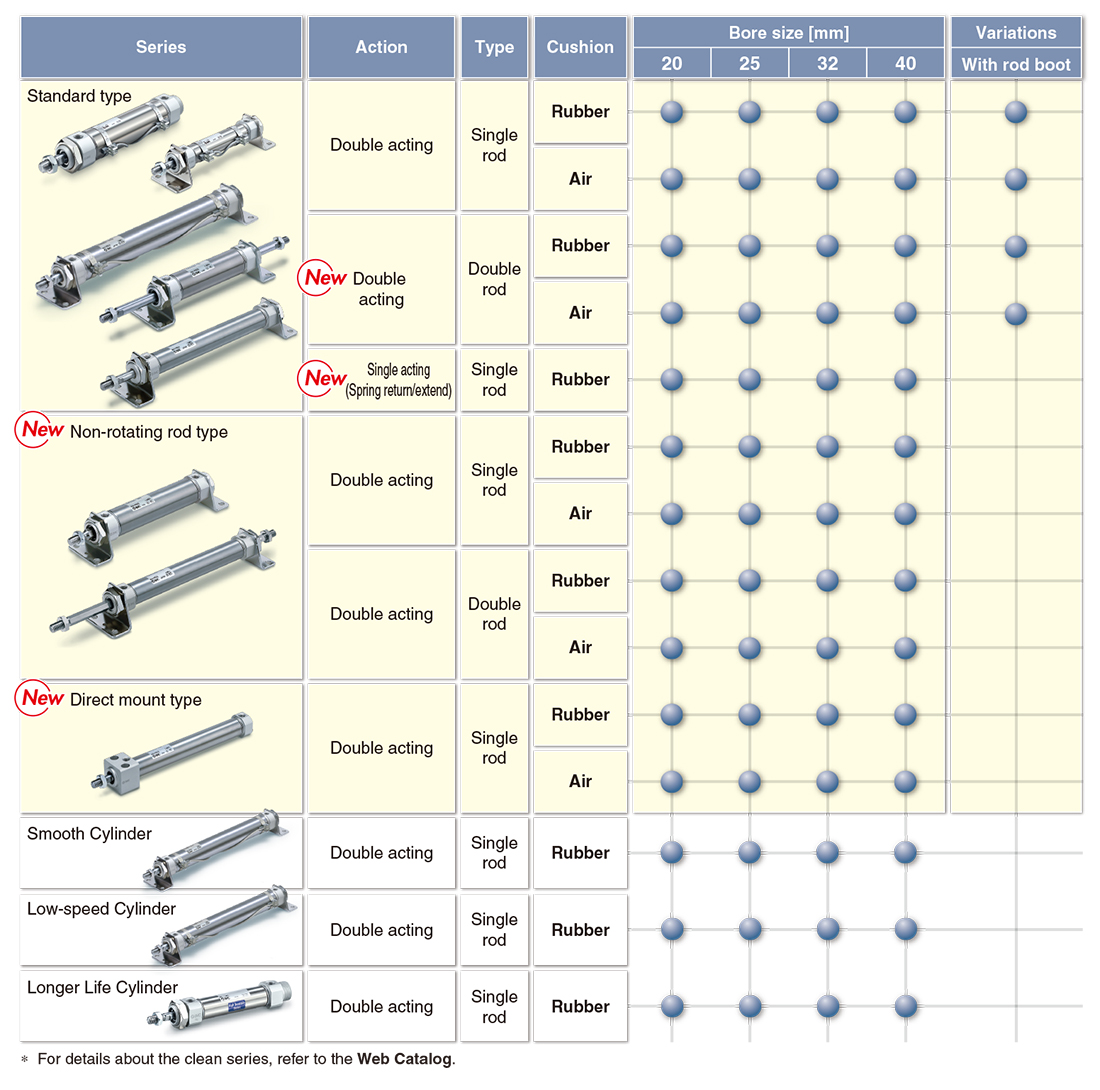

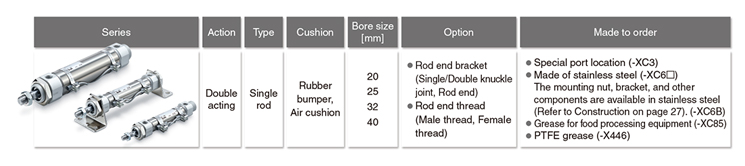

Series Variations

? For details about the clean series, refer to the Web Catalog
