WEB Catalog

Product Information ?  WEB Catalog  ? Modular F.R.L. Units  ? Filter Regulators

Filter Regulators

Filter Regulator with Built-in Pressure Gauge AWG-B

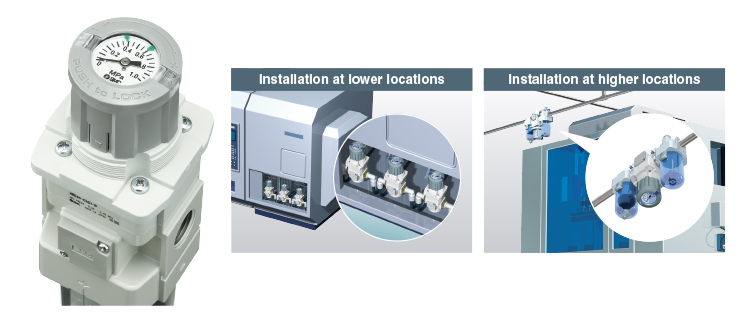

    ?Improved visibility by mounting the pressure gauge on the top of the knob

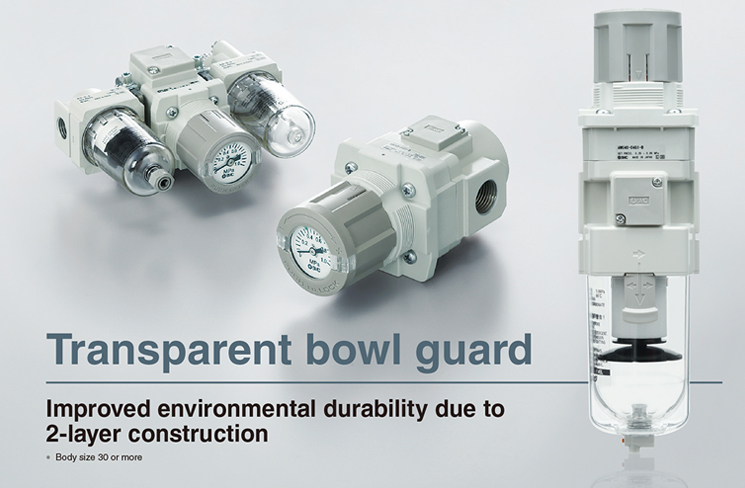

    ?Transparent bowl guard
    　Improved environmental durability due to 2-layer construction (Body size 30 or more)
    　Better visibility: 360o, Lightweight: Approx. 12% reduction
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesPort sizeSet pressure (MPa)Filtration (μm)
AWG20 to 40-B1/8，1/4，3/8，1/20.05 to 0.85
0.02 to 0.2		5

Features

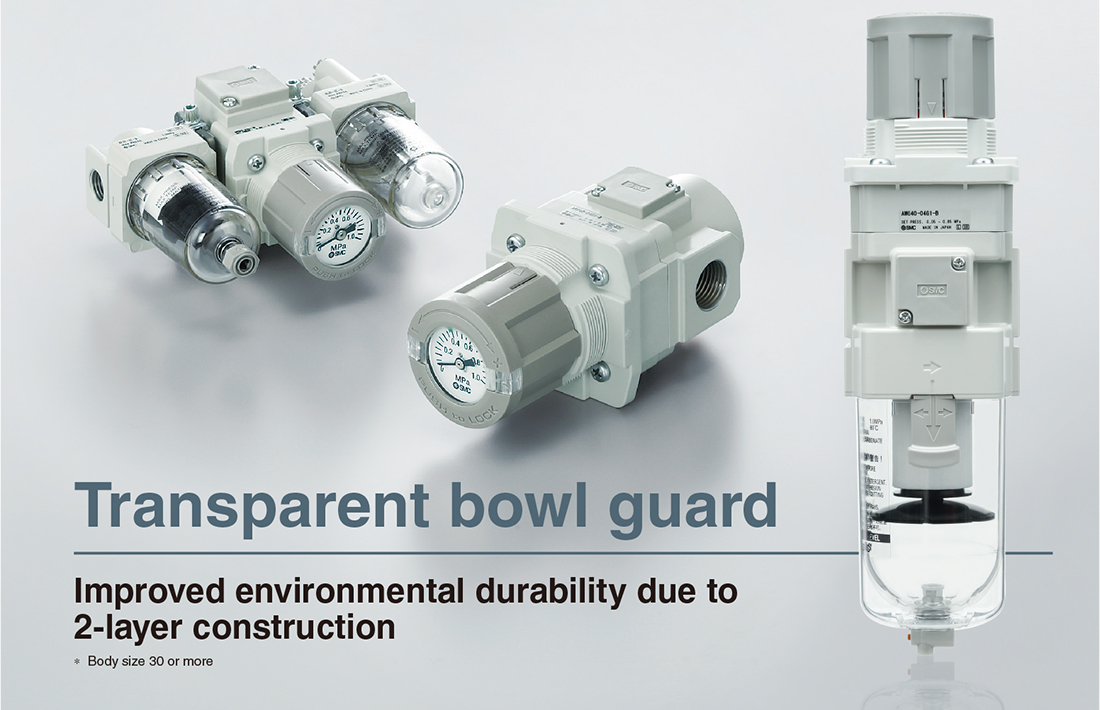

■Transparent bowl guard

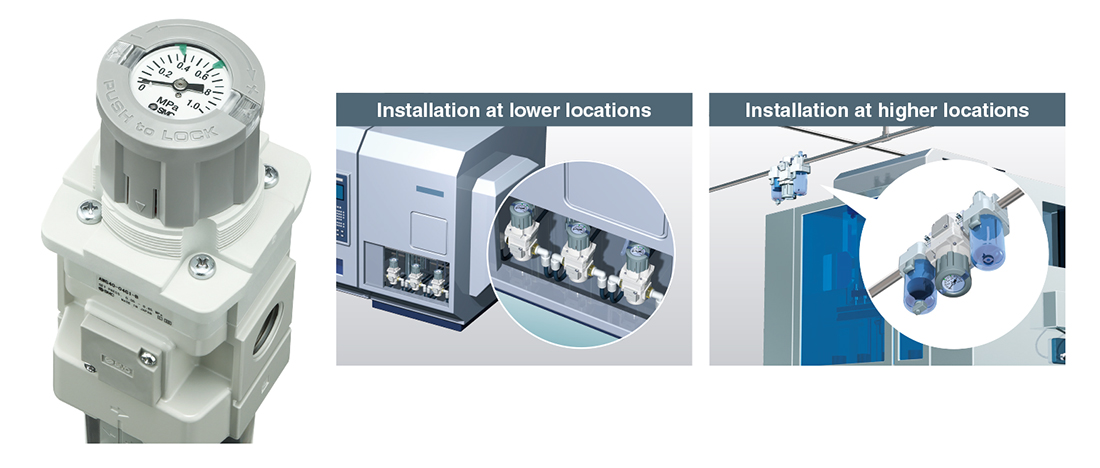

■Improved visibility by mounting the pressure gauge on the top of the knob

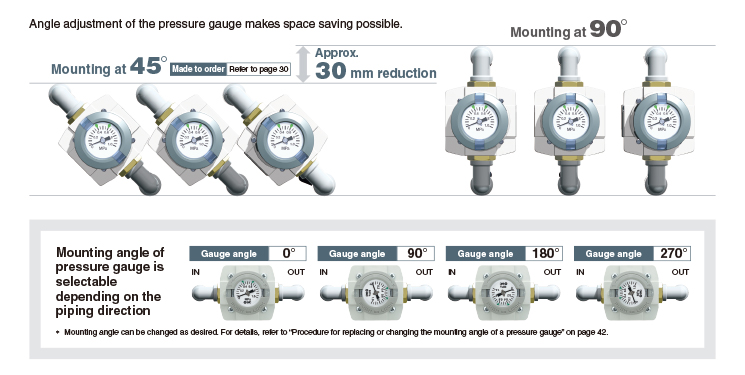

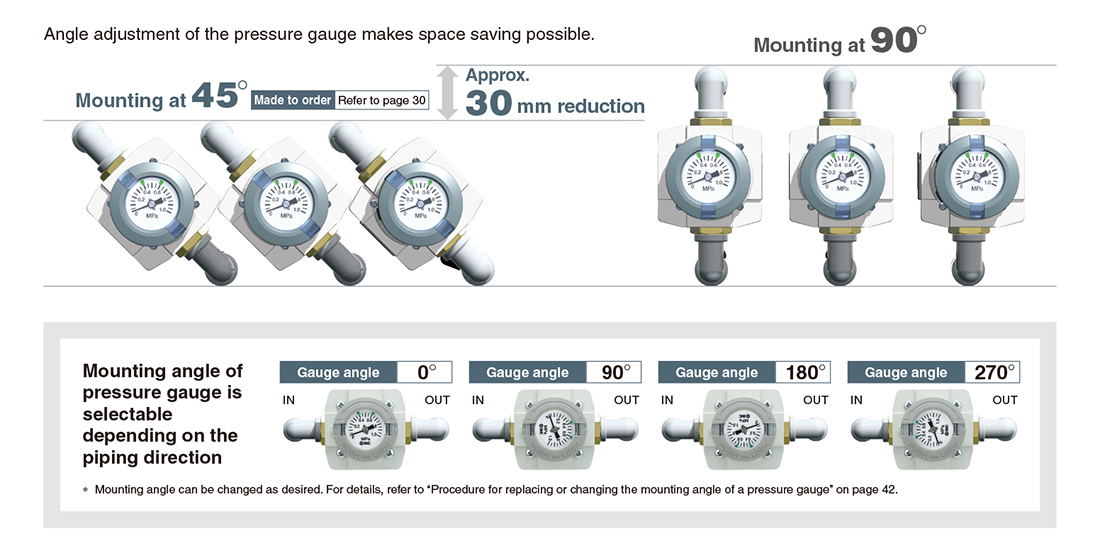

■Space saving, Labor saving

Installation height: Approx. 30 mm reduction

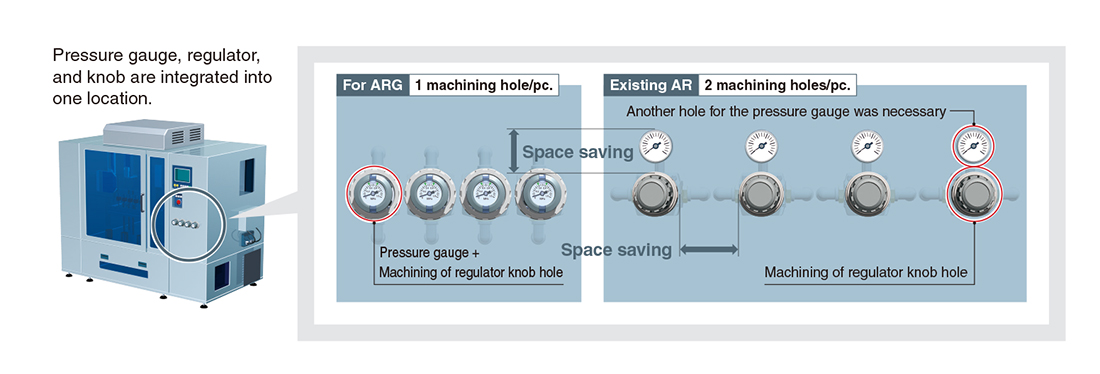

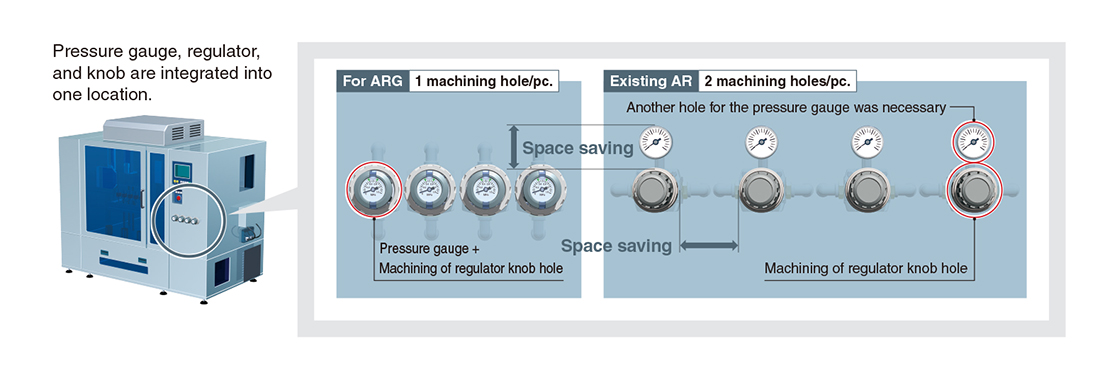

■No need to machine a hole for the pressure gauge

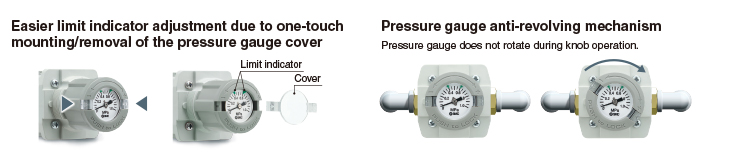

■Improved operability

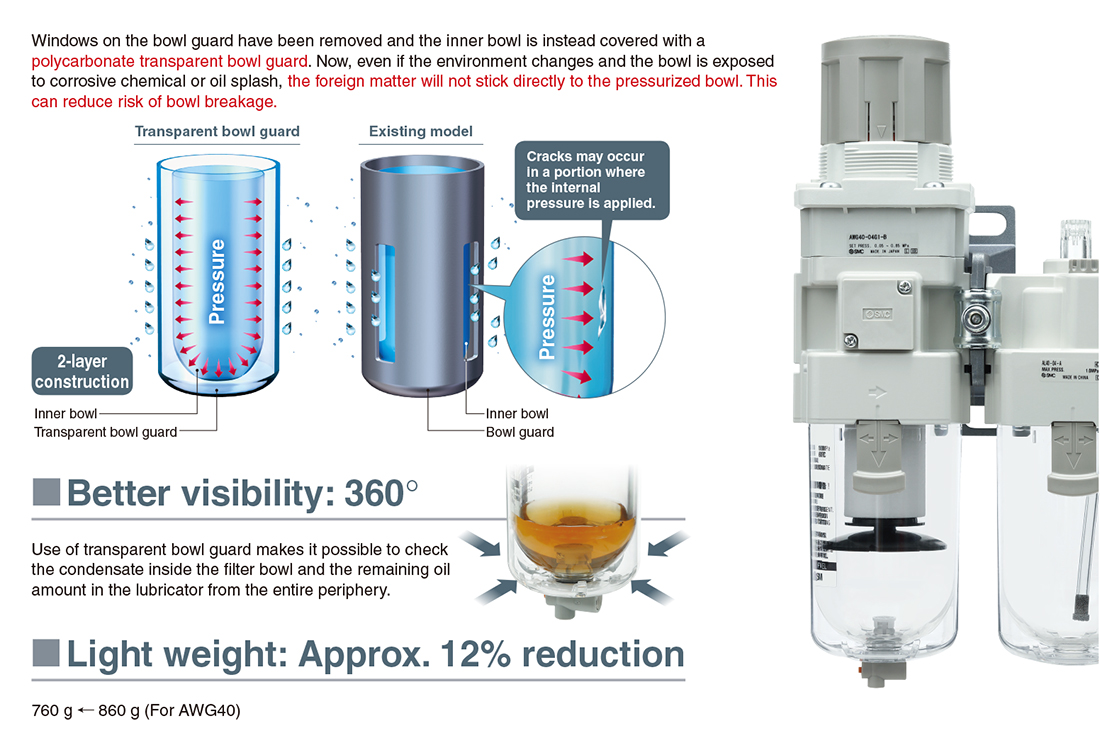

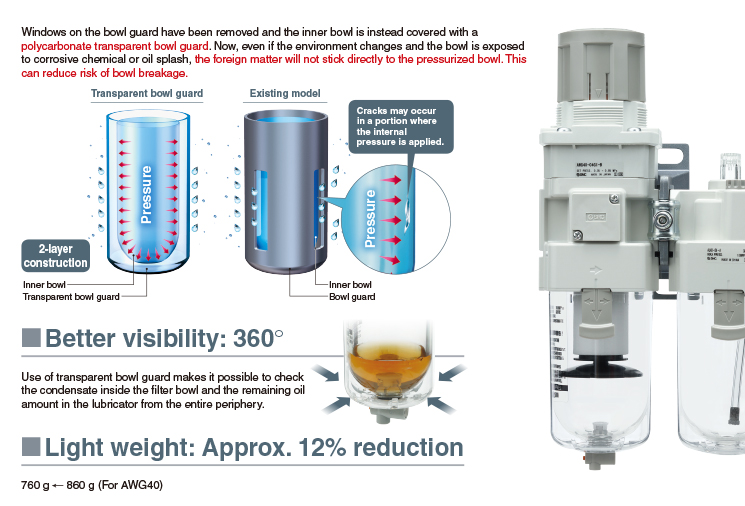

■Transparent bowl guard

Better environmental resistance:Transparent bowl guard can protect the inner bowl!

■Related Product
