WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Table Cylinders

Table Cylinders

Air Slide Table/High Rigidity Type MXQ32-X2600

    ?75, 100, 125, and 150 mm strokes have been added. [New]
    ?A linear guide with a 4-row circular arc groove for high rigidity and high
    　precision

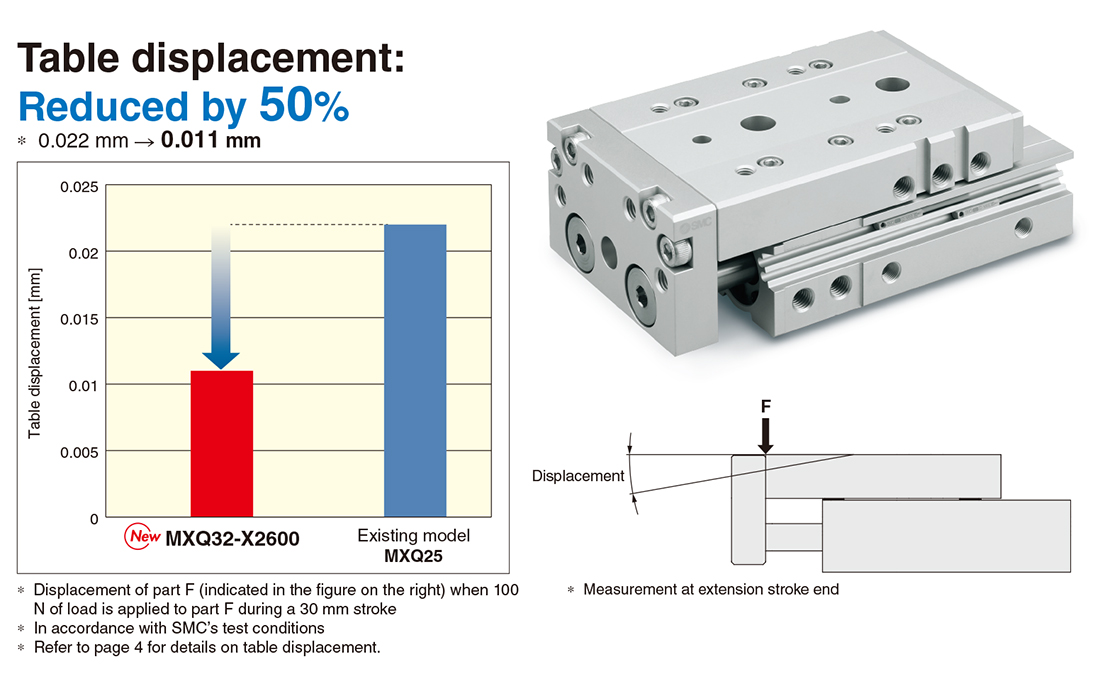

    ?Table displacement: Reduced by 50% (0.022 mm → 0.011 mm)
    ?Max. load weight: 16 kg
    ?Aluminum table: Load weight increased by reducing the weight of
    　moving parts

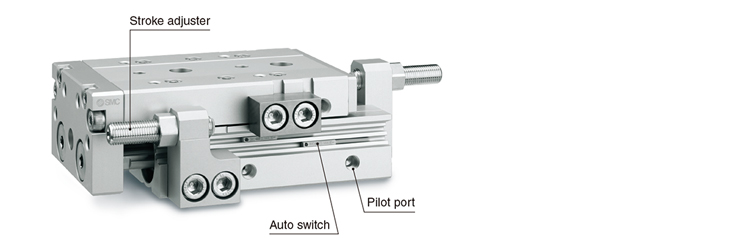

    ?Integrated pilot port, stroke adjuster, and auto switch on 1 side allows for
    　improved operability
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Air Slide Table/High Rigidity Type MXQ32-X2600
    Manual
    Type Series Action Bore size (mm) View search result
    Standard
    High rigidity type    		MXQ32-X2600Double acting32View search result
TypeSeriesActionBore size (mm)
Standard
High rigidity type		MXQ32-X2600Double acting32

Features

A linear guide with a 4-row circular arc groove for high rigidity and high precision

Max. load weight: 16 kg



Aluminum table: Load weight increased by reducing the weight of moving parts

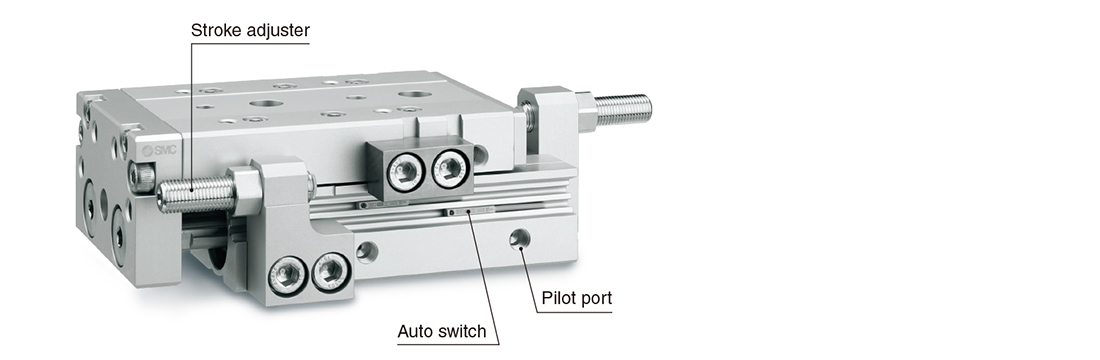

Integrated pilot port, stroke adjuster, and auto switch on 1 side allows for improved operability

Go Top
