WEB Catalog

Product Information ?  WEB Catalog  ? Rotary Actuators/Air Grippers  ? Parallel Type Air Grippers

Parallel Type Air Grippers

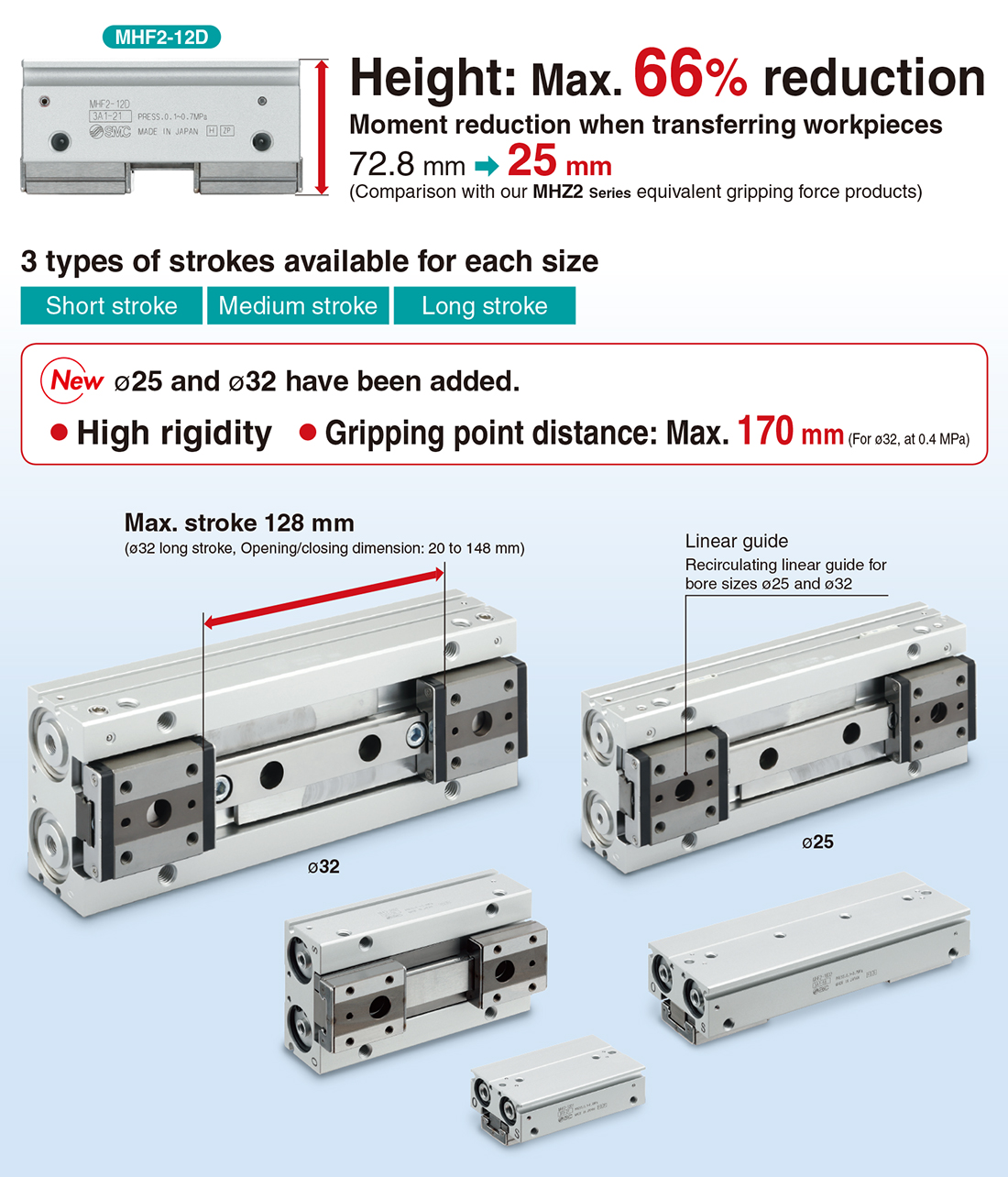

Low Profile Air Gripper MHF2

    ??25 and ?32 have been added. [New]

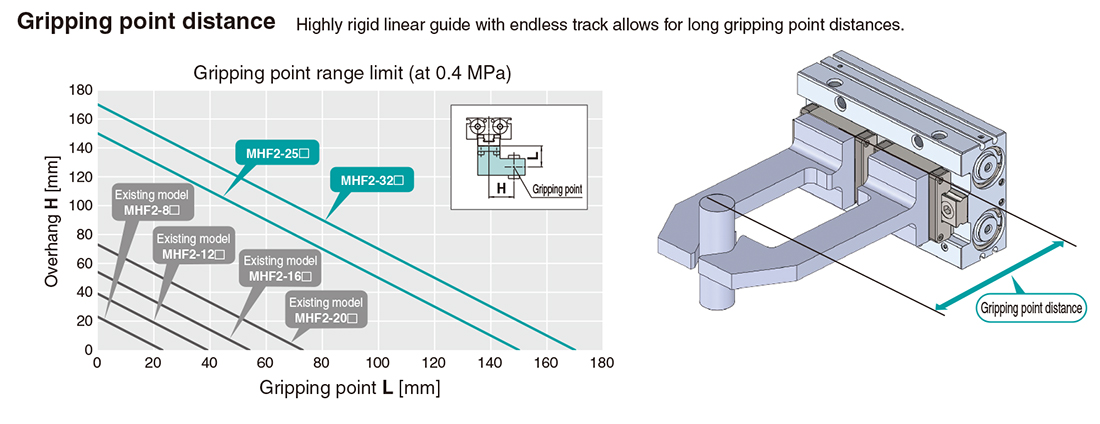

    　High rigidity　Gripping point distance: Max. 170 mm (For ?32, at 0.4 MPa)
    ?Height: Max. 66% reduction　Moment reduction when transferring
    　workpieces
    　72.8 mm → 25 mm (Comparison with our MHZ2 Series equivalent
    　gripping force products)

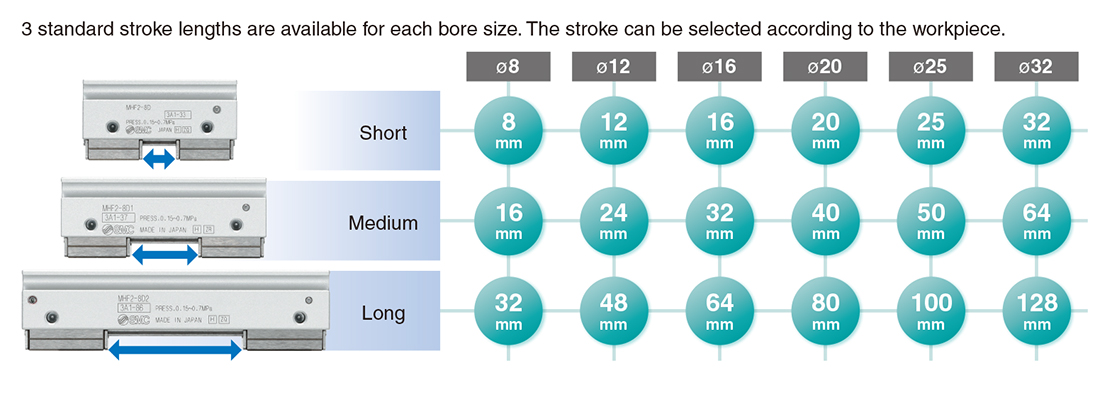

    ?3 types of strokes available for each size
    　Short stroke, Medium stroke, Long stroke
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Low Profile Air Gripper MHF2
    Manual
    Series View search result
    MHF2View search result
SeriesCylinder bore size (mm)
MHF28，12，16，20，25，32

Features

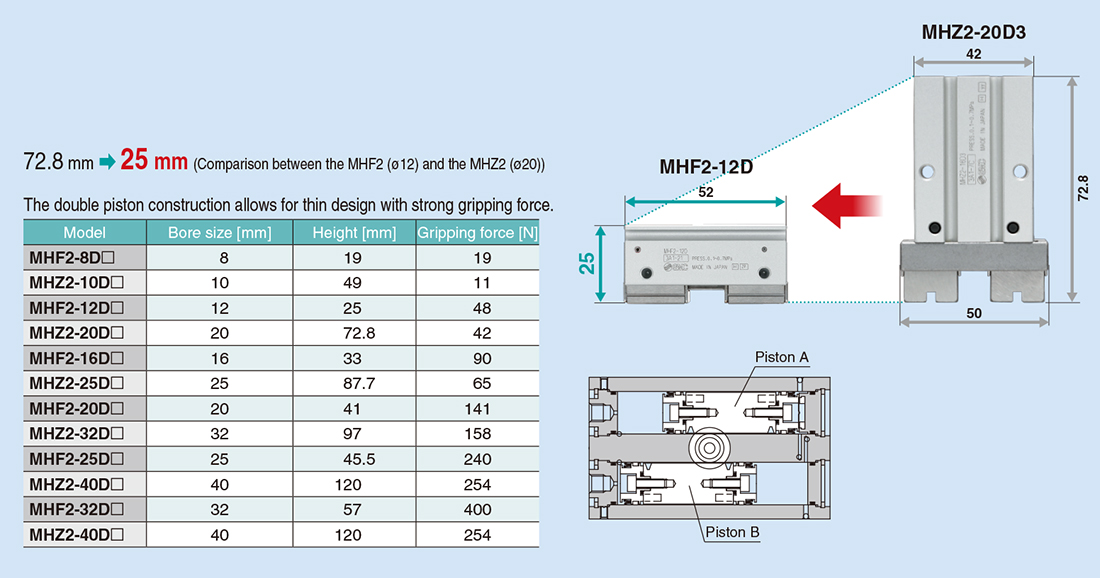

Height: Max. 66% reduction

Moment reduction when transferring workpieces

Height reduced to approx. 1/3 with equal or greater gripping force than the MHZ2 series product

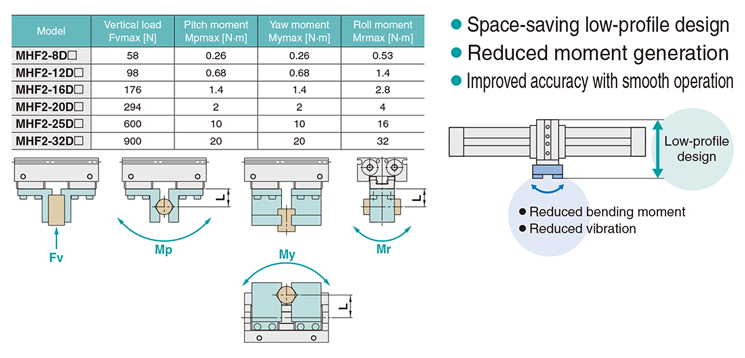

Max. allowable moment and load

Stroke selection is available.

Features

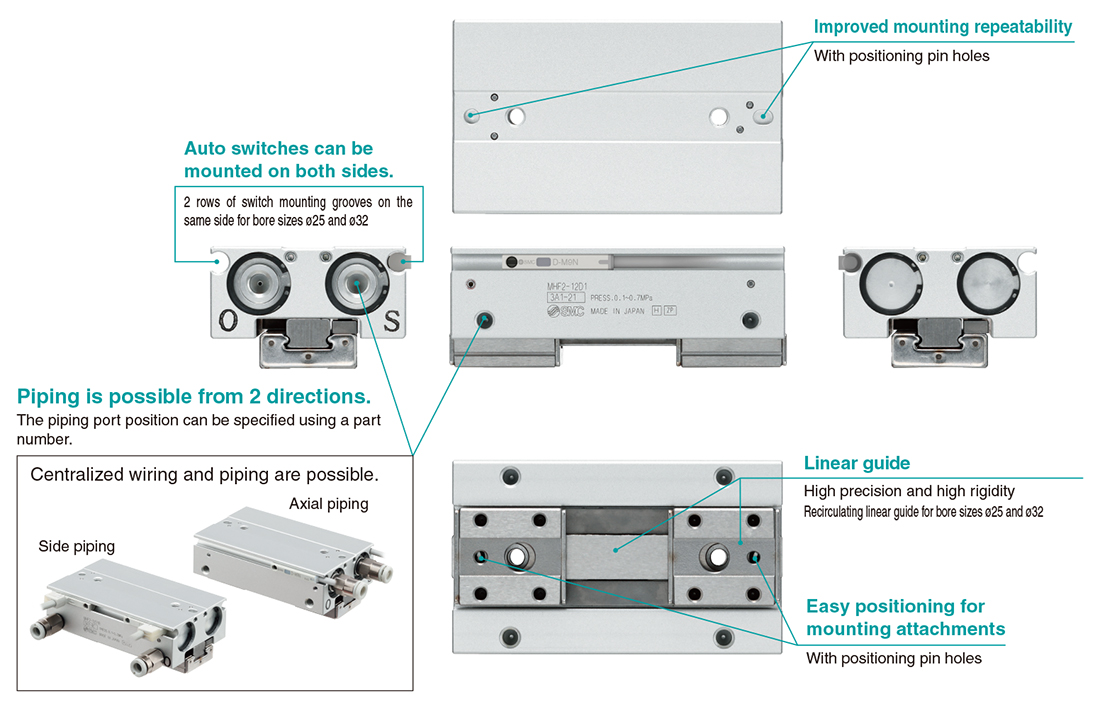

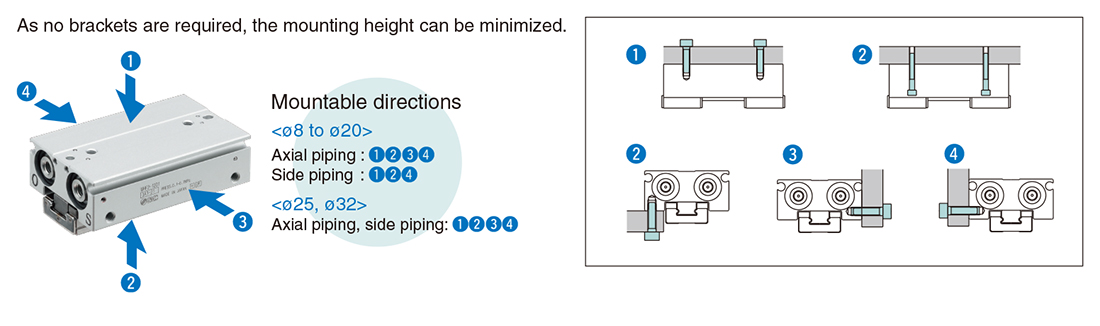

Mounting is possible from 4 directions.

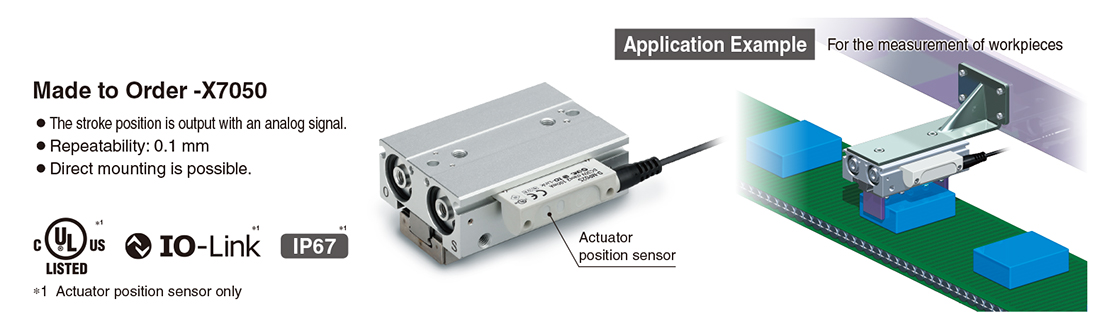

Actuator Position Sensor Compatible Type (?8 to ?20)

Bore sizes ?25 and ?32 have been added.

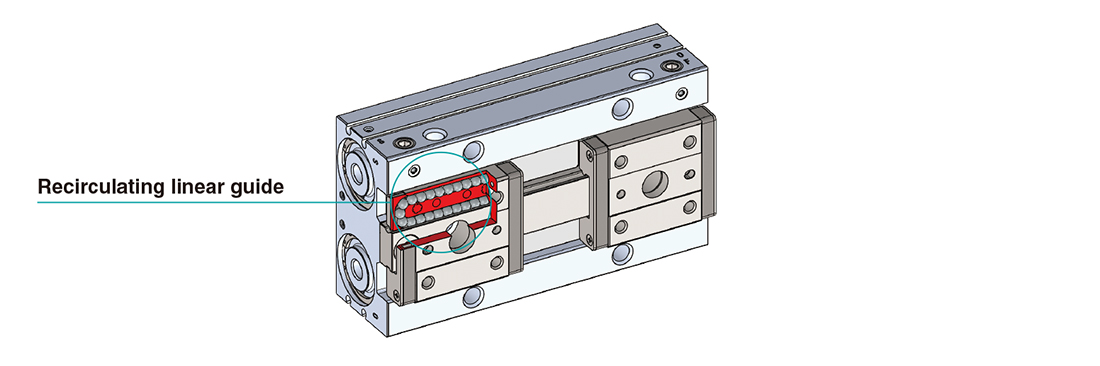

Uses a recirculating linear guide

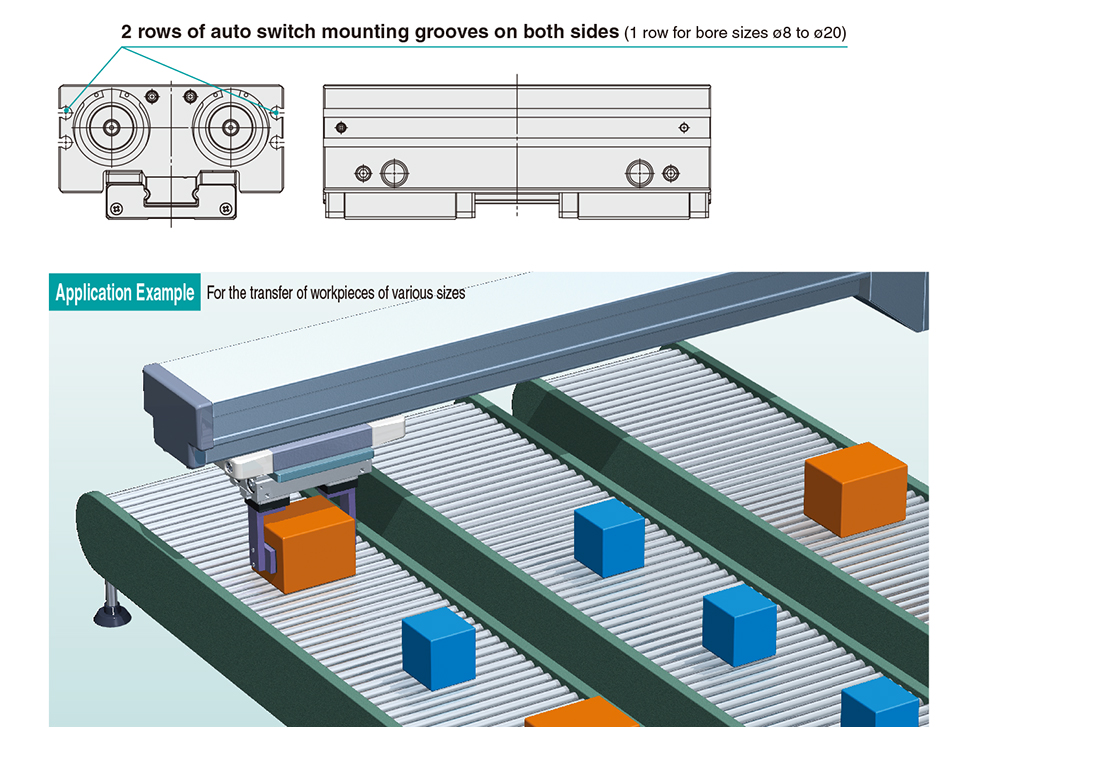

Solid state auto switches (D-A9m) are mountable.

Go Top
