WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Clamp Cylinders

Clamp Cylinders

Power Clamp Cylinder CKZ3T-X2734/CKZ3T-X2568□

    ?Simple switch adjustment greatly reduces work-hours
    　Switch can be adjusted easily when changing the arm opening angle.
    ?With metal switch cassette cover
    ?Weight reduced by up to 39%
    ?High clamping force: 4000 N
    ?Spatter proof construction
    ?Select from 2 types of top cover
    ?A model with a manually operated handle (lock specification) is available.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesArm opening angleSwitchBore size (mm)
CKZ3T-X273415o, 30o, 45o, 60o, 75o, 90o, 105o, 120o, 135oTURCK/P&F50，63
CKZ3T-X25688m
(With manually operated handle)		15o，30o，45o， 60o，75o，90o，105o，120oTURCK/P&F50，63

Features

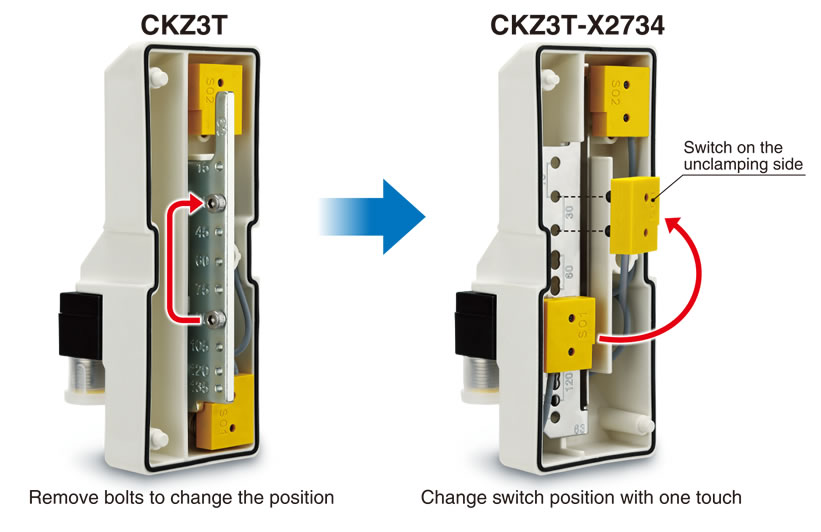

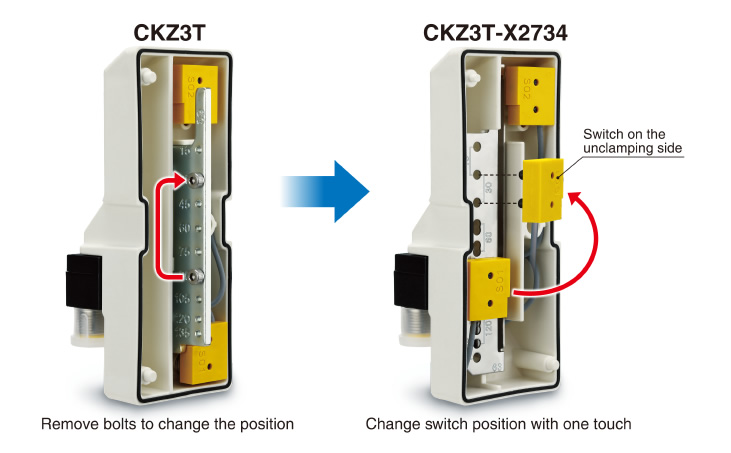

■Simple switch adjustment greatly reduces work hours
　Switch can be adjusted easily when changing the arm opening angle.

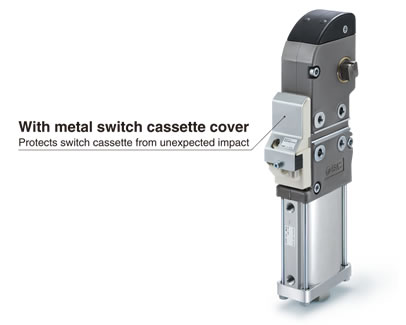

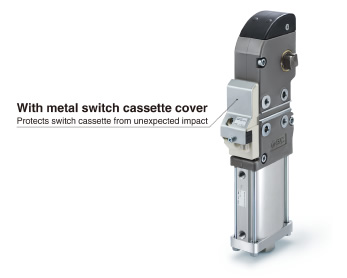

■With metal switch cassette cover
  • Protects switch cassette from unexpected impact

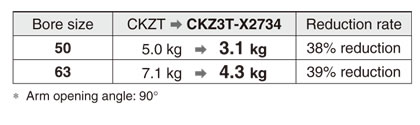

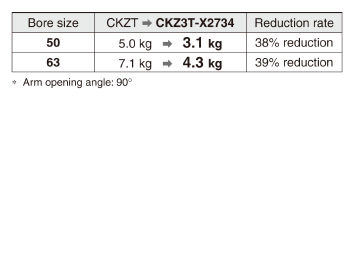

■Weight reduced by up to 39%
  • Aluminum body with greatly reduced weight
  • Suitable for robot material handling
■High clamping force 4000 N

(?63, Arm length: 100 mm, 0.5 MPa pressure)

■Spatter proof construction

Fully closed structure prevents intrusion of spatter

■Select from two types of top cover
  • Rubber cover: Rounded design reduces accumulation of welding spatter
    Equivalent to UL94 standard V0: Flame resistant
  • Metal cover : Suitable for arc welding lines,
    Protects the cylinder from unexpected external impact

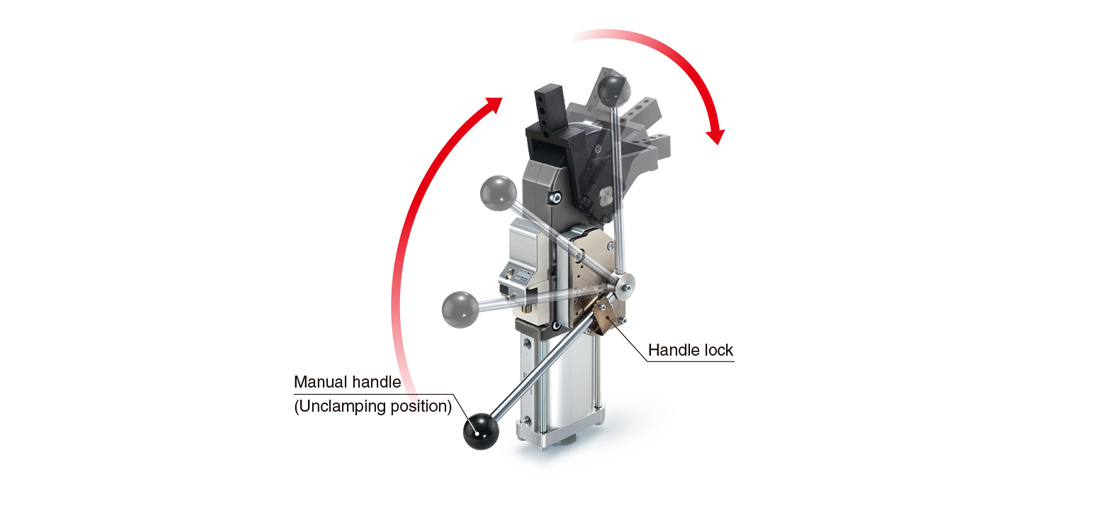

■Manual handle (lock specification) is available.
  • For manual workpiece setting processes
