WEB Catalog

Product Information ?  WEB Catalog  ? Directional Control Valves  ? Pilot Operated 4/5 Port Solenoid Valves

Pilot Operated 4/5 Port Solenoid Valves

Compact 5-Port Solenoid Valve/Non Plug-in Type JSY1000/3000/5000

    ?Size reduction possible thanks to a flow increase
    　This leads to space saving, weight reduction, and a large flow rate.
    ?Power consumption: 0.1 W (With power saving circuit), 0.4 W (Standard)
    ?4-position dual 3-port valve available
    ?Bottom ported is prepared (A, B port).
    ?Manifold type no.: JJ5SY1, JJ5SY3, JJ5SY5
    ?Body ported single unit (For mounting P.E plate)
SeriesFlow rate characteristics
4/2→3/5（A/B→E）
C［dm3/（s?bar）］		Flow rate ccharacteristics
4/2→3/5（A/B→E）
b		Applicable
cylinder size		Power
consumption
(W)
JSY10000.630.28φ320.2(With power saving circuit)
JSY30001.810.27φ500.4(Standard)
0.1(With power saving circuit)
JSY50003.720.18φ800.4(Standard)
0.1(With power saving circuit)

Features

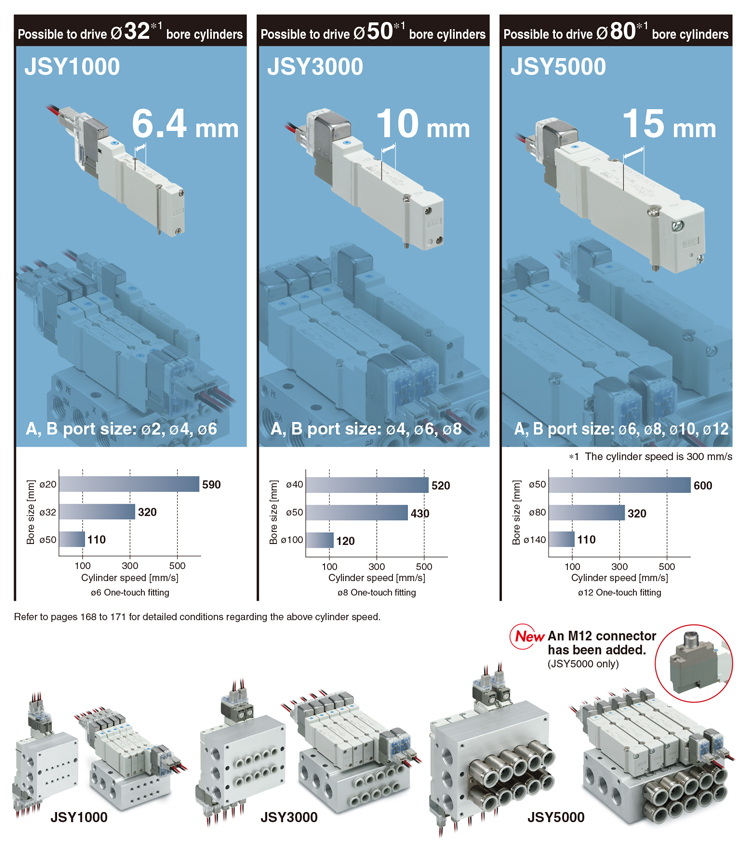

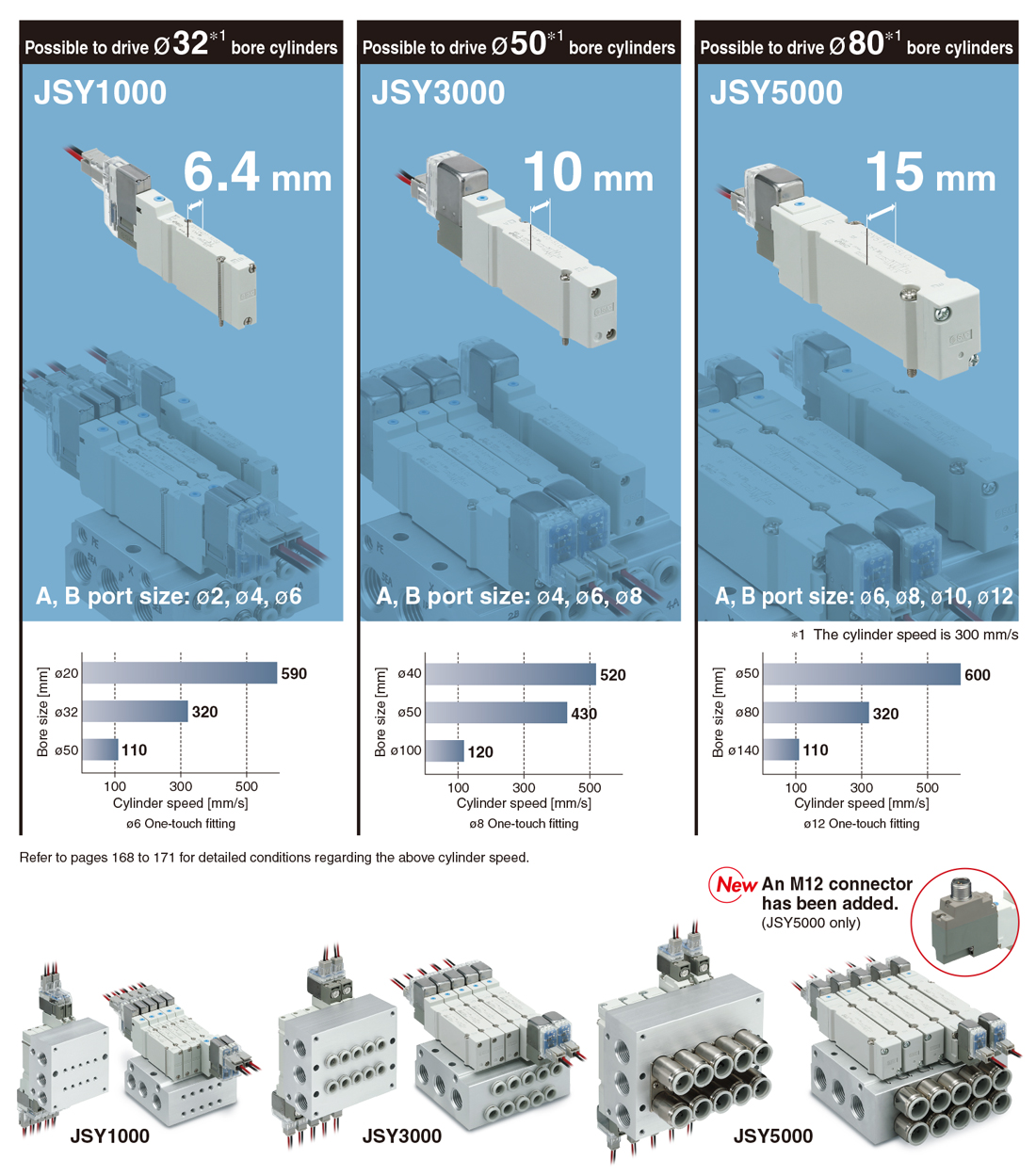

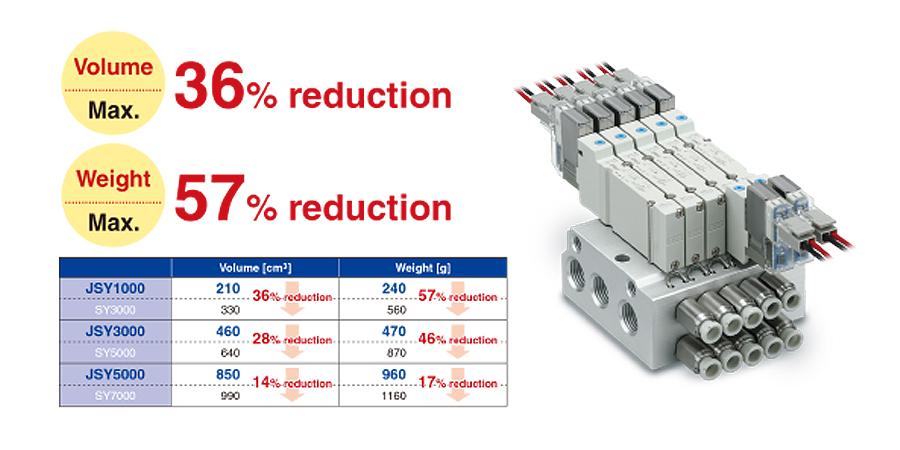

Size reduction possible thanks to a flow increace

this leads to space saving, weight reduction, and a large flow rate.

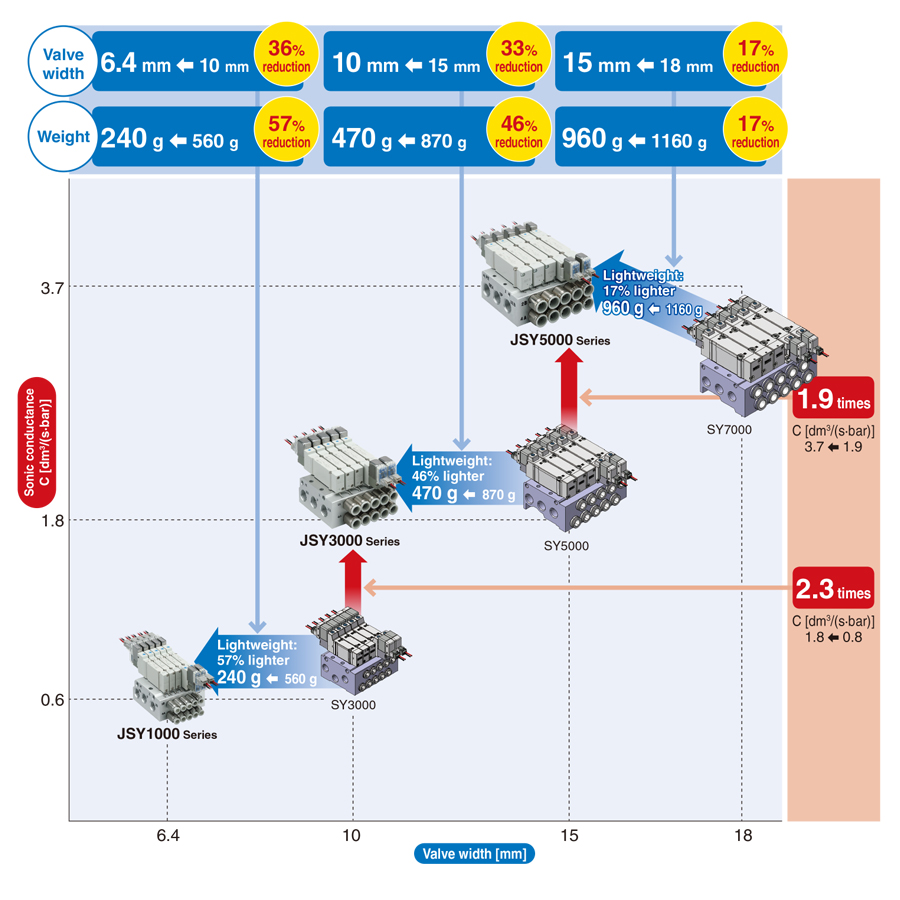

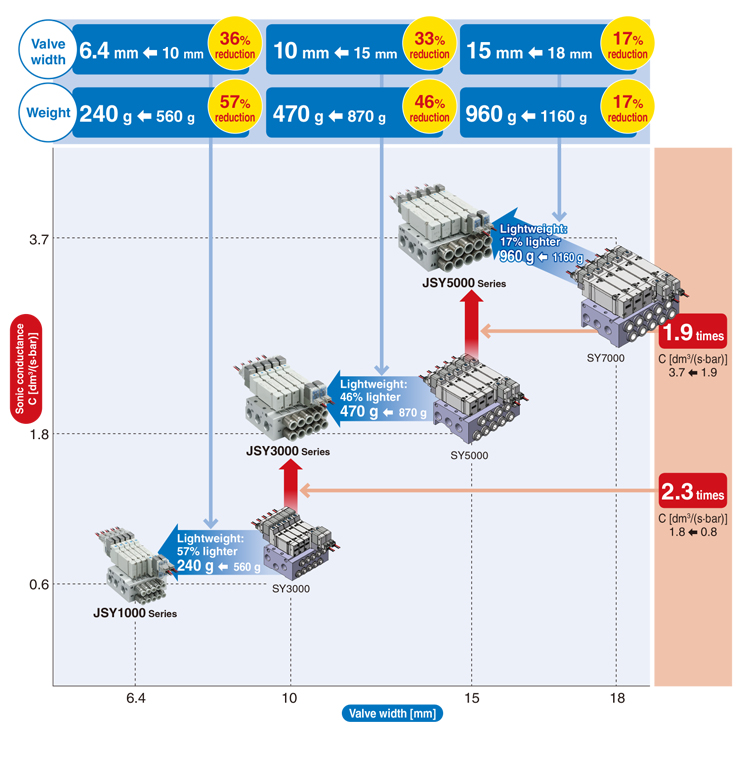

Series MAP

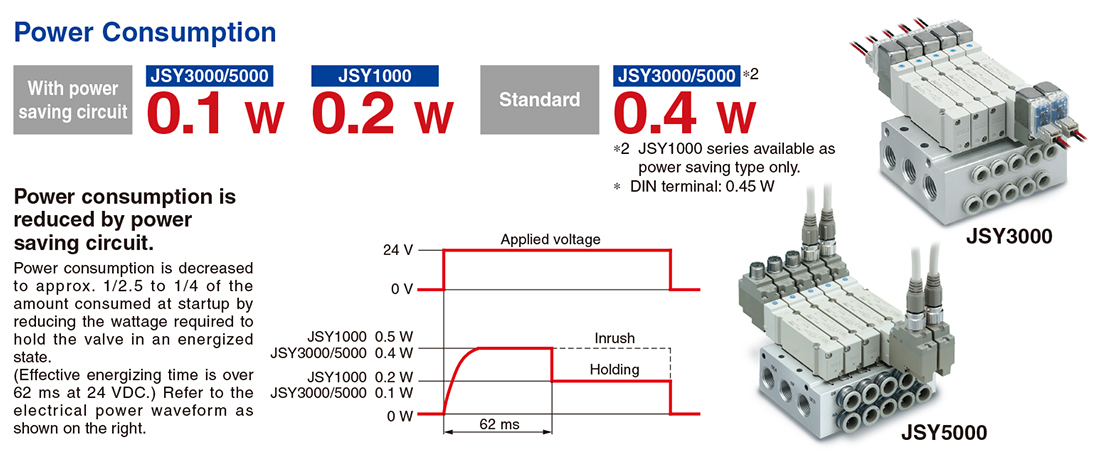

Power Saving

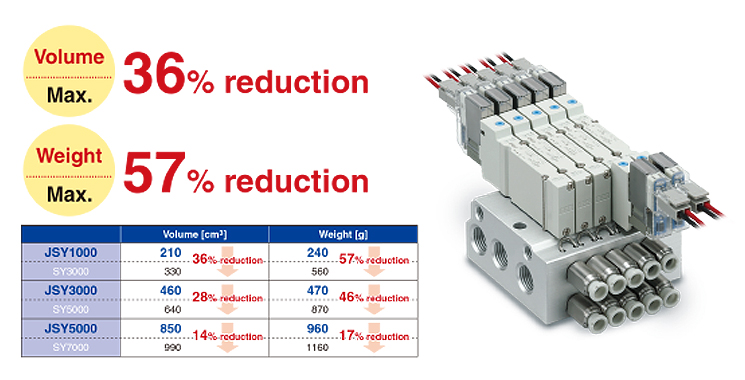

Space Saving

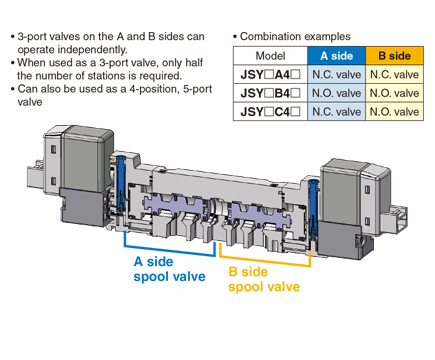

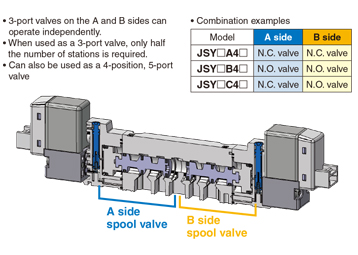

  • 4-Position Dual 3-Port Valve Available

    Two 3-port valves built into one body

  • Bottom ported is prepared(A,B port).

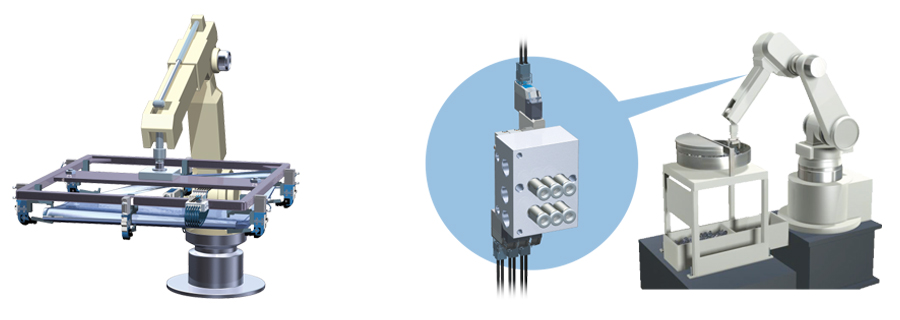

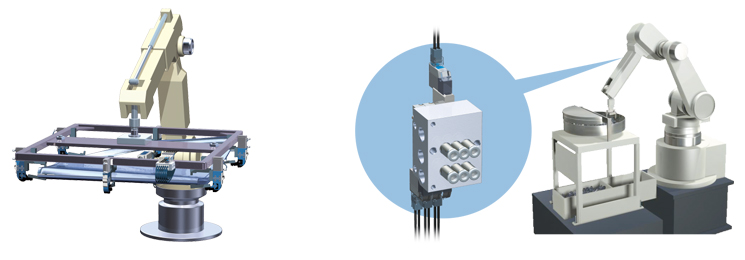

Application Examples
