Standard Air Cylinders (Round Type）
Air Cylinder CG1/CDG1
-
?Improved piping flexibility
?Piping can be connected every 90 degrees (4 positions). (Made to order:
XC3)
?Cylinder with rod end bracket is standardized.
?Interchangeable in mounting with the existing model
?Various mounting bracket options
?Part numbers for products with a rod end bracket and/or a pivot bracket
It is not necessary to order a bracket for the applicable cylinder
separately.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD
Safety Instructions Actuators/Precautions Auto Switches/Precautions How to Mount and Move the Auto Switch Model Selection/Technical Data Green Procurement (RoHS)
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CG1-Z1 | Double acting single rod | 20，25，32，40，50，63，80，100 |
Features

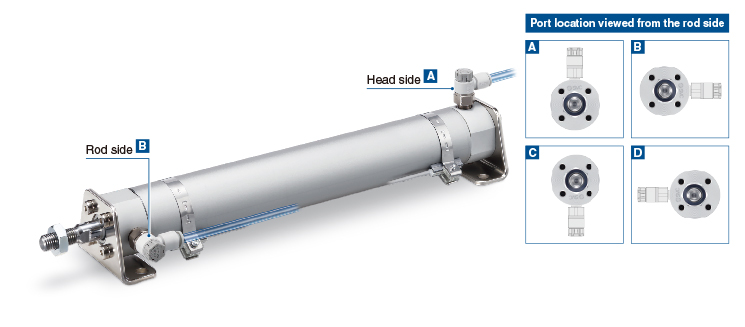

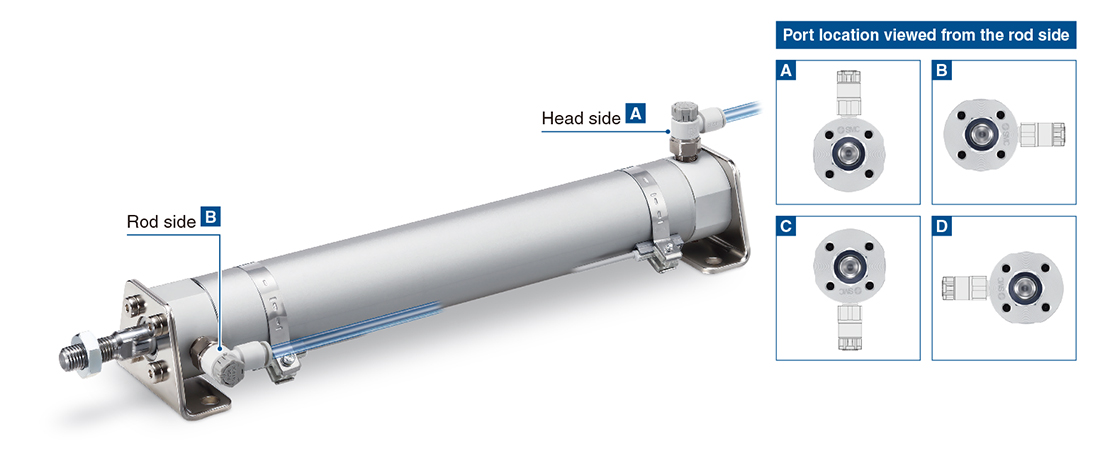

Improved piping flexibility (Made to order: XC3)
?Piping can be connected every 90 degrees (4 positions).
?Suitable piping position can be selected during designing phase.
-

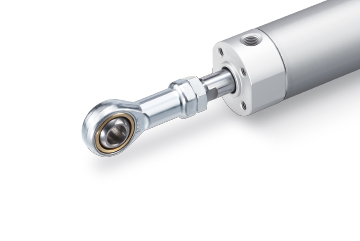

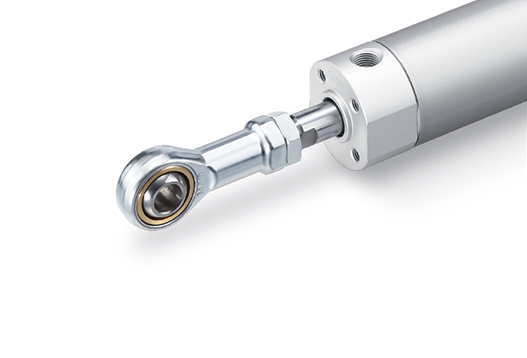

Cylinder with rod end bracket is standardized.
-
Interchangeable in mounting with the existing model

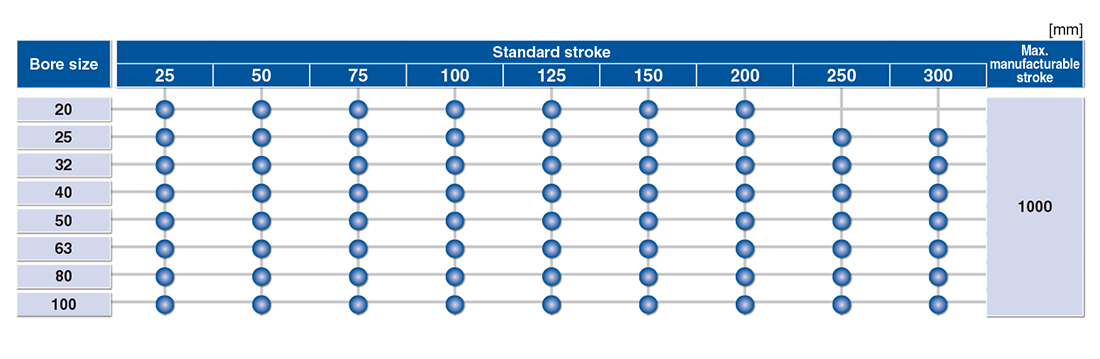

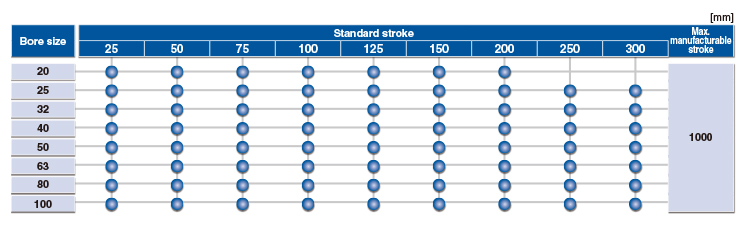

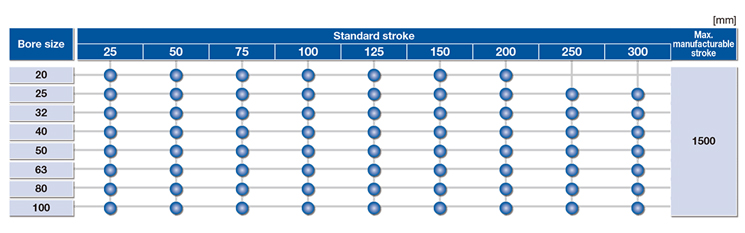

Stroke Variations

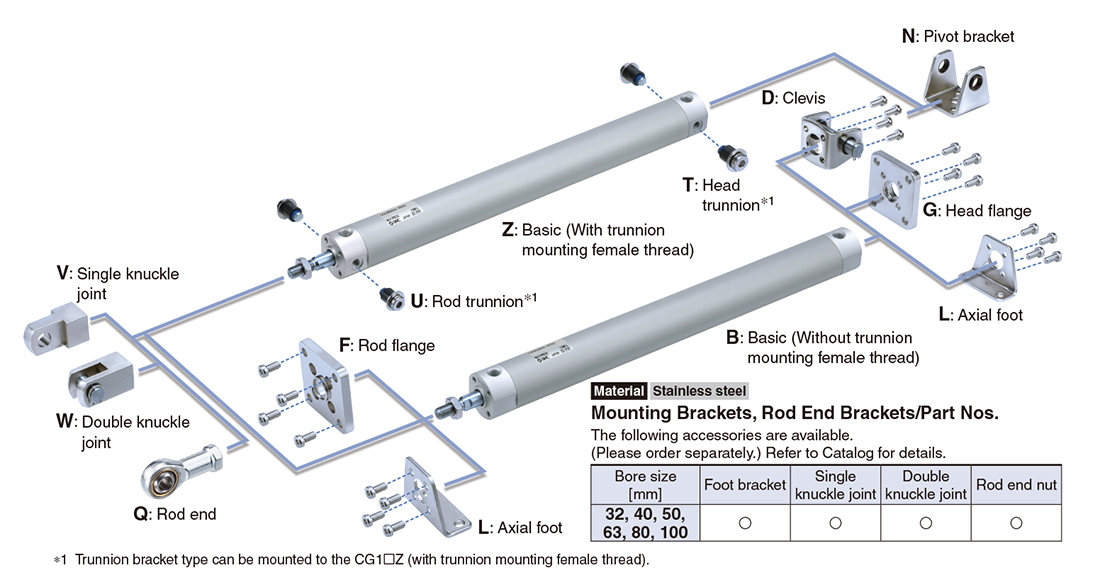

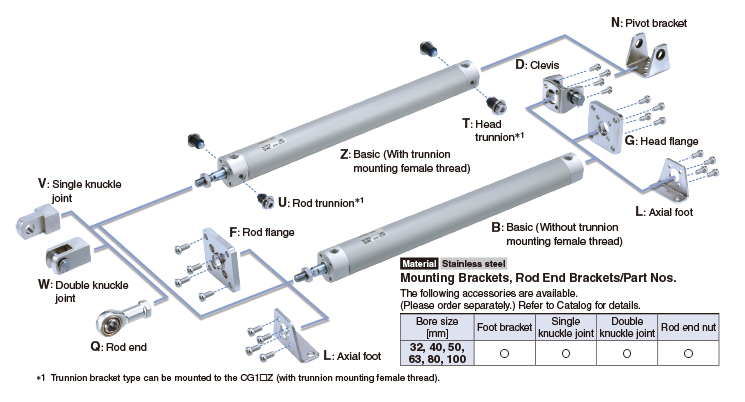

Various mounting bracket options
?Mounting brackets suitable for various installation conditions
?Improved mounting flexibility
Part numbers for products with a rod end bracket and/or a pivot bracket
It is not necessary to order a bracket for the applicable cylinder separately.
＊ Mounting brackets are shipped together with the product but do not come assembled.

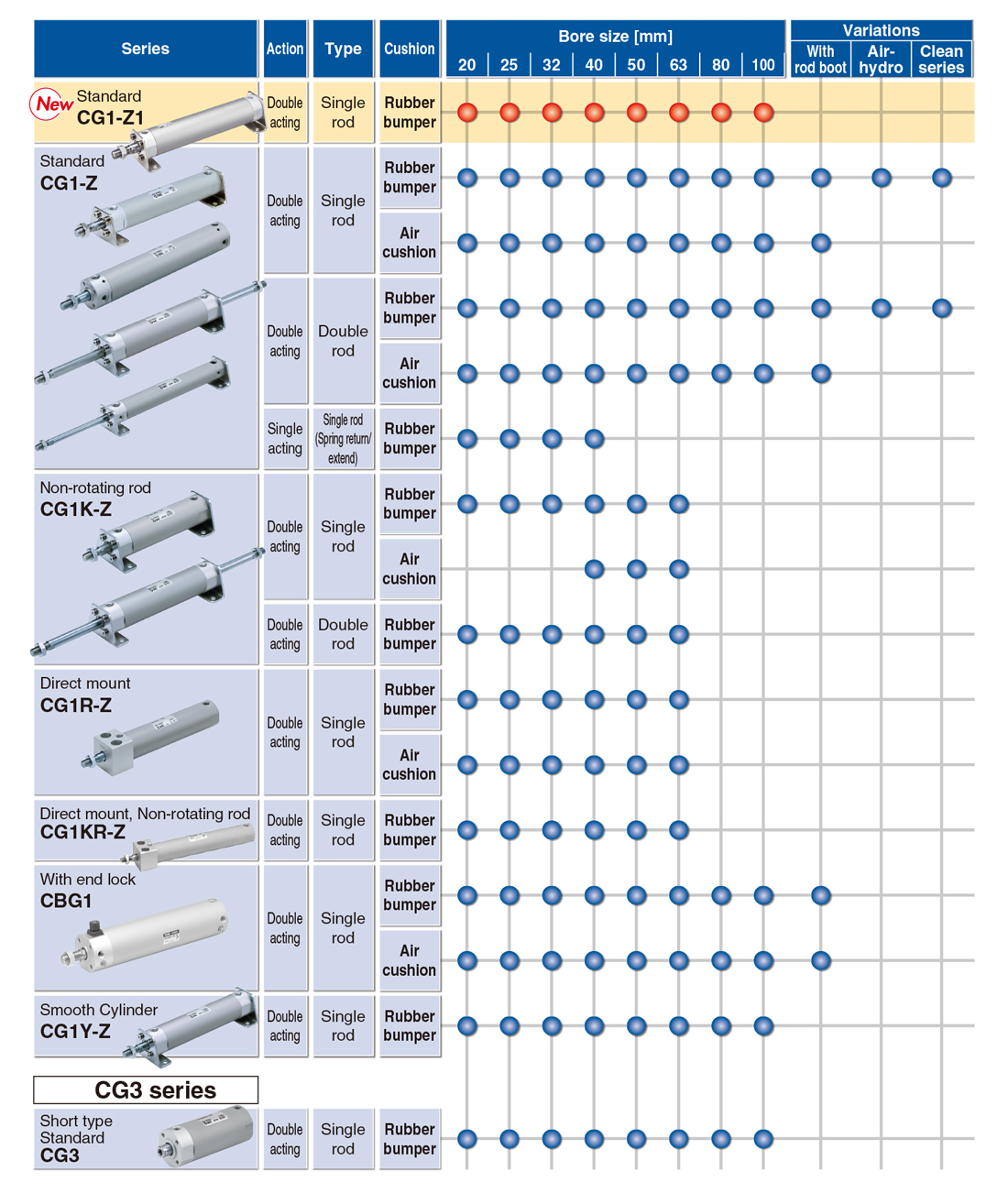

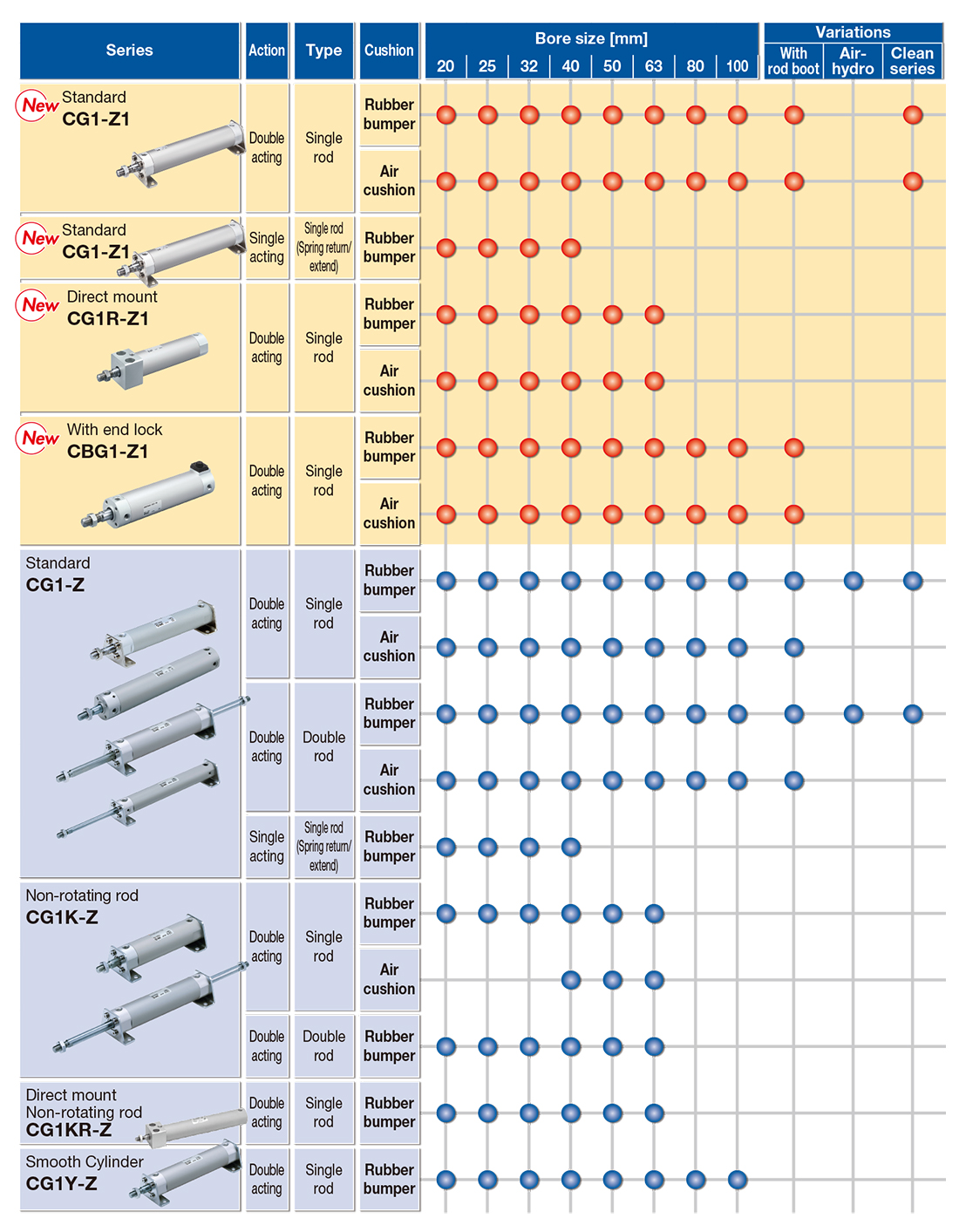

Series Variations
＊ Click here for details on the clean series.
