Speed Controllers for General Purposes
Compact Type Speed Controller with Indicator JAS-S
-
?Height: Max. 20.8 mm shorter
?Flow rate can be controlled numerically with the indicator window.
Due to the vernier indication, it is possible to configure fine settings in 1/4
increments.
Reduces work-hours and setting mistakes
?Mounting stud is available on the left side or the right side.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD Compact Type Speed Controller with Indicator JAS-S
Manual
Type Series View search result Elbow type JAS-S View search result
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type | JAS-S | M3×0.5 M5×0.8 10-32UNF R, NPT, G 1/8 | φ3.2，φ4，φ6 | φ1/8''，φ5/32''，φ1/4'' |
Features

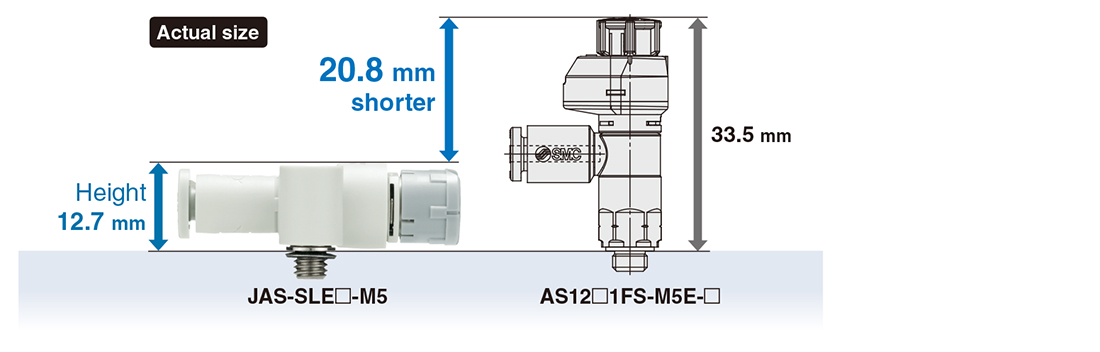

Height: Max. 20.8 mm shorter

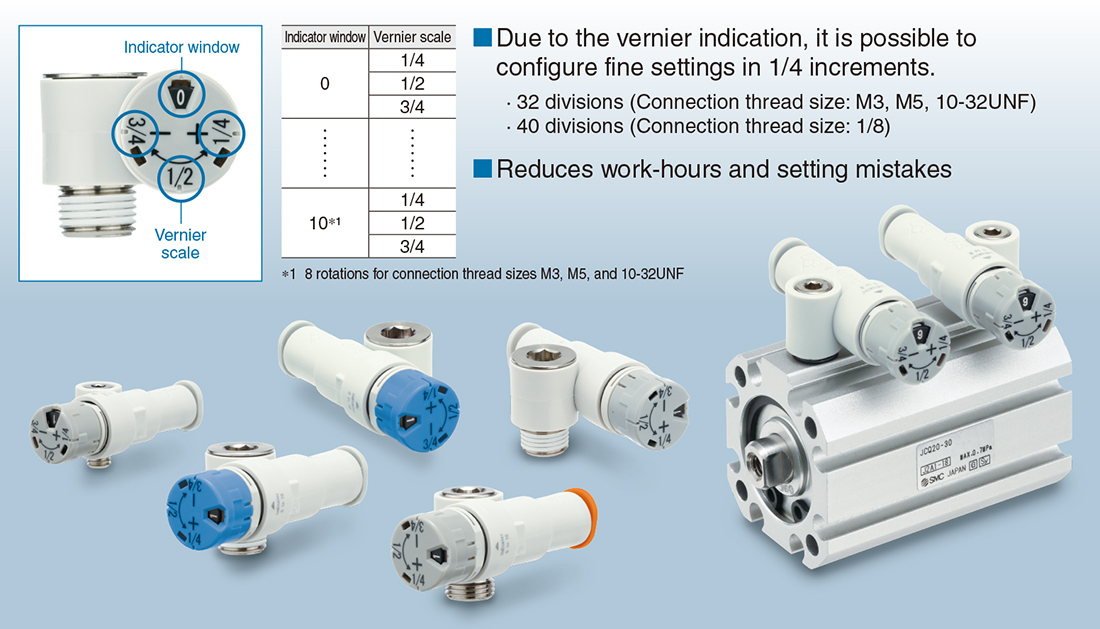

Flow rate can be controlled numerically with the indicator window.

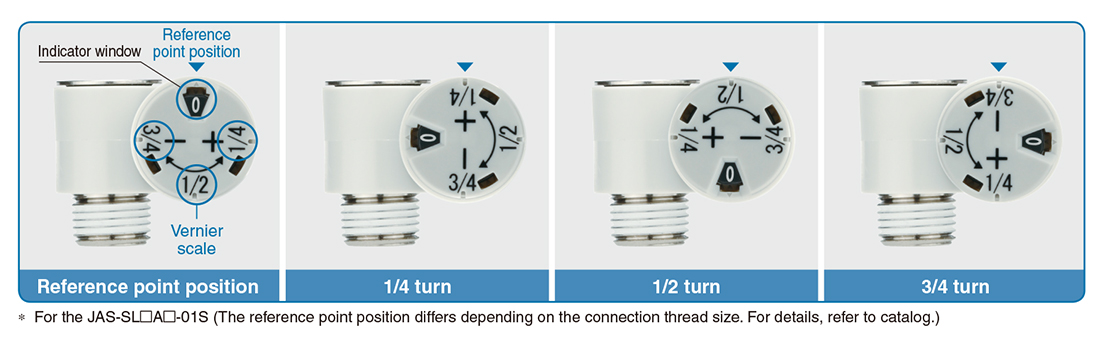

A vernier scale equipped at the upper part of the knob allows you to make a fine setting in units of quarter.

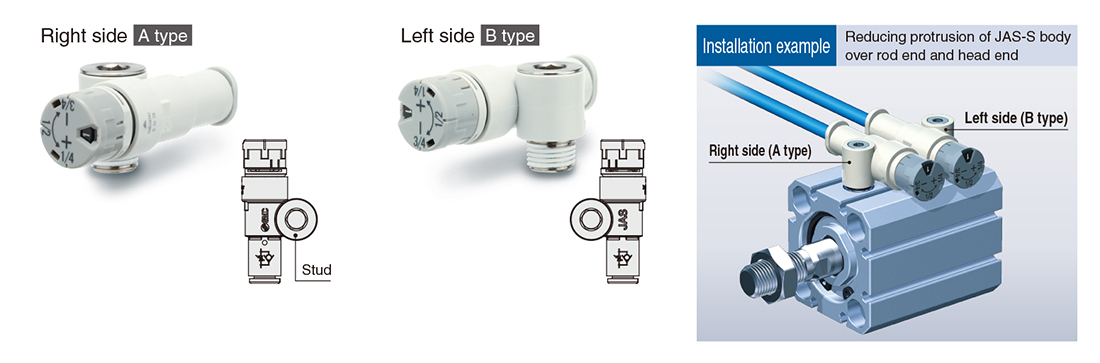

Mounting stud is available on the left side or the right side.

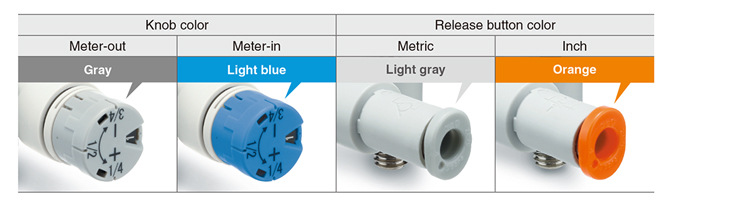

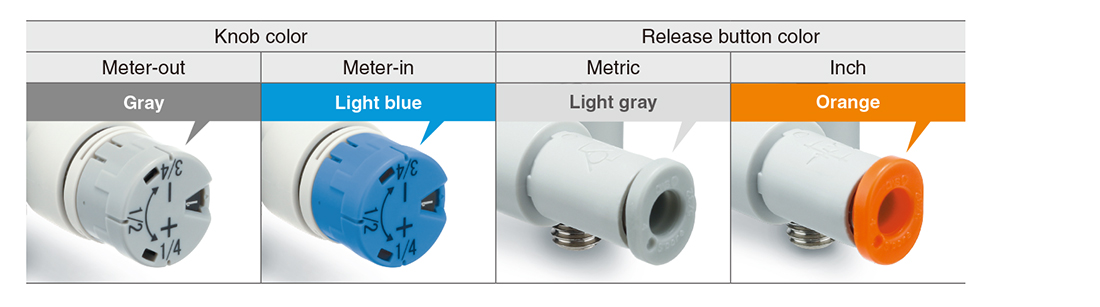

Easy identification of product type

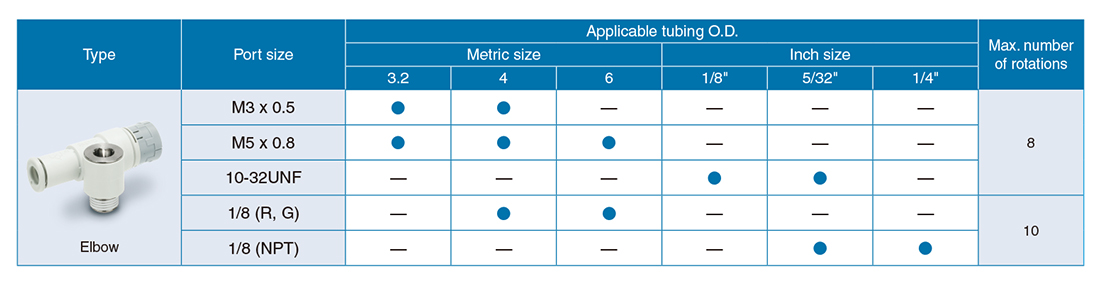

Series Variations
