Pressure Gauges
Pressure Gauge for General Purposes G□
-
?Available with a limit indicator and color zones
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD
Safety Instructions Series Variations Procedures for Setting and Assembling (P.1298) Specific Product Precautions (P.1299) Green Procurement (RoHS)
| Series | Size (O.D.) | Connection thread |
|---|---|---|
| G15 | φ15 | R1/8, M5 (Female thread) |
| G27 | φ27 | R1/8, 1/16 |
| G36 | φ37.5 | R1/8, M5 (Female thread) |
| GA36 | φ37.5 | R1/8 |
| G46 | φ42.5 | R1/8, 1/4, M5 (Female thread) |
| GA46 | φ42.5 | R1/8, 1/4 |
| G33 | φ30 | R1/8 |
| GA33 | φ30 | R1/8 |
| G43 | φ43 | R1/8, 1/4 |
| G36-L | φ37.5 | R1/8 |
| G46-L | φ42.5 | R1/8,1/4 |
| G53-L | φ51.4 | R1/8,1/4 |
| G63-L | φ63.4 | R1/8,1/4 |
Features

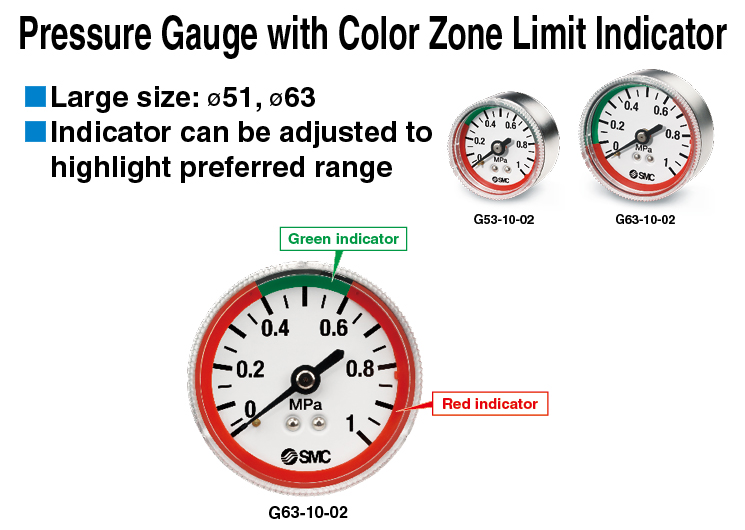

■Large size: ?51, ?63, Indicator can be adjusted to highlight preferred range
