WEB Catalog

Product Information ?  WEB Catalog  ? Process Valves  ? 2/3 Port Solenoid Valves/Air Operated Valves

2/3 Port Solenoid Valves/Air Operated Valves

Angle Seat Valve (2 Way Valve)/Air Operated Type VXB

    ?For steam (Can be used with air and water)

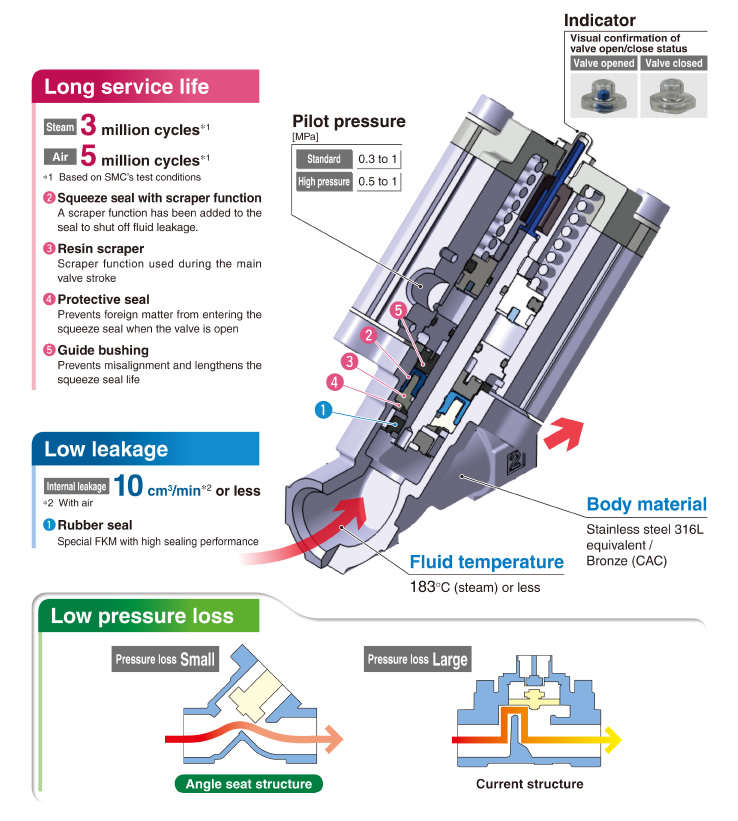

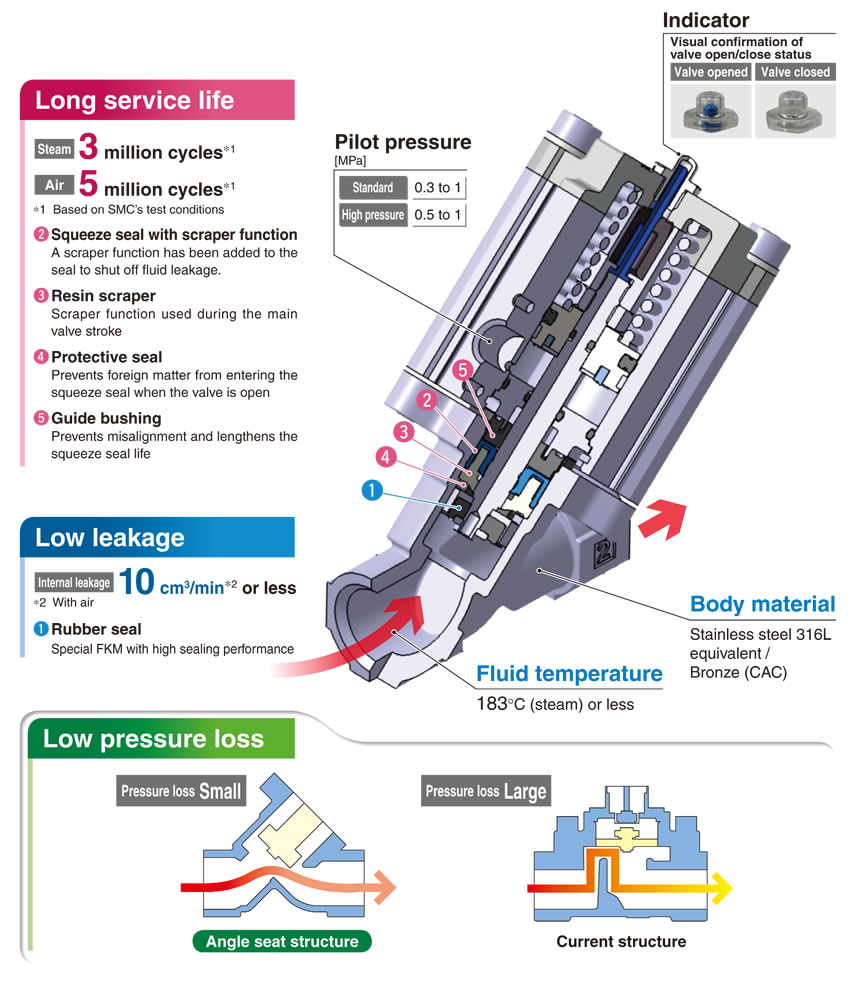

    ?Low pressure loss due to angle seat structure
    ?Reduced leakage with rubber seal
    ?Long service life: 3 million cycles (Steam), 5 million cycles (Air)
    ?Low leakage: 10 cm3/min or less
    ?Space saving: Height 100 mm
    ?Body materials: Stainless steel 316L equivalent, Bronze (CAC)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

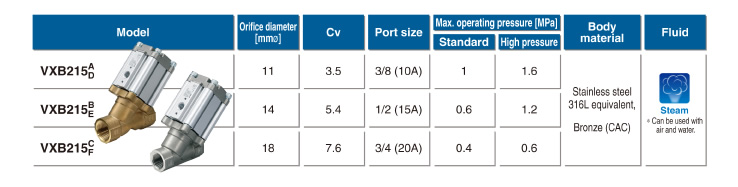

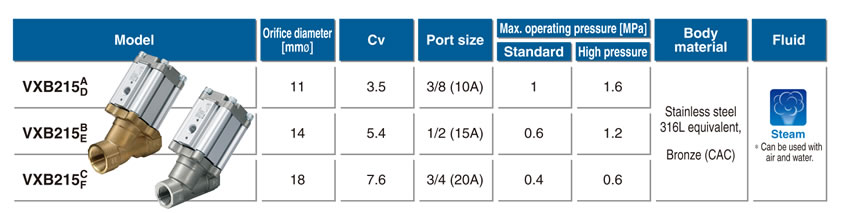

SeriesValve typePort sizeOrifice diameter (mm?)
VXBN.C.3/8, 1/2, 3/4
10A, 15A, 20A		11, 14, 18

Features

■Low pressure loss due to angle seat structure!
■Reduced leakage with rubber seal!
■Space saving: Height 100 mm

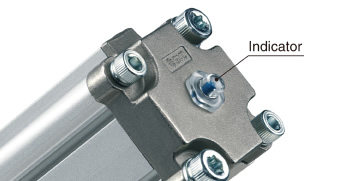

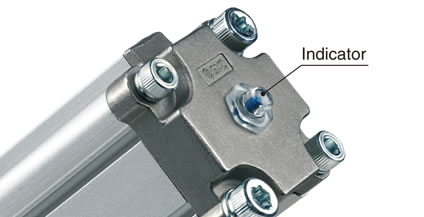

■With indicator［NEW］
■Variations
