WEB Catalog

Product Information ?  WEB Catalog  ? Static Neutralization Equipment  ? Static Neutralization Equipment Nozzle Type Ionizer

Static Neutralization Equipment Nozzle Type Ionizer

Nozzle Type Ionizer IZN10E

    ?Slim: 16 mm (Thickness) x 100 mm (Width) x 46 mm (Height)
    ?Lightweight: 33% reduction (120 g → 80 g)
    ?Offset voltage: ±10 V
    ?Nozzle type can be selected according to the application.
    　Energy-saving static neutralization nozzle (Short range static neutralization)
    　High flow rate nozzle (Long range static neutralization)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Nozzle Type Ionizer IZN10E
    Manual
    Series View search result
    IZN10EView search result
  • Nozzle Type Ionizer IZN10E
    DoC
    Series View search result
    IZN10EView search result
SeriesIon generation methodOffset voltage
(Ion balance)
IZN10ECorona discharge typeEnergy saving static neutralization nozzle: Within ±10 V
High flow rate nozzle: Within ±15 V

Features

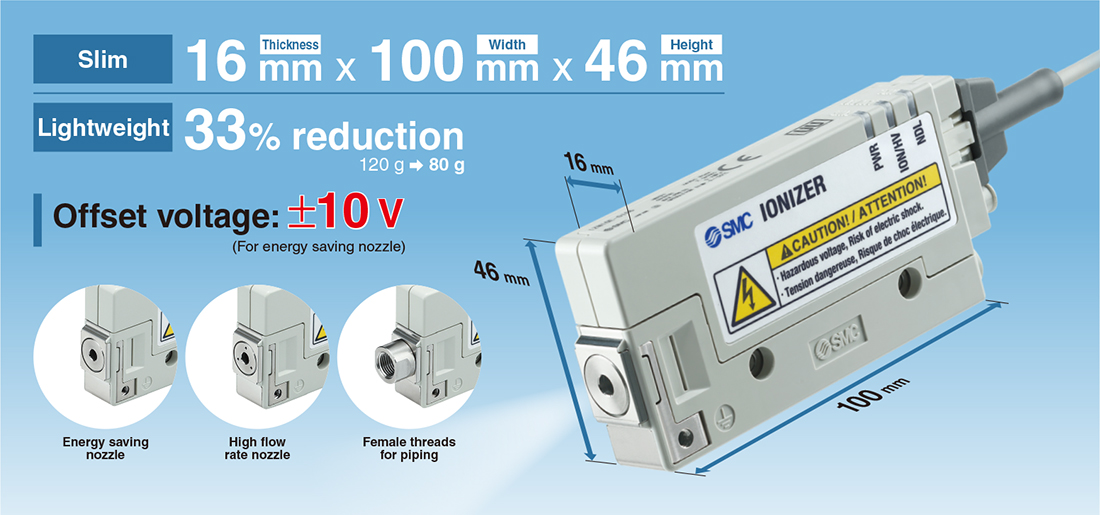

■Slim: 16 mm (Thickness) x 100 mm (Width) x 46 mm (Height)
■Lightweight: 33% reduction 120 g → 80 g

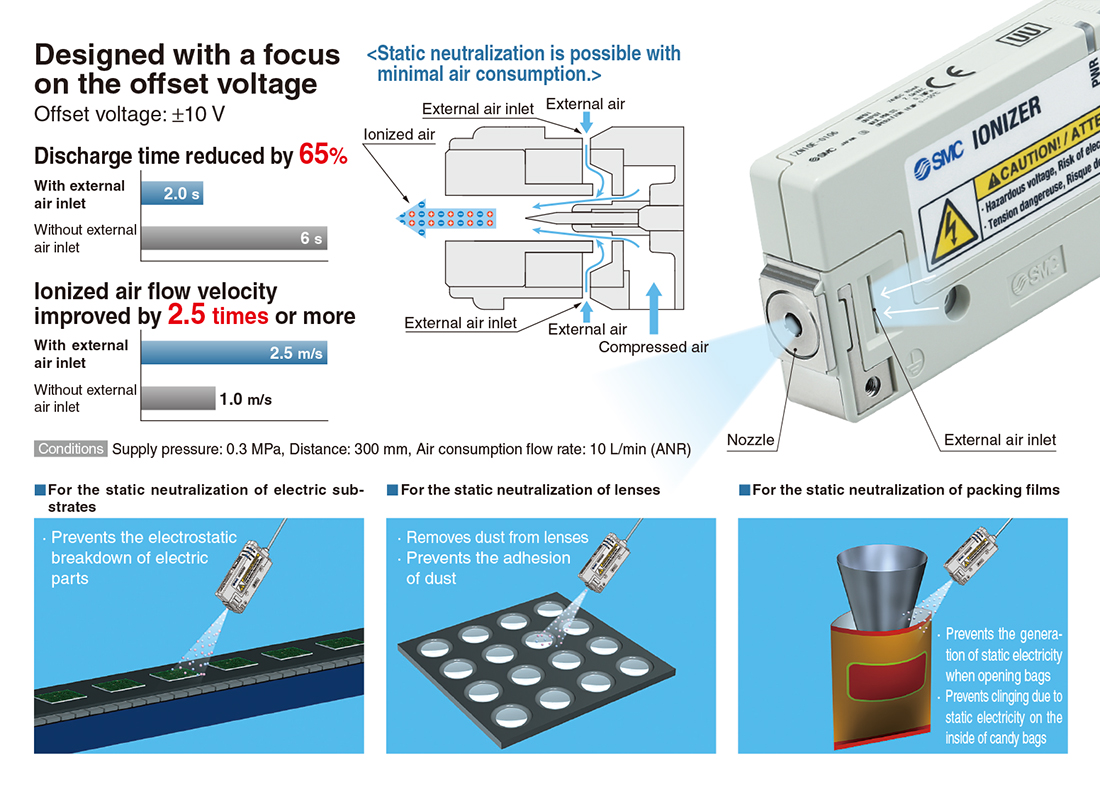

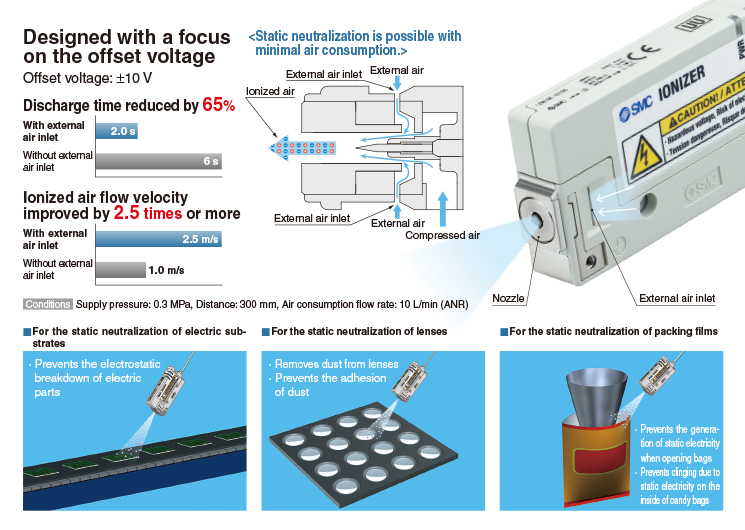

■Application Examples

For dust removal and static neutralization by air blow

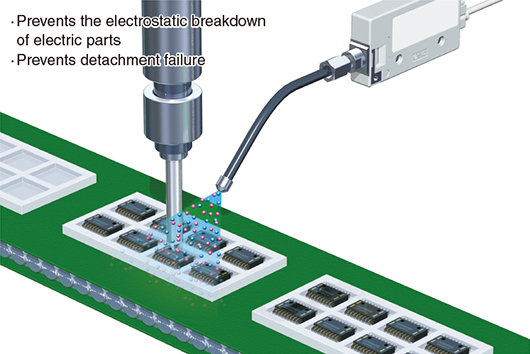

For spot type static neutralization

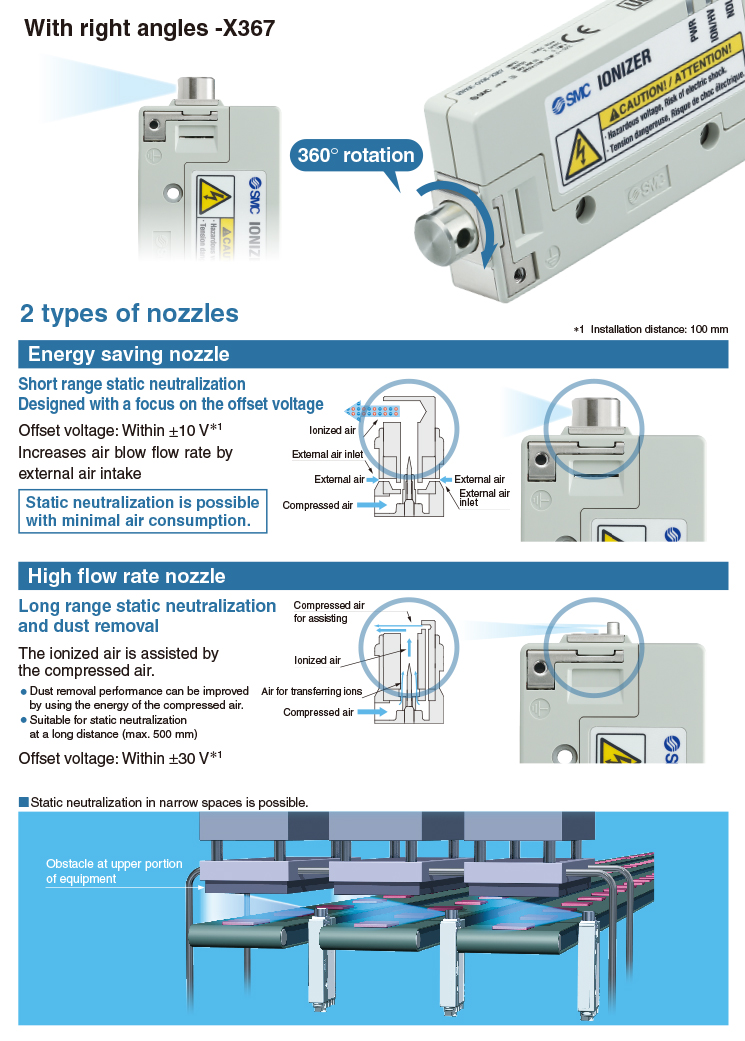

The nozzle type can be selected according to the application.

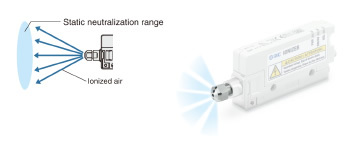

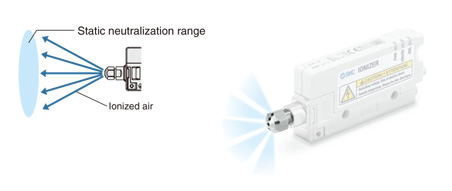

Short range static neutralization: Energy saving nozzle

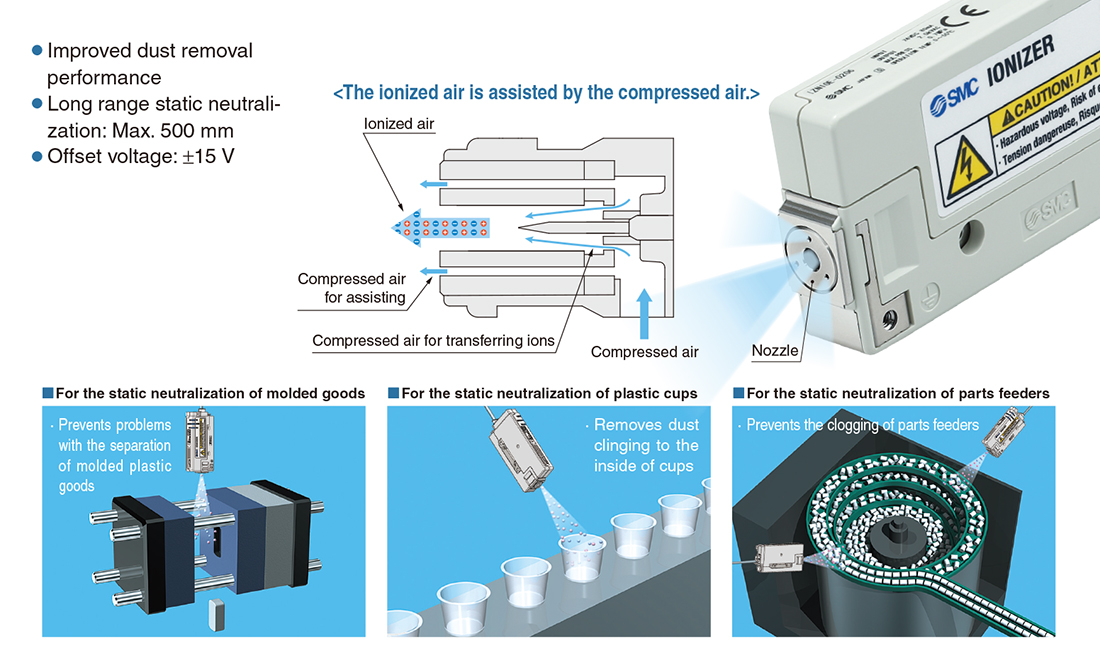

Long range static neutralization: High flow rate nozzle

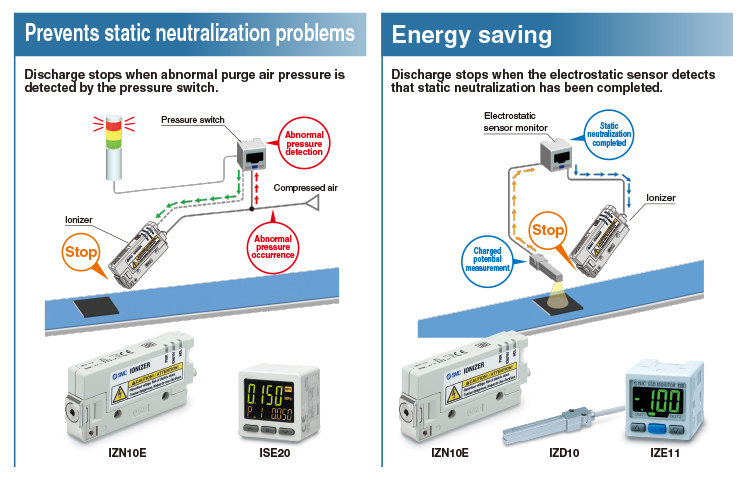

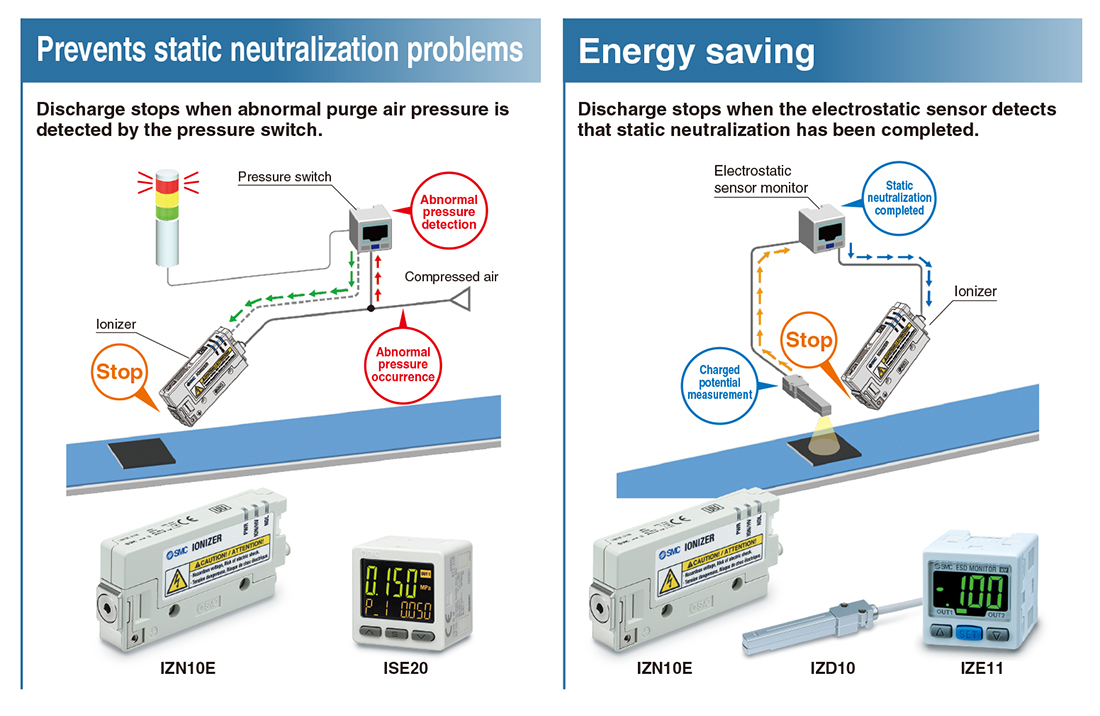

■With external switch input function (2 inputs)
■A high voltage power supply cable is not required.

A high voltage power supply is built in to the product; therefore, an external high voltage power supply or high voltage power supply cable is not required.

■Easy maintenance

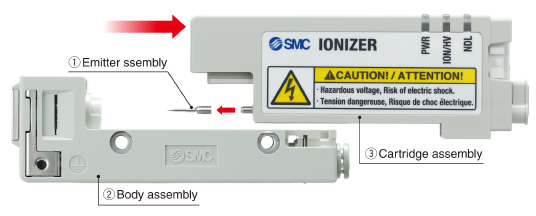

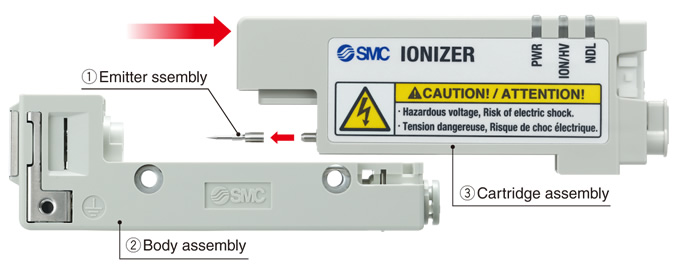

  • Can be disassembled into 3 parts Tools are not required for the installation or removal of the assembly.
  • It is possible to conduct maintenance on the emitter without removing the body.
  • There is no need to readjust the nozzle angle when the ionizer is restarted.

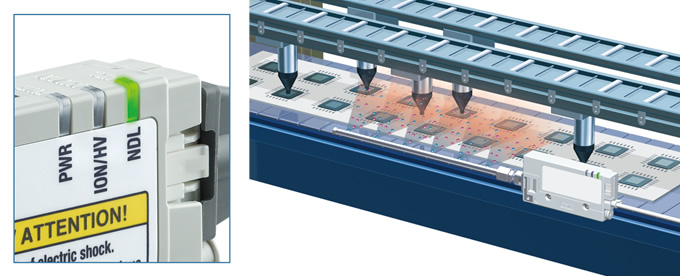

Maintenance warning function

· Monitors emitter contamination and wear continuously
· Notification of abnormalities via LED and output signal
· Detects optimal maintenance time
· Reduced maintenance labor

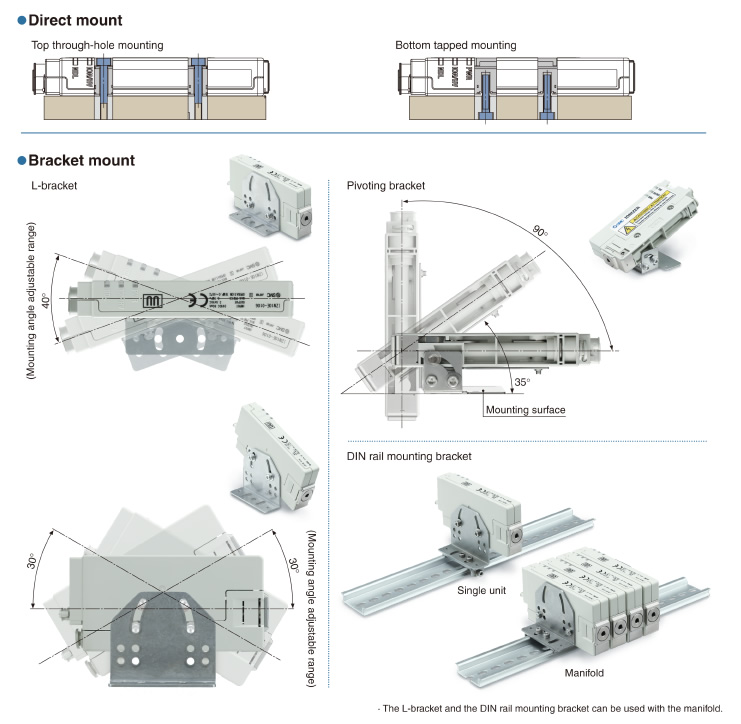

■Mounting variations

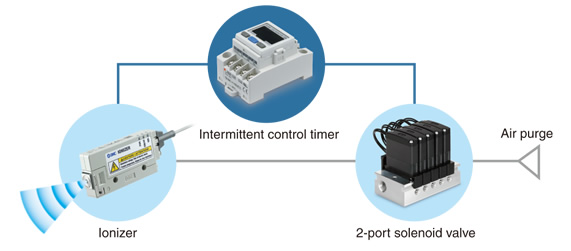

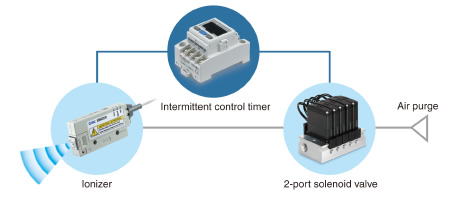

■Intermittent control timer　Related product

Air saving IZE110-X238

A digital timer that can control the ON/OFF switches of valves, etc.
Intermittent ion discharge reduces air consumption.

■Nozzle variations　Made to order
■Nozzle variations　Made to order

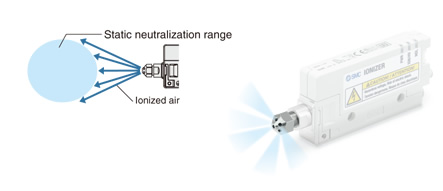

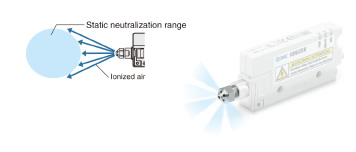

Circular diffusion nozzle

Flat diffusion nozzle

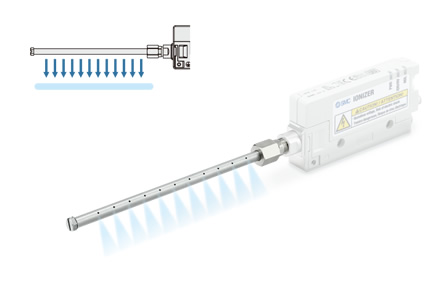

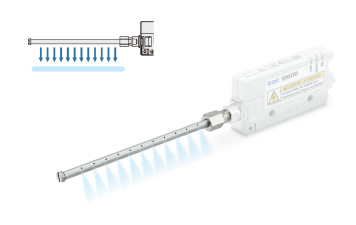

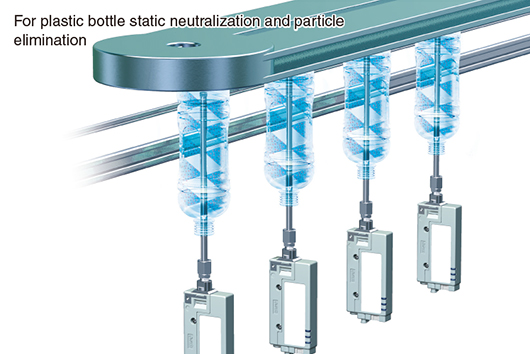

Bar nozzle (straight type)

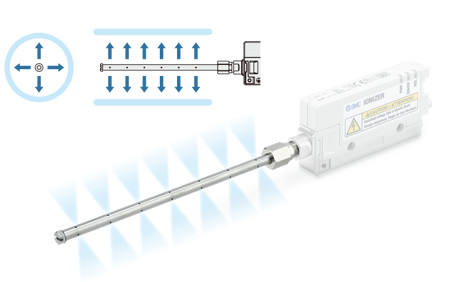

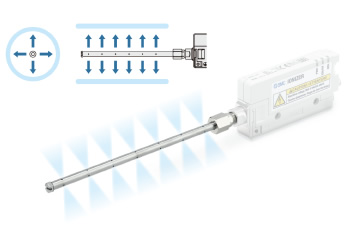

Circumferential jet bar nozzle (straight type)

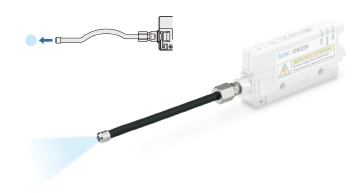

Bender tube nozzle

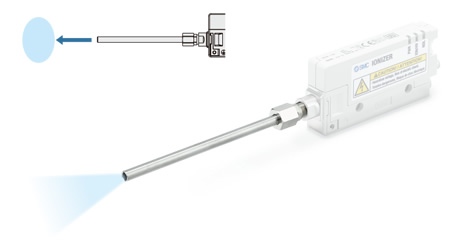

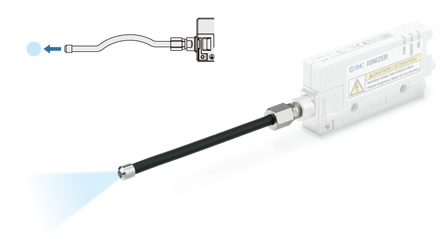

Long nozzle

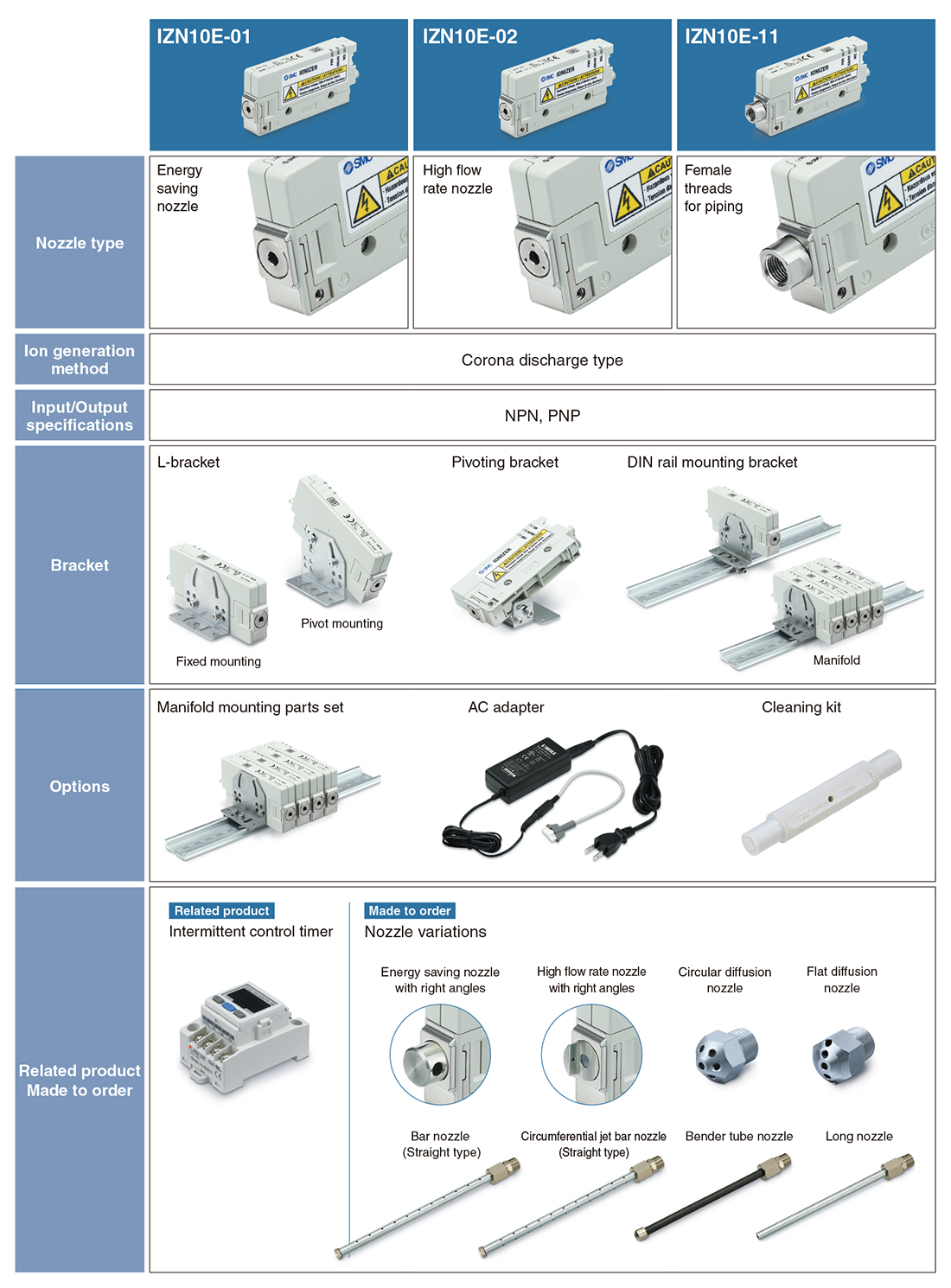

■Series Variations
