Product Information ?  WEB Catalog  ? Flow Control Equipment  ? Speed Controllers with Special Functions

Speed Controllers with Special Functions

[Model with Residual Pressure Release Function] Compact Indicator Type Speed Controller with Pilot Check Valve ASP-S

    ?Flow rate control is possible via the compact indicator.

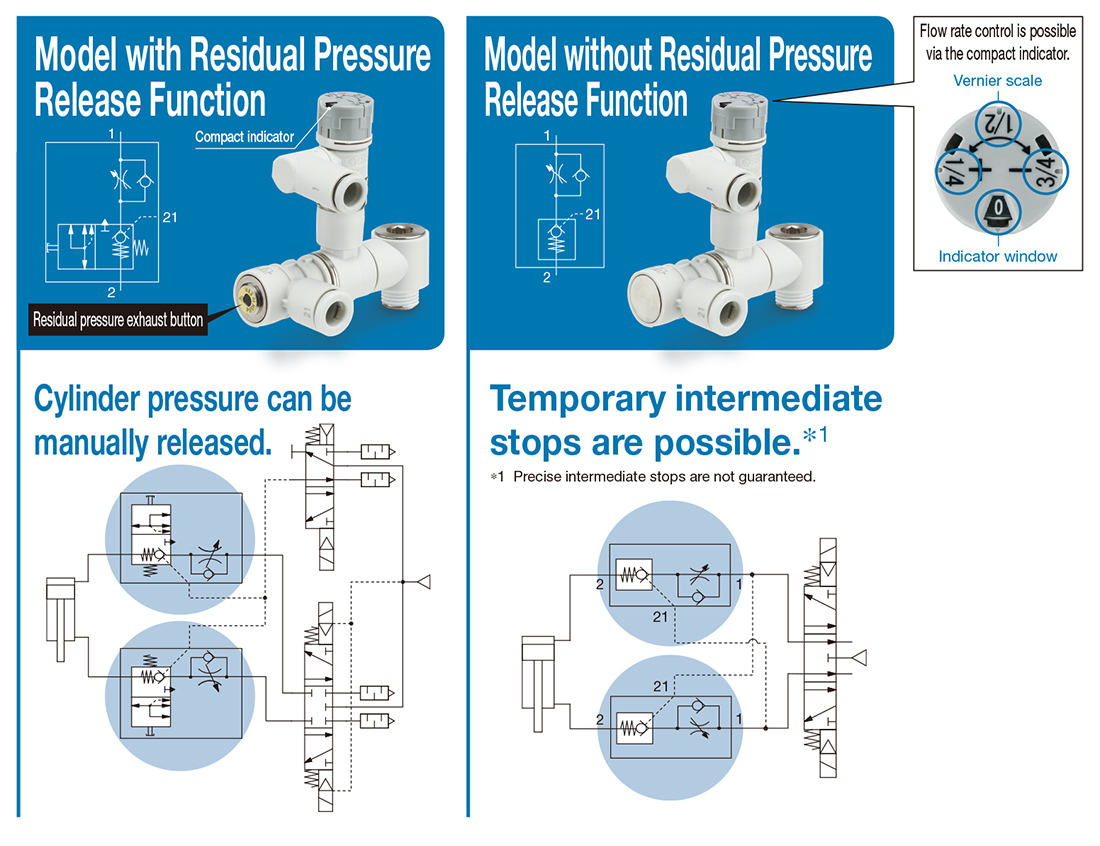

    ?Model with residual pressure release function: Cylinder pressure
    　can be manually released.
    ?Model without residual pressure release function: Temporary
    　intermediate stops are possible.

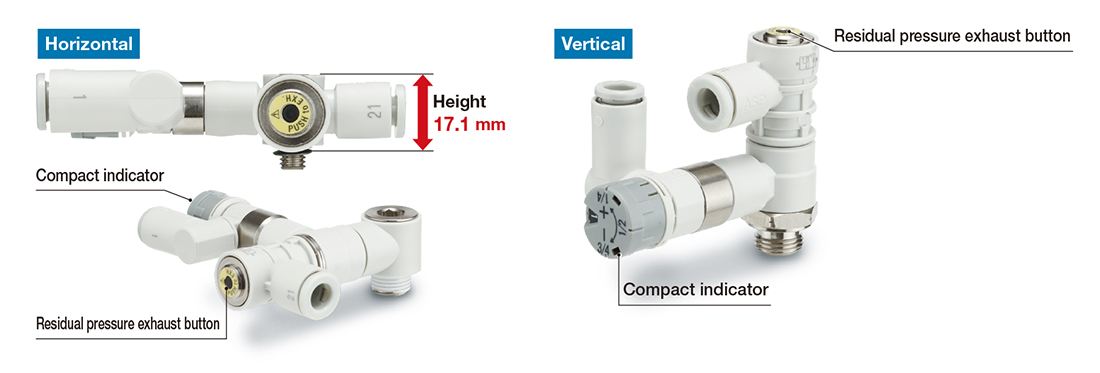

    ?Horizontal and vertical types are available, which can be selected
    　depending on the installation conditions.
    ?Easily mounted using a hexagon wrench
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • [Model with Residual Pressure Release Function] Compact Indicator Type Speed Controller with Pilot Check Valve ASP-S
    Manual
    Type Series View search result
    Universal
    Vertical type    		ASP-SUAView search result
    Universal
    Horizontal type    		ASP-SUBView search result

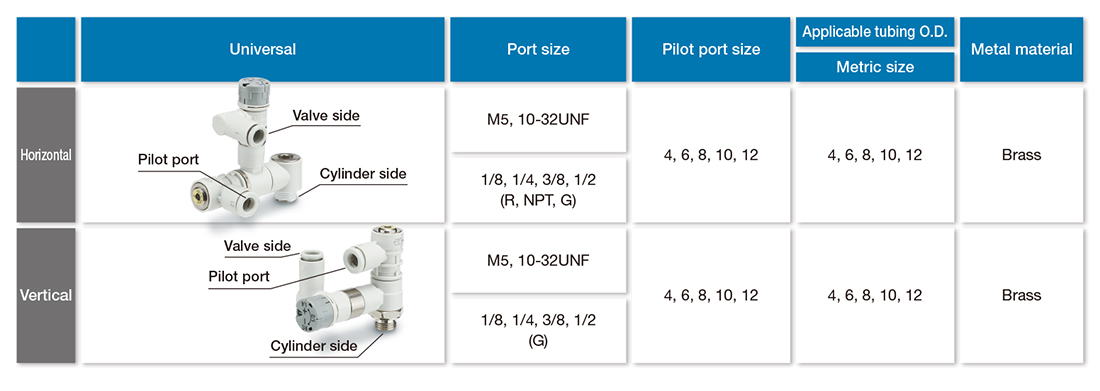

TypeSeriesPort size on
the cylinder side		Applicable tubing O.D.
Metric size
Universal
Vertical type		ASP-SUAM5×0.8
10-32UNF
G 1/8, 1/4, 3/8, 1/2		φ4 to φ12
Universal
Horizontal type		ASP-SUBM5×0.8
10-32UNF
R, NPT, G 1/8, 1/4, 3/8, 1/2		φ4 to φ12

Features

Features

Variations

Horizontal and vertical types are available, which can be selected depending on the installation conditions.

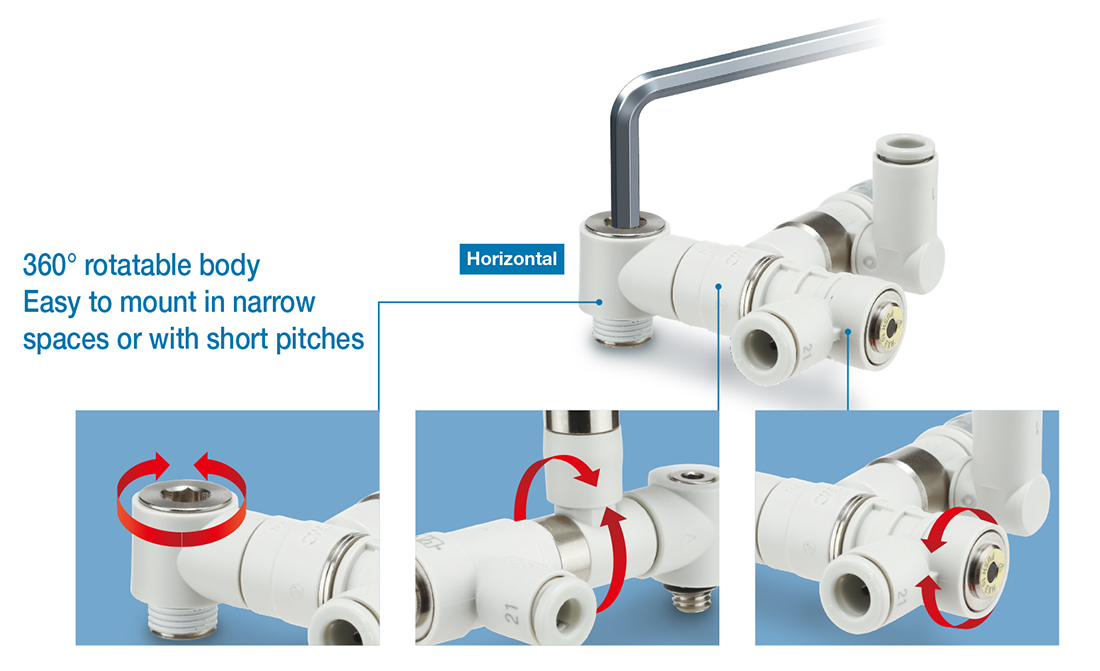

Easily mounted using a hexagon wrench

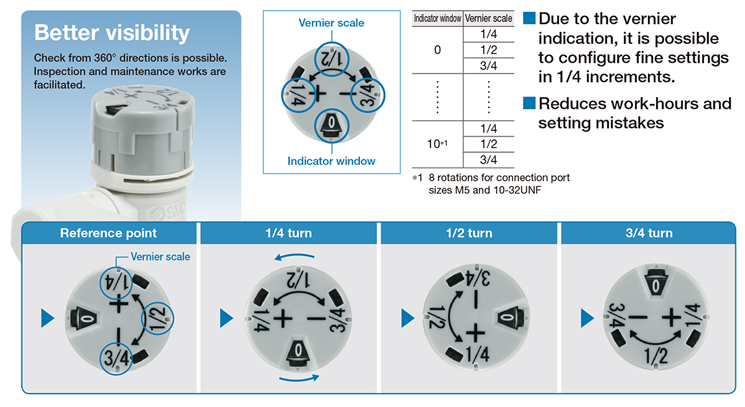

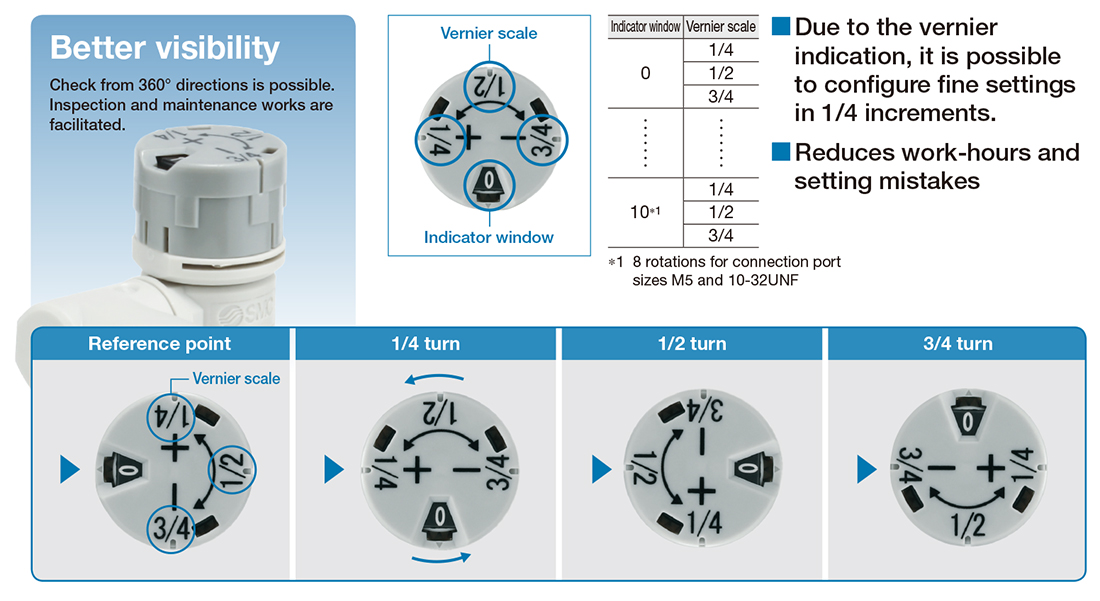

Flow rate can be controlled numerically with the indicator window.

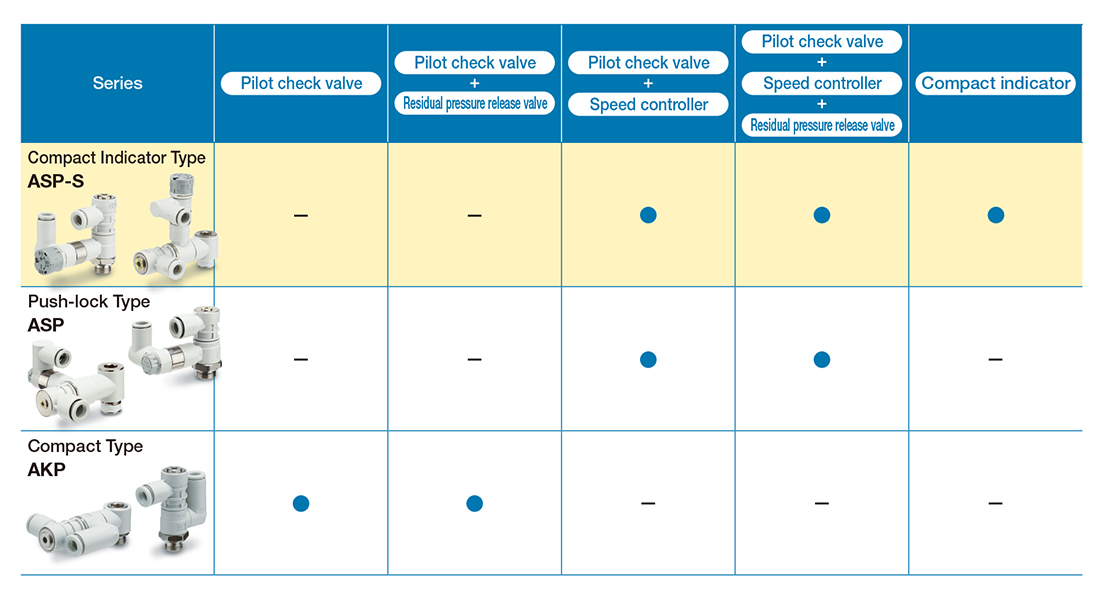

Pilot Check Valve Variations by Function
