2/3 Port Solenoid Valves/Air Operated Valves
Direct Operated 2-Port Solenoid Valve HF3-JSX
-
?NSF/ANSI 61 certification
?IP67 enclosure

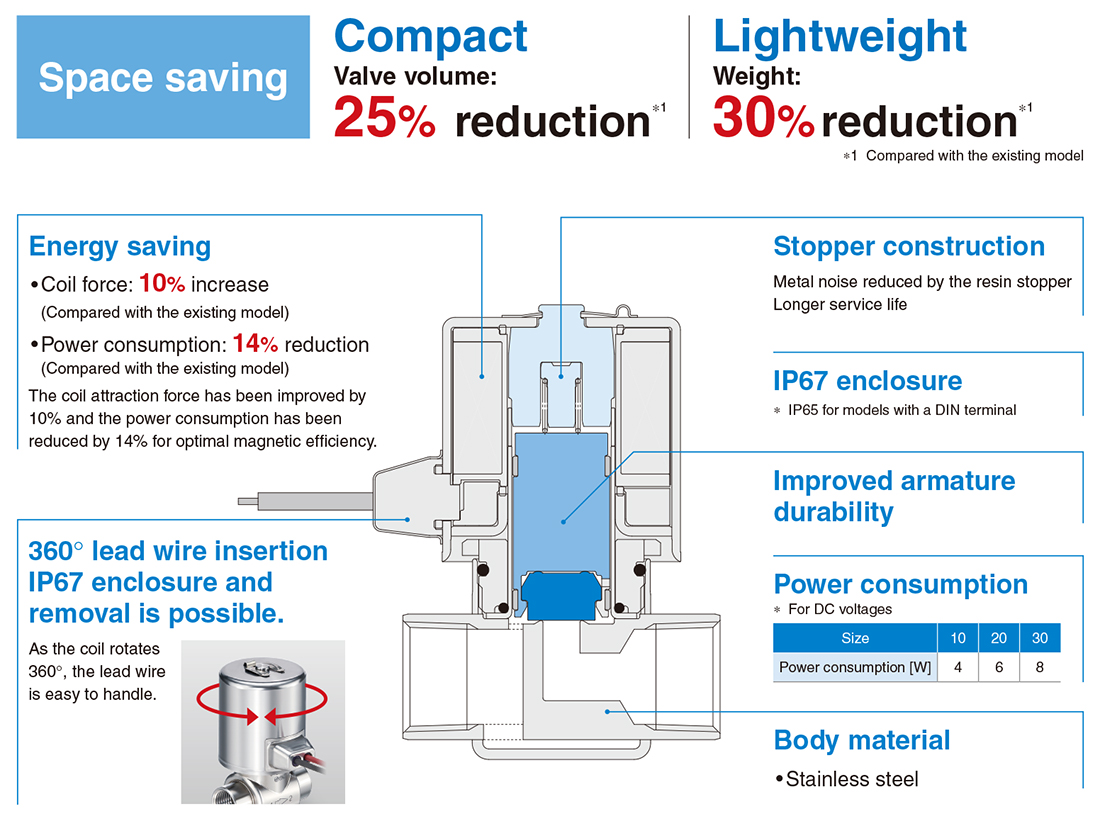

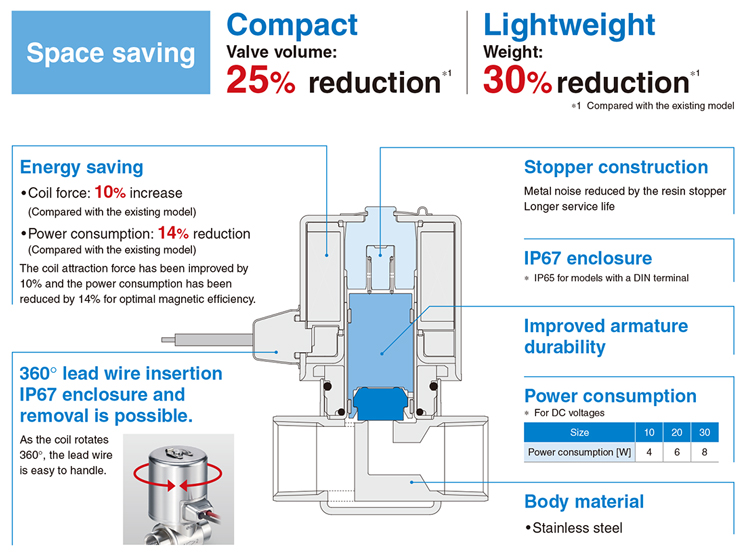

?Space saving
Compact: Valve volume reduced by 25%
(Compared with the existing model)
Lightweight: Weight reduced by 30%
(Compared with the existing model)
?Body material: Stainless steel
Direct Operated 2-Port Solenoid Valve HF3-JSX
Manual
Series View search result HF3-JSX View search result
Safety Instructions 2 Port Solenoid Valves for Fluid Control Precautions Model Selection/Flow Rate Characteristics Green Procurement (RoHS)

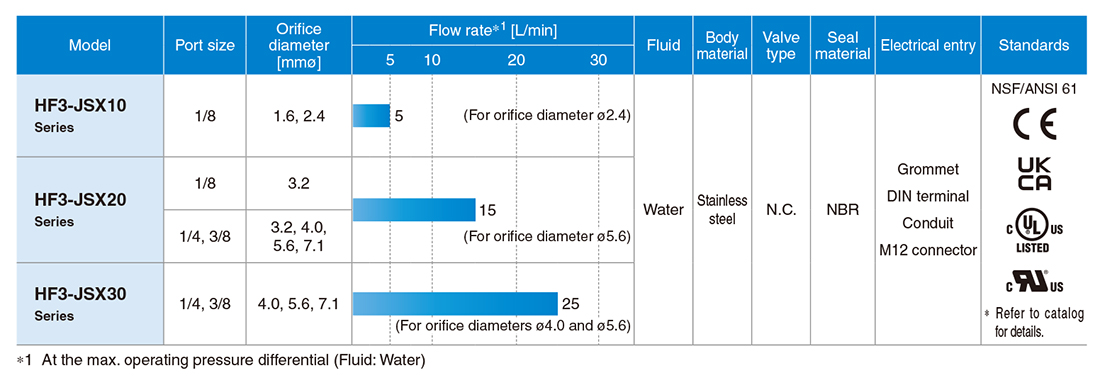

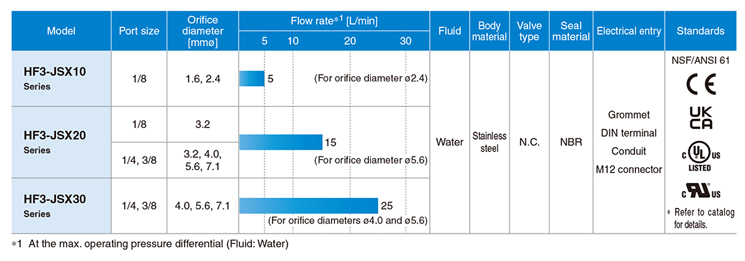

| Series | Valve type | Port size | Orifice diameter (mm?) |
|---|---|---|---|
| HF3-JSX | N.C. | 1/8，1/4，3/8 | 1.6 to 7.1 |
Features
Building tomorrow with peace of mind and safety
NSF/ANSI 61 certification
Variations
Features
Full-wave rectifier type (AC specification: Insulation type Class B)
?Improved durability
Extended service life due to the special construction
(Compared with the existing shading coil)
?Reduced buzzing noise
Due to being rectified to DC by the full-wave rectifier
?Reduced apparent power
? Class B, N.C. valve (Compared with the existing model)
9.5 VA → 8 VA (HF3-JSX20 Series)
12 VA → 9.5 VA (HF3-JSX30 Series)
?Low-noise construction
Specially constructed to reduce metal noise during operation

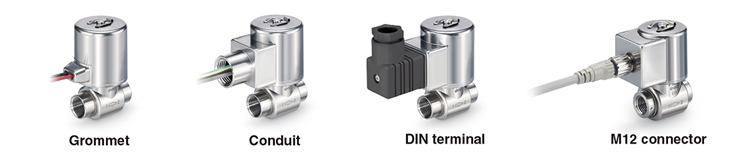

Electrical entry variations
