Product Information ?  WEB Catalog  ? Air Cylinders  ? Compact Air Cylinders

Compact Air Cylinders

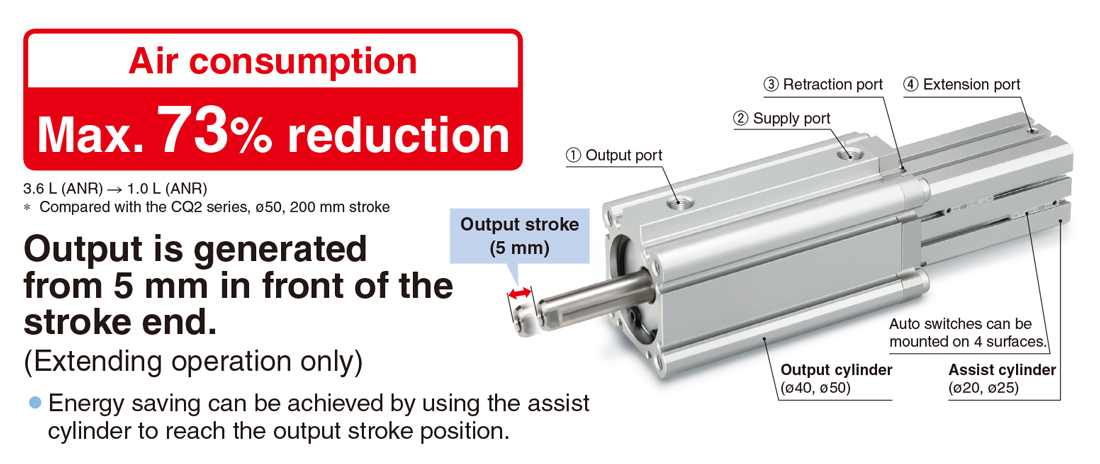

End Power Cylinder CDQ2A-X3260

    ?Air consumption: Max. 73% reduction
    　3.6 L (ANR) → 2.3 L (ANR), Compared with the CQ2 series, ?50, 200 mm stroke
    ?Output is generated from 5 mm in front of the stroke end. (Extending operation only)
    　Energy saving can be achieved by using the assist cylinder to reach the output stroke position.
    ?Smooth operation even when output is generated
    ?Small auto switches can be mounted on 4 surfaces of the assist cylinder.
    ?The CQ2 series rod flange type is mountable.
    ?Optimal for applications such as press fitting and clamping that require force at the stroke end
    ?Controllable by a single solenoid valve in the same way as a conventional cylinder
TypeSeriesActionBore size (mm)
StandardCDQ2A-X3260Double acting, Single rodOutput cylinder: 40, 50
Assist cylinder: 20, 25

Features

Air consumption: Max. 73% reduction

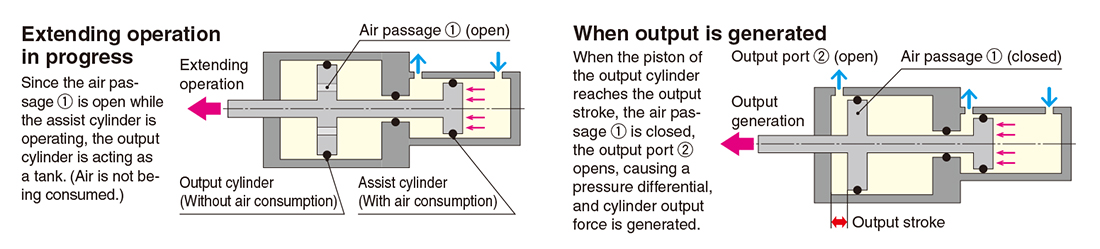

Output working principle


Smooth operation even when output is generated


The CQ2 series rod flange type is mountable.

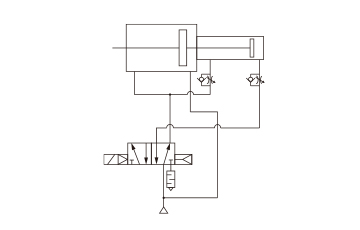

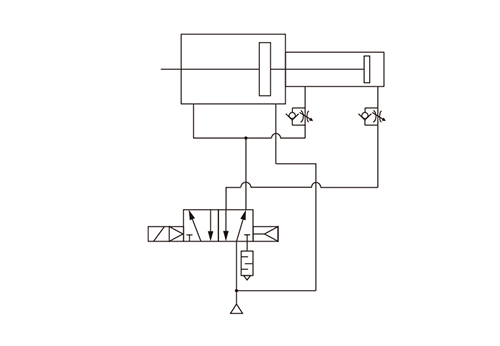

  • Controllable by a single solenoid valve in the same way as a conventional cylinder

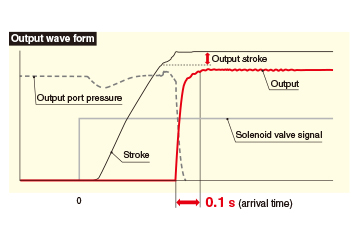

  • Output that instantaneously rises

    Set output reached in 0.1 s

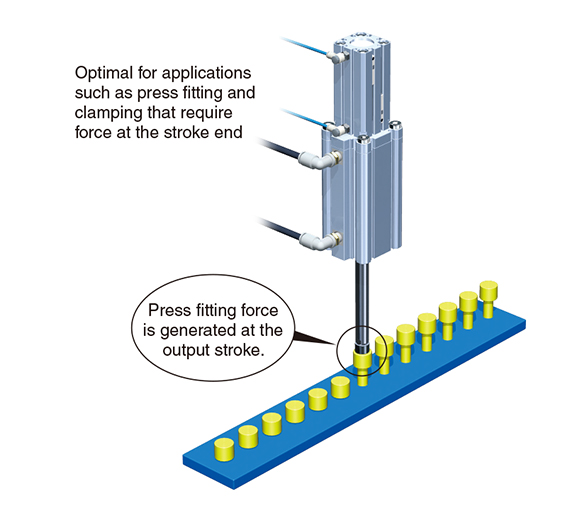

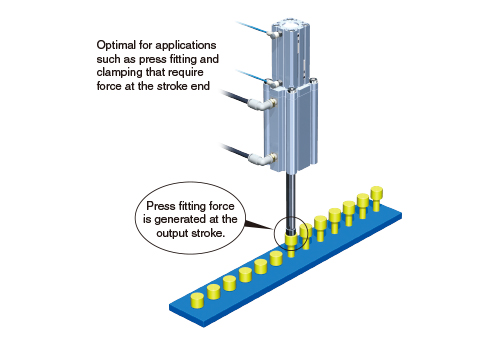

Application Example
