WEB Catalog

Product Information ?  WEB Catalog  ? Air Preparation Equipment  ? Air Preparation Filters

Air Preparation Filters

Line Filter AFF
Mist Separator AM
Micro Mist Separator AMD
Activated Carbon Filter AMK

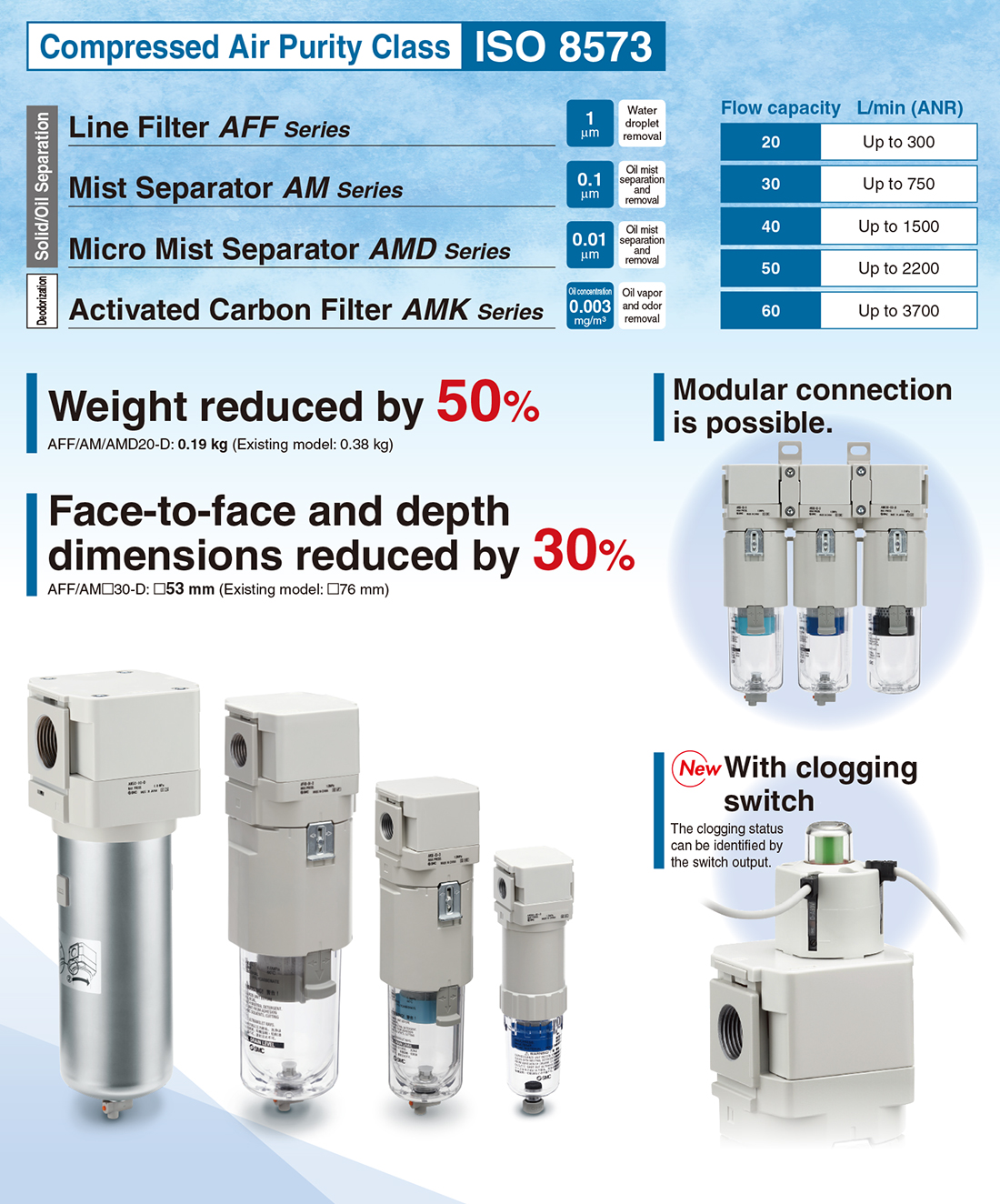

    ?Modular connection type
    ?Compressed air purity class: ISO 8573
    ?Face-to-face and depth dimensions reduced by 30%
    ?Weight reduced by 50%
    　AFF/AM□20: 0.19 kg (Existing model: 0.38 kg)
    ?Flow capacity increased by 50%

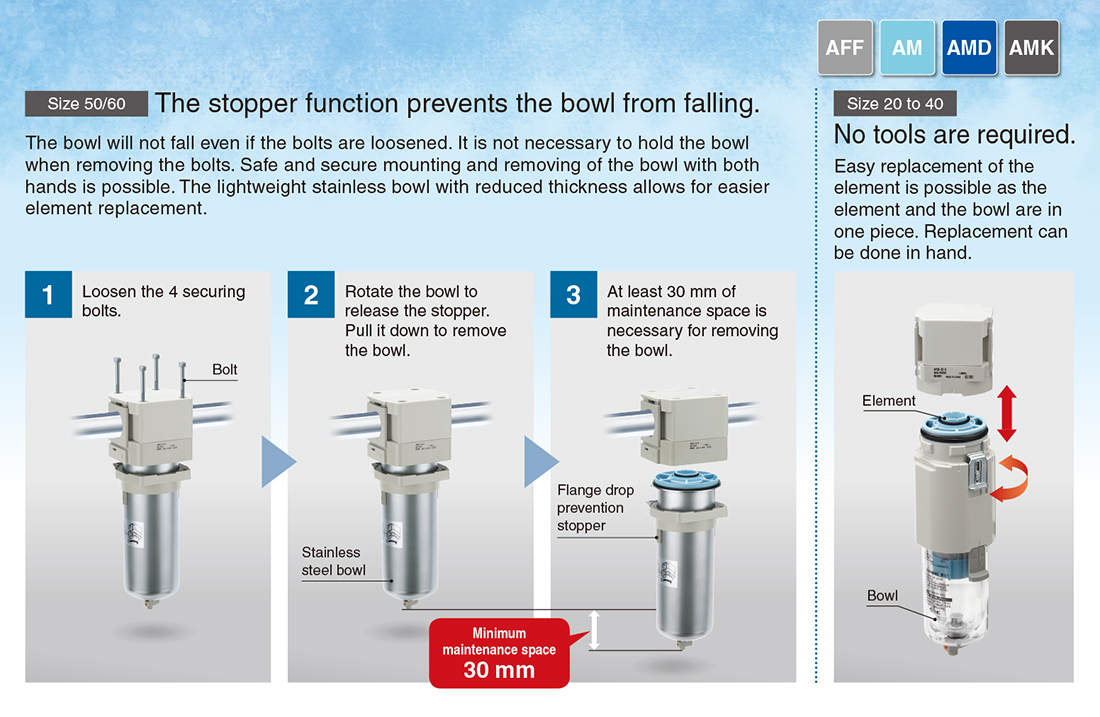

    ?No tools are required.
    　Easy replacement of the element
    ?Transparent bowl guard (2-layer construction)
    ?Color-identifiable elements
    ?With element service indicator

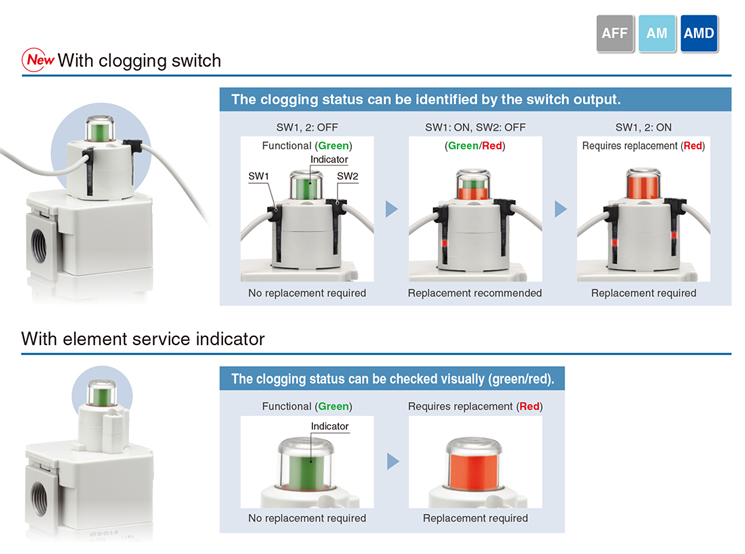

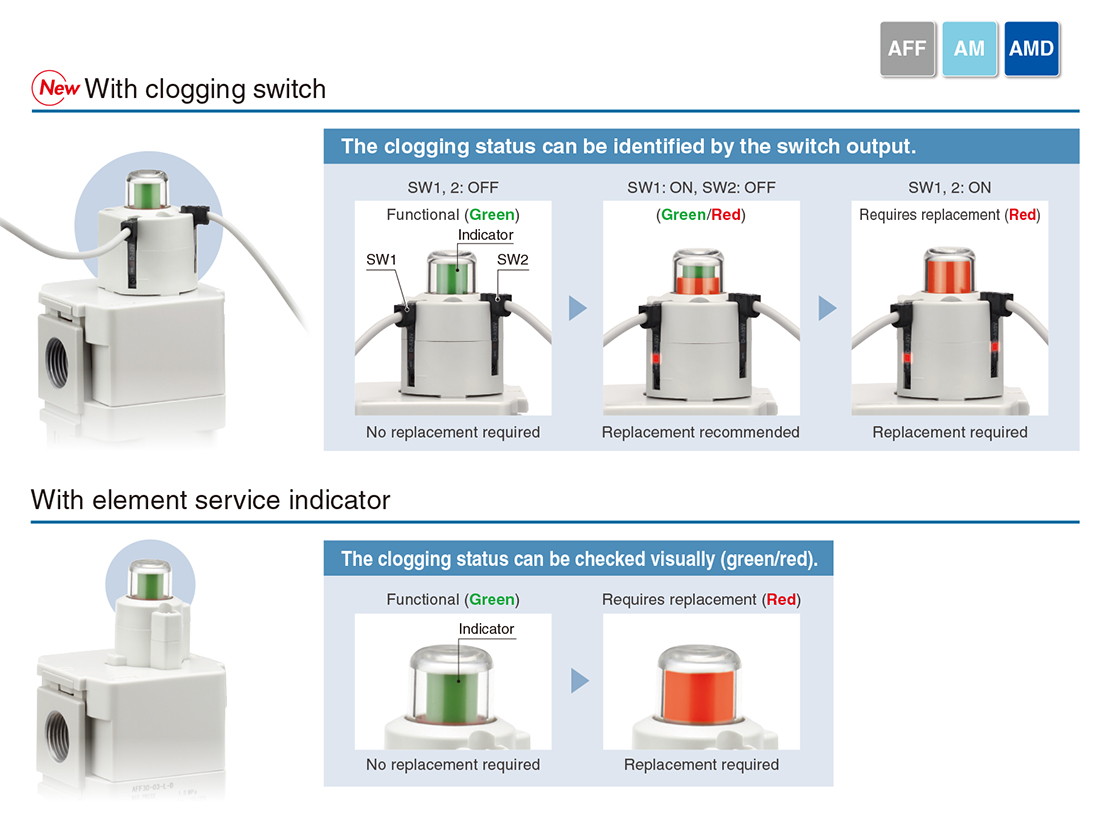

    ?With clogging switch/With element service indicator
TypeSeriesFiltration （μm）Oil mist concentration
on the outlet side		Air flow
（L/min［ANR］）		Port size
Line filterAFF1.0 (Filtration efficiency: 99%)-300 to 37001/8, 1/4, 3/8, 1/2, 3/4, 1
Mist separatorAM0.1 (Filtration efficiency: 99%)1 (≈ 0.8 ppm) or less300 to 37001/8, 1/4, 3/8, 1/2, 3/4, 1
Micro mist separatorAMD0.01 (Filtration efficiency: 99.9%)0.1 (≈ 0.08 ppm) or less300 to 37001/8, 1/4, 3/8, 1/2, 3/4, 1
Activated carbon filterAMK-0.003 (≈ 0.0025 ppm) or less300 to 37001/8, 1/4, 3/8, 1/2, 3/4, 1

Features

Modular Connection Type Compressed Air Preparation Filter/Activated Carbon Filter

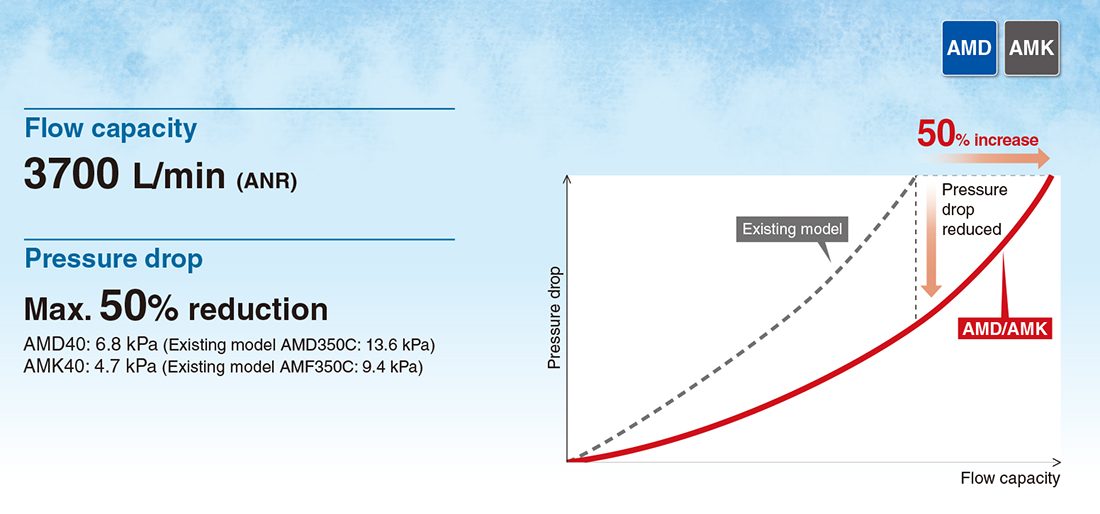

Reduced pressure drop contributes to energy saving.

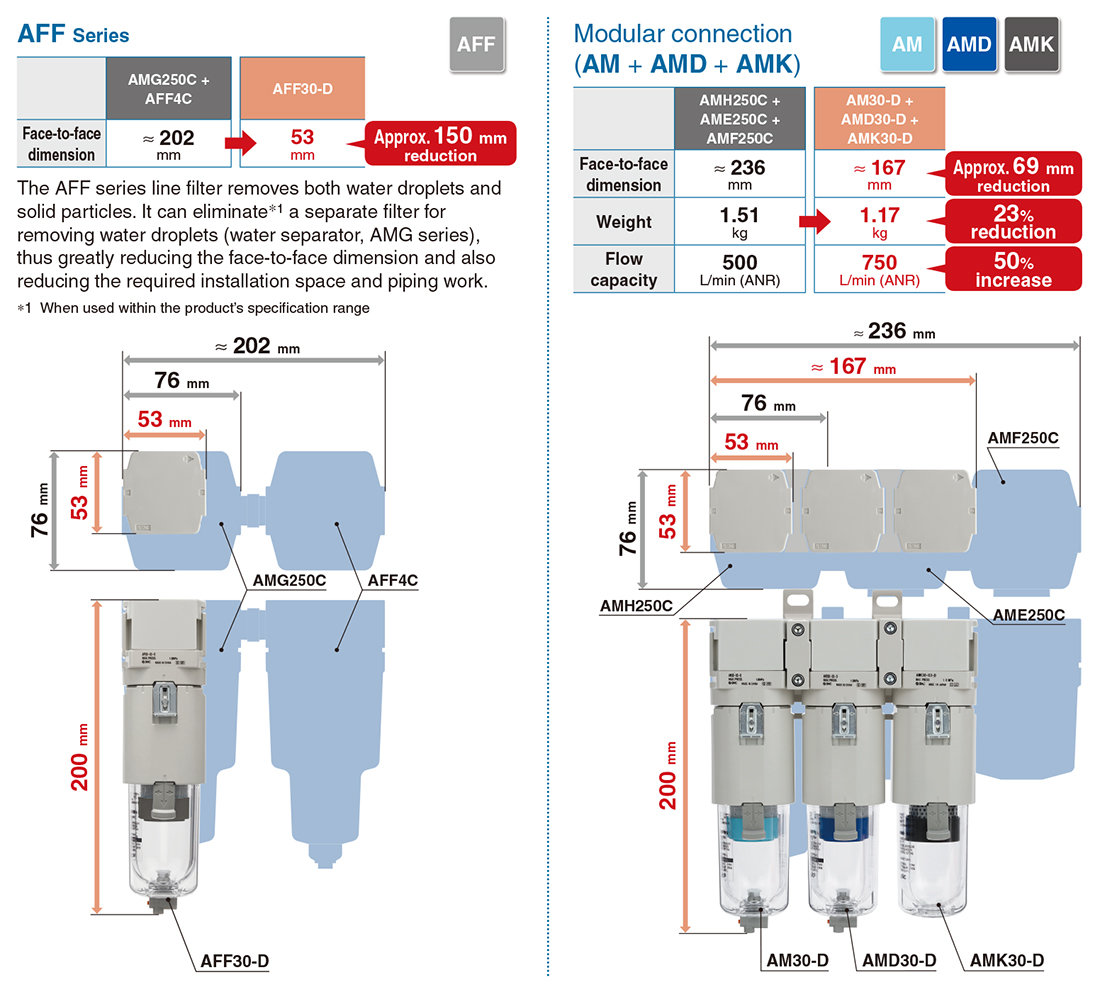

Space-saving design and reduced piping labor

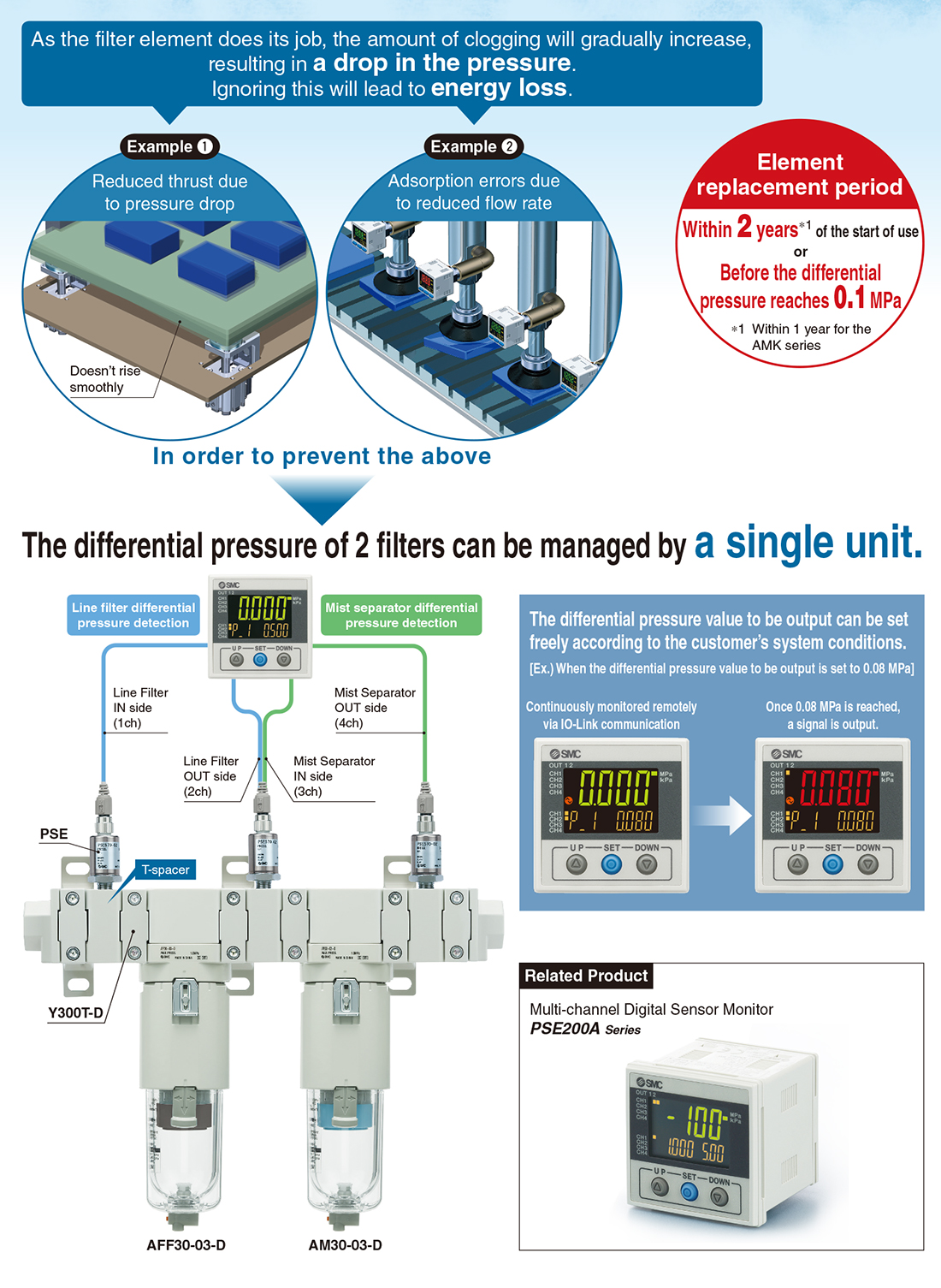

The differential pressure check mode (PSE200A series) allows for the quantification of the clogging state of each filter element.

Easier replacement of the element

The time for replacement can be checked visually.

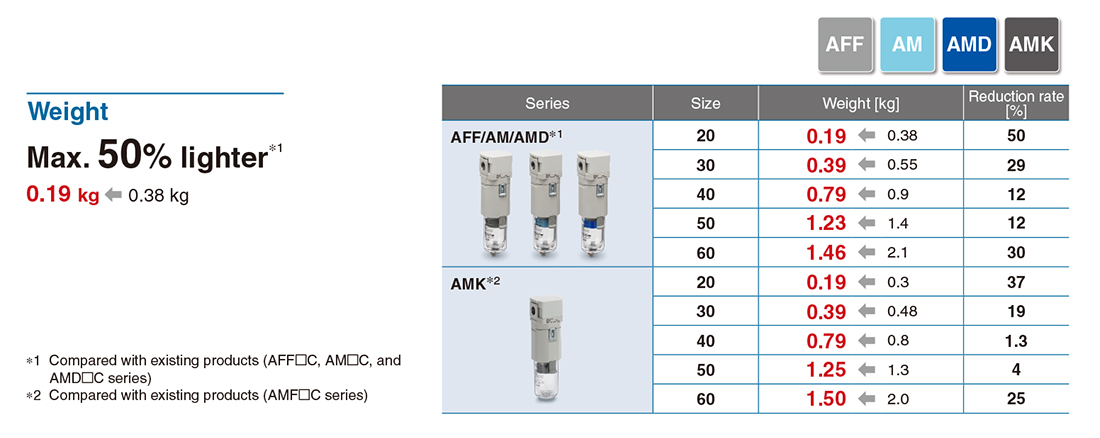

Lightweight

Color-identifiable elements

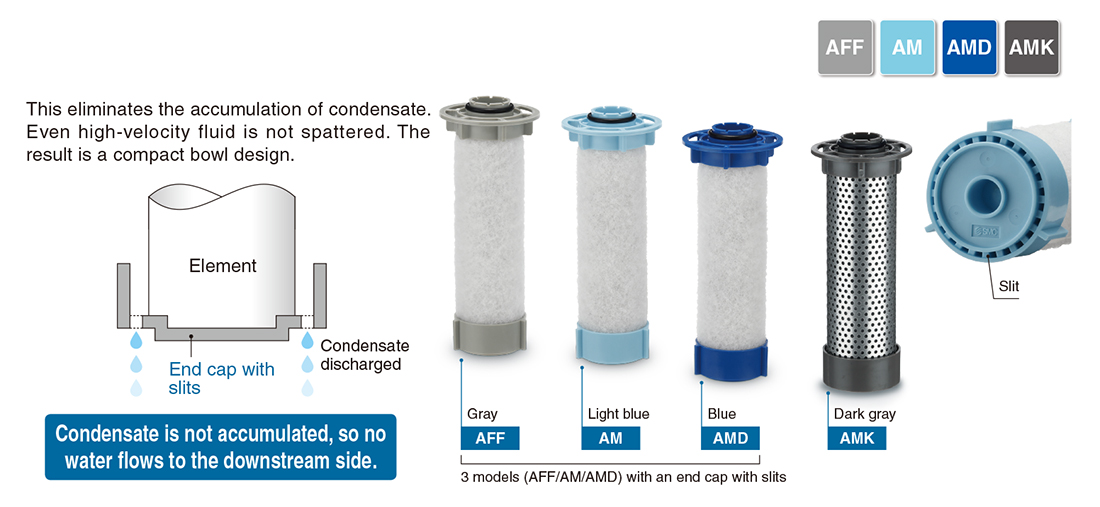

This eliminates the accumulation of condensate. Even high-velocity fluid is not spattered. The result is a compact bowl design.

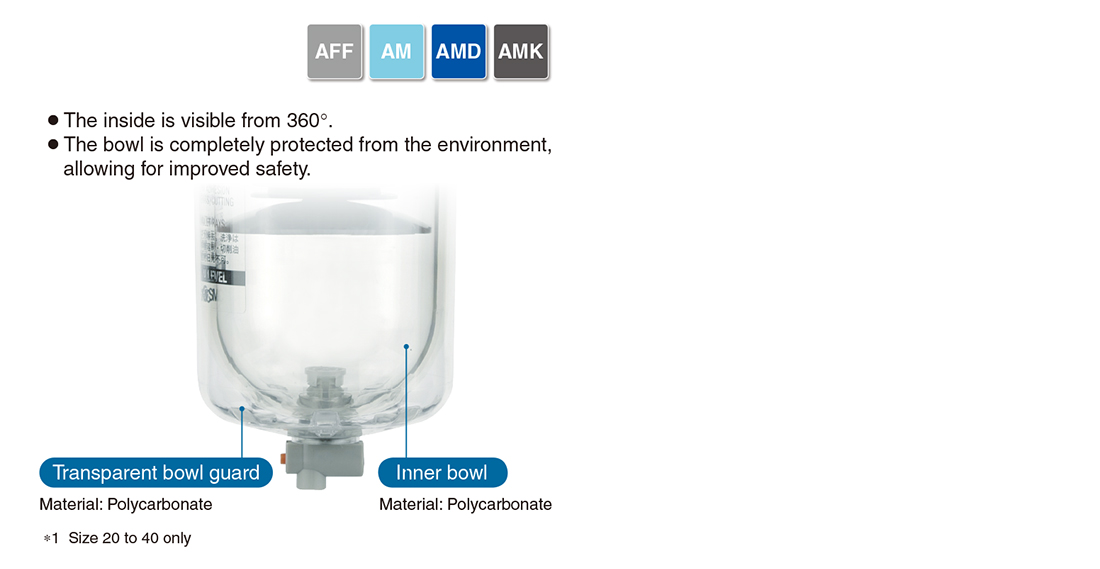

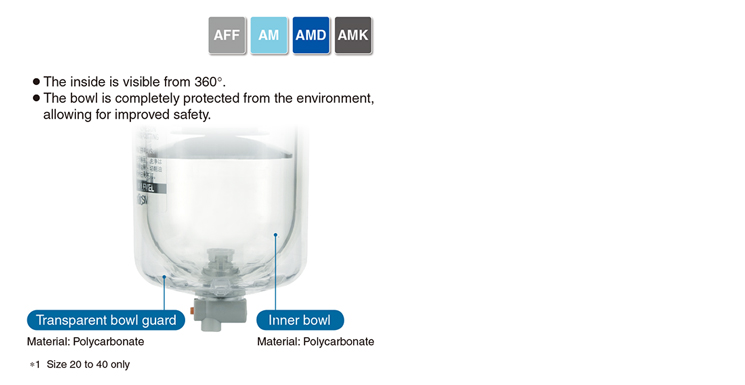

Transparent bowl guard (2-layer construction)

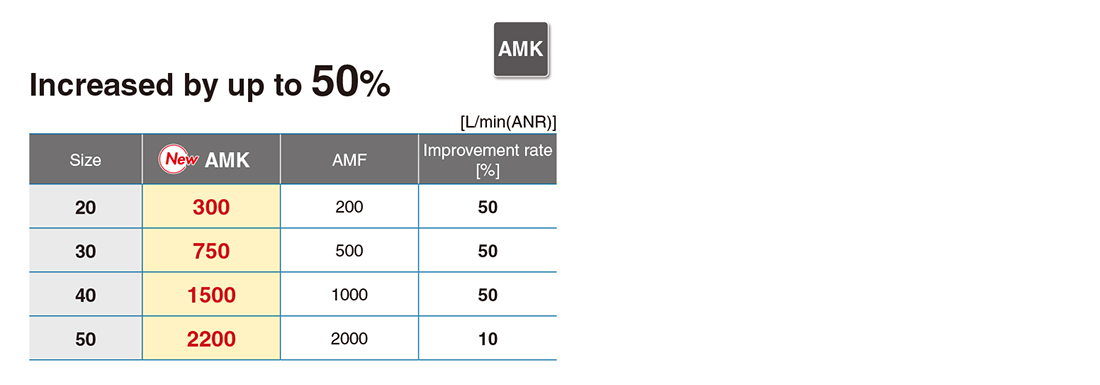

Improved flow capacity

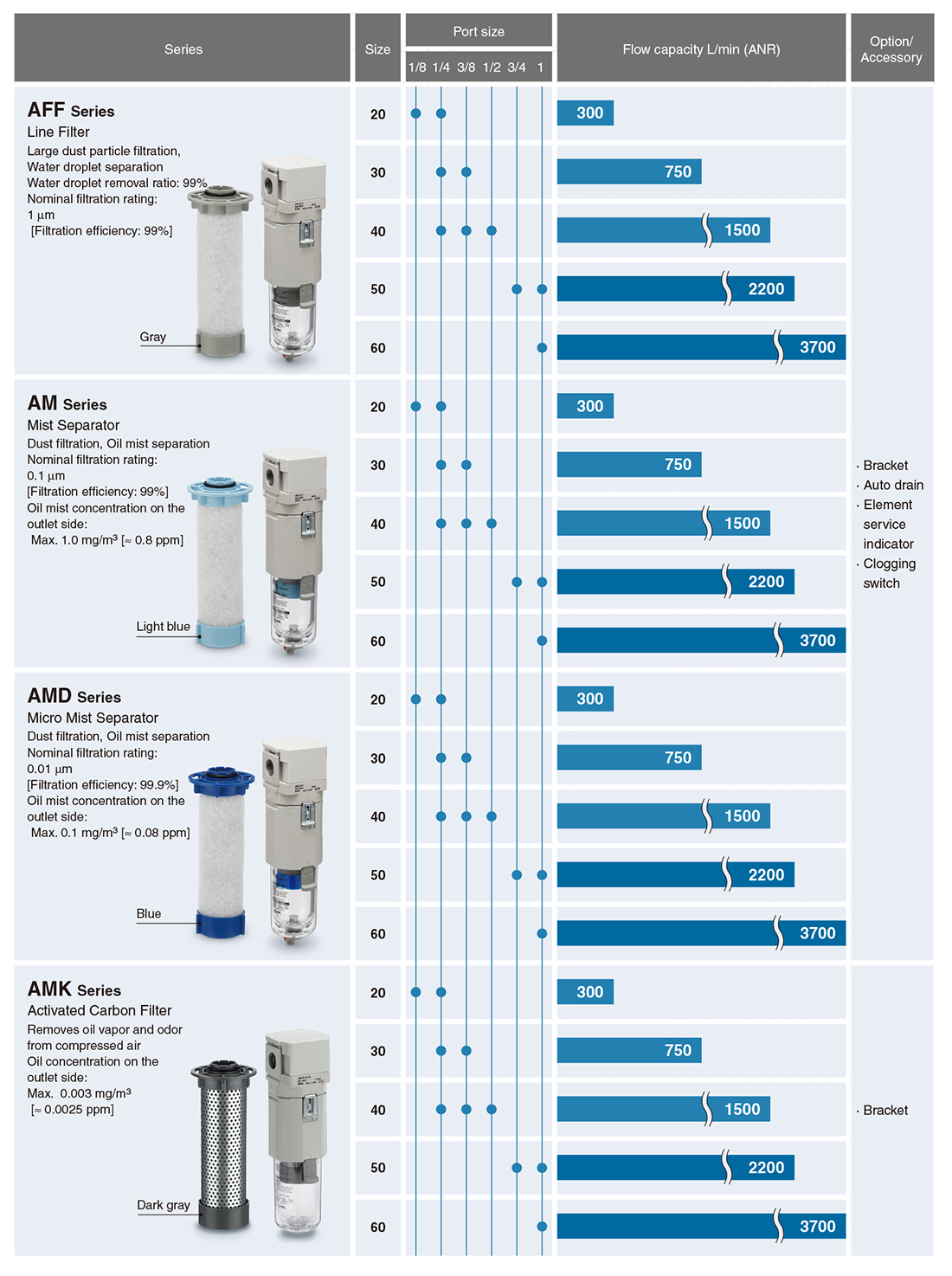

Variations

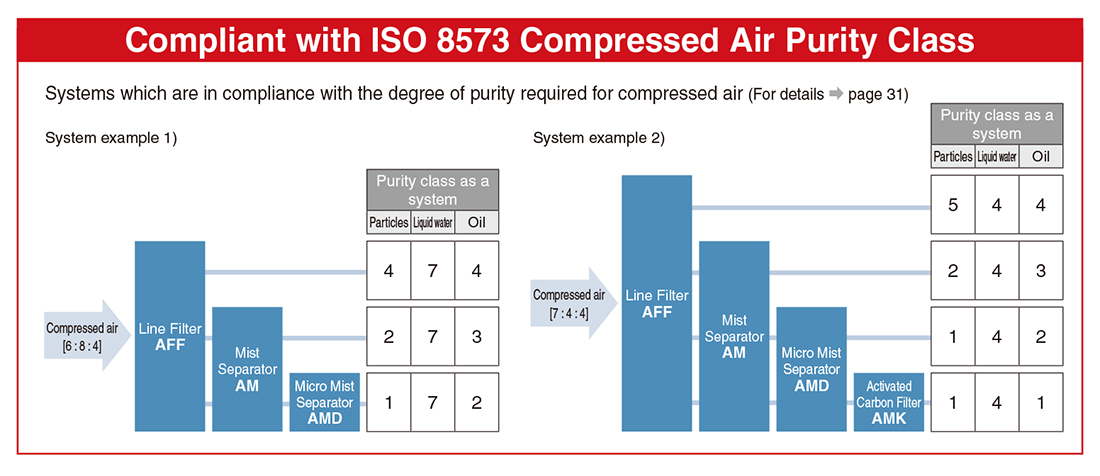

Compliant with ISO 8573 Compressed Air Purity Class

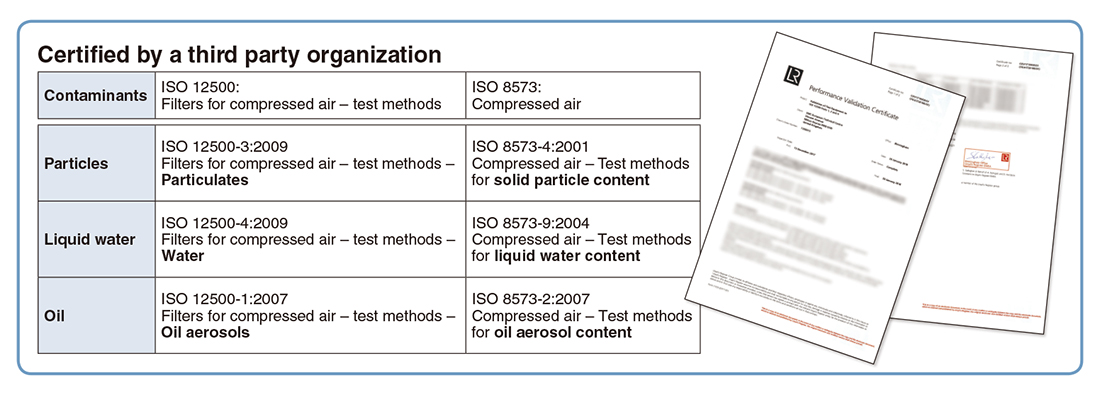

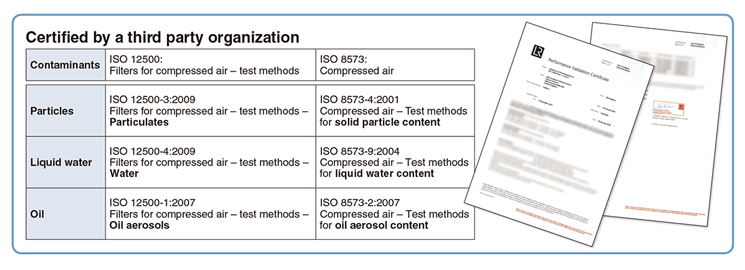

Certified by a third party organization

Simple Specials System



Please contact your local sales representative for more details.details.
