2/3 Port Solenoid Valves/Air Operated Valves

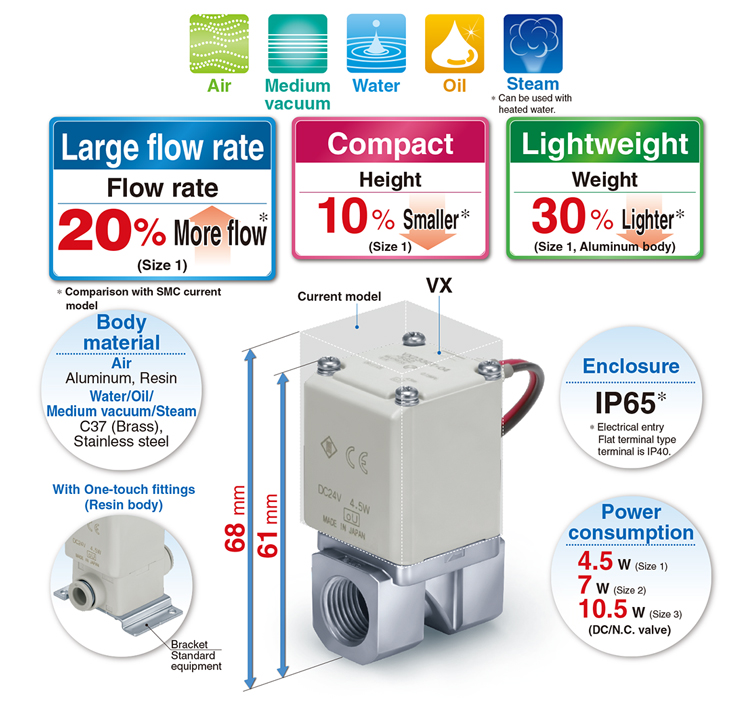

Direct Operated 2 Port Solenoid Valve (2 Way Valve) VX2

    ?For air, medium vacuum, water, oil, steam (Can be used with heated water)
    ?Flow rate: 20% more flow＊
    ?Height: 10% smaller＊
    ?Weight: 30% lighter＊
    ?Body materials: Aluminum, Resin, C37, Stainless steel
    ?Available with One-touch fittings (Resin body)
    　＊Comparison made with SMC’s existing model
    ?Manifold type no.: VVX21, VVX22, VVX23
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Direct Operated 2 Port Solenoid Valve (2 Way Valve) VX2
    DoC
    Series View search result
    VX21/22/23View search result
SeriesValve typePort sizeOrifice diameter (mm?)
VX21/22/23N.C./N.O.1/8 to 1/2
?6 to ?12		2 to 10

Features

■Large flow rate, Compact, Lightweight



Body material:Aluminum, Resin( Air), C37 (Brass), Stainless steel(For water, oil, medium vacuum, and steam)

Enclosure: IP65(Electrical entry flat terminal type terminal is IP40.)

Power consumption: 4.5 W (Size 1), 7 W (Size 2), 10.5 W (Size 3)(DC, N.C. valve)

Piping variations: Thread piping, One-touch fitting

Full-wave rectifier type (AC specification; Insulation type: Class B/H)

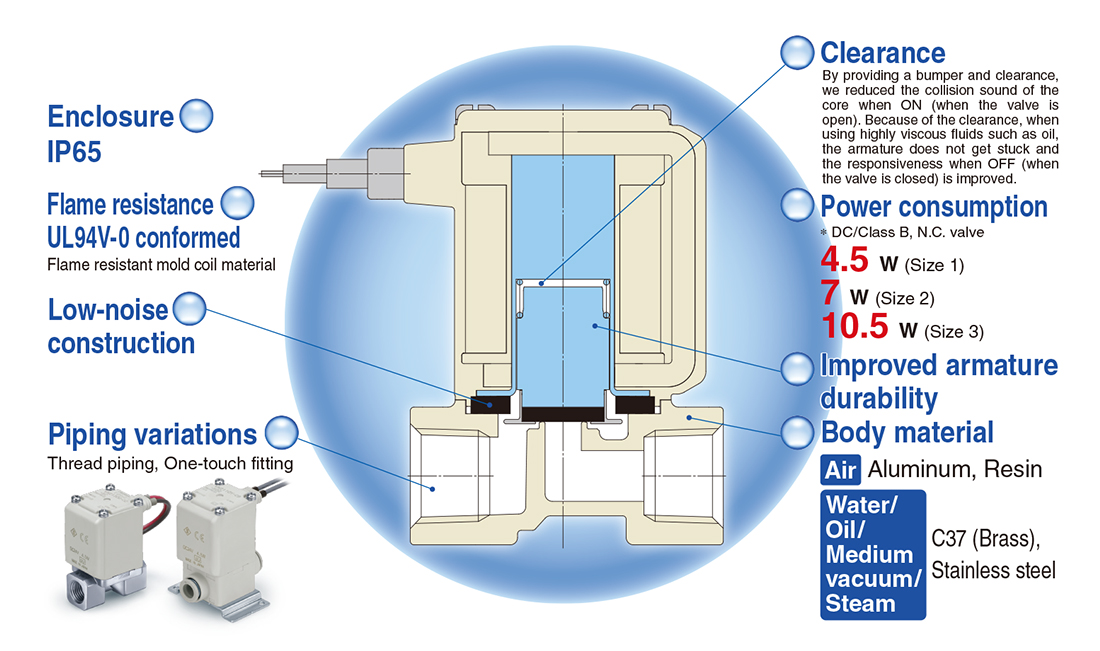

?Improved durability

Service life is extended by the special construction. (Compared with the existing shading coil)

?Improved OFF response

Specially constructed to improve the OFF response when operated with a higher viscosity fluid such as oil

?Reduced buzz noise

Rectified to DC by the full-wave rectifier, resulting in a buzz noise reduction

?Low-noise construction

Specially constructed to reduce the metal noise during operation

?Reduced apparent power ? Class B, N.C. valve

10 VA→7 VA (Size 1) 20 VA→ 9.5 VA (Size 2) 32 VA→12 VA (Size 3)


Manifold

Material/Body: PPS, Base: Aluminum, Seal: NBR, FKM


Solenoid coil type

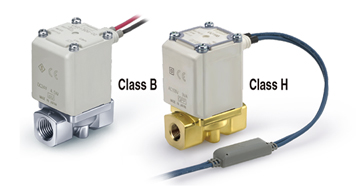

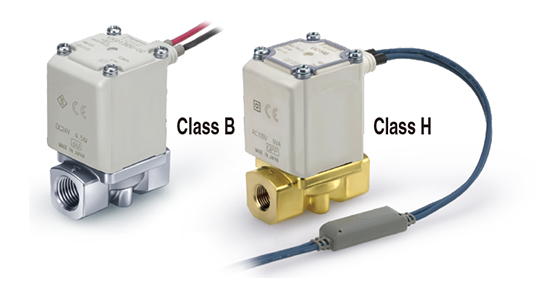

? Insulation type: Class B/H
?Fluid temperature 　
　Class B: Max. 60°C,　Class H: Max. 183°C

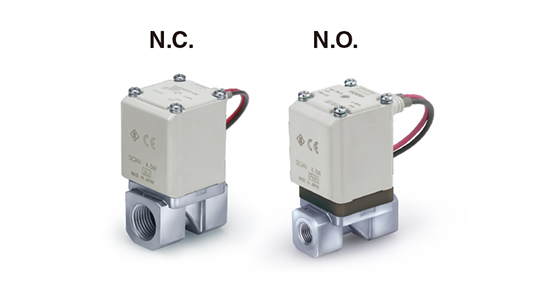

Valve type

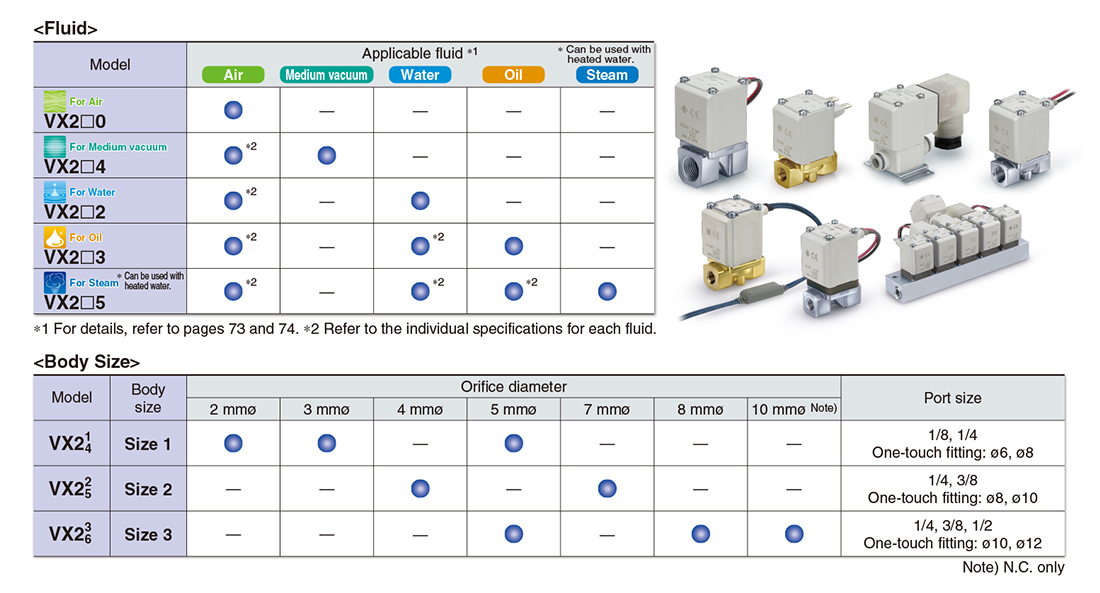

■Variations
