Product Information ?  WEB Catalog  ? Directional Control Valves  ? Pilot Operated 4/5 Port Solenoid Valves

Pilot Operated 4/5 Port Solenoid Valves

Valve Manifold Integrated with Ejector System JSY1000-E

    ?Spacer type ejector with additional high-noise reduction silencer [New]
    ?A vacuum release flow adjustment unit has been added.
    ?Compact all-in-one manifold
    　The devices have been integrated into one for applications in which an
    　actuator and vacuum suction are used together.
    ?EtherCAT?，IO-Link [New]，PROFINET? [New]，EtherNet/IP? [New] compatible
    ?Wiring/piping saving through use of all-in-one manifold
    ?Installation area: 64% reduction
    ?Weight: 42% reduction
    ?Energy saving function
    　CO2 emissions (Air consumption): 90% reduction

    　?IO-Link Master
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Valve Manifold Integrated with Ejector System JSY1000-E
    Manual
    Series View search result
    JSY1000-EView search result
  • Valve Manifold Integrated with Ejector System JSY1000-E
    Manifold
    Series View search result
    JSY1000-EView search result
SeriesFlow rate characteristics
4/2→3/5 (A/B→E)
C [dm3/(s?bar)]		Flow rate characteristics
4/2→3/5 (A/B→E)
b		Applicable
cylinder size		Power
consumption
(W)
JSY1000-E0.910.48φ400.2
(With power-saving circuit)

Features

Valve Manifold Integrated with Ejector System JSY1000-E Series

A vacuum release flow adjustment unit has been added.

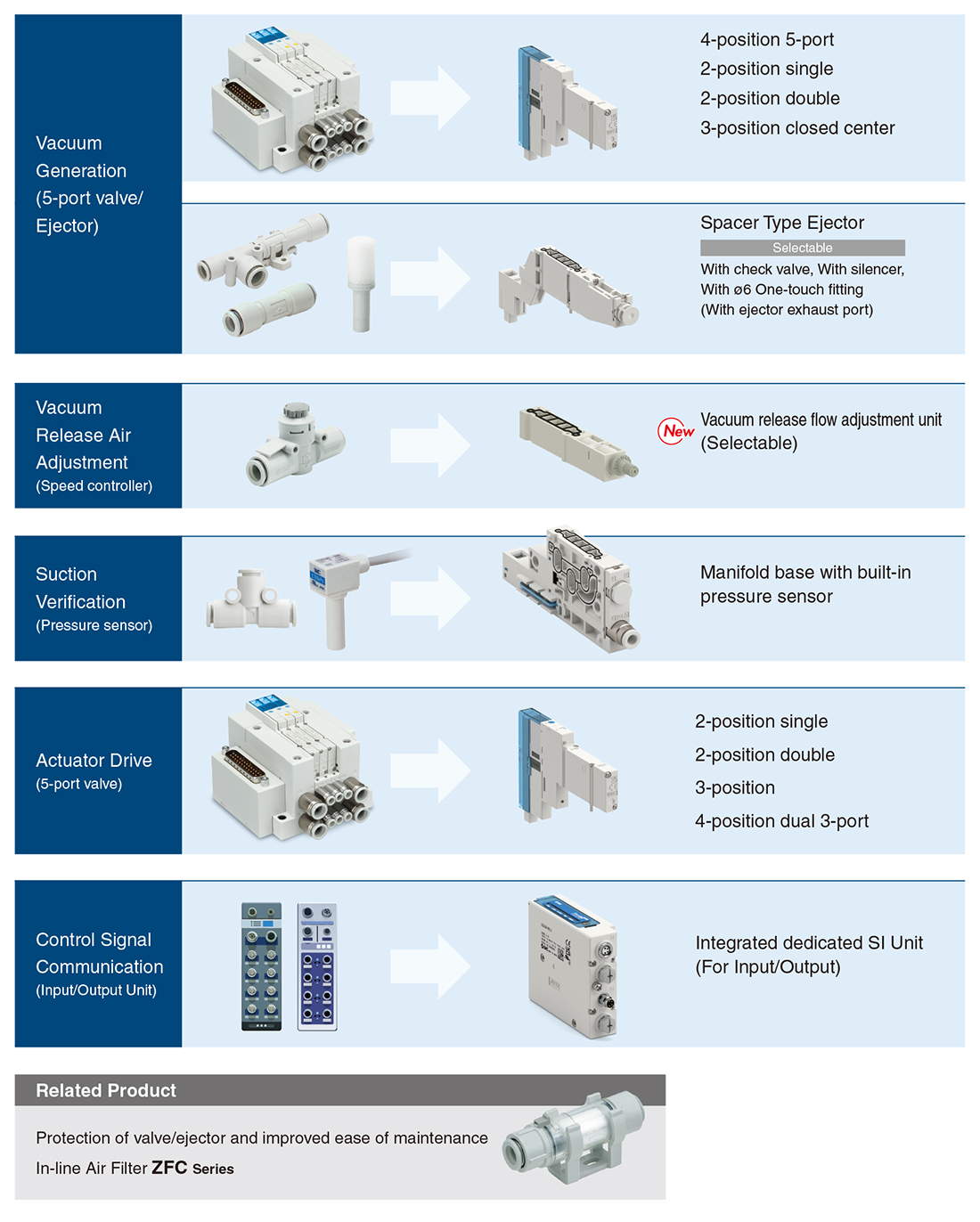

The devices for control of actuators and vacuum suction are integrated into one to reduce the wiring and piping.

?Click here for details on the ZFC series.

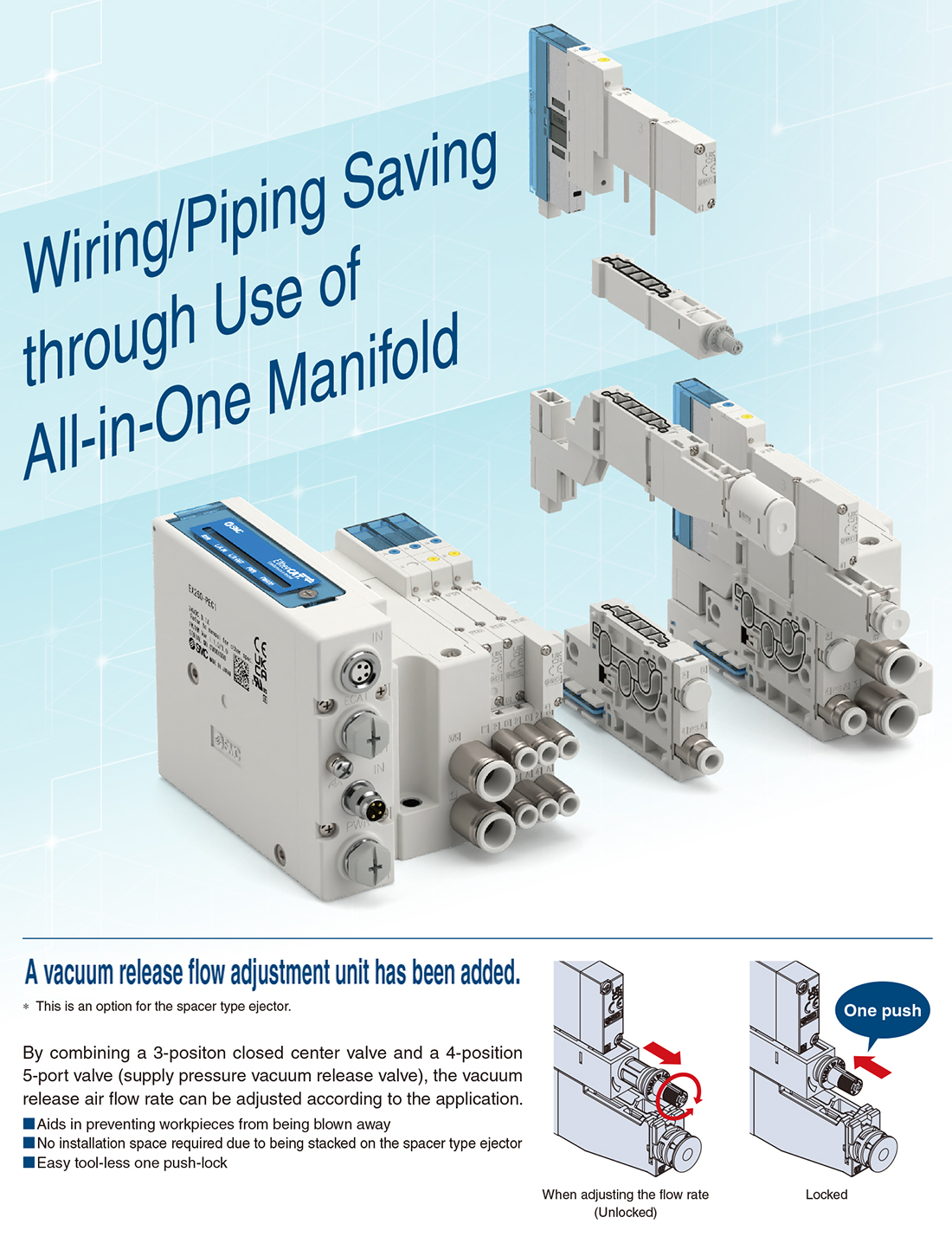

Space Saving and Weight Reduction through Use of All-in-One Manifold

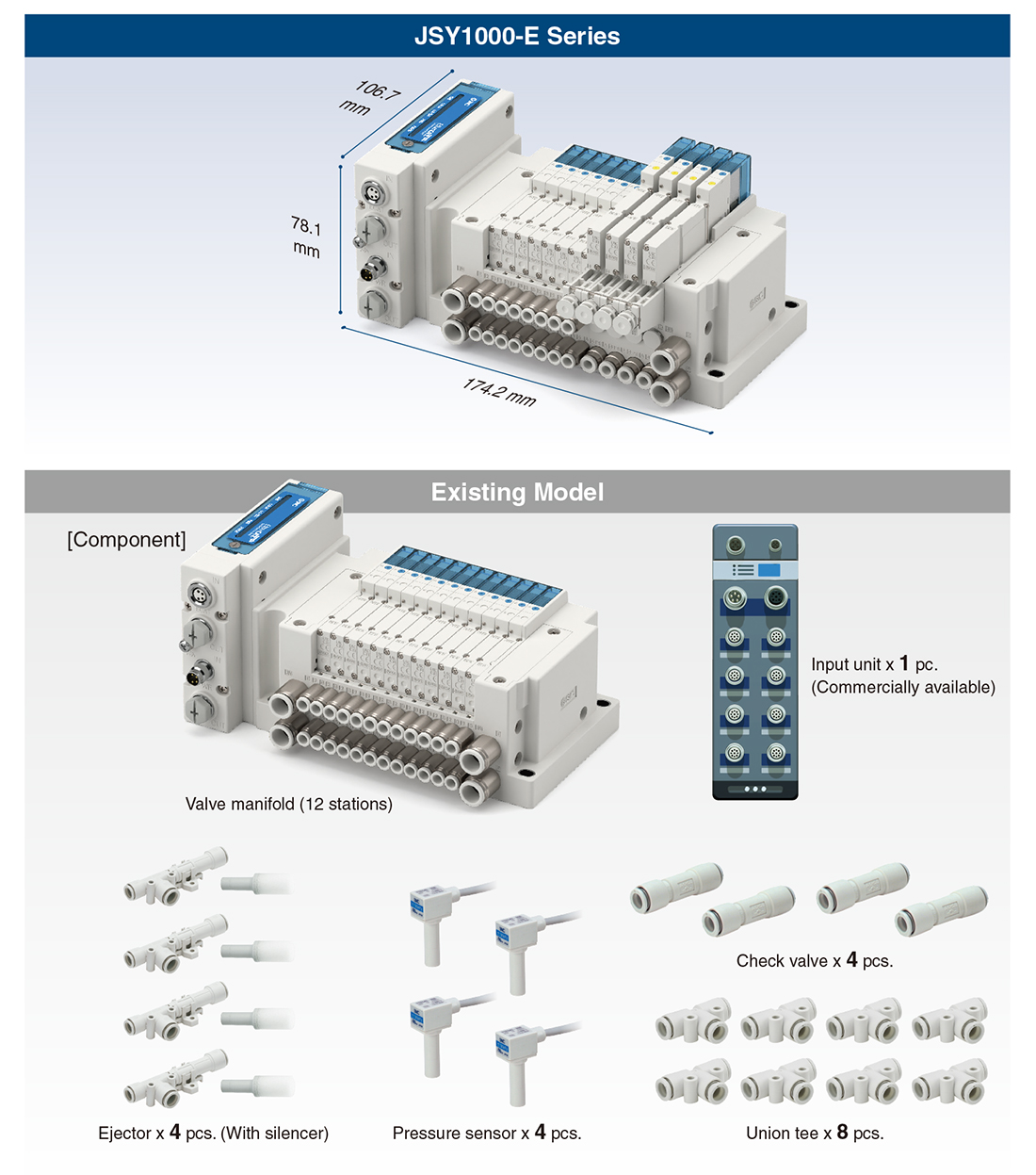

■Space Saving



■Weight Reduction

Energy Saving Function

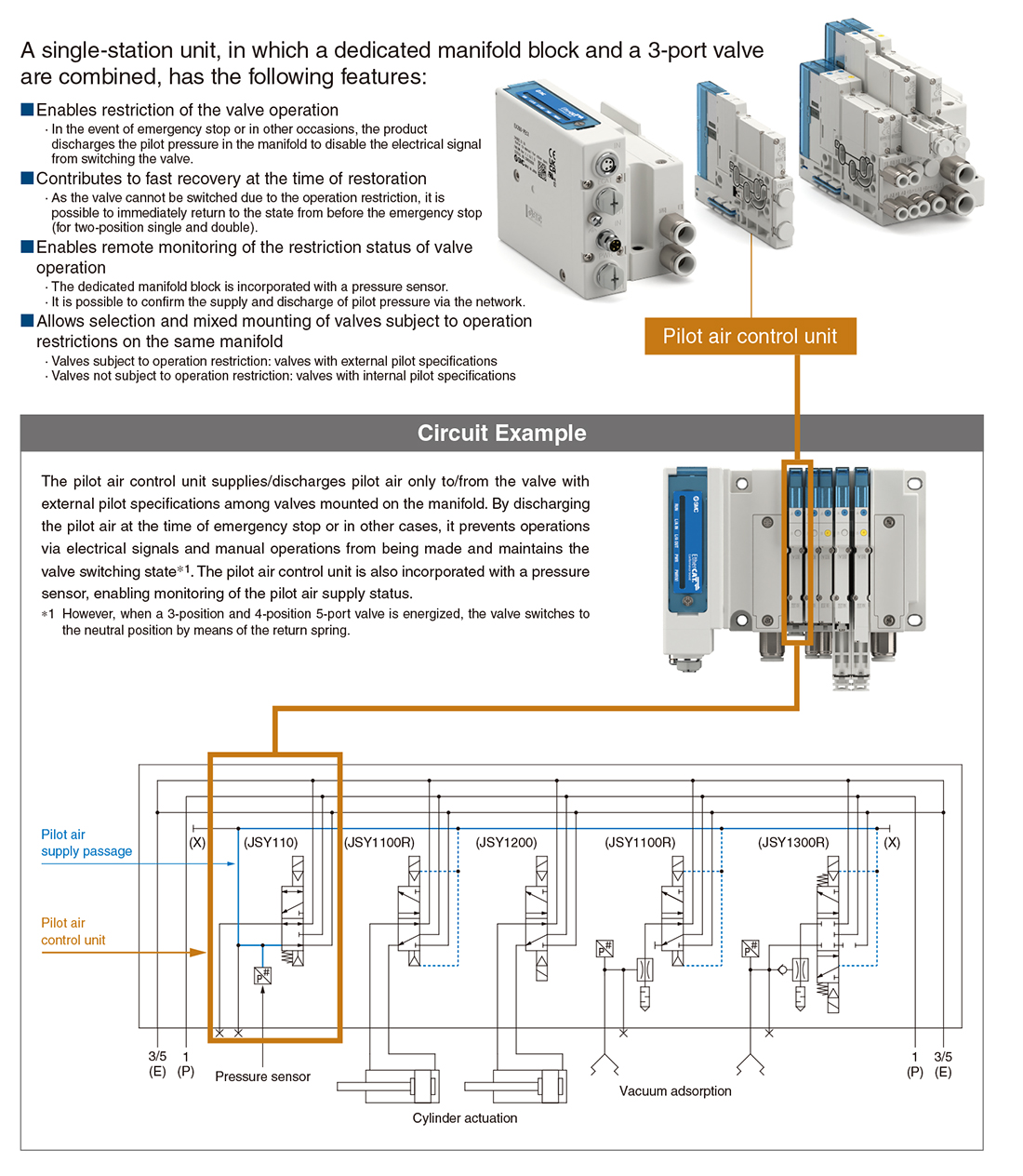

Pilot Air Control Unit New

Spacer Type Ejector
