Clamp Cylinders

NAAMS Standards Compliant Power Clamp Cylinder CKZ5N

    ?A new structure has achieved downsizing.
    　Overall length reduced by 49 mm max.
    　Depth reduced by 17.3 mm max. (Interchangeable with existing product
    　CKZ3N in terms of installation)
    ?Weight reduced by up to 27%
    　Aluminum body with greatly reduced weight
    ?High clamping force 4000 N (?63, Arm length: 100 mm, 0.5 MPa)
    ?Manual lock release operability has been improved.
    ?Spatter-proof construction
    　Fully enclosed structure by means of an aluminum body
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • NAAMS Standards Compliant Power Clamp Cylinder CKZ5N
    Manual
    Series Bore size (mm) View search result
    CKZ5N50，63View search result
SeriesArm opening angleSwitchBore size (mm)
CKZ5N15o，30o，45o，60o，75o，90o，105o，120o，135oTURCK/P&F50，63

Features

A new structure has achieved downsizing.

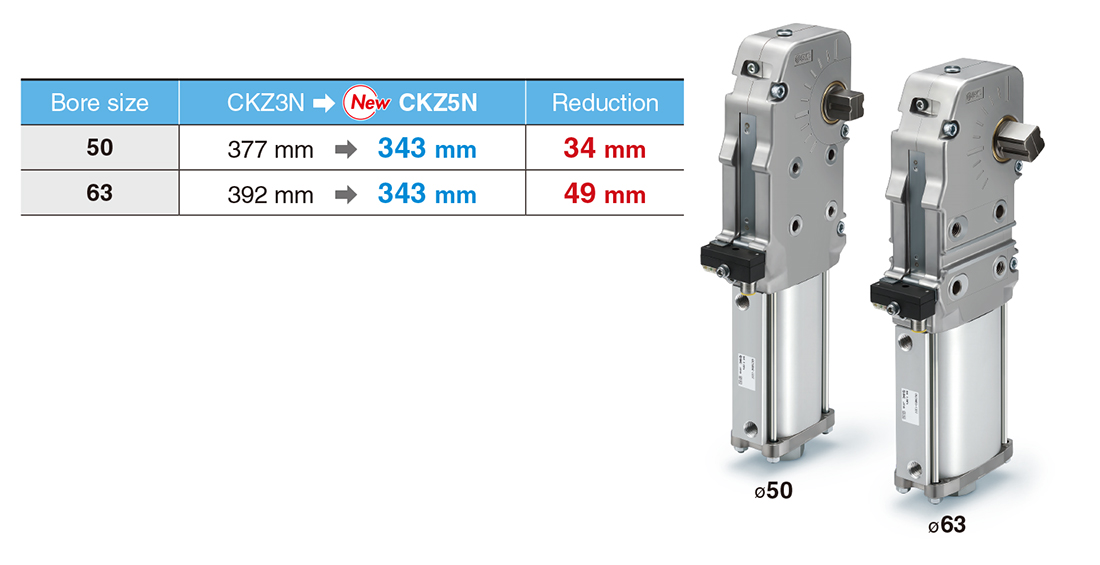

Overall length reduced by 49 mm max.



High clamping force 4000 N (?63, Arm length: 100 mm, 0.5 MPa)

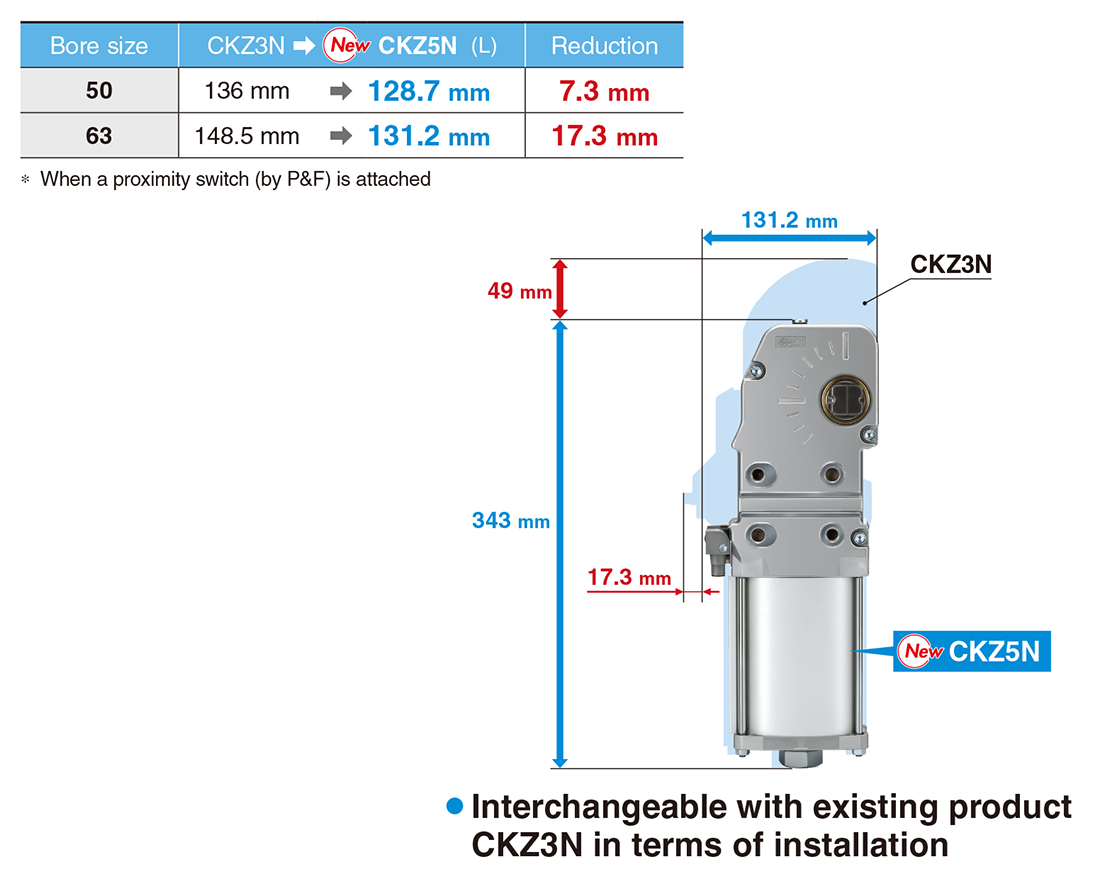

Depth reduced by 17.3 mm max.

Weight reduced by up to 27%

Aluminum body with greatly reduced weight

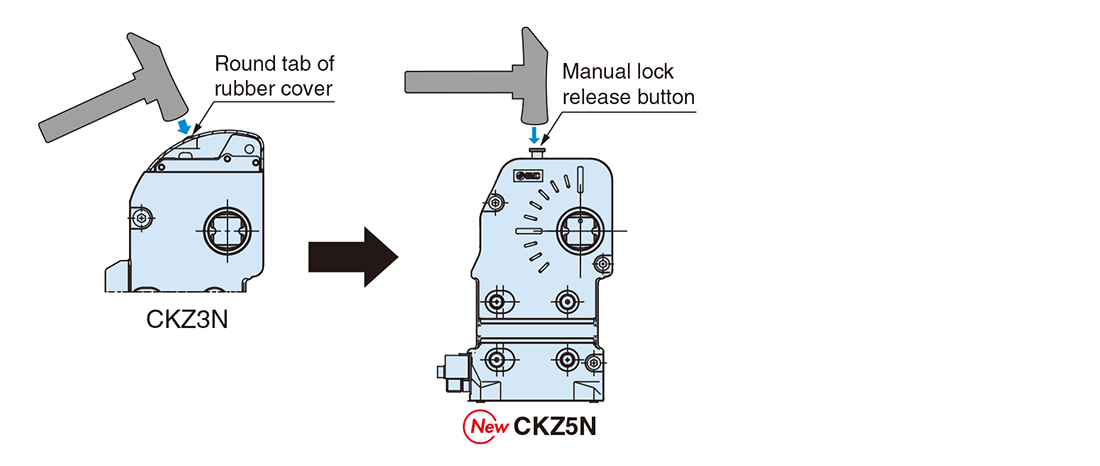

Manual lock release operability has been improved.

Spatter-proof construction

Fully enclosed structure by means of an aluminum body
