WEB Catalog

Product Information ?  WEB Catalog  ? Flow Control Equipment  ? Air Saving Speed Controllers Air Saving Valves

Air Saving Speed Controllers Air Saving Valves

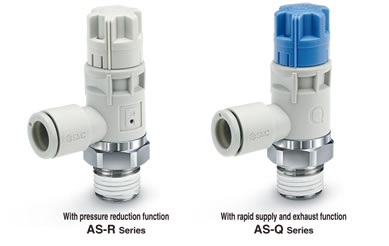

Air Saving Speed Controller AS-R/AS-Q

    ?Reduce air consumption just by mounting to an air cylinder.
    ?Air consumption reduced by 25%
    ?Mounting and operation are the same as regular speed controller.
    ?Equal response time
    　No delay of response time with 2-pressure control
    ?Compact: 85% reduction
    　The functions of the regulator and speed controller have been integrated.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

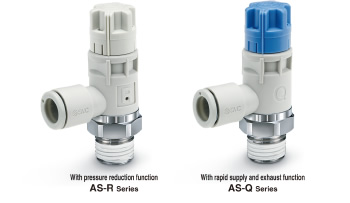

  • Air Saving Speed Controller AS-R/AS-Q
    Manual
    Type Series View search result
    Elbow type
    With pressure reduction function    		AS22R to AS42RView search result
    Elbow type
    With rapid supply and exhaust function    		AS22Q to AS42QView search result

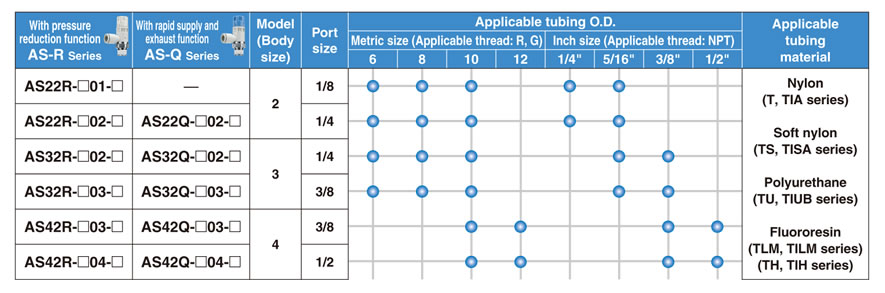

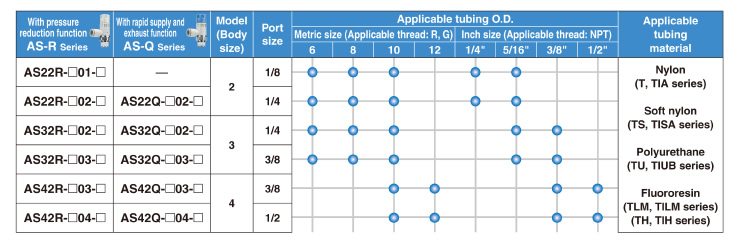

TypeSeriesPort size on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Elbow type
With pressure reduction function		AS22R to AS42RR, NPT, G 1/8 to 1/2φ6 to φ12φ1/4'' to φ1/2''
Elbow type
With rapid supply and exhaust function		AS22Q to AS42QR, NPT, G 1/4 to 1/2φ6 to φ12φ1/4'' to φ1/2''

Features

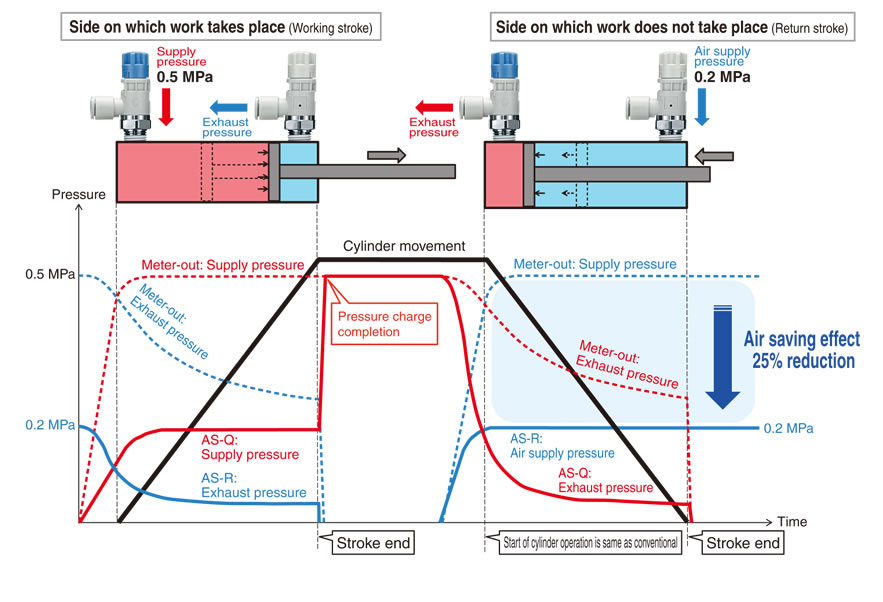

Reduce air consumption just by mounting to air cylinder

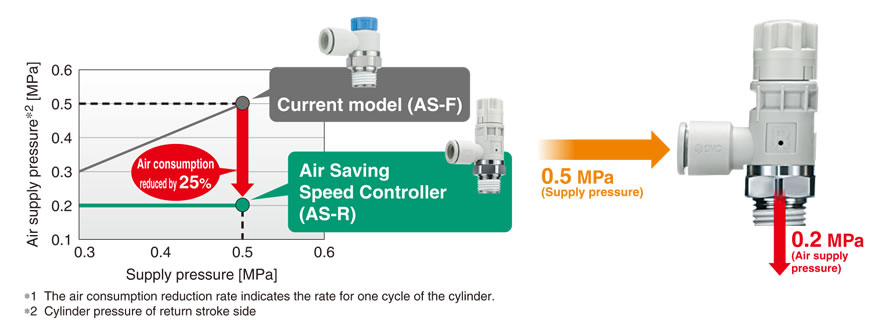

Air consumption reduced by 25%

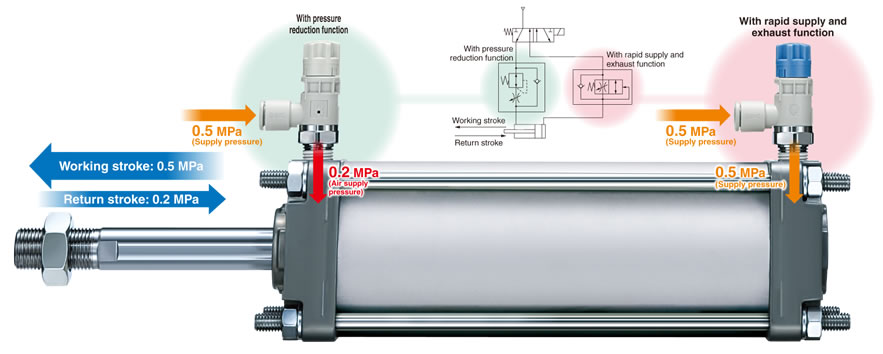

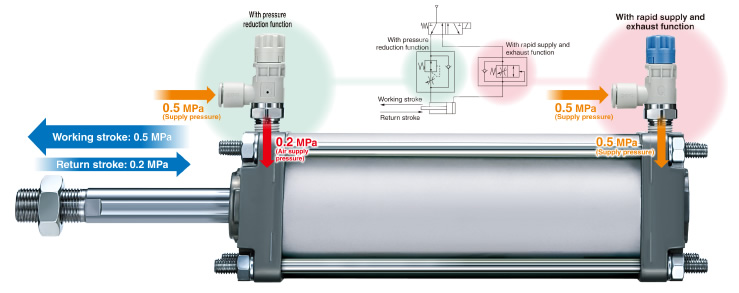

Acquire two-pressure control just by mounting the product. Reduces the air supply pressure of the stroke on the nonworking side to 0.2 MPa.

Mounting and operation are the same as a speed controller

Equal response time

No delay of the response time with two-pressure control Improved output response at the stroke end due to rapid air-charge.
Improved response time of return stroke due to rapid air exhaust.

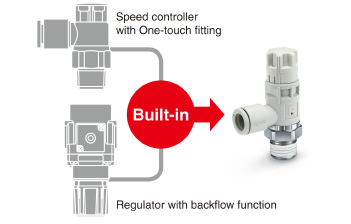

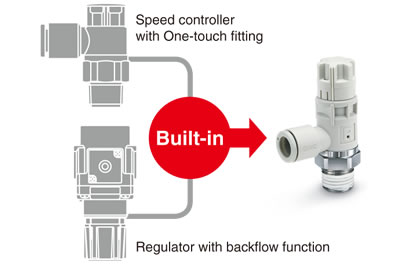

Compact 85*1 % reduction（Occupied volume: 230 cm3 ? 34 cm3）

The functions of the regulator and speed controller are combined.

*1 Comparison of AR20K-02-B + AS22m1F-02-08 and AS22R-02-08

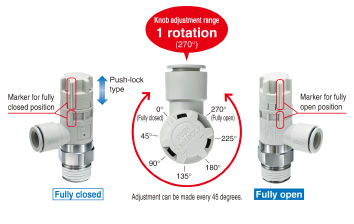

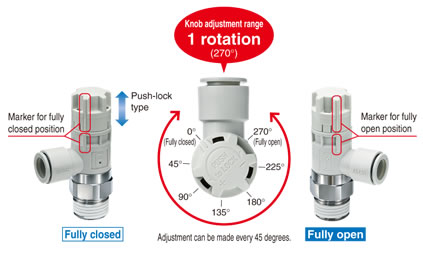

Easy Adjustment

Push-lock type Only speed is adjustable.

Lurch Prevention

As this product is operated by the return stroke at a reduced pressure by the meter-in circuit, a sudden extension of the working stroke is prevented.



Variations

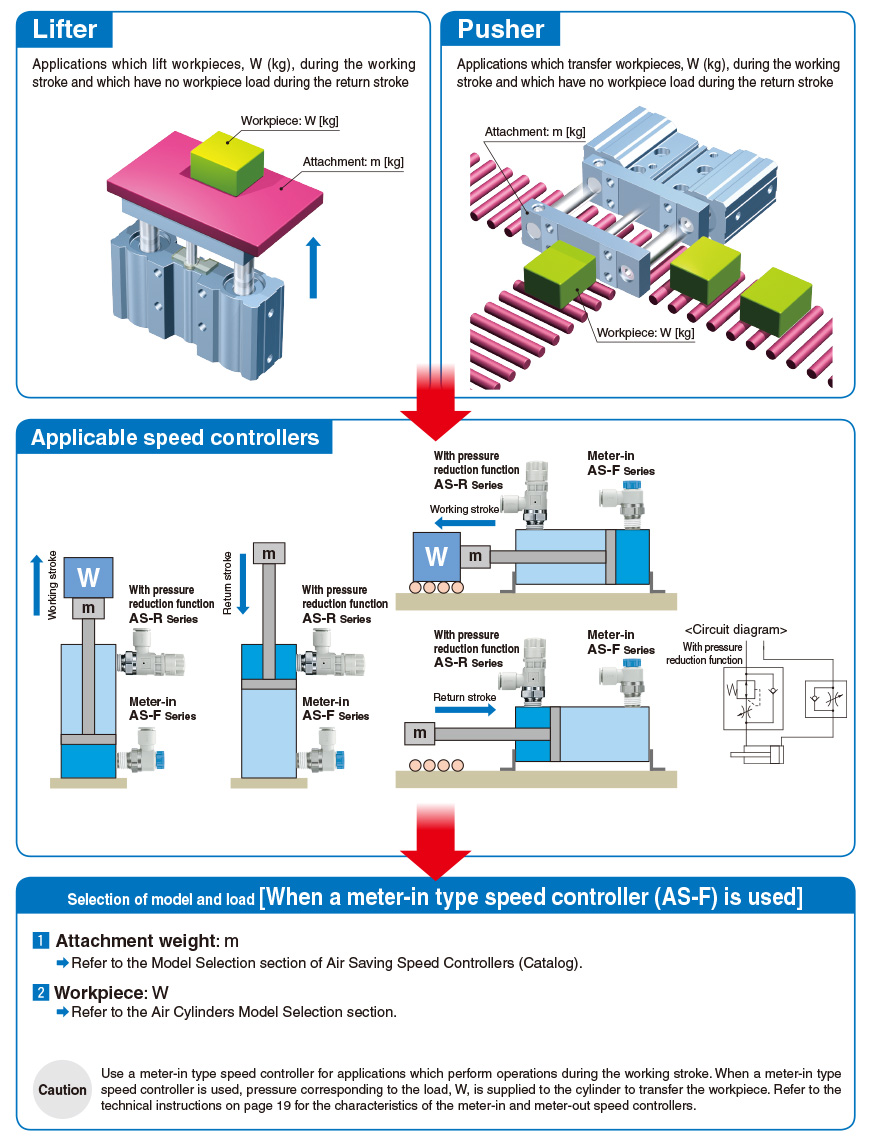

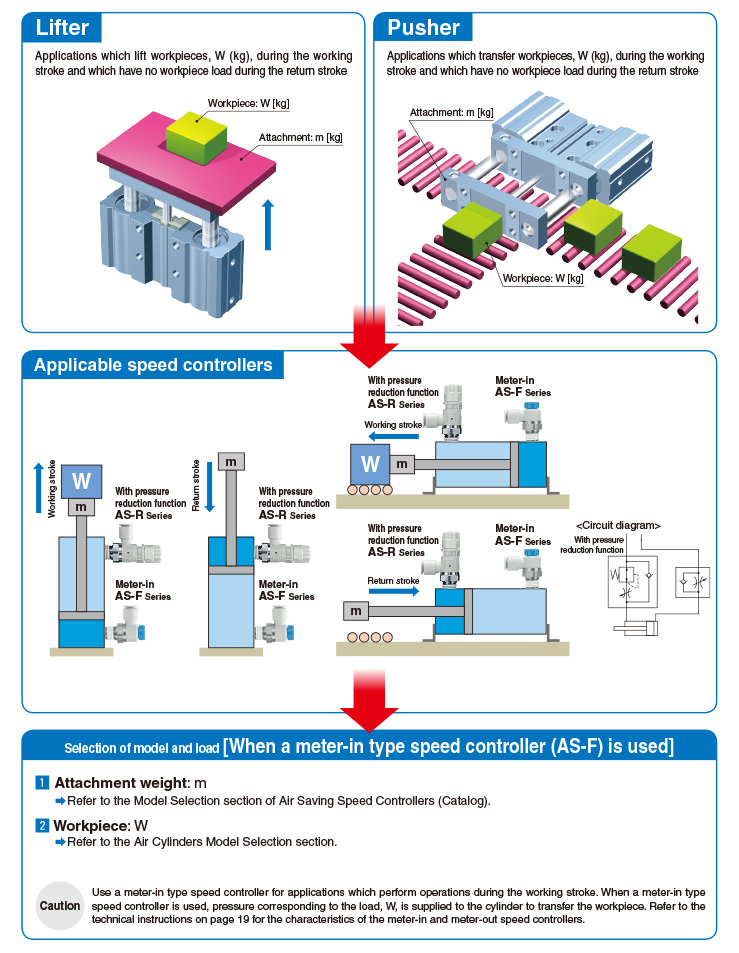

Applications and Load

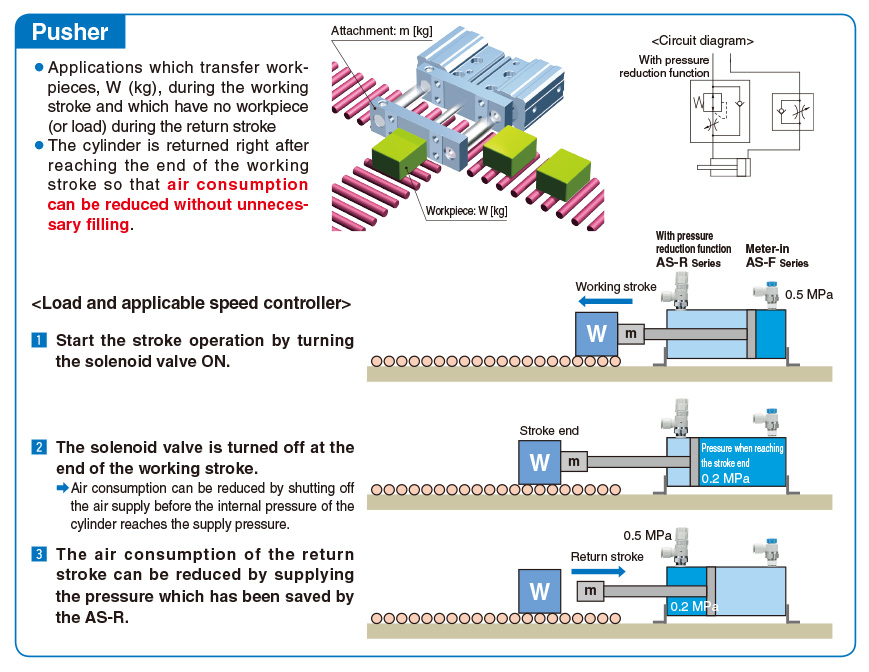

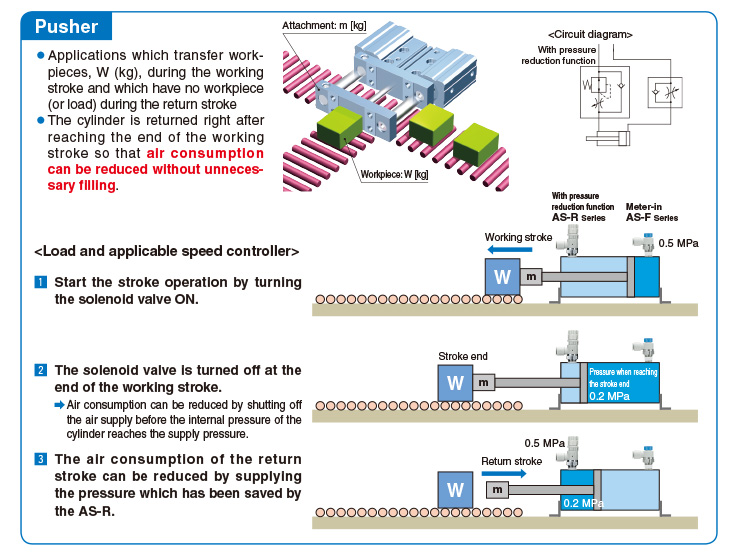

Application Proposal for Air Saving Speed Controller

●Air consumption reduction ratio: 50%

* Comparison of air consumption when the supply pressure is 0.5 MPa
* In this case, the load to move the workpiece is piston area multiplied by 0.2 MPa.

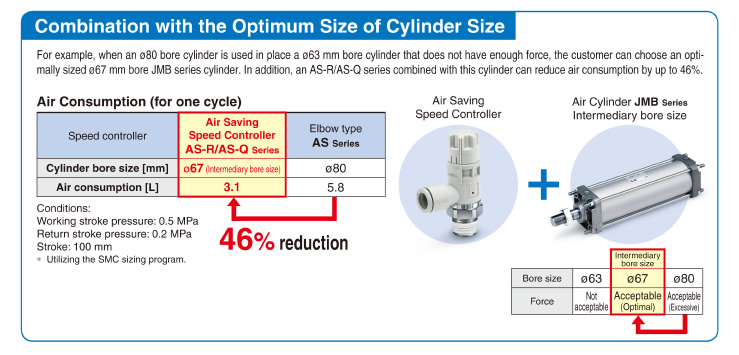

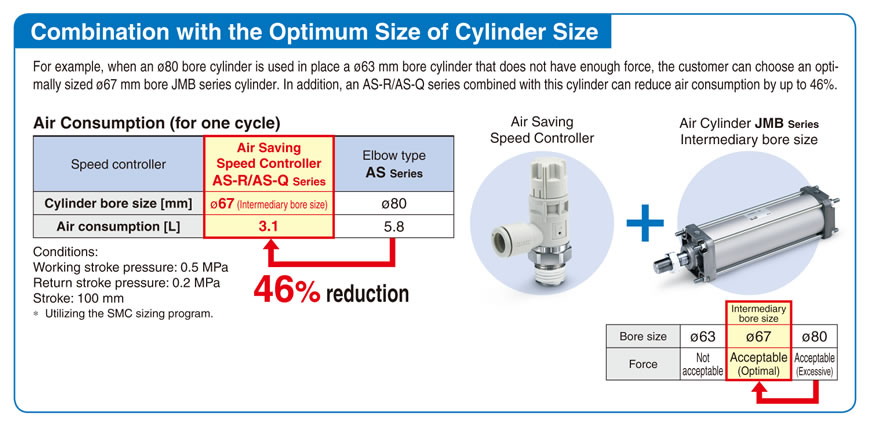

●Air consumption reduction ratio: 46%
