WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Pin Shift Cylinder

Pin Shift Cylinder

Offset Pin Shift Cylinder CDQ2B-X2839

    ?With high rigidity offset load capacity
    ?High rigidity, High precision
    　With plate extended: Deflection of ±0.1 mm or less
    ?3 different port location directions can be selected.
    ?Can be mounted from 2 directions
    ?Coil scrapers equipped as standard
    ?Auto switches are mountable.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesBore size (mm)Stroke (mm)
Offset pin shift cylinderCDQ2B-X283932, 40, 5025, 50, 75

Features

■with high rigidity offset load capacity

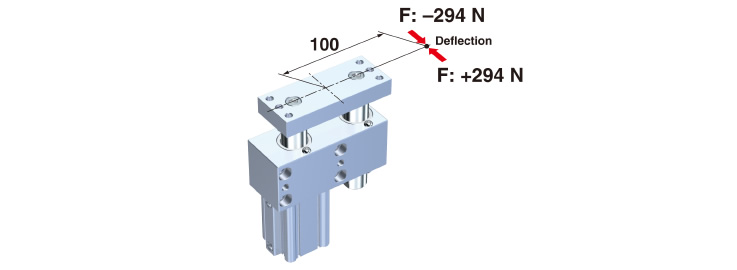

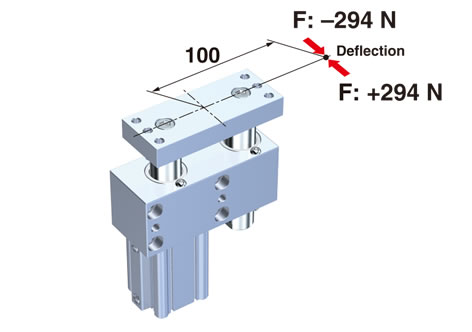

High rigidity, High precision
With plate extended: Deflection of ±0.1 mm or less

(For ?50, 25 mm stroke, when allowable moment 29.4 N·m is applied)

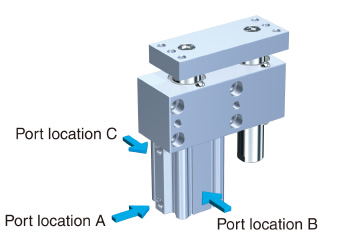

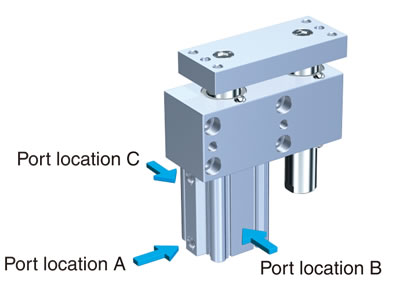

3 different port location directions can be selected.

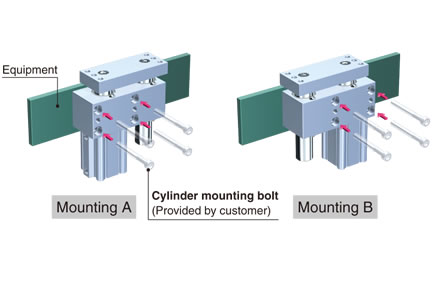

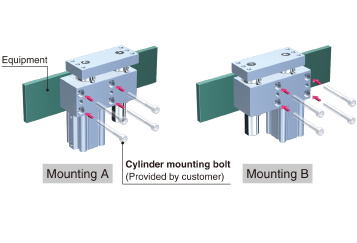

Can be mounted from 2 directions

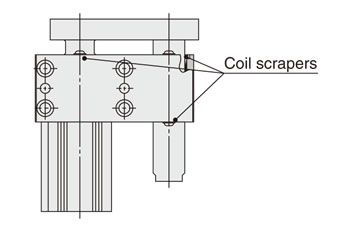

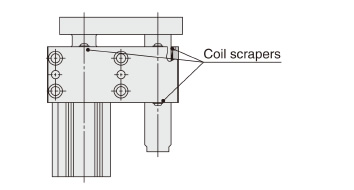

Coil scrapers equipped as standard

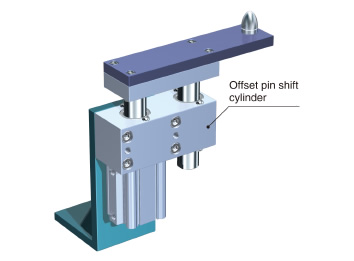

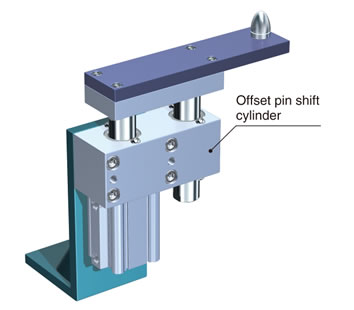

Application Example

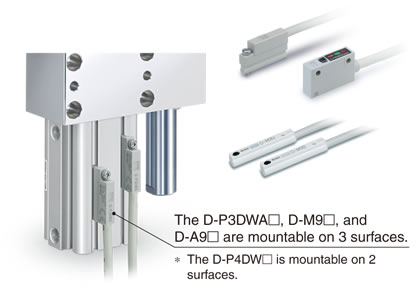

Auto switches are mountable.

Applicable Auto Switches:

  • Magnetic field-resistant solid state auto switch:
    D-P3DWA□,D-P4DW□
  • Small auto switch: D-M9□, D-A9□
