WEB Catalog

Product Information ?  WEB Catalog  ? Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other)  ? Vacuum Pads (Vacuum Suction Cups)

Vacuum Pads (Vacuum Suction Cups)

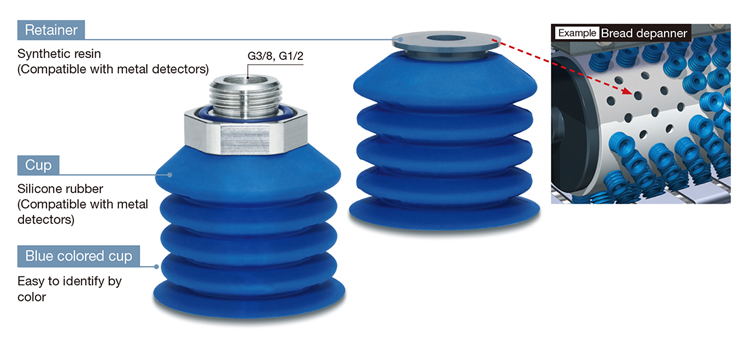

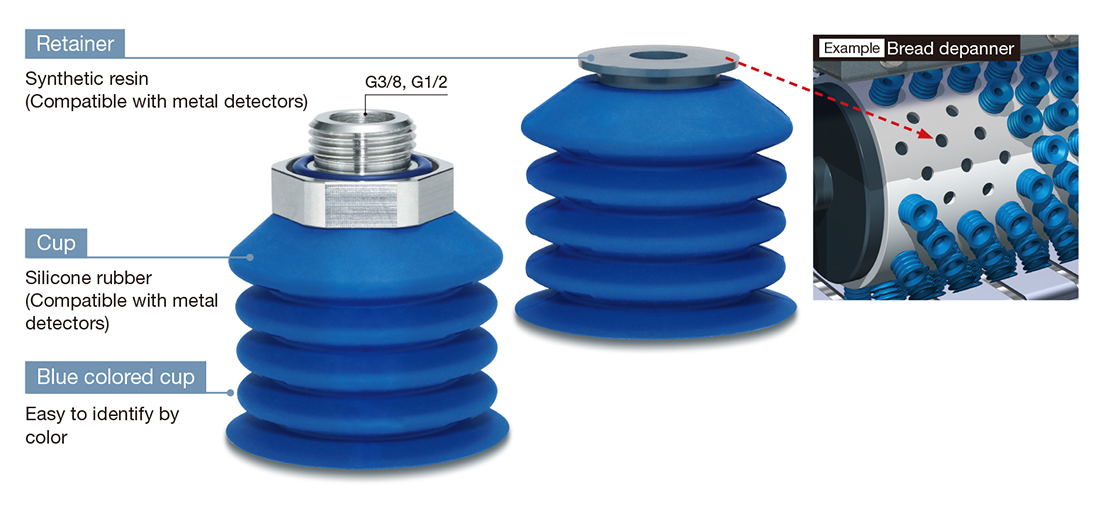

Suction Cup/Compatible with Metal Detectors HF3A-ZP3F

    ?Bellows type cup with excellent cushioning and flexibility
    　Reduces the deformation of soft workpieces such as bread
    ?The cups and retainers are made of materials compliant with the FDA
    　(U.S. Food and Drug Administration) dissolution test, EC directives,
    　and Japan Food Sanitation Act standards.
    ?Improved durability due to anti-stick grooves
    ?Equipment for the food manufacturing industry HF3A- series
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesCup formCup diameter (mm)
HF3A-ZP3FBellows type (4.5-stage)φ40

Features

Bellows type cup with excellent cushioning and flexibility Reduces the deformation of soft workpieces such as bread



The cups and retainers are made of materials compliant with the FDA (U.S. Food and Drug Administration) dissolution test, EC directives, and Japan Food Sanitation Act standards.



Improved durability due to anti-stick grooves

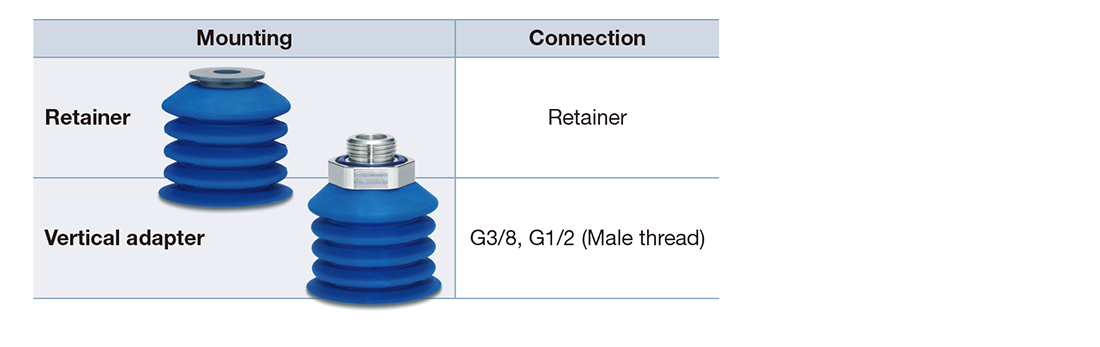

Variations

Made from a metal compound material, Compatible with contamination inspections



The retainer can be directly inserted into the mounting holes of a resin belt, etc.

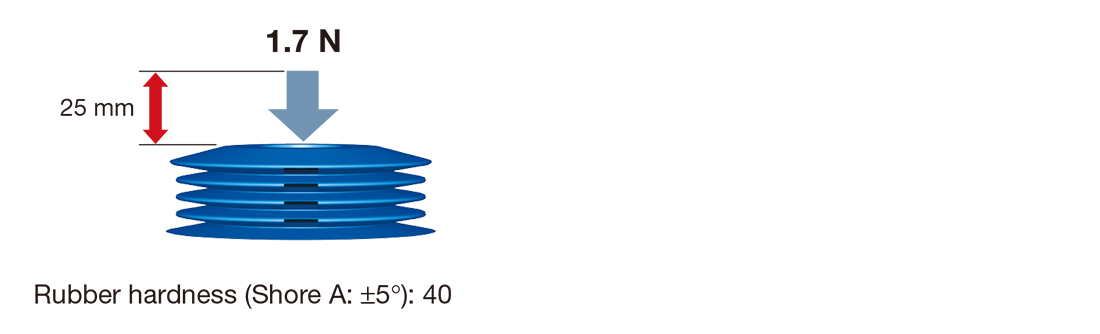

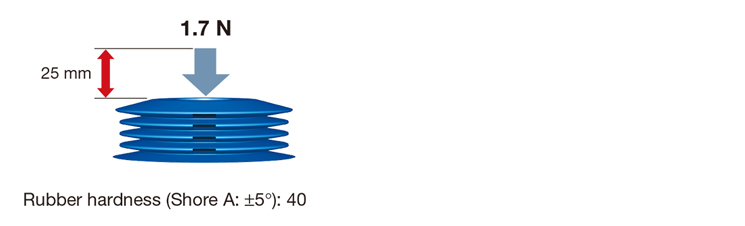

Excellent cushioning

The light pressing force allows for workpieces to be suctioned without being crushed.

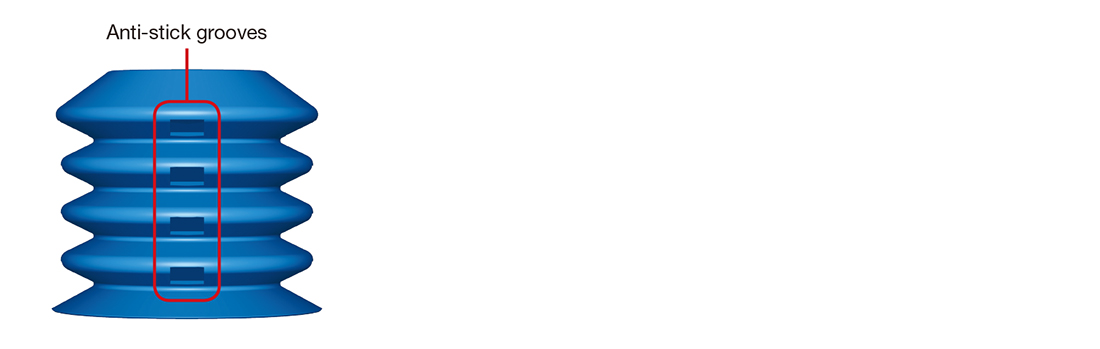

Anti-stick grooves/Improved durability

The anti-stick grooves on the circumference prevent the bellows from sticking during suction. This reduces returning failure after the workpiece is released.

Equipment for the Food Manufacturing Industry
