WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Clamp Cylinders

Clamp Cylinders

Power Clamp Cylinder/Compact Type
CKZT-X2797, X3064/X2798□, X3174□/-X3232□, -X3229□

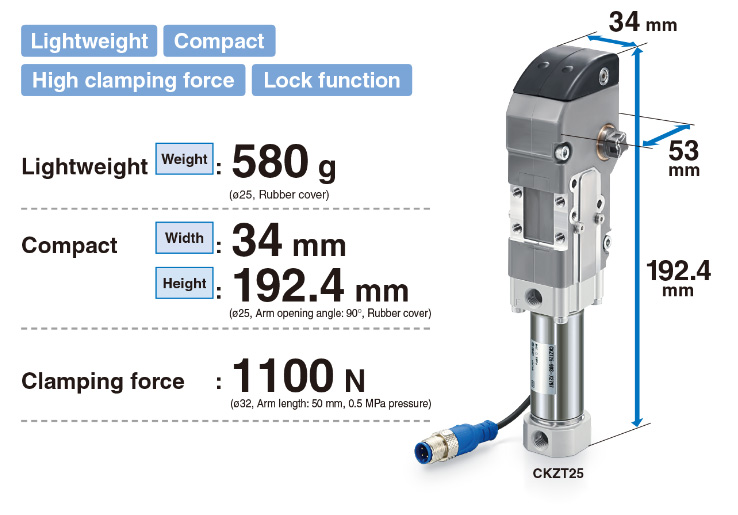

    ?Lightweight Weight : 580 g (?25, Rubber cover)
    ?Compact Width : 34 mm, Height : 192.4 mm (?25, Arm opening angle: 90°, Rubber cover)
    ?Clamping force : 1100 N (?32, Arm length : 50 mm, 0.5 MPa pressure)
    ?Force amplification with a toggle mechanism and lock function
    ?Spatter-proof construction
    ?Equipped with a proximity switch that can be used in welding magnetic fields

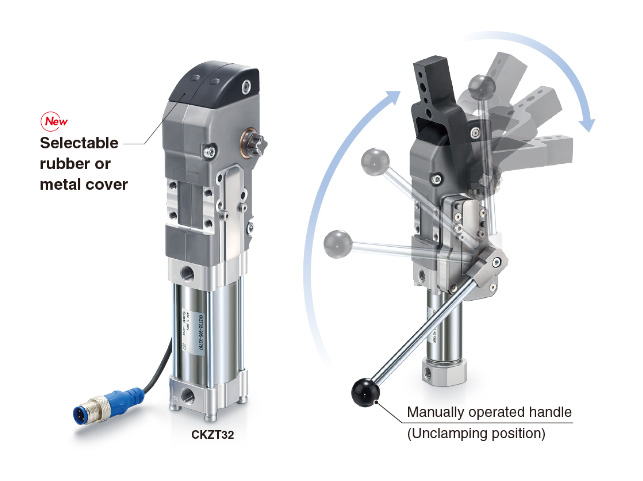

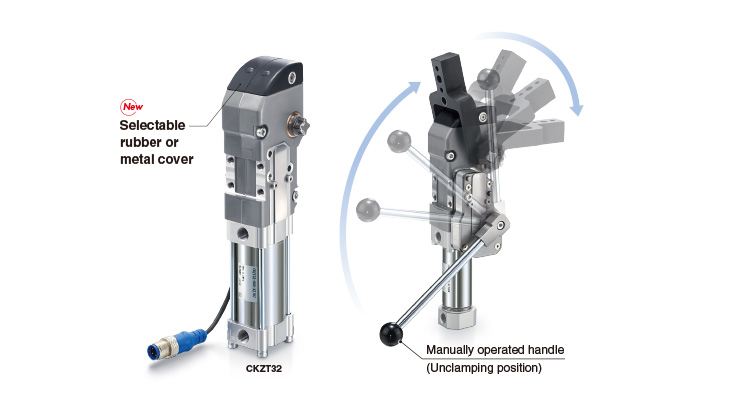

    ?A model with a manually operated handle (lock specification) is available.
    ?Selectable rubber or metal cover
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesArm opening angleSwitchBore size (mm)
CKZT-X2797 (Rubber cover)
CKZT-X3064 (Metal cover)
Base type		90o，105oSENSTRONIC25, 32
CKZT-X2798□ (Rubber cover)
CKZT-X3174 (Metal cover)
With manually operated handle		90o，105oSENSTRONIC25, 32

Features

■For material handling and clamping of small workpieces
■Uses a toggle mechanism for force amplification and toggle locking

Can hold a clamped state when supply pressure drops or residual pressure is released

■Spatter-proof construction

Fully closed structure prevents the intrusion of weld spatter

■Equipped with a magnetic field resistant proximity switch for use in welding environments
■Manual handle is available.

For manual workpiece setting processes
