WEB Catalog

Product Information ?  WEB Catalog  ? Industrial Device Communication Equipment/Wireless System  ? Industrial Device Communication Equipment: IO-Link Compatible Products

Industrial Device Communication Equipment: IO-Link Compatible Products

IO-Link Compatible 2 in 1 Auto Switch D-MH2□

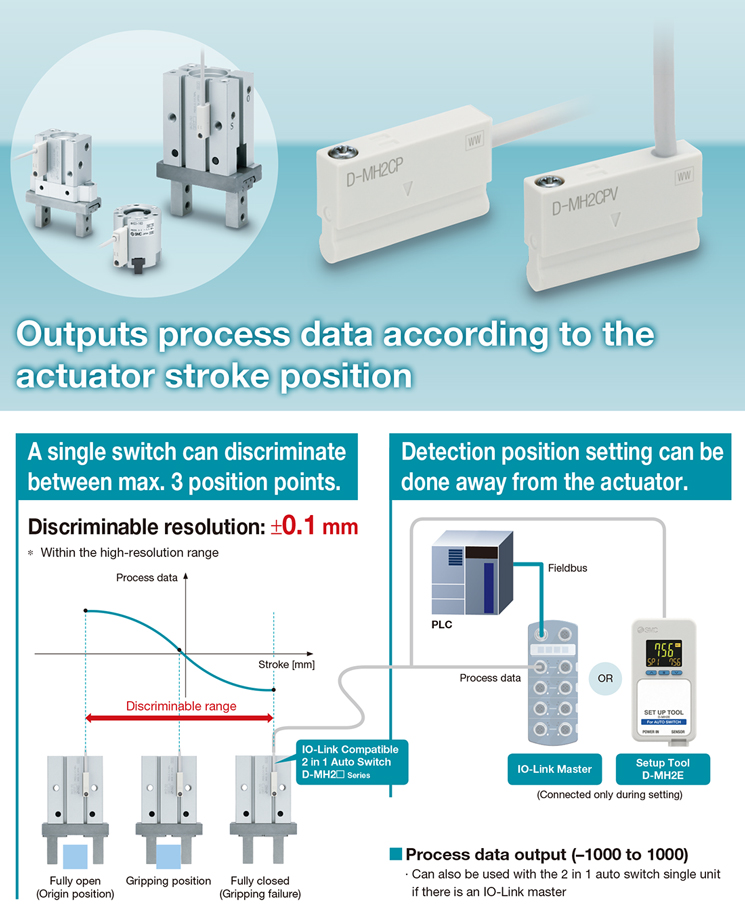

    ?Outputs process data according to the actuator stroke position
    ?A single switch can discriminate between max. 3 position points.
    ?Discriminable resolution: ±0.1 mm　? Within the high-resolution range
    ?Detection position setting can be done away from the actuator.
    ?Process data output (–1000 to 1000)
    　Can also be used with the 2 in 1 auto switch single unit if there is
    　an IO-Link master
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • IO-Link Compatible 2 in 1 Auto Switch D-MH2□
    Manual
    Series Type View search result
    D-MH2□IO-Link compatible
    2 in 1 auto switch    		View search result
  • IO-Link Compatible 2 in 1 Auto Switch D-MH2□
    DoC
    Series Type View search result
    D-MH2□IO-Link compatible
    2 in 1 auto switch    		View search result
SeriesTypeNumber of set pointsOutput type
D-MH2□IO-Link compatible
2 in 1 auto switch		2 points
3 points		NPN output
PNP output

Features

Outputs process data according to the actuator stroke position

Detection position setting can be done away from the actuator.

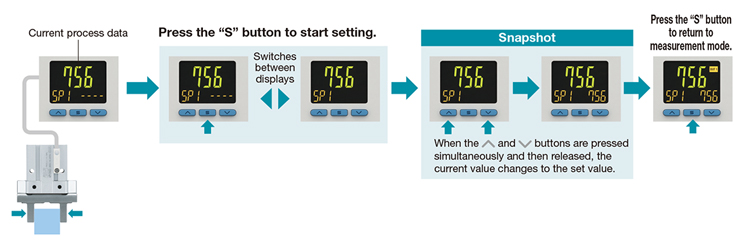

Snapshot function for easy switch output setting

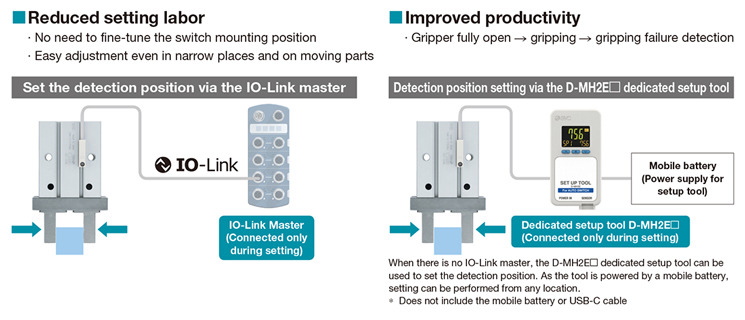

Reduced setting labor

No protrusion from the body end surface

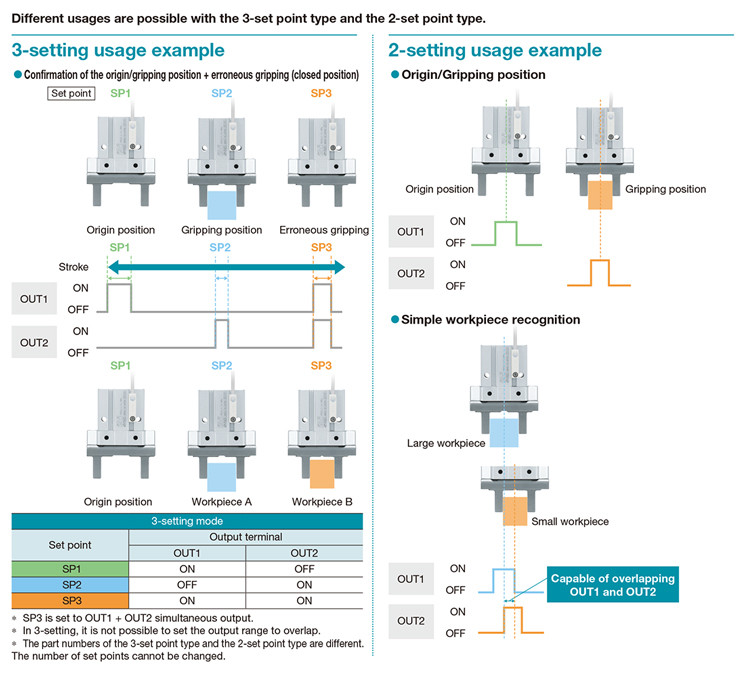

Improved productivity: A wide range of uses are possible according to the number of set points.

Improved productivity: Easy resetting due to position shifting

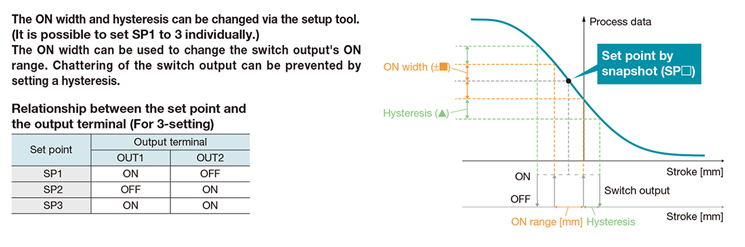

The switch output’s output range and hysteresis can be set.

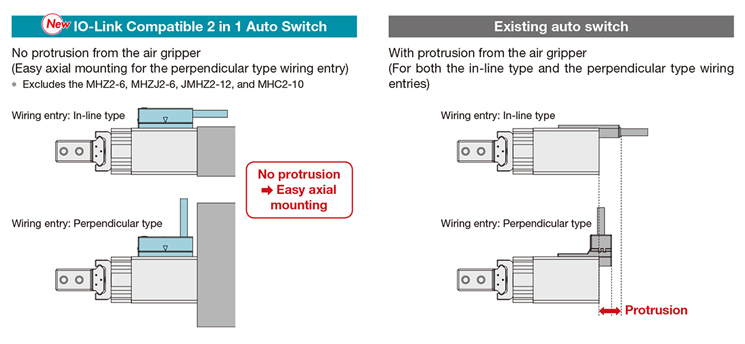

Difference in mounting method between the 2-in-1 auto switch and the existing product

IO-Link compatible
