WEB Catalog

Product Information ?  WEB Catalog  ? Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other)  ? Vacuum Ejectors (Vacuum Generators)/Vacuum Pump Systems

Vacuum Ejectors (Vacuum Generators)/Vacuum Pump Systems

Vacuum Unit (Vacuum Generators) ZK2□A

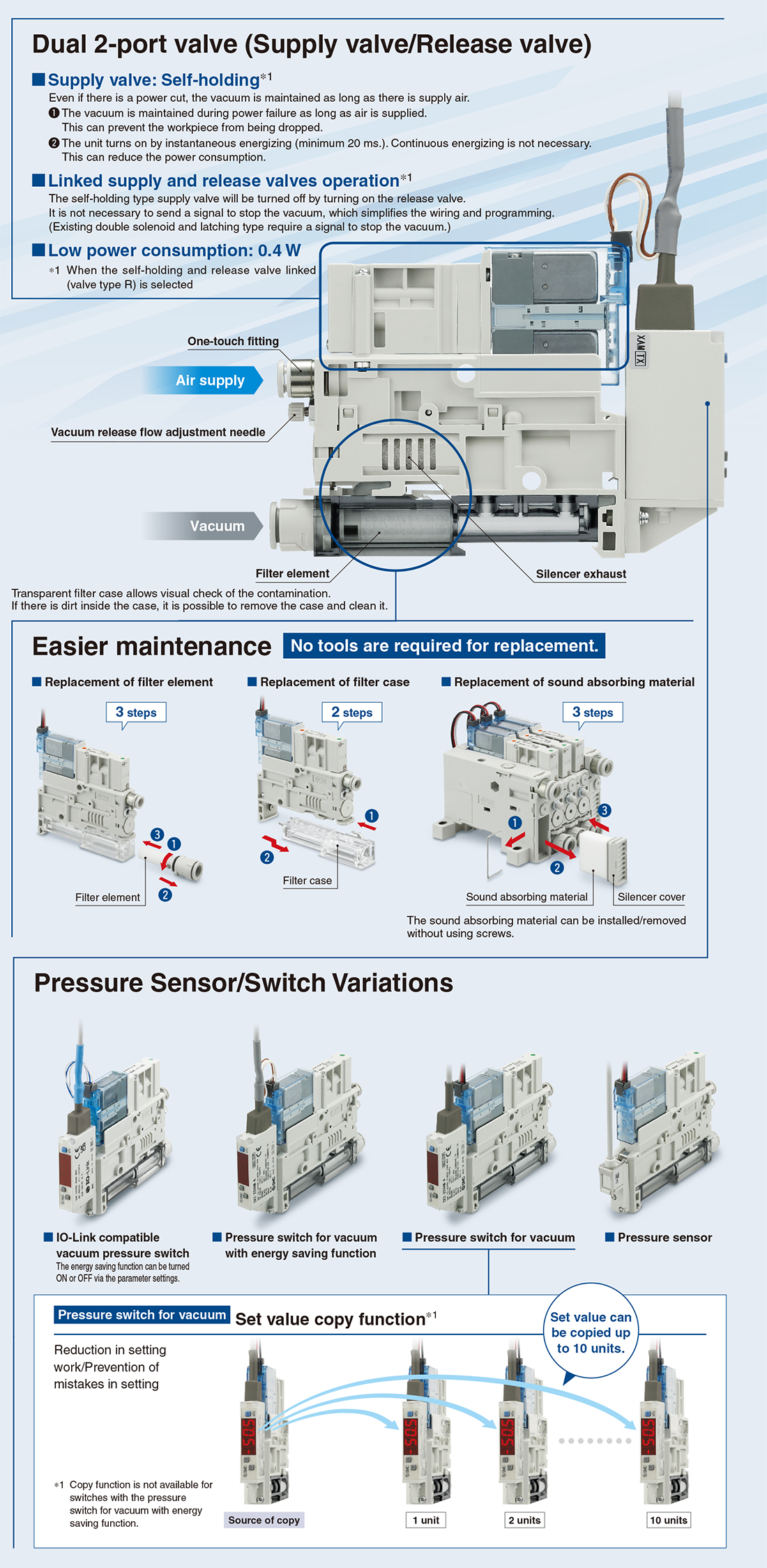

    ?Supply valve: An N.O. specification has been added.
    　Can hold vacuum? even when the power goes out or is turned off
    　Prevents the sudden dropping of workpieces?
    　? Supposing the supply pressure is being maintained
    ?An IO-Link compatible pressure switch has been added.
    　Allows for ejector control with a single communication line
    　Reading of the device information and parameter batch settings are
    　possible.
    ?Compatible with ejector systems and vacuum pump systems

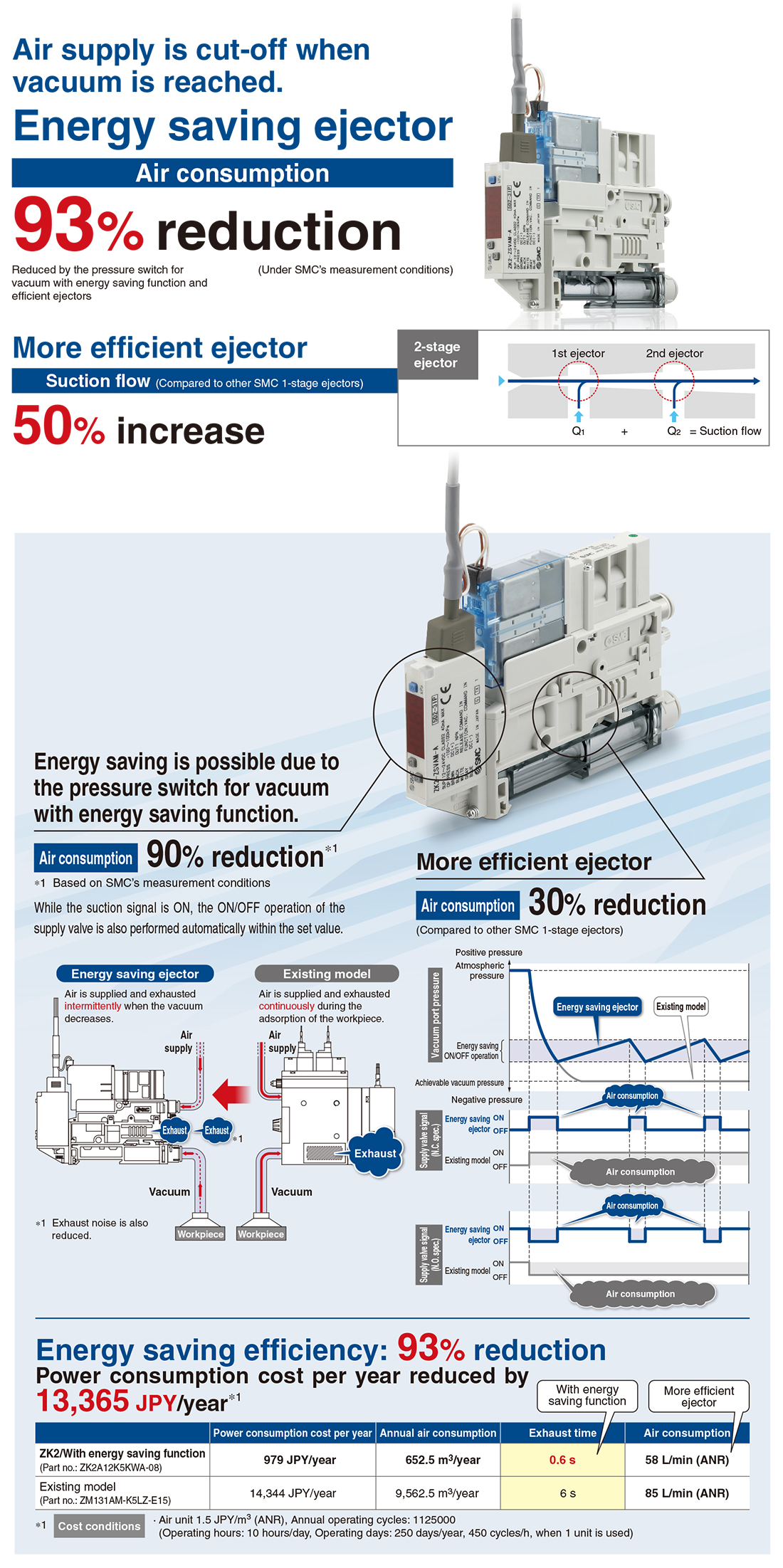

    ?Energy saving ejector
    　Air supply is cut-off when vacuum is reached.
    　Air consumption: 93% reduction (Under SMC’s measurement conditions)
    ?More efficient ejector: Suction flow increased by 50% (Compared to other
    　SMC 1-stage ejectors)
    ?Energy saving efficiency: 93% reduction
    ?Improved low noise and suction flow by adoption of a high-noise
    　reduction silencer
Ejector seriesNozzle diameter
(mm)		Max. suction flow
[L/min(ANR)]		Air consumption
[L/min(ANR)]		Guidelines for applicable pad
(mm)		Vacuum pump system series
ZK2□070.729242 to 40ZK2□00
ZK2□101.044402 to 50ZK2□00
ZK2□121.261582 to 125ZK2□00
ZK2□151.567902 to 150ZK2□00

Features

Energy saving ejector

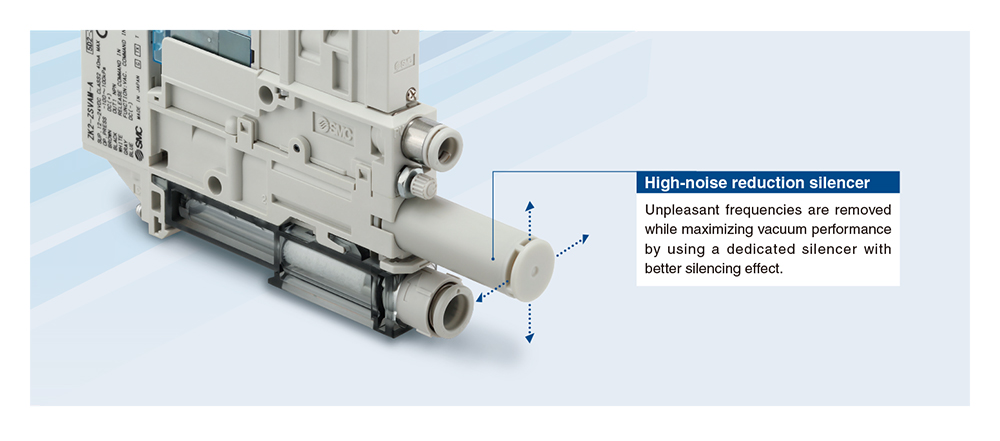

High-noise Reduction Silencer

Improved low noise and suction flow by adoption of a high-noise reduction silencer

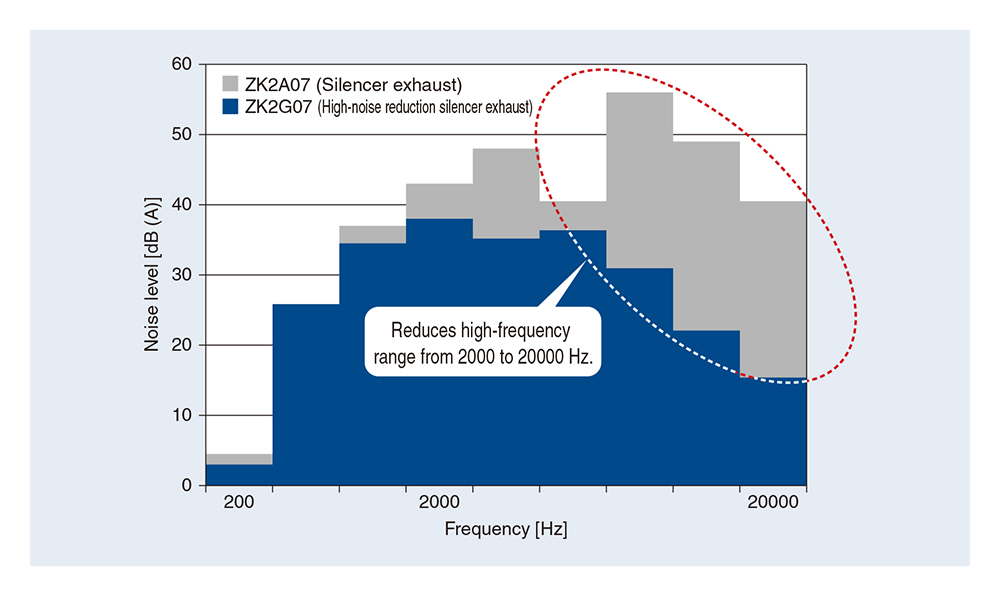

Low noise: 46 dB (A)*


? Nozzle size: ?0.7 (Under SMC’s measurement conditions)

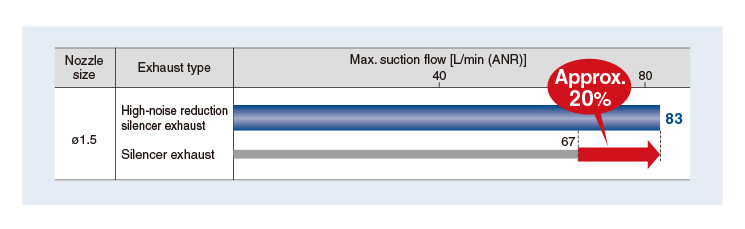

Suction flow: Improved by up to approx. 20%

All in One: Piping, wiring, and installation time reduced!!

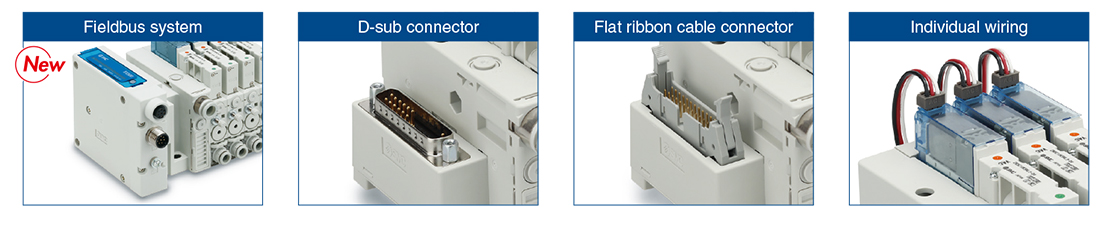

Wiring variations

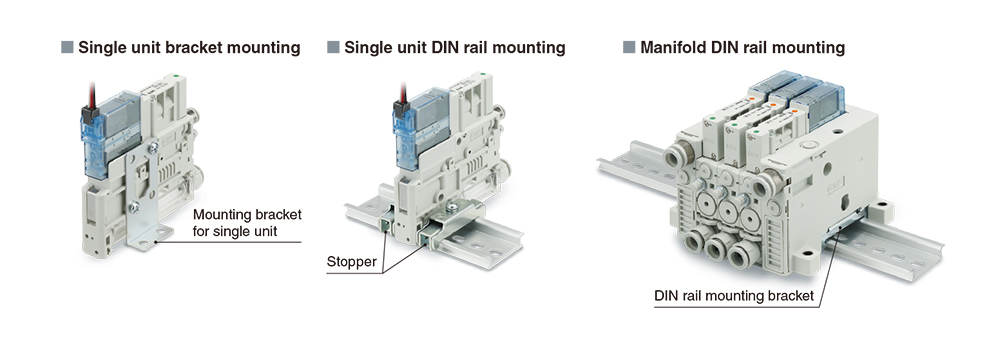

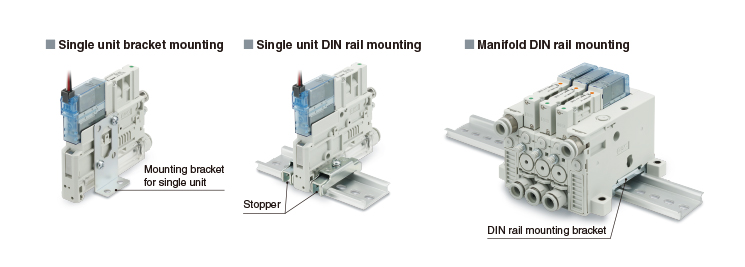

Mounting (Options)

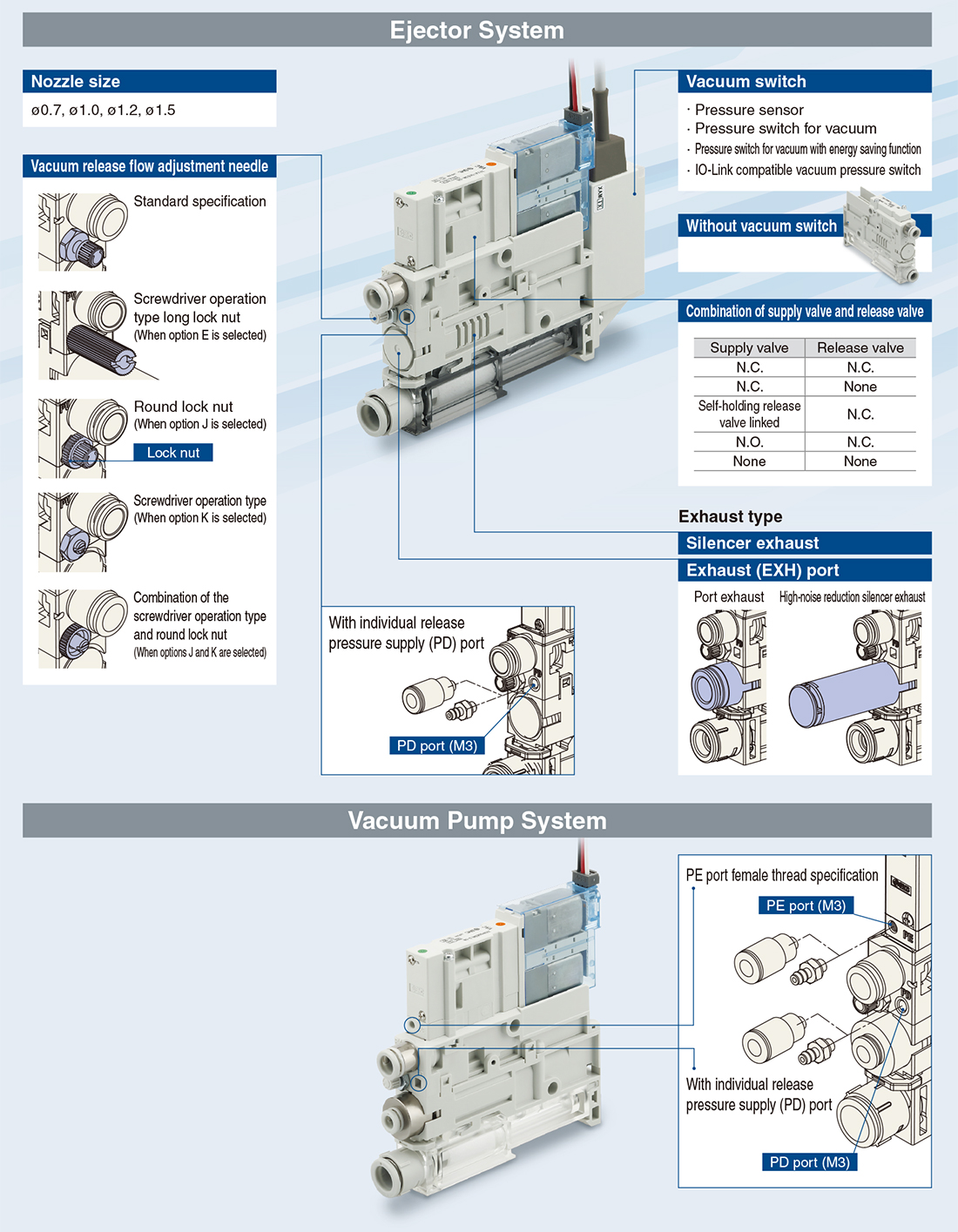

Vacuum Unit Variations Single Unit

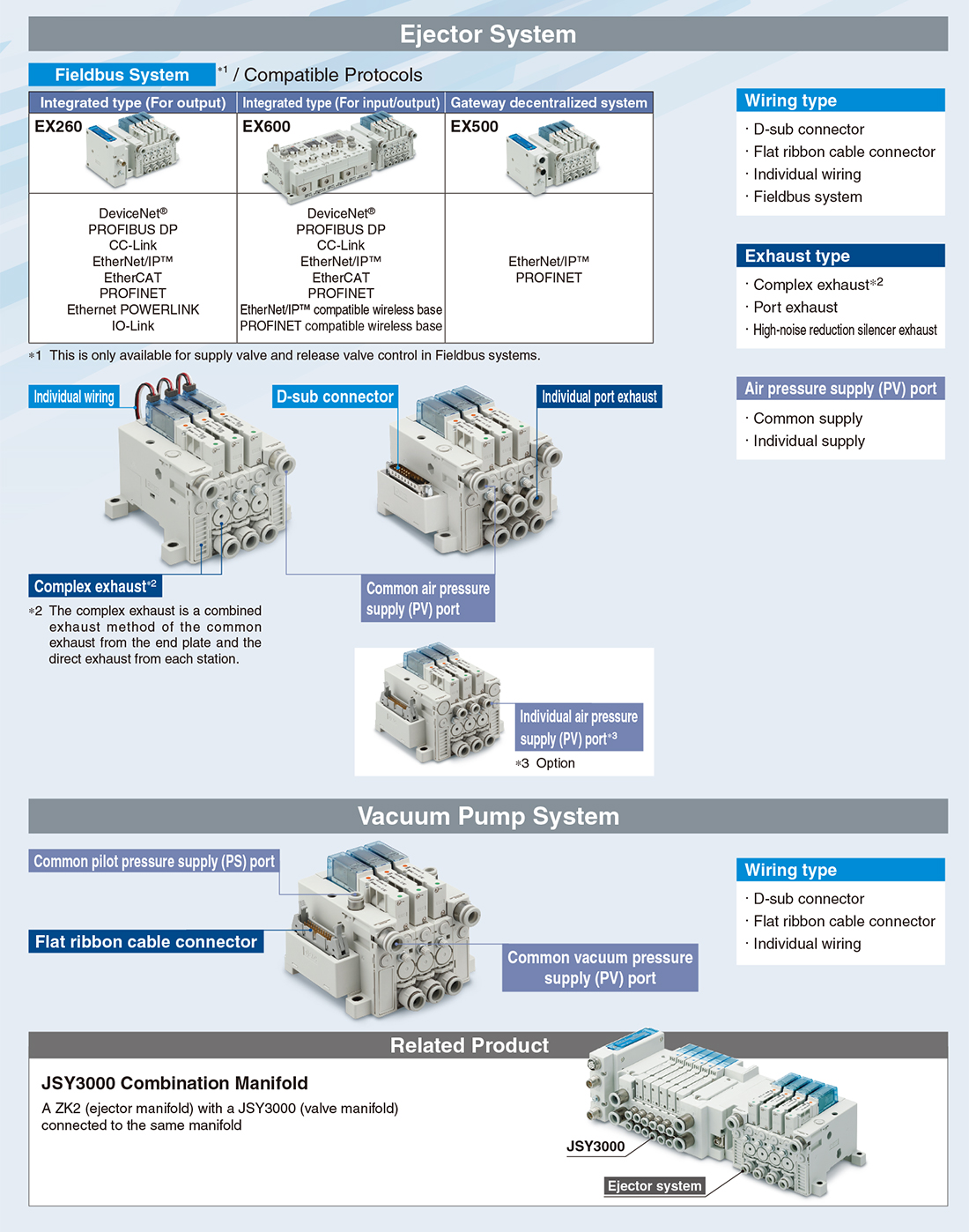

Vacuum Unit Variations Manifold

IO-Link Compatible

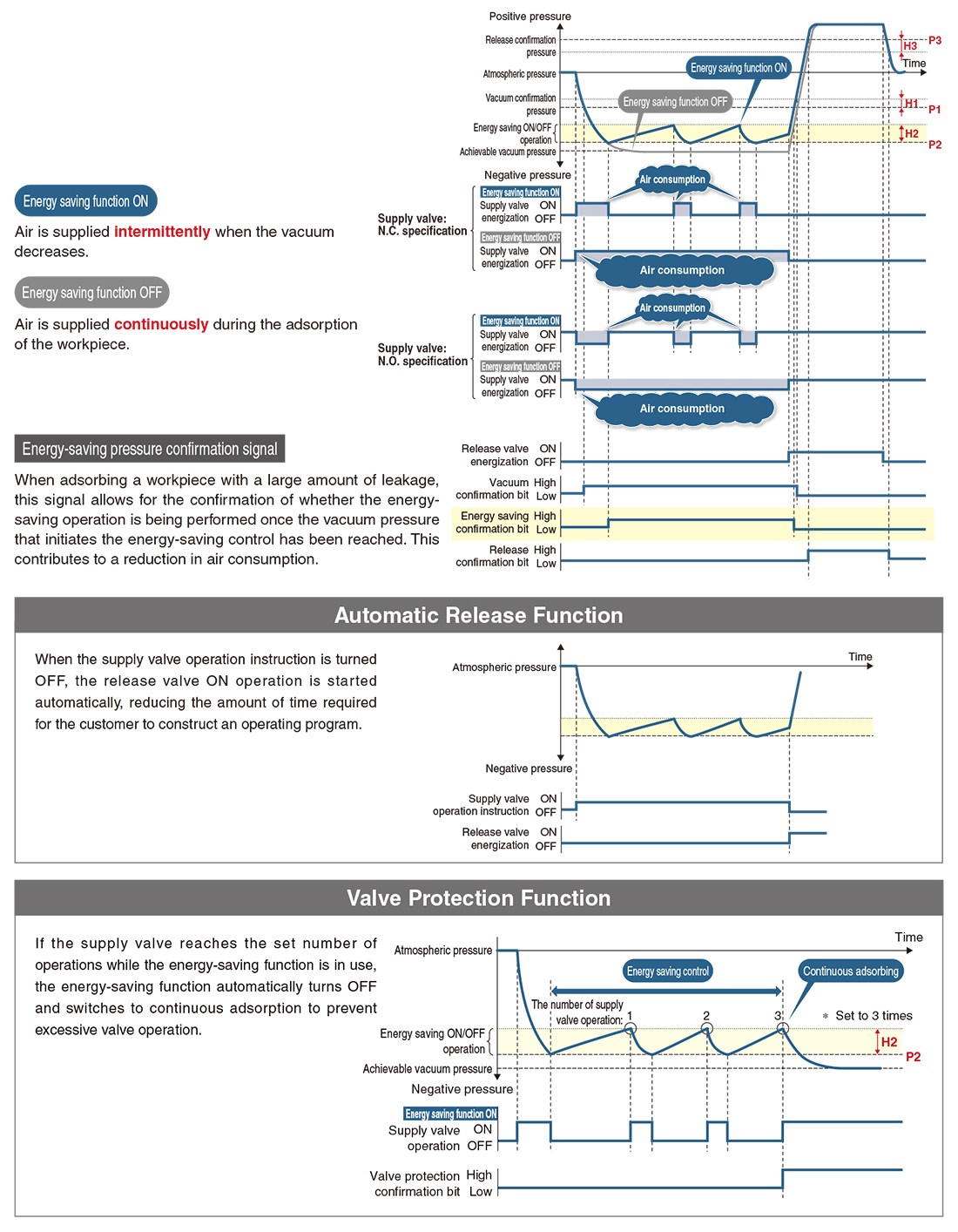

Energy saving is possible due to the vacuum pressure switch with energy saving function and efficient ejectors.
Air consumption: 93% reduction

(Based on SMC’s measurement conditions)

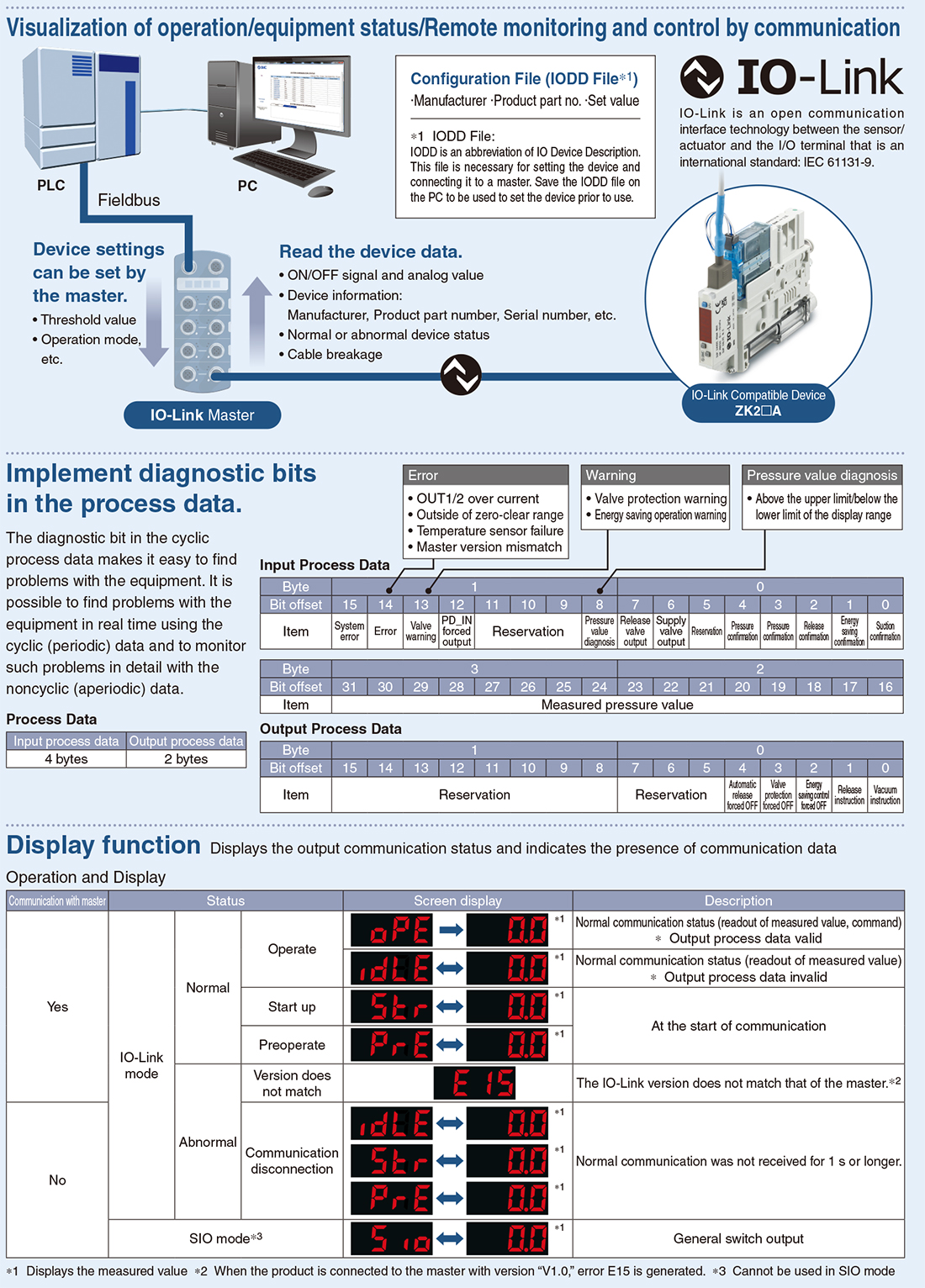

IO-Link Compatible ZK2□A

Visualization of operation/equipment status/Remote monitoring and control by communication
