WEB Catalog

Product Information ?  WEB Catalog  ? Industrial Device Communication Equipment/Wireless System  ? Industrial Device Communication Equipment: IO-Link Compatible Products

Industrial Device Communication Equipment: IO-Link Compatible Products

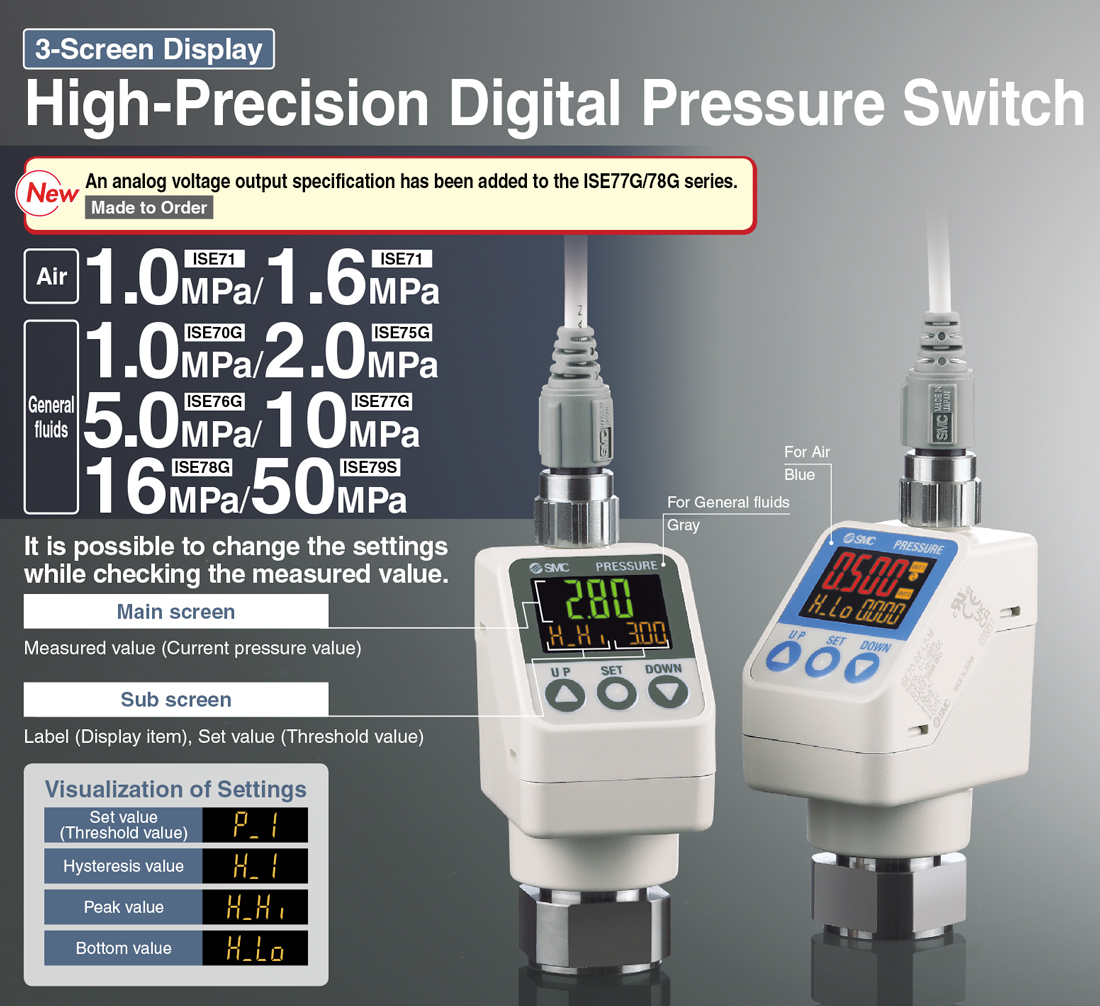

3-Screen Display High-Precision Digital Pressure Switch
ISE7□/7□G/79S

    ?It is possible to change the settings while checking the measured value.
    ?IO-Link
    ?Angled display
    　Good visibility from various mounting positions
    ?Rotating display
    　Display can rotate 336 degrees after installation
    ?Applicable fluid：Air, Non-corrosive gas, Non-flammable gas (ISE70/71)
    　　　　　　　　 ：Liquid or gas that will not corrode materials of parts
    　　　　　　　　　 in contact with fluid (ISE7□G/79S)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 3-Screen Display High-Precision Digital Pressure Switch
    ISE7□/7□G/79S
    Manual
    Series Type View search result
    ISE70Positive pressure (For air)View search result
    ISE71Positive pressure (For air)View search result
    ISE70GPositive pressure (For general fluids)View search result
    ISE75GPositive pressure (For general fluids)View search result
    ISE76GPositive pressure (For general fluids)View search result
    ISE77GPositive pressure (For general fluids)View search result
    ISE78GPositive pressure (For general fluids)View search result
    ISE79SPositive pressure (For general fluids)View search result
  • 3-Screen Display High-Precision Digital Pressure Switch
    ISE7□/7□G/79S
    DoC
    Series Type View search result
    ISE70Positive pressure (For air)View search result
    ISE71Positive pressure (For air)View search result
    ISE70GPositive pressure (For general fluids)
    ISE75GPositive pressure (For general fluids)
    ISE76GPositive pressure (For general fluids)
    ISE77GPositive pressure (For general fluids)
    ISE78GPositive pressure (For general fluids)
    ISE79SPositive pressure (For general fluids)
SeriesTypeRated pressure range
ISE70Positive pressure (For air)0 to 1MPa
ISE71Positive pressure (For air)0 to 1.6MPa
ISE70GPositive pressure (For general fluids)0 to 1MPa
ISE75GPositive pressure (For general fluids)0 to 2MPa
ISE76GPositive pressure (For general fluids)0 to 5MPa
ISE77GPositive pressure (For general fluids)0 to 10MPa
ISE78GPositive pressure (For general fluids)0 to 16MPa
ISE79SPositive pressure (For general fluids)0 to 50MPa

Features

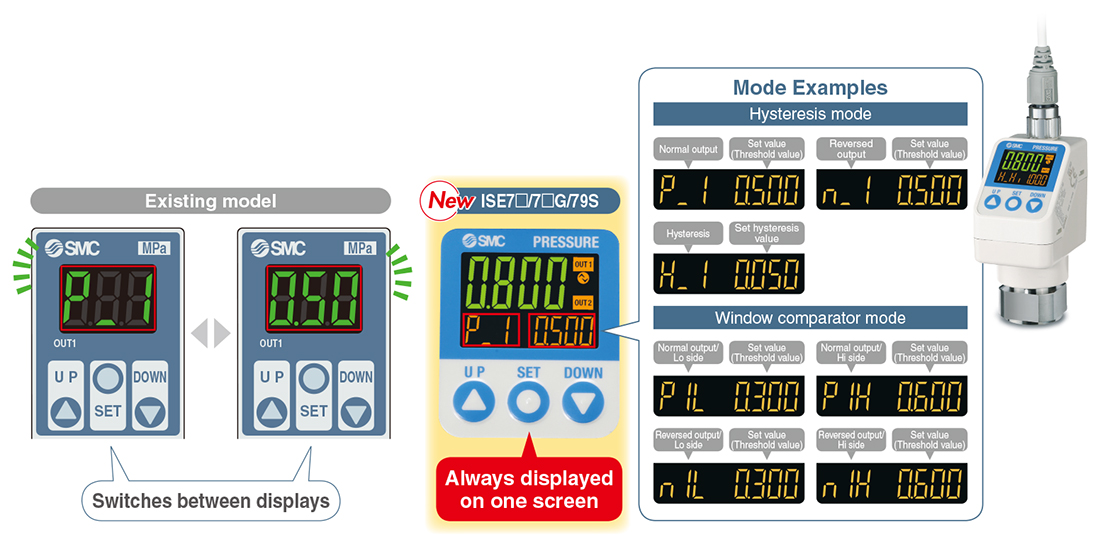

■It is possible to change the settings while checking the measured value.
■Visualization of Settings

The sub screen (label) shows the item to be set.

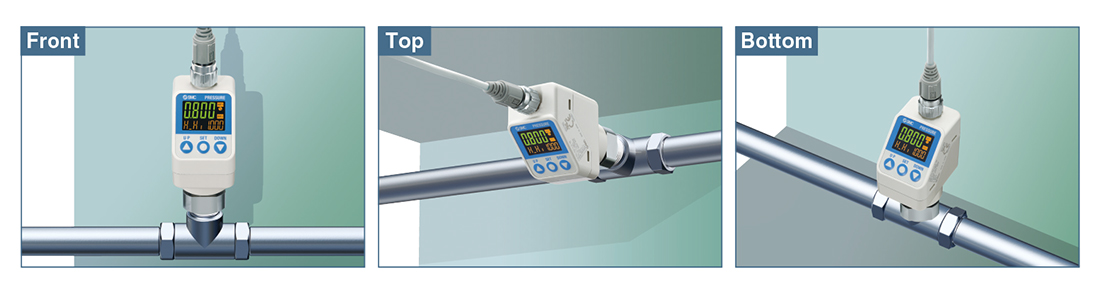

■Angled display

Good visibility from various mounting positions

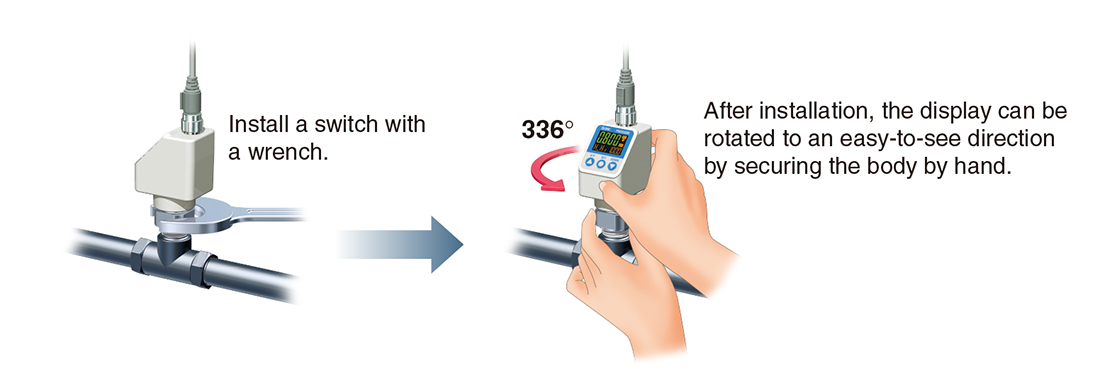

■Rotating display

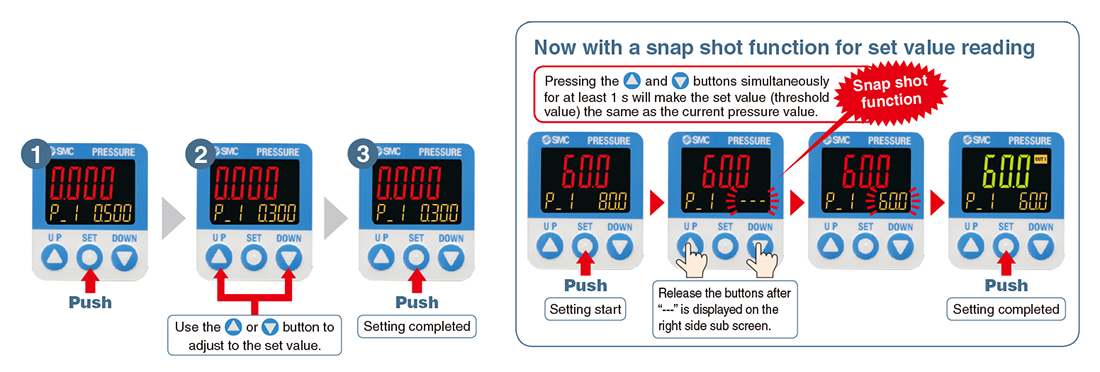

■Simple 3-Step Setting

When the SET button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set. When the SET button is pressed and the hysteresis value (H_1) is being displayed, the hysteresis value can be set.

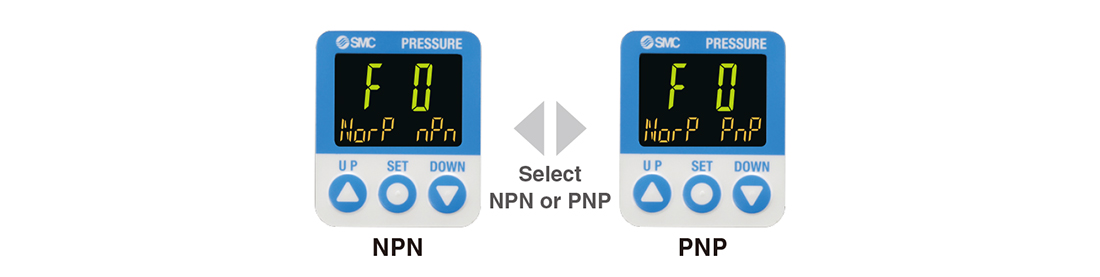

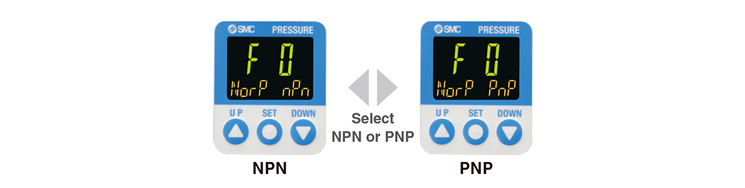

■NPN/PNP Switch Function

Both NPN and PNP are available. The number of stock items can be reduced.

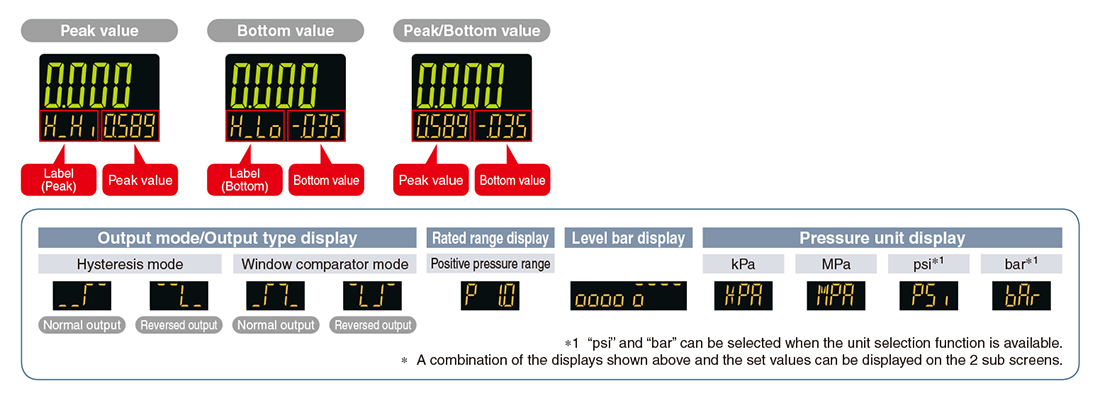

■Other Sub Screen Display

The peak value, bottom value, or both values can be displayed on one screen!

* Peak and bottom values are maintained even if the power supply is cut.

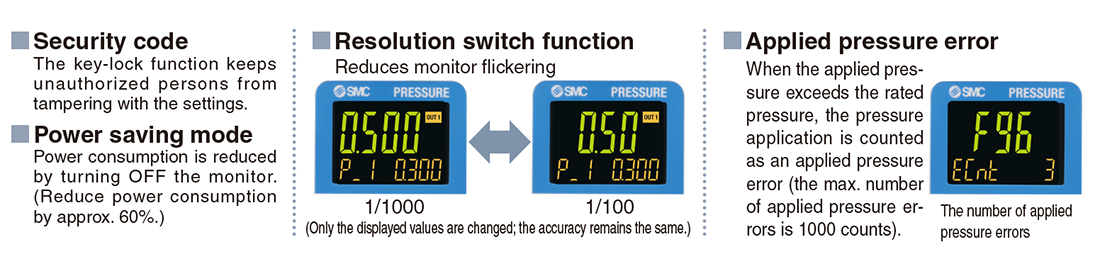

■Convenient Functions

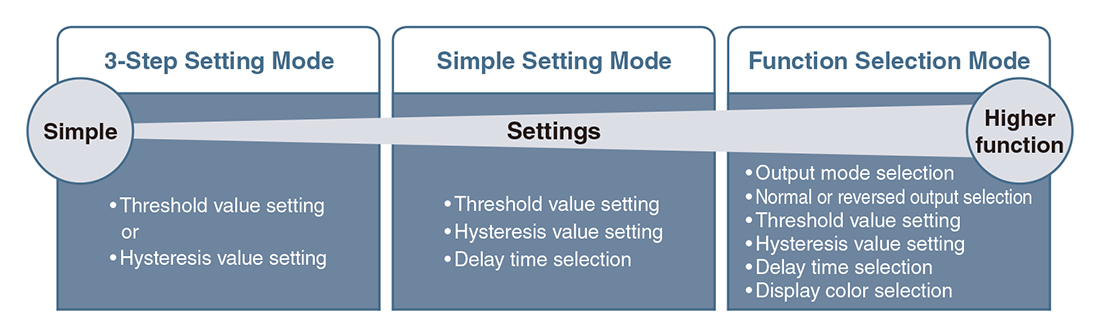

■3 Setting Modes

Select the setting mode that best meets your needs.

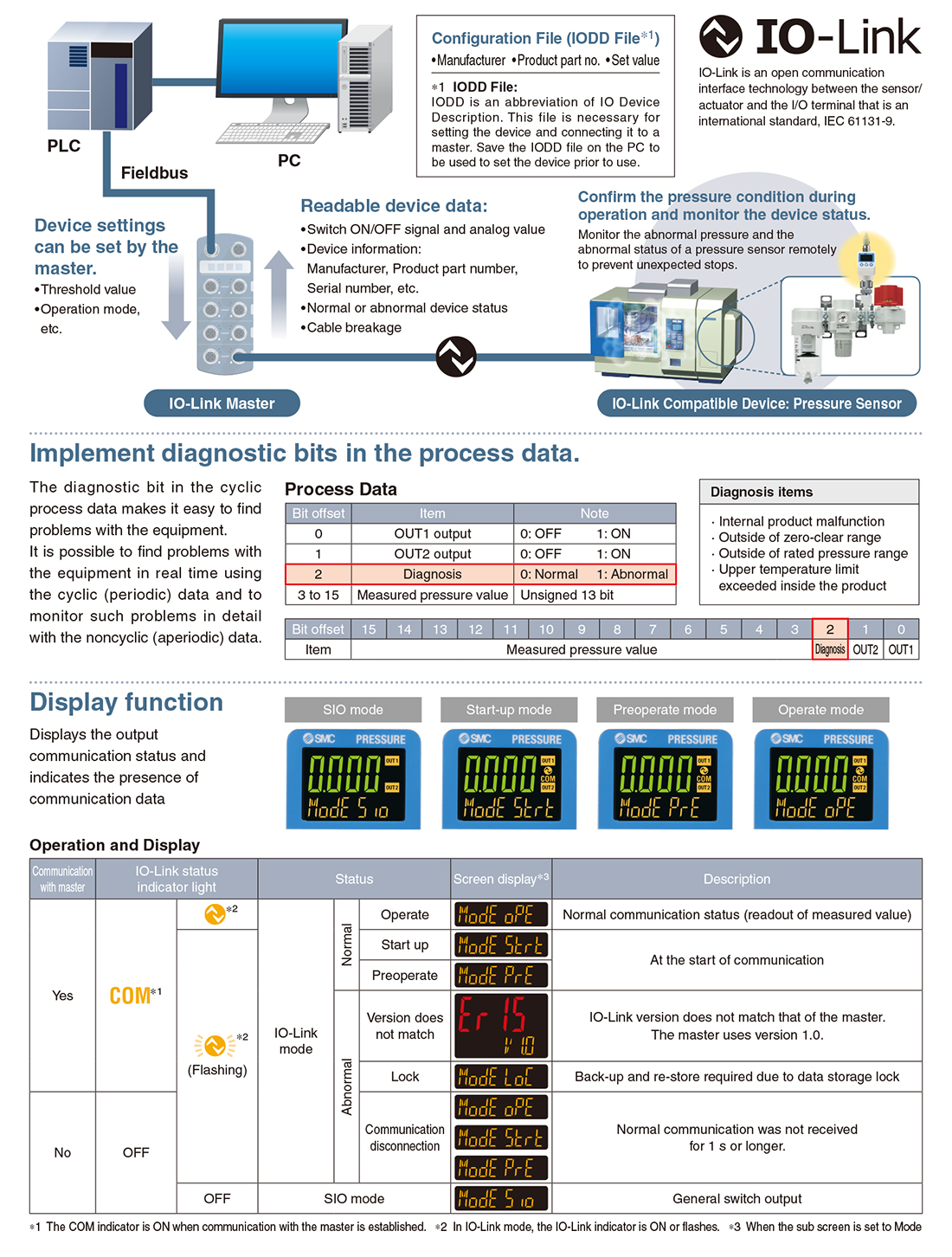

■IO-Link Compatible

Visualization of operation and equipment status/Remote monitoring and control by communication

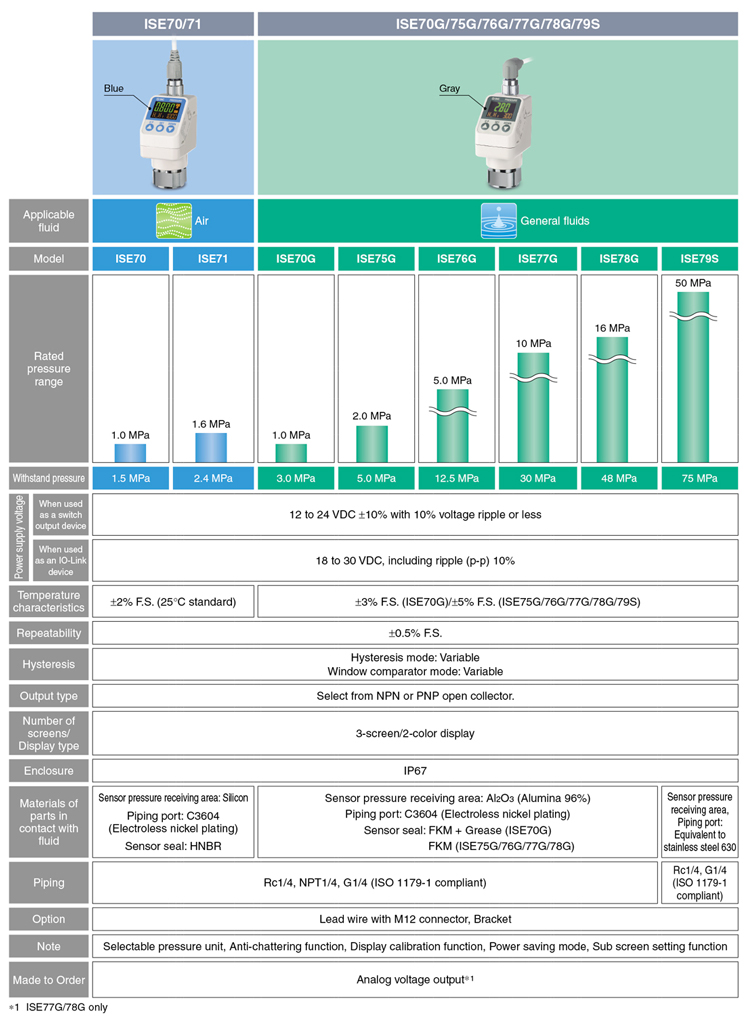

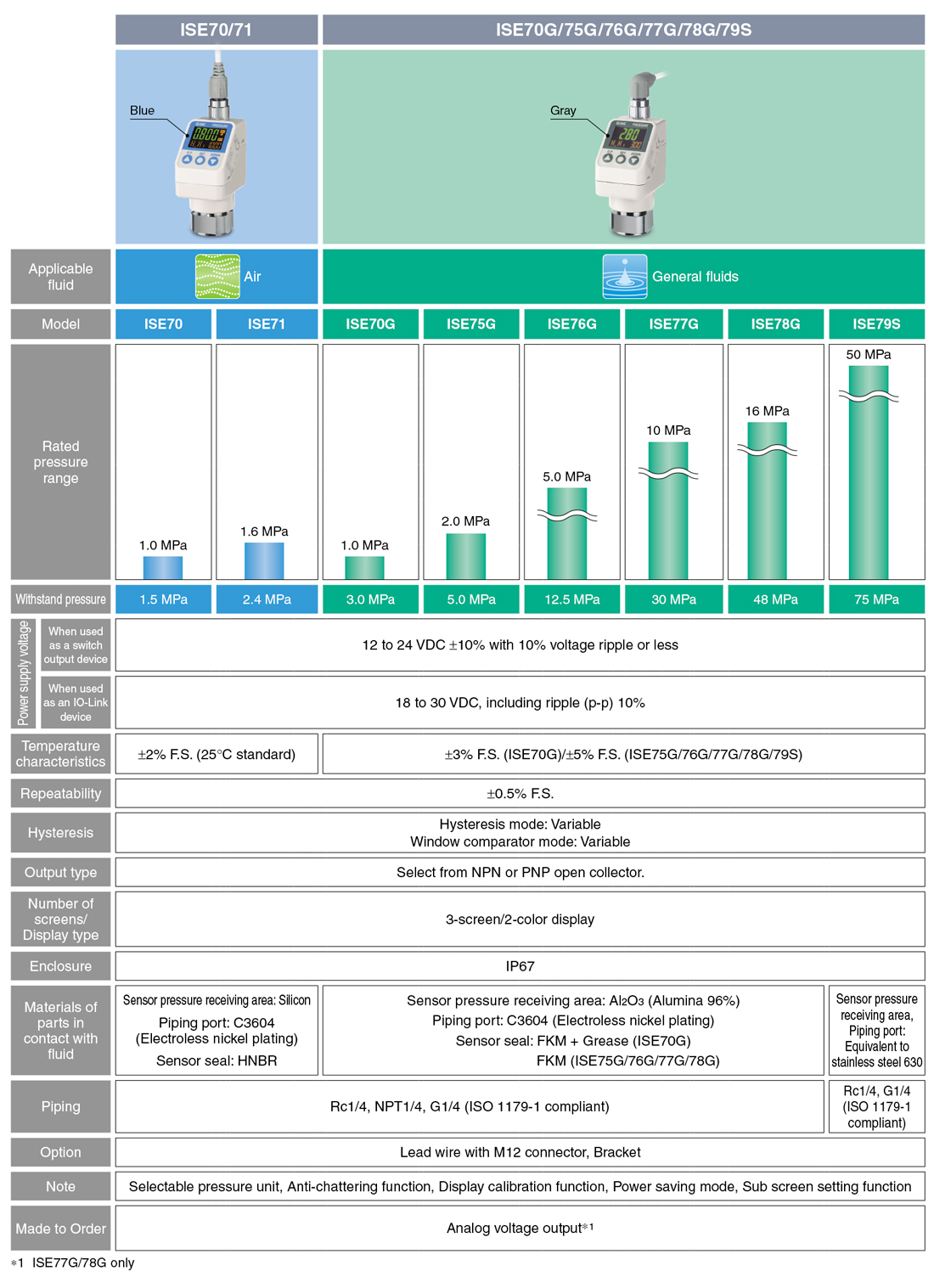

■Introduction of Series

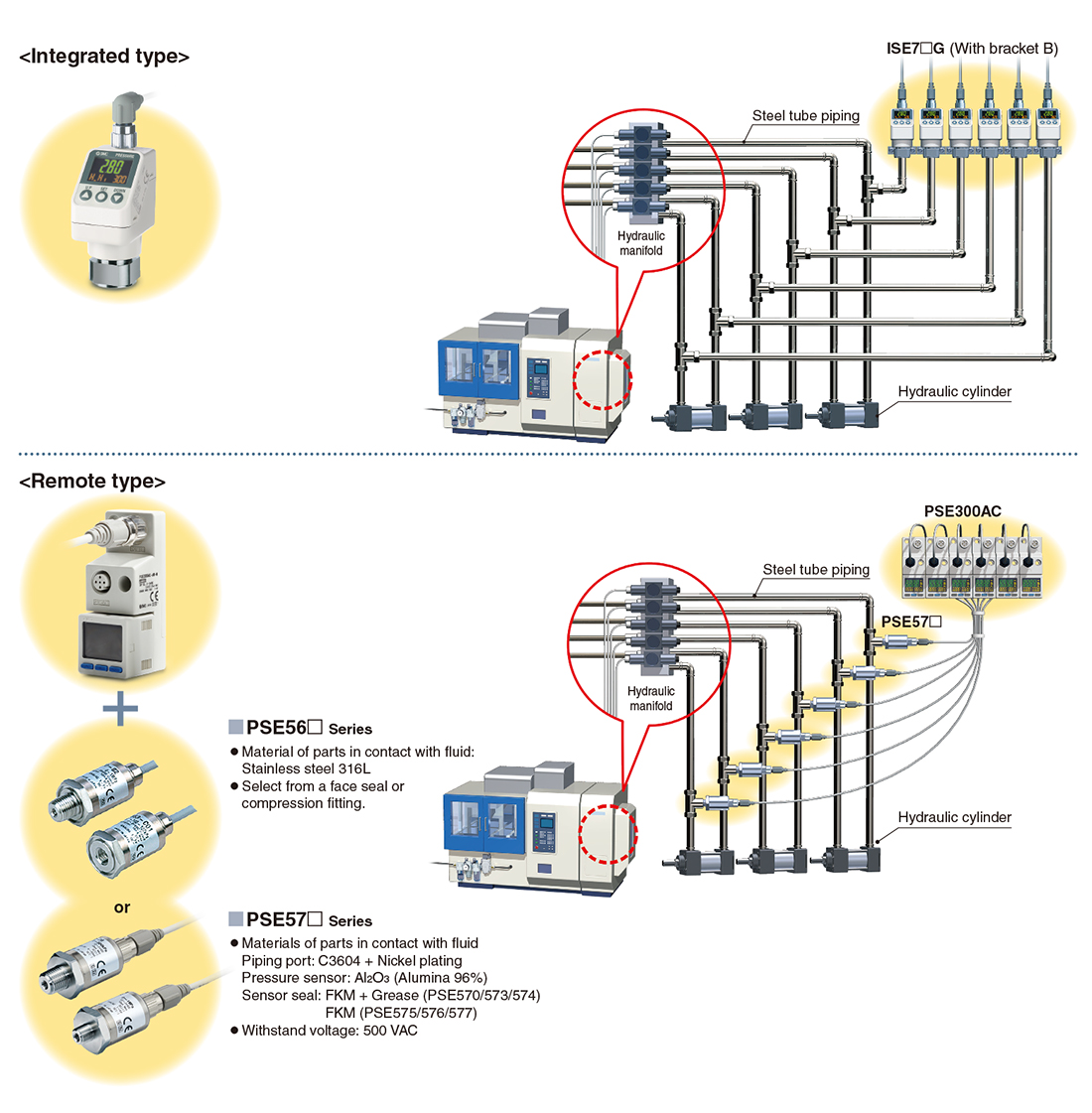

■Select either the integrated type or the remote type according to the application.

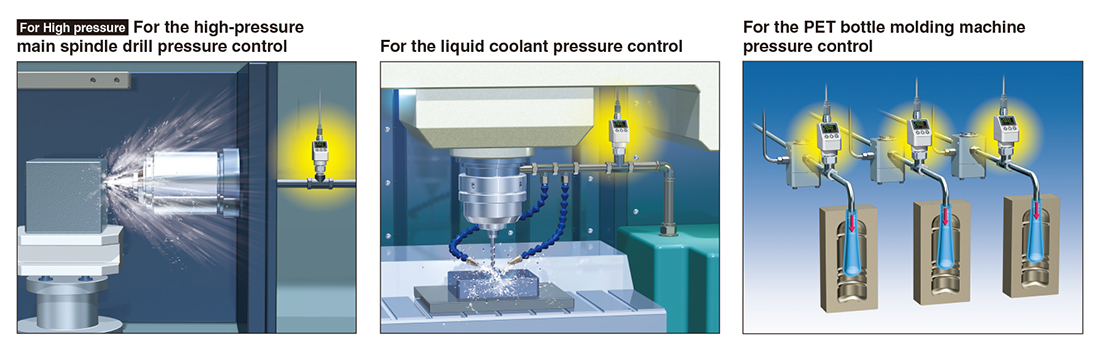

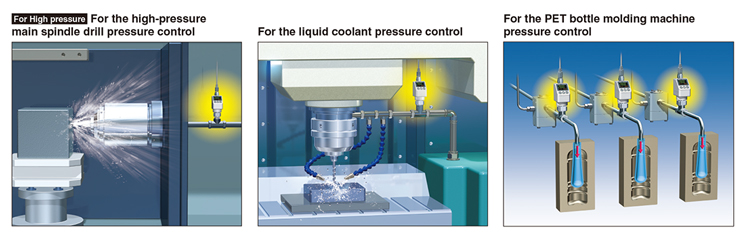

■Application Examples
