Gripper for Collaborative Robots

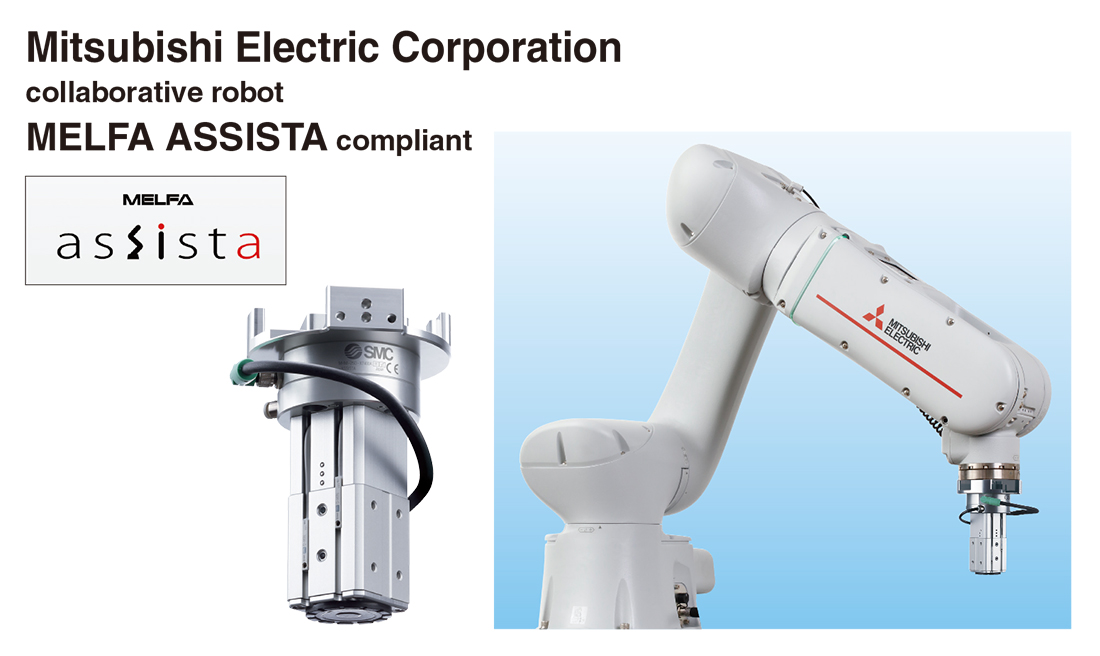

Magnet Gripper for Collaborative Robots MHM-X7400A-ASSISTA
for the Mitsubishi Electric Corporation MELFA ASSISTA Series
-
?Attracts and holds heavy objects with a magnet
?Supports workpieces with holes and uneven surfaces
?Compact with high holding force
Holding force: Max. 200 N (?25, Workpiece thickness 6 mm)
?Continues to hold workpieces even when the air is shut off
?Operate by simply connecting 1 air supply tube and an electrical wiring M12 connector.
?Integrated solenoid valve, auto switch, and piston speed adjustment mechanism
Magnet Gripper for Collaborative Robots MHM-X7400A-ASSISTA
for the Mitsubishi Electric Corporation MELFA ASSISTA SeriesManual
Series View search result MHM-X7400A-ASSISTA View search result
| Series | Max. holding force N (Workpiece thickness mm) |
|---|---|
| MHM-X7400A-ASSISTA | 160（2） 200（6） |
Features
Magnet Gripper for Collaborative Robots
Attracts and holds heavy objects with a magnet
Supports workpieces with holes and uneven surfaces
Compact with high holding force: Max. 200 N (?25, Workpiece thickness 6 mm)
Continues to hold workpieces even when the air is shut off
Operate by simply connecting 1 air supply tube and an electrical wiring M12 connector.
Integrated solenoid valve, auto switch, and piston speed adjustment mechanism

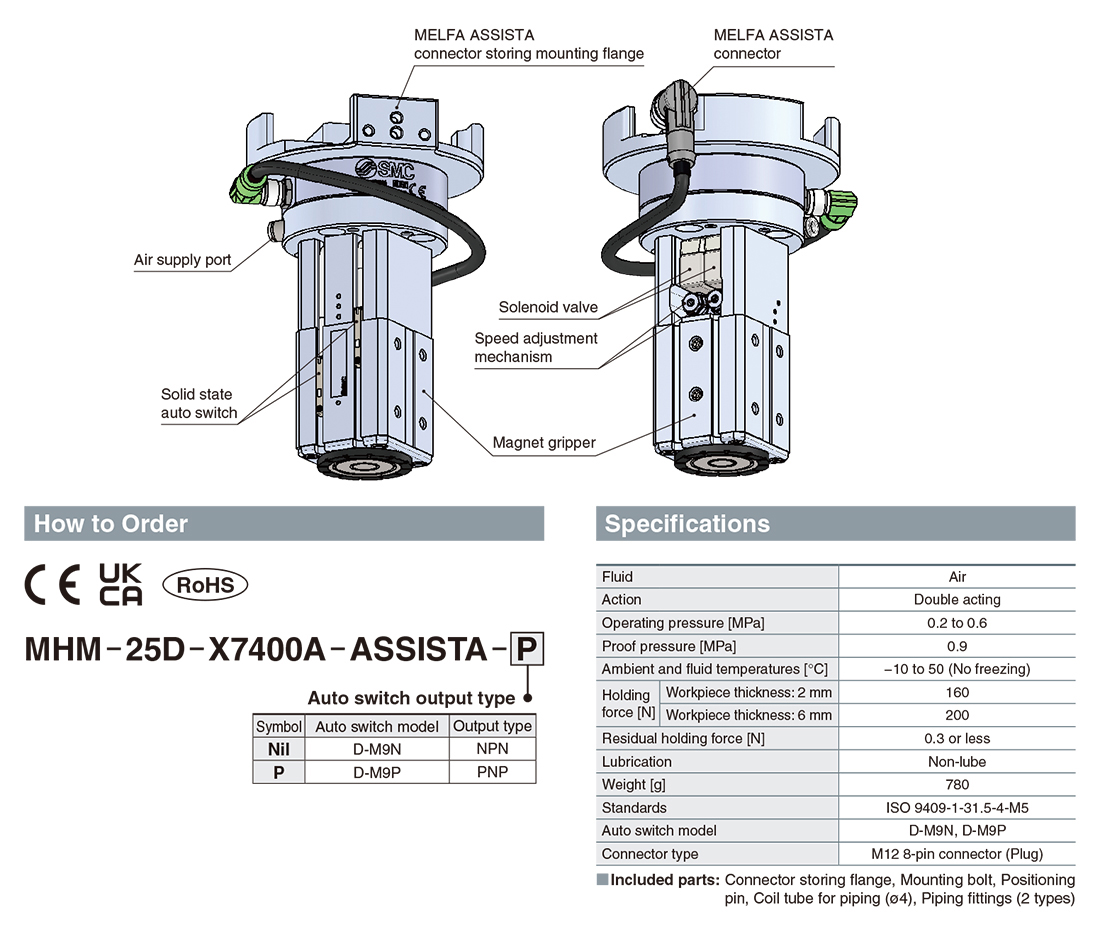

Component Parts
Characteristics

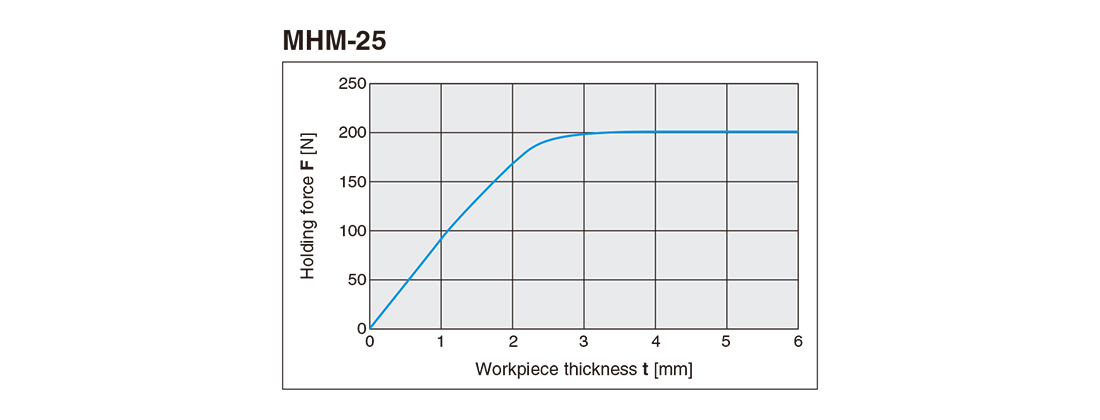

Holding force
The holding force graph shows the theoretical value for low-carbon steel plates.
Holding forces vary depending on the material and shape of the workpiece. Please perform a holding test while referring to the value selected based on the graph.

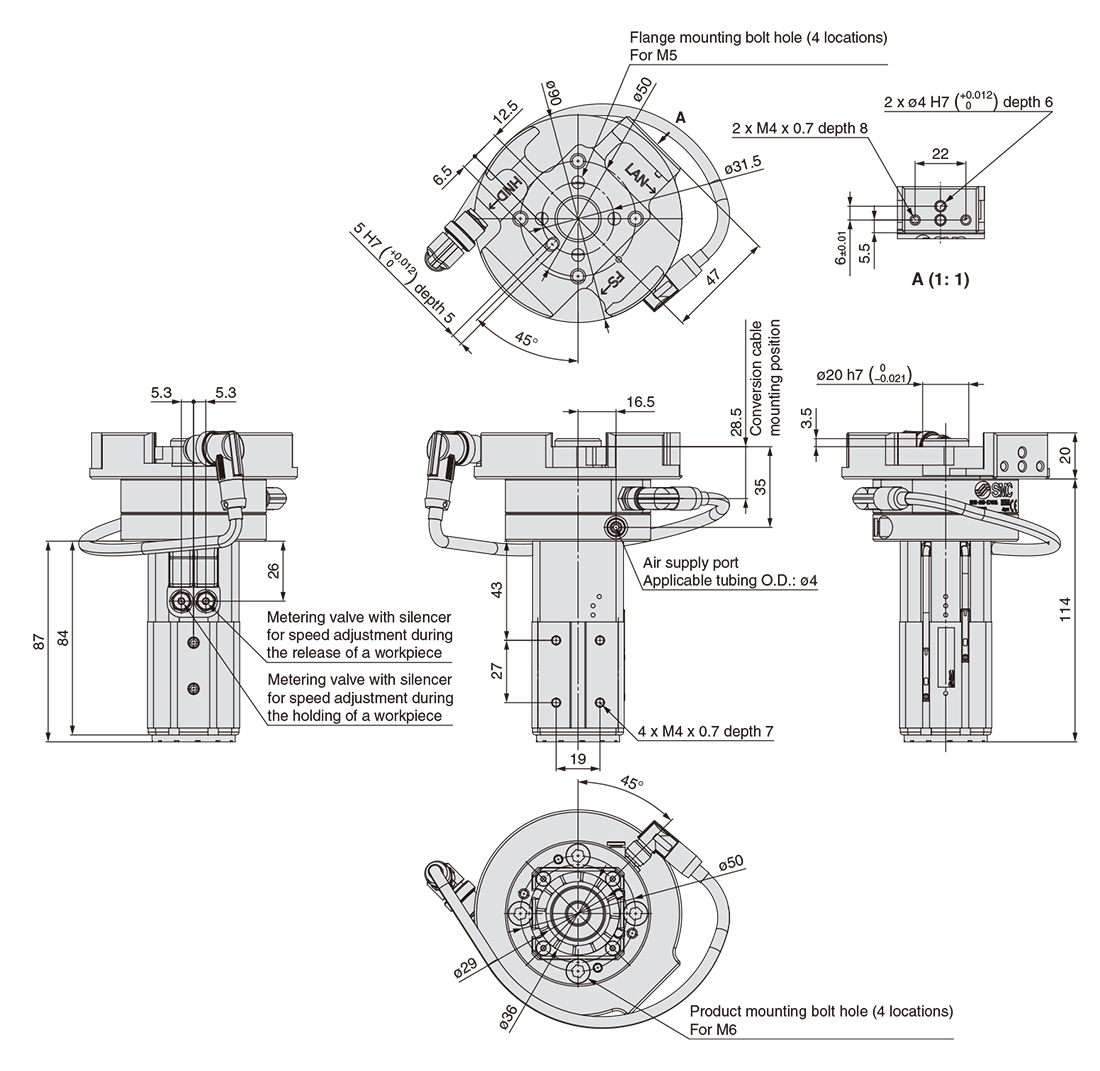

Dimensions
