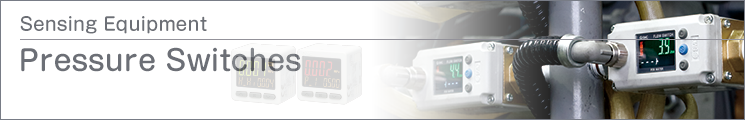

Pressure Switches
- Energy Saving
- By Industry ⁄ Process
- Applications
Installation Example
Application Example
Liquid coolant pressure control
3-Screen Display High-Precision Digital Pressure Switch
ZSE20□(F)/ISE20□
Switches/Sensors/Controller ? Electronic Pressure Switches/Sensors (Self-contained Type)IO-Link Devices ? Pressure Switches
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: IO-Link Compatible Products
-
?A low differential pressure range type has been added to the 20A
series. [New]
?Integrated R1/8 fitting with bottom wiring entry
?An M12 connector type has been added.
?A low pressure range type has been added.
?Visualization of settings
?Simple 3-step setting
?Easy screen switching
It is possible to change the settings while checking the measured value.
?Delay time:1.5 ms or less
?Current consumption: 25 mA or less
?IO-Link compatible
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Output type | Type | Rated pressure range | Enclosure | Applicable fluid |
|---|---|---|---|---|---|
| ZSE20 (F) ISE20 | 1 output | Compound pressure, Vacuum pressure, Positive pressure | ?100.0 to 100.0 kPa, 0.0 to ?101.0 kPa, ?0.100 to 1.000 MPa | IP40 | Air |
| ZSE20A (F) ISE20A | 2 outputs, Analog output (Voltage/Current) | Compound pressure, Vacuum pressure, Positive pressure | ?100.0 to 100.0 kPa, 0.0 to ?101.0 kPa, ?0.100 to 1.000 MPa | IP40 | Air |
| ZSE20AF-X576 to 580 (Made to Order) | 2 outputs, Analog output (Voltage/Current) | Compound pressure | ?50.0 to 50.0Pa, ?100.0 to 100.0Pa, ?200 to 200.0Pa | IP40 | Air |
| ZSE20AF-X576 to 580 (Made to Order) | 2 outputs, Analog output (Voltage/Current) | Compound pressure | ?500 to 500Pa, ?1.000 to 1.000kPa, ?2.00 to 2.00kPa, ?5.00 to 5.00kPa, ?10.00 to 10.00kPa | IP40 | Air |
| ZSE20B (F)-(L) ISE20B-(L) | 2 outputs, Analog output (Voltage/Current), IO-Link/Switch: 1 output | Compound pressure, Vacuum pressure, Positive pressure | ?100.0 to 100.0 kPa, 0.0 to ?101.0 kPa, ?0.100 to 1.000 MPa | IP65 | Air |
| ZSE20C (F)-(L) ISE20C (H)-(L) | 2 outputs, Analog output (Voltage/Current), IO-Link/Switch: 1 output | Compound pressure, Vacuum pressure, Positive pressure | ?100.0 to 100.0 kPa, 0.0 to ?101.0 kPa, ?0.100 to 1.000 MPa, ?0.100 to 2.000 MPa | IP65 | General fluids |
3-Screen Display High-Precision Digital Pressure Switch
ISE7□/7□G/79S
Switches/Sensors/Controller ? Electronic Pressure Switches/Sensors (Self-contained Type)IO-Link Devices ? Pressure Switches
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: IO-Link Compatible Products
-
?It is possible to change the settings while checking the measured value.
?IO-Link
?Angled display
Good visibility from various mounting positions
?Rotating display
Display can rotate 336 degrees after installation
?Applicable fluid：Air, Non-corrosive gas, Non-flammable gas (ISE70/71)
：Liquid or gas that will not corrode materials of parts
in contact with fluid (ISE7□G/79S)
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range |
|---|---|---|
| ISE70 | Positive pressure (For air) | 0 to 1MPa |
| ISE71 | Positive pressure (For air) | 0 to 1.6MPa |
| ISE70G | Positive pressure (For general fluids) | 0 to 1MPa |
| ISE75G | Positive pressure (For general fluids) | 0 to 2MPa |
| ISE76G | Positive pressure (For general fluids) | 0 to 5MPa |
| ISE77G | Positive pressure (For general fluids) | 0 to 10MPa |
| ISE78G | Positive pressure (For general fluids) | 0 to 16MPa |
| ISE79S | Positive pressure (For general fluids) | 0 to 50MPa |
2-Color Display Digital Pressure Switch ISE70/75（H）
Switches/Sensors/Controller ? Electronic Pressure Switches/Sensors (Self-contained Type)
-
?Metal body type (Aluminum die-casted)
?IP67
?With M12 connector
∗ The ISE70 series was discontinued in April 2018.
Please select the ISE70-□-L2 series.
∗ The ISE75 series was discontinued in July 2018.
Please select the ISE77G series.
∗ The ISE75H series was discontinued in December 2022.
Please select the ISE78G series.
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range |
|---|---|---|
| ISE70 | Positive pressure (For air) | 0 to 1MPa |
| ISE75 | Positive pressure (For general purpose fluids) | 0 to 10MPa |
| ISE75H | Positive pressure (For general purpose fluids) | 0 to 15MPa |
3-Color Display Digital Gap Checker ISA3
Switches/Sensors/Controller ? Electronic Pressure Switches/Sensors (Self-contained Type)
-
?Made-to-order options have been added. [New]
?A type compatible with control units
without a 2-port solenoid valve
?A cable in-line entry type
?Check at a glance to see if a workpiece is placed or not.
?The clearance distance between the detection surface and the workpiece can be found intuitively.
?Simple setting: Change the settings while checking the displayed value.
?Energy saving: Air consumption reduced by 60%
?Improved drainage resistance: 10 times or more
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Rated distance range | Piping specifications: Supply side | Piping specifications: Detection side |
|---|---|---|---|
| ISA3-F | 0.01 to 0.03 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
| ISA3-G | 0.02 to 0.15 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
| ISA3-H | 0.05 to 0.30 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
Compact Pneumatic Pressure Sensor/Switch PSE54□
Switches/Sensors/Controller ? Electronic Pressure Switches/Sensors (Remote Type)
-
?PSE Sensor Set Up Tool PSE-ST has been added. [New]
?Switch output specification
?IO-Link compatible
?Analog output (Voltage)
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range |
|---|---|---|
| PSE541 | Vacuum pressure | 0 to －101 kPa |
| PSE543 | Compound pressure | －100 to 100 kPa |
| PSE540 | Positive pressure | 0 to 1 MPa |
Low Differential Pressure Sensor PSE550
Switches/Sensors/Controller ? Electronic Pressure Switches/Sensors (Remote Type)
-
?Suitable for applications such as air current volume maintenance, filter blockage, and liquid surface detection
?Analog output (Voltage/Current)
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated differential pressure range |
|---|---|---|
| PSE550 | Vacuum pressure | 0 to 2 kPa |
Pressure Sensor/Switch for General Fluids PSE57□
Switches/Sensors/Controller ? Electronic Pressure Switches/Sensors (Remote Type)
-
?PSE Sensor Set Up Tool PSE-ST has been added. [New]
?Switch output specification
?IO-Link compatible
?Withstand voltage: 500 VAC
?Enclosure: IP65
?Materials of parts in contact with fluid
Piping port: C3604 + Nickel plating
Pressure sensor: Al2O3 (Alumina 96%)
O-ring: FKM + Grease (PSE570/573/574)
Square ring: FKM (PSE575/576/577)
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range | Proof pressure |
|---|---|---|---|
| PSE570 | Positive pressure | 0 to 1 MPa | 3.0 MPa |
| PSE573 | Compound pressure | －100 to 100 kPa | 600 kPa |
| PSE574 | Positive pressure | 0 to 500 kPa | 1.5 MPa |
| PSE575 | Positive pressure | 0 to 2 MPa | 5.0 MPa |
| PSE576 | Positive pressure | 0 to 5 MPa | 12.5 MPa |
| PSE577 | Positive pressure | 0 to 10 MPa | 30 MPa |
2-Color Display Digital Pressure Sensor Controller PSE300
Switches/Sensors/Controller ? Electronic Pressure Switches/Sensors (Remote Type)
-
?Applicable sensors: PSE53m, 54m, 550, 56m, 570, 573, 574
?Compatible with voltage input and current input
?Response time: 1 ms
?Space saving, Capable of vertical and horizontal contact mounting
?Panel mounting, Bracket mounting, DIN rail mounting
? The PSE300 series is to be discontinued as to September 2025.
Please select the PSE300A series instead. ?Click here for details.
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Set pressure range |
|---|---|
| PSE300 | －101 to 101 kPa 10 to －101 kPa －10 to 100 kPa －0.1 to 1 MPa －50 to 500 kPa －0.2 to 2 kPa |
Pressure Switch/Micro Switch Type IS3000
Switches/Sensors/Controller ? Mechanical Pressure Switches
-
?Can be used for micro load, around 10 mA e.g.
?With neon light.
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Set pressure range |
|---|---|---|
| IS3000 | Positive pressure | 0.1 to 0.7 MPa |
General Purpose Pressure Switch/Snap Switch Type ISG
Switches/Sensors/Controller ? Mechanical Pressure Switches
-
?For general fluids
?Equivalent to IP44
?With neon light
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Set pressure range |
|---|---|---|
| ISG11□, 21□ | Positive pressure | 0.02 to 0.3 MPa |
| ISG12□, 22□ | Positive pressure | 0.05 to 0.7 MPa |
| ISG13□, 23□ | Positive pressure | 0.1 to 1.0 MPa |
| IS2761 | Positive pressure | 0.1 to 1.0 MPa |
| ISG19□, 29□ | Vacuum pressure | －10 to －100 kPa |
