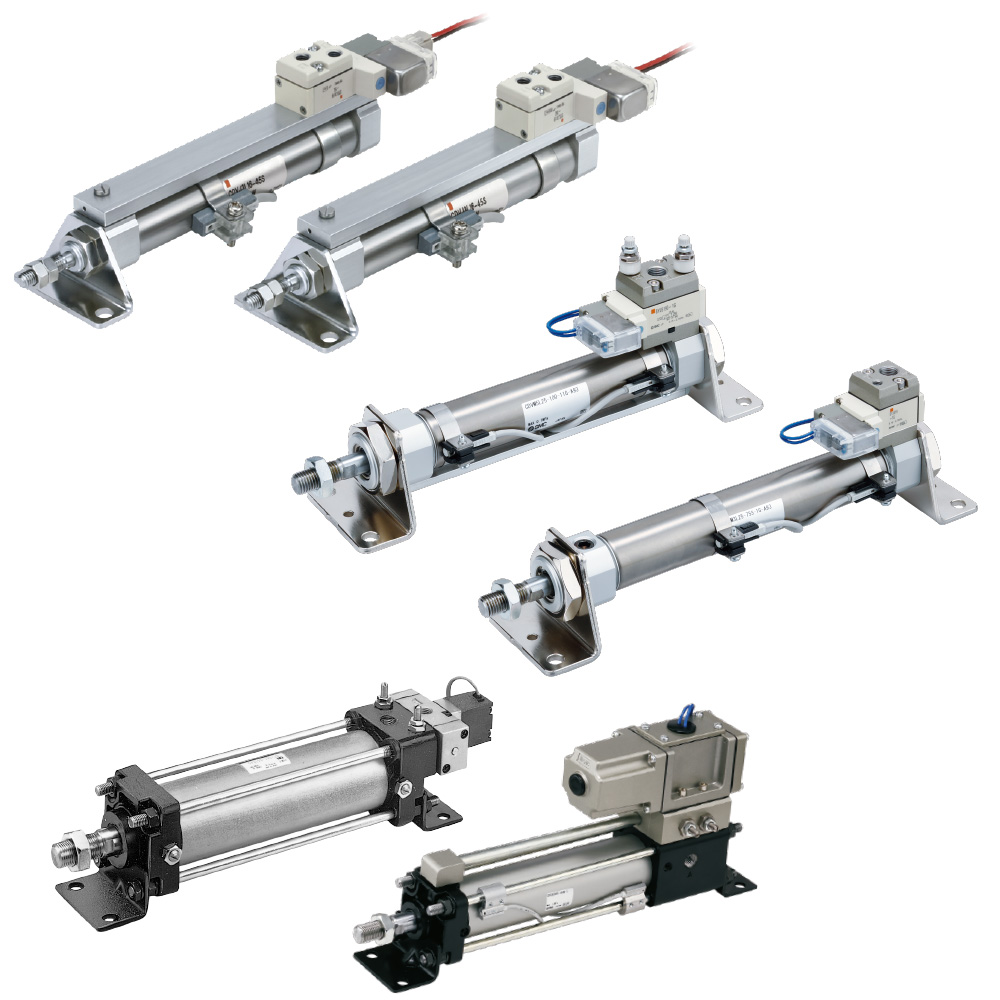

Valve Mounted Air Cylinder CV□/CDV□

Air Cylinders ? Valve Mounted Air Cylinders
    ?Valve is mounted on a round cylinder.
    ?Built-in speed controller for some models
    ?A cylinder with a valve makes it easy to adjust the speed.
    ?With auto switch (CDVJ series: CDVJ5, CDVJ3,
    　CDVM series: CDVM5, CDVM5K, CDVM3, CDVM3K,
    　CDV3 series: CDV3, CDV3K,
    　CDVS1 series: CDVS1, CDVS1K)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Valve Mounted Air Cylinder CV□/CDV□
    Manual
    Type Series Action View search result
    StandardCVJ5Double acting, Single rod
    StandardCVJ3Single acting (Spring return/Extend)
    StandardCVM5Double acting, Single rod
    StandardCVM3Single acting (Spring return/Extend)
    StandardCV3Double acting, Single rod
    StandardCVS1Double acting, Single rodView search result
    Non-rotating rodCVM5KDouble acting, Single rod
    Non-rotating rodCVM3KSingle acting (Spring return/Extend)
    Non-rotating rodCV3KDouble acting, Single rod
    Non-rotating rodCVS1KDouble acting, Single rod
  • Valve Mounted Air Cylinder CV□/CDV□
    Symbol Specifications Download
    -XA0 to XA30 Simple Specials Change of rod end shape PDF
    -XC14 Simple Specials Change of trunnion bracket mounting position PDF
    -XC15 Simple Specials Change of tie-rod length PDF
  • Valve Mounted Air Cylinder CV□/CDV□
    Symbol Specifications Download
    -XC4 Made to Order Common Specifications With heavy duty scraper PDF
    -XC6 Made to Order Common Specifications Made of stainless steel PDF
    -XC7 Made to Order Common Specifications Tie-rod cushion valve tie-rod nut etc. made of stainless steel PDF
    -XC22 Made to Order Common Specifications Fluororubber seals PDF
    -XC27 Made to Order Common Specifications Double clevis and double knuckle joint pins made of stainless steel PDF
    -XC28 Made to Order Common Specifications Compact flange made of SS400 PDF
    -XC29 Made to Order Common Specifications Double knuckle joint with spring pin PDF
    -XC35 Made to Order Common Specifications With coil scraper PDF
TypeSeriesActionBore size
（mm）		Component
Cylinder		Component
Valve
StandardCVJ5Double acting, Single rod10，16CJ2SYJ3190
StandardCVJ3Single acting (Spring return/Extend)10，16CJ2SYJ319
StandardCVM5Double acting, Single rod20，25
32，40		CM2VZ3□90
StandardCVM3Single acting (Spring return/Extend)20，25
32，40		CM2VZ319
StandardCV3Double acting, Single rod40，50，63
80，100		CA2-ZV3□08
StandardCVS1Double acting, Single rod40，50，63
80，100		CA2-ZVS4□24
Non-rotating rodCVM5KDouble acting, Single rod20，25
32，40		CM2KVZ3□90
Non-rotating rodCVM3KSingle acting (Spring return/Extend)20，25
32，40		CM2KVZ319
Non-rotating rodCV3KDouble acting, Single rod40，50，63CA1KV3□08
Non-rotating rodCVS1KDouble acting, Single rod40，50，63CA1KVS4□24
