Electric Actuators
» Rod Type/Guide Rod Type Series LEY/LEYG - Product Features
|

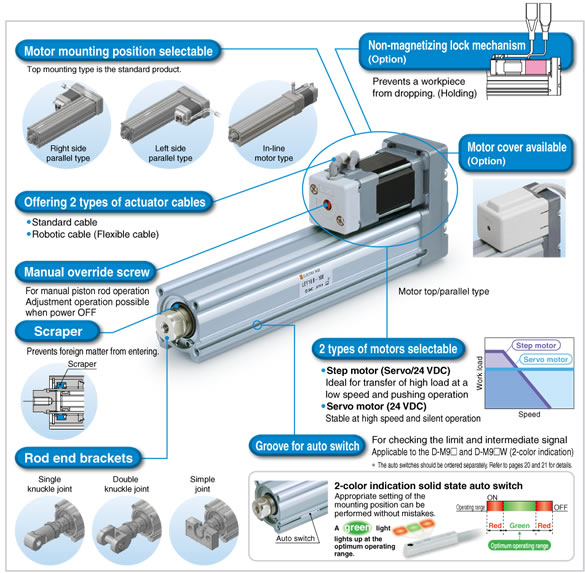

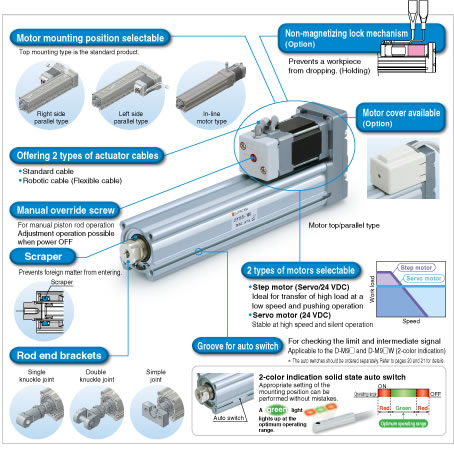

Rod Type Series LEY/ Size: 16, 25, 32
Control of intermediate positioning
and pushing is possible.
High precision with ball screws
- Speed control and positioning: Max. 64 points
- Long stroke: MAX.500 mm (LEY32）
- Either positioning or pushing control can
be selected.
Possible to hold the actuator with the rod
pushing to a workpiece, etc. - Auto switch mountable

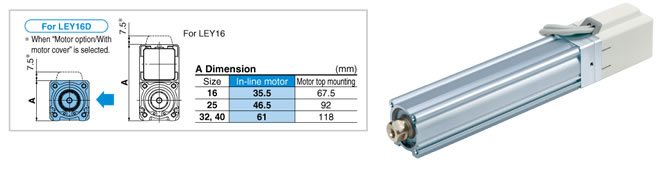

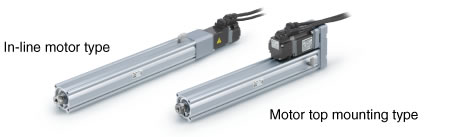

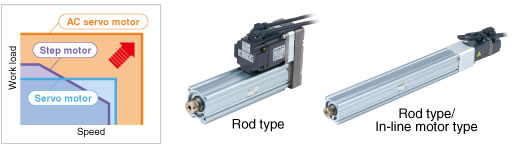

In-line motor type
- Height dimension shortened by up to 49%
|
Rod Type Series LEY/ Size: 25, 32
- High output motor (100 W/200 W)
- Improved high speed transfer ability
- High acceleration/deceleration compatible (5,000 mm/s2)
- Pulse input type
- With internal absolute encoder
(For LECSB/LECSC/LECSS)

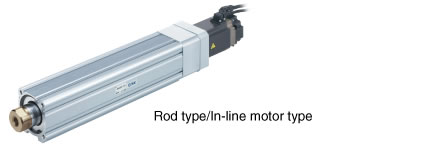

Added large bore size 63!
- Work load Horizontal 80 kg/Vertical 72 kg
- High output motor: 400 W
- Max. speed: 1,000 mm/s *500 stroke
- Max. pushing force: 1,910 (N)
- Dust/Drip Proof Specification (IP65)

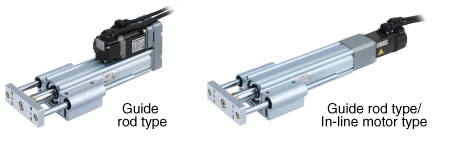

|Guide Rod Type Series LEYG / Size: 16, 25, 32
Compact integrated guide rods
Lateral load resistance and high
non-rotating accuracy
Improved rigidity Lateral end load: 5 times more
* Compared with rod type, size 25 and 100
stroke

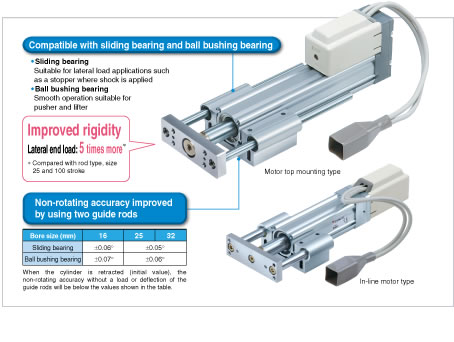

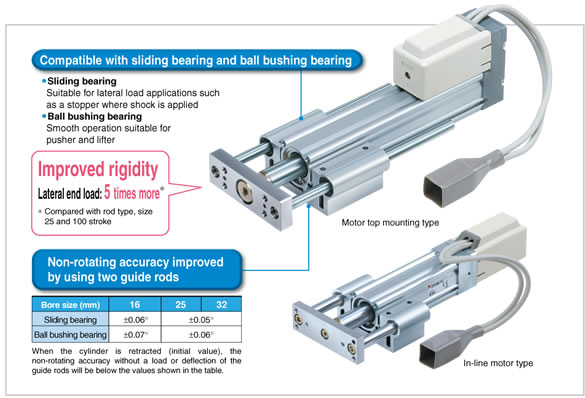

- Compatible with sliding bearing and ball bushing bearing
- Compatible with moment load and stopper (sliding bearing).
- Non-rotating accuracy improved by using two guide rods
|Guide Rod Type Series LEYG / Size: 25, 32

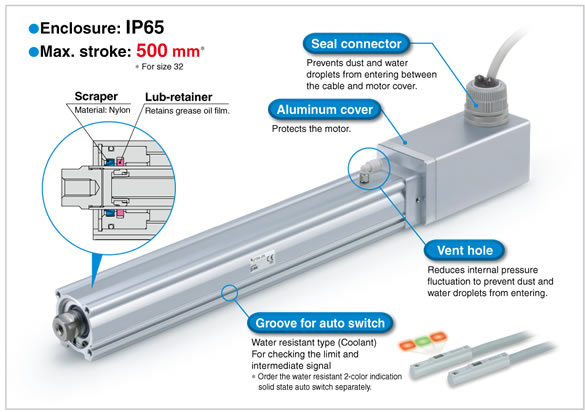

|Dust/Drip Proof (IP65) Specification
- Enclosure: IP65
- Max. stroke: 500 mm*
For size 32

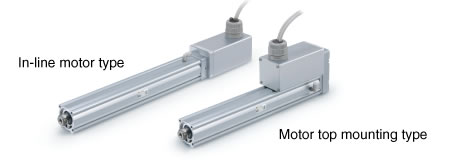

LEY-X5/Size: 25, 32
LEY-X5/Size: 25, 32

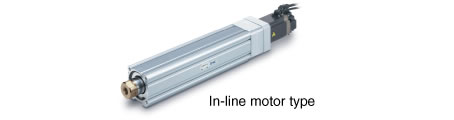

LEY63D□□-□P/Size: 63

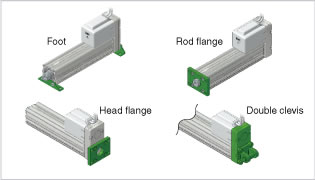

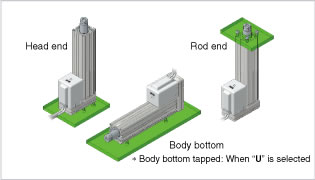

|Mounting Variations
Direct Mounting
Bracket Mounting
|Application Examples
Lifter
Pushing operation
Delivery
Press fitting
Stopper
Rotation
