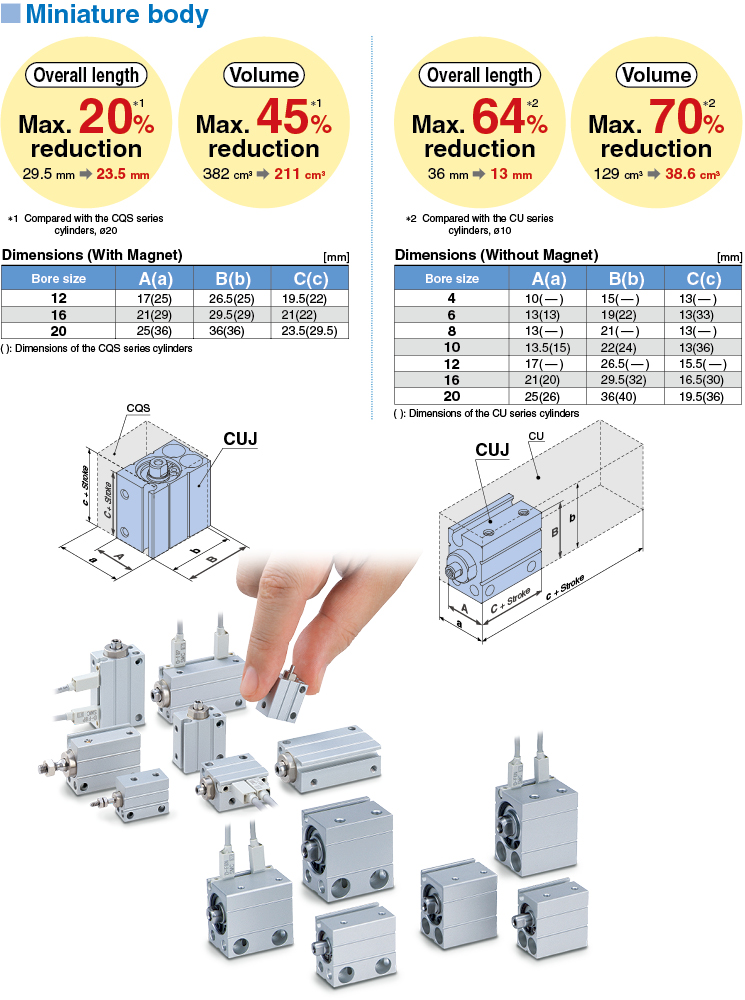

Mini Free Mount Cylinder CUJ/CDUJ

Features

2D/3D CAD

The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD

2D CAD
Click here for 2D CAD
Mini Free Mount Cylinder CUJ/CDUJ

Symbol Specifications Download
-XA1?2?6?7?11?17?18 Simple Specials CUJ(φ6 to φ20):Change of rod end shape PDF
Mini Free Mount Cylinder CUJ/CDUJ

Symbol Specifications Download
-XB6 Made to Order Common Specifications Heat resistant cylinder (－10 to 150℃) PDF
-XC22 Made to Order Common Specifications Fluororubber seals PDF

Symbol	Specifications	Download
-XA1?2?6?7?11?17?18 Simple Specials	CUJ(φ6 to φ20):Change of rod end shape	PDF

Symbol	Specifications	Download
-XB6 Made to Order Common Specifications	Heat resistant cylinder (－10 to 150℃)	PDF
-XC22 Made to Order Common Specifications	Fluororubber seals	PDF

Type	Series	Action	Bore size (mm)
Standard	CUJ	Double acting, Single rod	4，6，8，10，12，16，20
Standard	CUJ	Single acting (Spring return)	4，6，8，10，12，16，20
