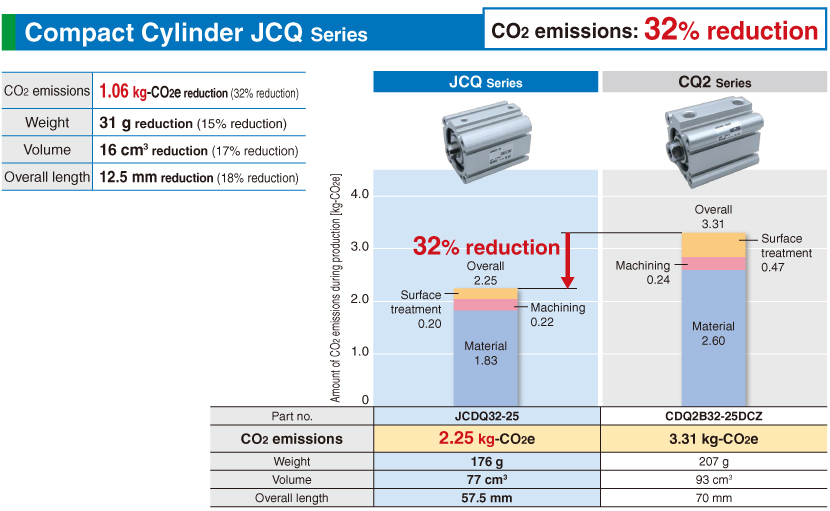

＊For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.
Product Information
Compact Cylinder JCQ/JCDQ
Air Cylinders ? Compact Air Cylinders
-
?Compact: Overall length shortened by 6.5 mm, Width shortened by 6 mm, Height shortened by 4 mm
?Weight: Max. 46% lighter (382 g → 204 g) (Flange mounting)
?Volume: Max. 40% reduction
?With auto switch (JCDQ series: JCDQ)
?An axial foot type and a flange type have been added. (?32 to ?100)
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | JCQ | Double acting, Single rod | 12，16，20，25，32，40，50，63，80，100 |
